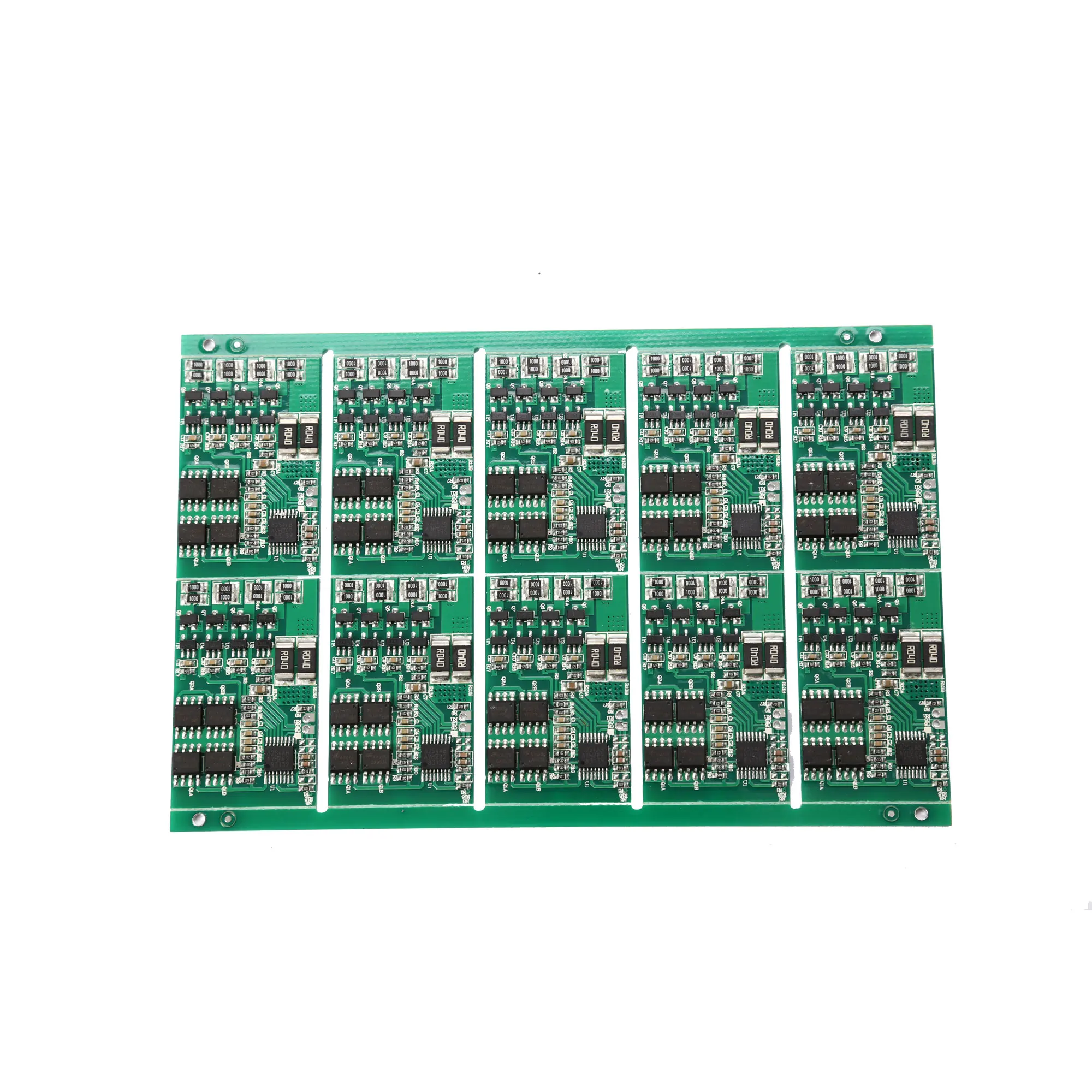

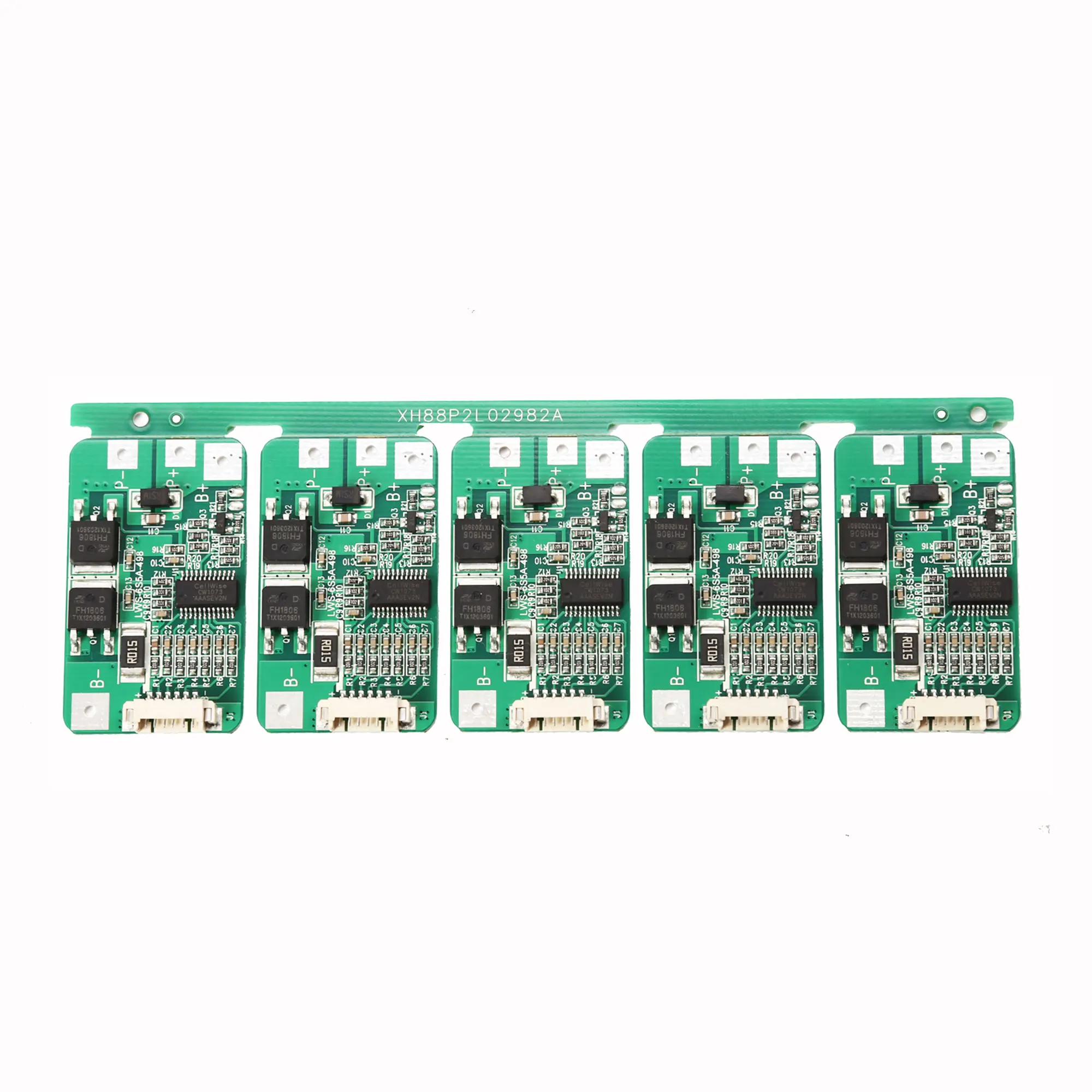

4s 7s 14.8v 26v Battery Management System lithium ion bms/pcm/pcb with temperature protection
- Category: >>>
- Supplier: Shenzhen Li-Ion Battery Bodyguard Technology Co. Ltd.
Share on (62536430745):
Product Overview
Description
Product Description
About your products,just tell us the relative voltage/ cells/ current A or equipment etc,we will help to recommend the most suitable products for you.
* Supply OEM/ODM and custom service
* High quality with smart balance function
* Wholesale price
* ISO9001/ISO14001/CE/ROHS certificates
* Fast delivery
Shenzhen Li-ion Battery Bodyguard Technology Co.,LTD | ||||||||
PCM Specifications For 26V （7S）Li-ion Battery Packs | ||||||||

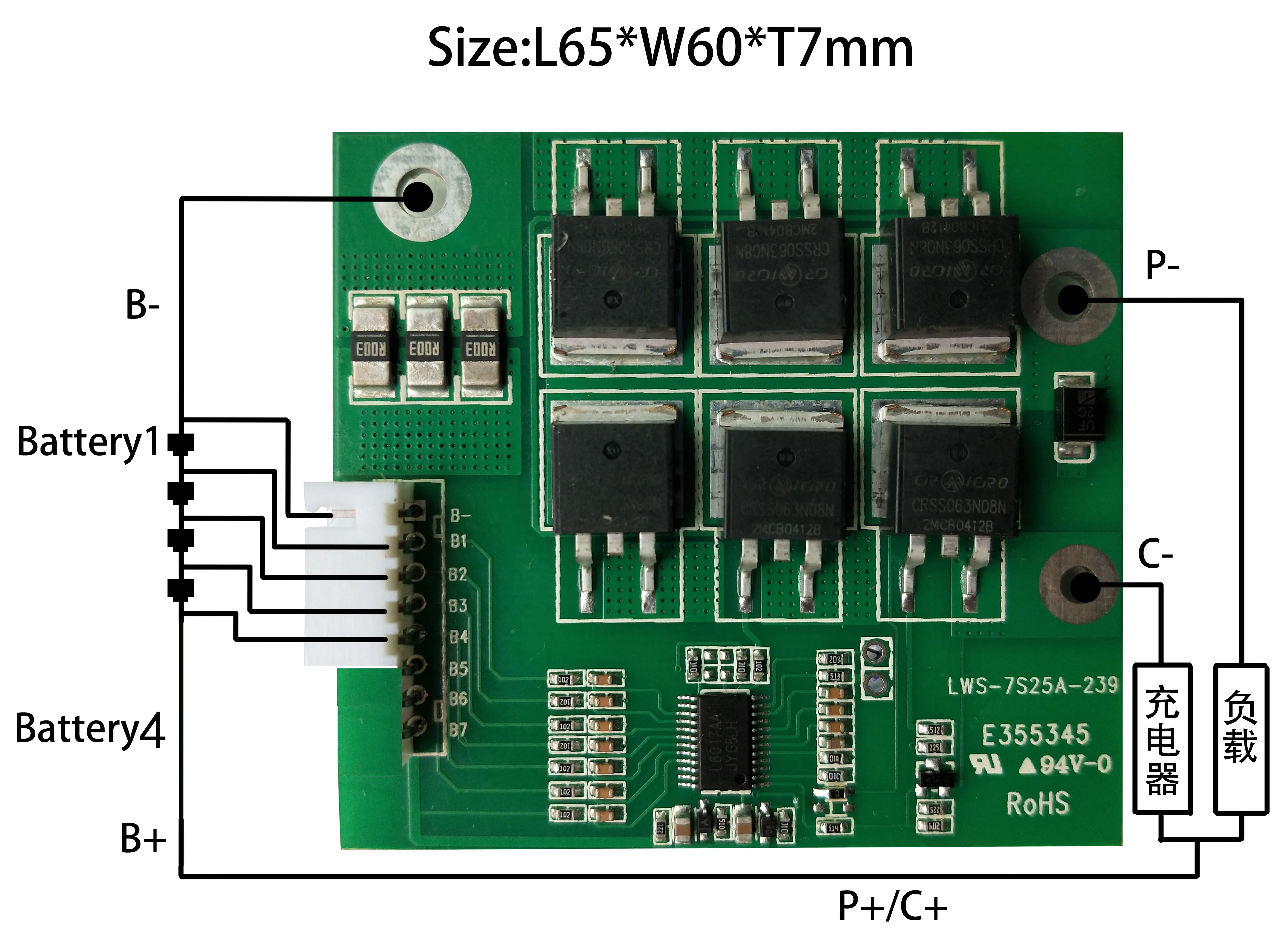

Modle: LWS-7S25A-239（7S） | ||||||||
No. | Test item | Criterion | ||||||
1 | Voltage | Charging voltage | DC:29.4V CC/CV | |||||
Balance voltage for single cell | ||||||||
2 | Current | Balance current for single cell | ||||||
Current consumption | ≤60μA | |||||||
Maximal continuous charging current | 5A | |||||||
Maximal continuous Discharging current | 25A | |||||||
3 | Over charge Protection | Over charge detection voltage for single cell | 4.25±0.025V | |||||
Over charge detection delay time | 0.7S—1.3S | |||||||
Over charge release voltage for single cell | 4.15±0.025V | |||||||
4 | Over discharge protection | Over discharge detection voltage for single cell | 2.7±0.08V | |||||
Over discharge detection delay time | 0.7S—1.3S | |||||||
Over discharge release voltage for single cell | 3.0±0.08V | |||||||
5 | Over current protection | Over current detection voltage | 0.1V | |||||
Over current detection current | 100±10A | |||||||
Detection delay time | 0.7ms—1.3ms | |||||||
Release condition | Cut load | |||||||
6 | Short protection | Detection condition | Exterior short circuit | |||||
Detection delay time | 200-500us | |||||||
Release condition | Cut load | |||||||
7 | Resistance | Protection circuitry（MOSFET） | ≤20mΩ | |||||
8 | Temperature | Operating Temperature Range | -40～+85℃ | |||||
Storage Temperature Range | -40～+125℃ | |||||||
Recommend Products
Our Company
Packing & Delivery
FAQ
Q: How do I judge what material my battery is ?
A: Please take a look at the battery body.if the normal voltage of your battery shows as 3.2V,the battery will be LiFePo4.If the normal voltage of your battery shows as 3.6V or 3.7V, the battery will be Li-ion or Li-polymer battery. you can also ask battery manufacturer the material of battery.
Q: Can I use this protection circuit board for my battery?
Q: Can I use this protection circuit board for my battery?
A: Can use this protection circuit board, or not? There are 2 questions:How much cells in series is your battery pack? The protection circuit board you need to buy must be same cells in series as your battery pack.What material is your battery? Only the LiFePo4 battery has different electric parameter from other battery, so if you need buy the protection circuit board for LiFePo4 battery , Please let us know firstly.
Q: Do we need cell balance or not?
A: The function of balance : Since battery is made of many pcs of cells in parallel and in series, the cells can't be the same as no two people in the world is the same , so can only put in group with similar performance is not consistent , which will lead to each cell voltage is not consistent as well after the completion of the charging if without balance fun
Q: Do you have Minimum Order Requirement (MOQ)?
A: No, We don’t have MOQ, Different customer have different requirement ,We can provide various capacity and size is per your requirements,Also ODM / OEM is welcome.
Q: What is your term of payment?
A: PayPal, T/T, L/C,
