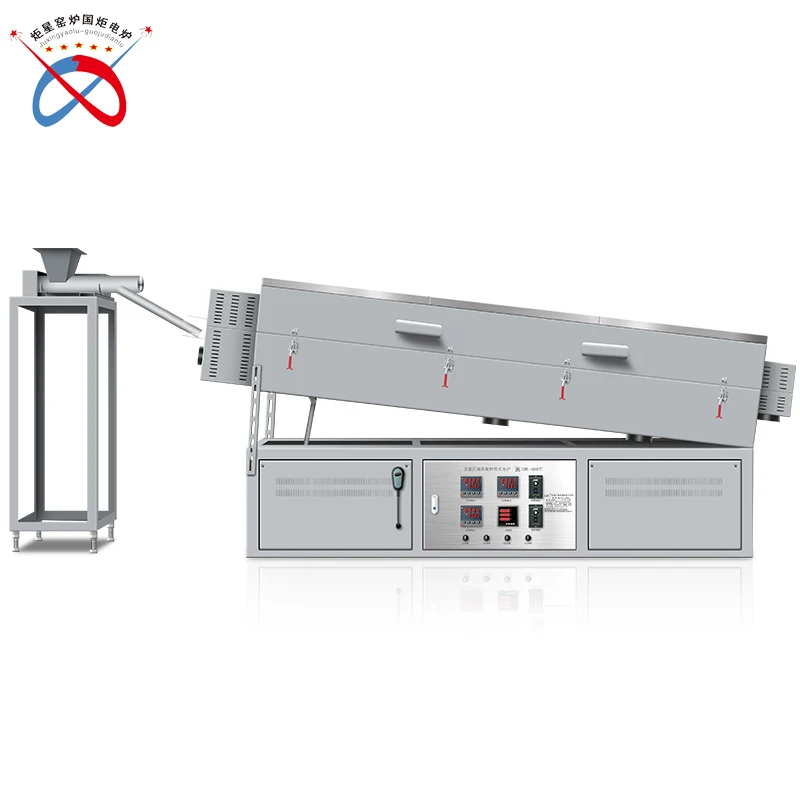

Powder Sintering High temperature Electric 3 Zone Tube Furnace
- Category: >>>
- Supplier: Luoyang Juxing Kiln Co. Ltd.
Share on (62536478636):
Product Overview
Description
Product Description
Product Name | High Temperature Tube Furnace |
Material | Aluminum Fiberboard(Refractory materials) + Superalloy resistance wire(Heating elements) |
Size of feeder | Depends on the customer's capacity requirements |
Quantity of Heating Zone | 3 (can be customize) |
Rotary Speed | 1-15 R/Minutes |
Incline Degree | 1-7 degree can be customize |
Vacuum possible? | Can be customized, specific information contact us |
Package | Composite wood packaging (fumigation free), or other wooden export packaging. Ensure the safety of the goods. |
Abstract
The tubular furnace is a new type of high performance and high energy saving furnace developed by the international advanced technology, the tube furnace with 3 independence temperature zone and the customizable screw feeders, convenience for the continuous production. With safe and reliable, simple operation, high-temperature control precision, good insulation effect, large temperature range, high-temperature uniformity in the furnace, many temperature zones, optional atmosphere, vacuum furnace, etc.
Principle

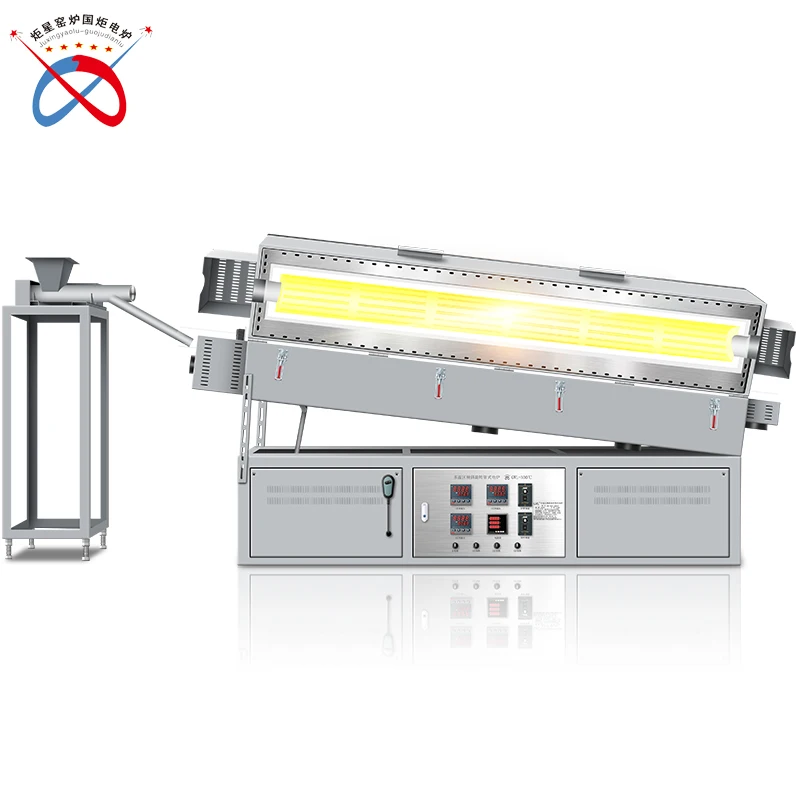

An electric screw feeder is adopted to facilitate manual feeding of customers. After the material enters the feeder, it enters the furnace tube through the screw push rod of the feeder. The furnace body has an inclined angle, and the material can be moved in the tube while the furnace tube is rotating. The inside of the furnace tube is equipped with an inverted plate structure to make the material fully heated and avoid adhesion. After the material is heated by rotation, the material is automatically discharged from the end of the furnace tube for easy collection.

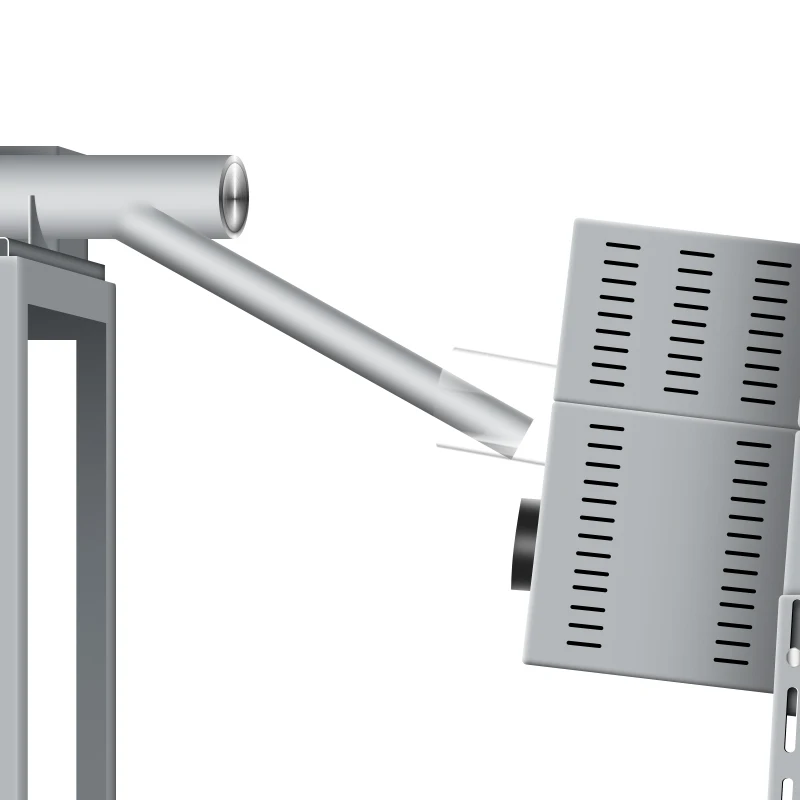

Customizable Screw Feeder
The Screw feeder is also called screw conveyor, screw conveyor and scraper conveyor, bucket conveyor and other transport equipment. It is characterized by high conveying efficiency, safe and reliable work, simple structure, complete function, good sealing, low noise and beautiful appearance. GWL can be customized according to the customer's processing requirements.
Tube materials
Heat resistant steel, quartz glass, ceramic tubes and other materials are available for tube furnace. Heat resistant steel and quartz glass tubes are usually used in the temperature lower than 1200 degrees , and ceramic tubes are used the temperature lower than 1700 degrees. GWL provides different choices of furnace tube materials to facilitate customers' selection of furnace tube materials for their processes.
Title goes here.

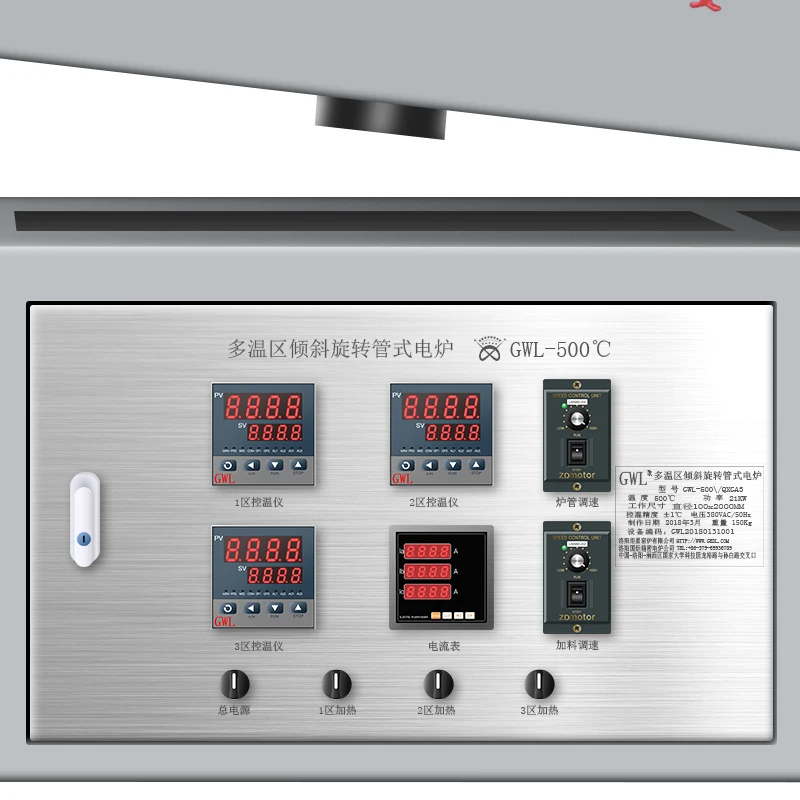

The control panel is equipped with an intelligent temperature controller so that the working status of the system can be observed at any time. This product uses a reliable integrated circuit, and the working environment is good. greatly improves the working environment, programmable curve, flexible andconvenient, simple operation. A knob switch is provided to set the rotation speed and tilt Angle.
Super Alloy Resistance Wire
Nicrresistancewire(contains molybdenum)has the characteristics of high resistivity,Good corrosion resistance at high temperature, especially suitable for use in an atmosphere containing sulfur and sulfide, low resistance temperature coefficient, and high operating temperature. normally maximum using temperature is under 1200c.
Silicon carbide rod(Sic)
Silicon carbon rod is made of high purity green hexagonal silicon carbide as the main raw material, according to a certain ratio of processing and blank, after 2200℃ high temperature silicon recrystallization sintering and made of rod, tubular non-metal high temperature heating element.It is usually used below 1600 degrees Celsius.
Silicon molybdenum rod(Mosi2)
Mosi2 resistive heating element, based on molybdenum disilicide, resistant to high temperature and oxidation. When used in a high-temperature oxidizing atmosphere, a layer of bright and SiO2 glass film is formed on the surface, which can protect the inner layer of the si-mo rod from oxidation.Normoly using under 1800 degrees Celsius.
Product Usage
Product Applications
Tubular atmosphere resistance furnace is mainly used in metallurgy, glass, heat treatment, lithium positive and negative materials, new energy, abrasive tools and other industries to determine the material in a certain atmosphere conditions of professional equipment.
Packing&Shipping
The normal package is the wooden box(Size: L*W*H). If export to European countries, the wooden box will be fumigated.If the container is too tight, we will use pe film for packing or pack it according to customers special request.
Shipment by sea, by air or by express as per customer's requirement.Our company has established a cooperative relationship with many logistics enterprises to guarantee the safe transportation of goods and the time limit.
Company Introduction
Luoyang Juxing Kiln Co., Ltd which is a manufacturing company that manufactures good & high-quality electric resistance laboratory furnaces and industrial kilns. The company provides the customized products and OEM service. The factory owns proficient skills and an updated machine. the company has passed the IOS quality management system. and some products have passed the EU CE certificate.
Our Services & Strength
Our product has widely used in ceramics, metallurgy, electronics, glass, luminescent materials, non-ferrous metals, chemical industry, machinery, refractories, new materials development, special materials, building materials, and other fields.And can be customized according to the customer's process requirements.
All kinds of electric furnaces have a high degree of automation and are at the leading level in China. They are sold to more than 20 provinces, municipalities, autonomous regions and special zones in China, national key colleges and universities, national key laboratories, Chinese Academy of Sciences, and High School Research Institute. Countries such as North America, Russia, the Philippines, and Japan. has a high reputation in the industry.
