Automatic Pneumatic Steel plate double head chamfering machine for sale
- Category: >>>
- Supplier: Zhangjiagang Deyu Machinery Co. Ltd.
Share on (62536613543):
Product Overview
Description
Product Description

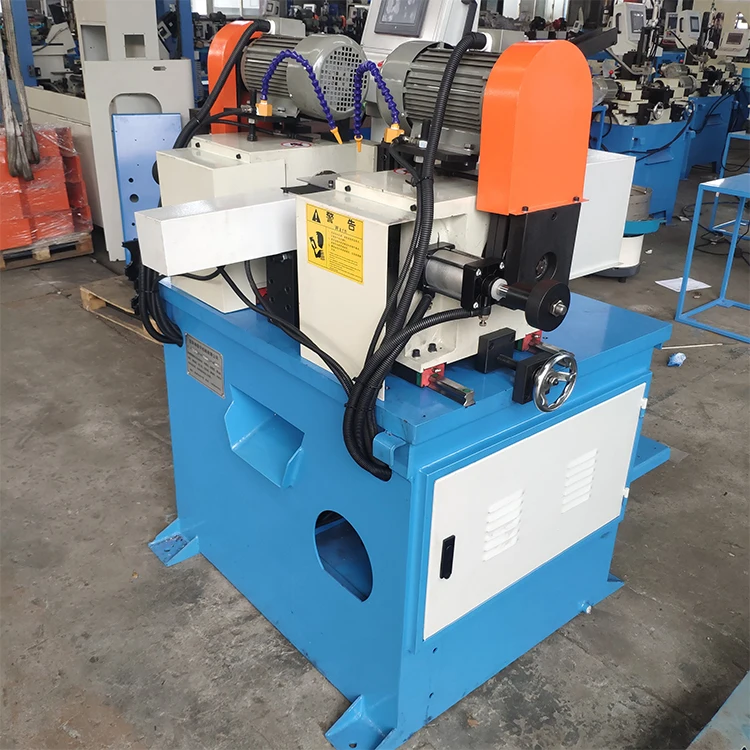

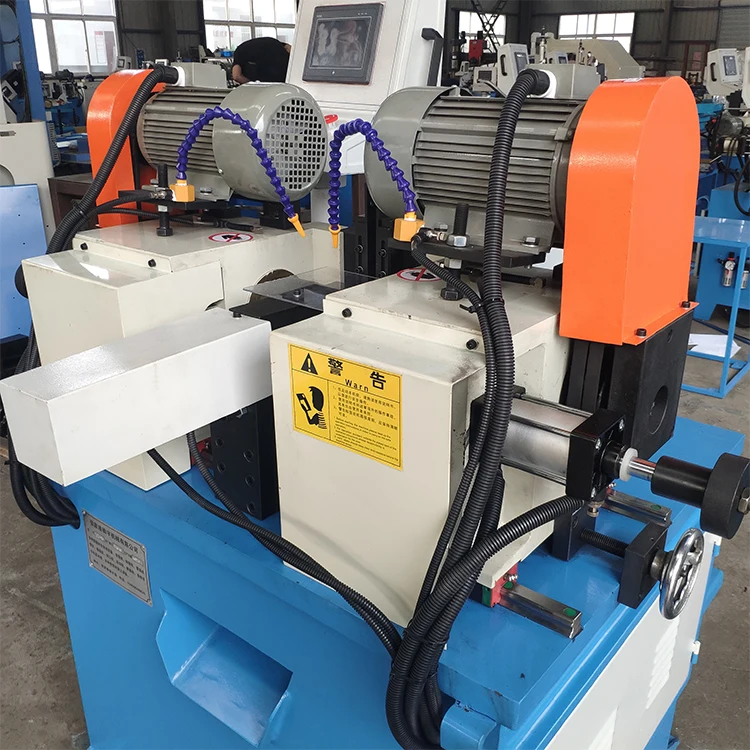

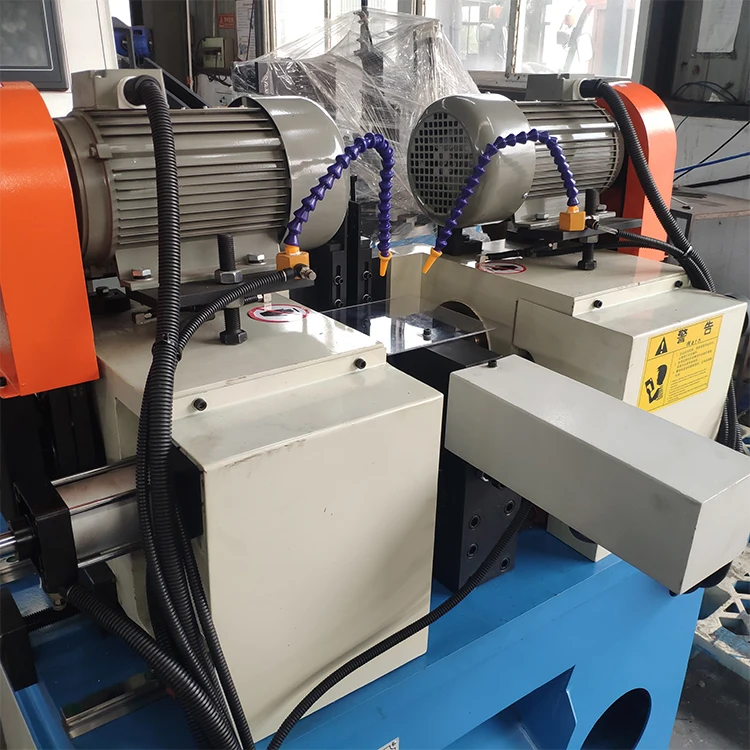

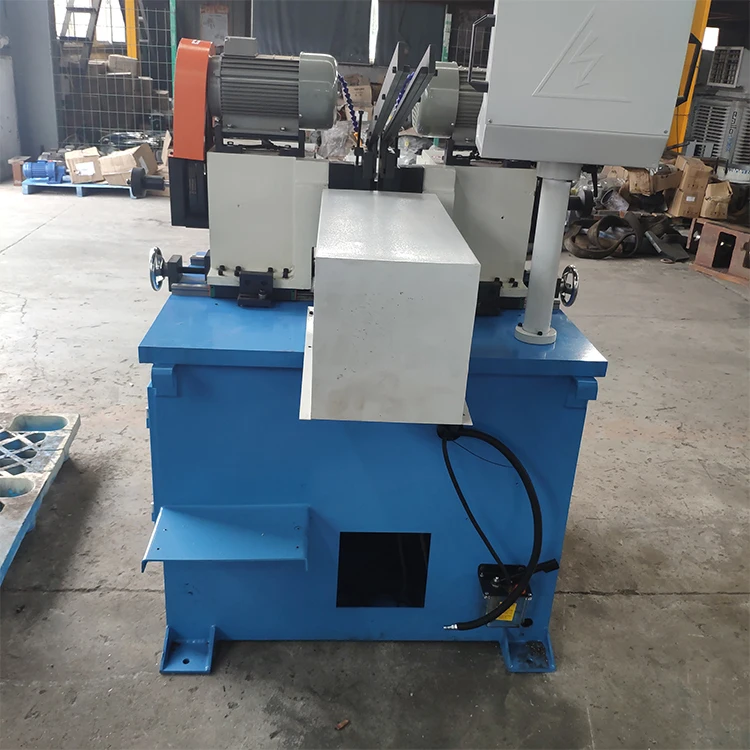

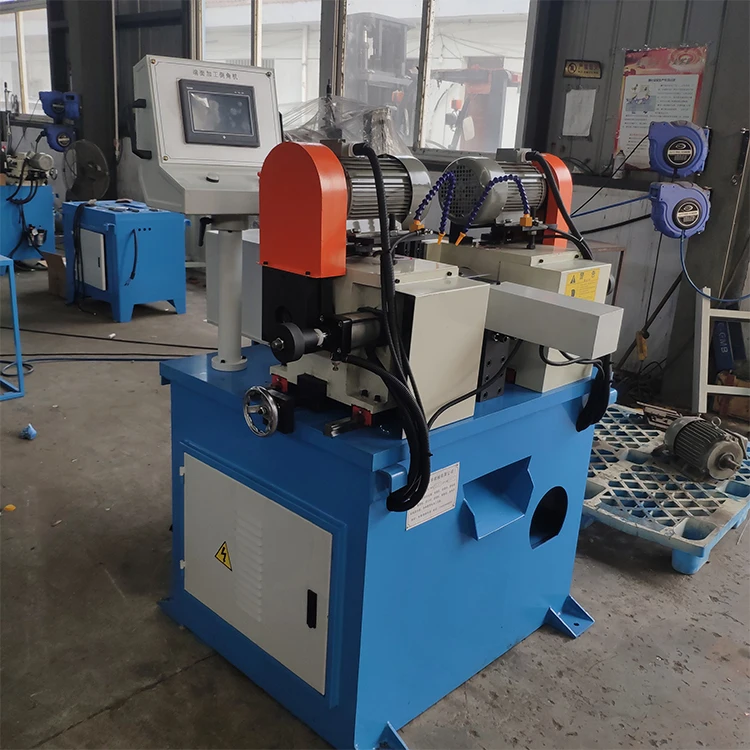

Automatic Pneumatic Steel plate double-head chamfering machine for sale
| Model | DY-50SM |
| Main motor power | 1.5KW * 380V * 50HZ (2 sets) |
| Main motor brand | Guanshun / export |
| Origin of main motor | Haian |
| Bearing brand | NTN |
| Cylinder specifications | Deyu Custom |
| Electrical brand | Chint |
| Origin of touch screen | Shenzhen |
| Working pressure | MPA6-8KG |
| Applicable outer diameter | Φ8-Φ20mm / Φ20-Φ50mm |
| Processing length | Standard 100-600mm (can be extended) |
| Precision | ± 0.1mm |
| Processing speed | 3-5 seconds / piece |

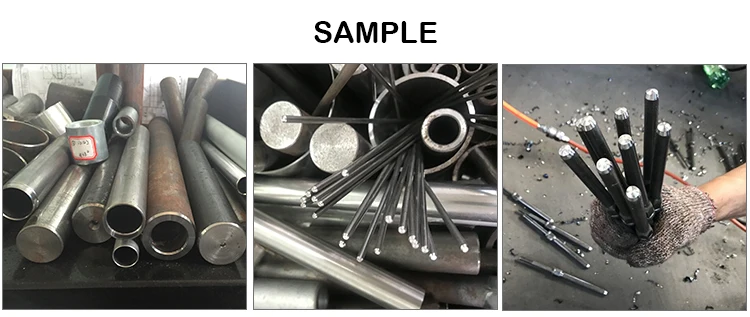

| Applicable material | Steel pipe, iron pipe, stainless steel pipe, aluminum pipe, copper pipe, plastic pipe, nylon pipe, round rod |
| Machine dimensions | Length Width Height 1800x1000x1100mm |
Product introduction
1. Automatic feeding, automatic clamping, automatic feeding and retracting, fast speed.
2. The clamping mold and cutter head have been exquisitely designed to ensure that the centerline of the processed object and the cutter head is exactly the same. The outer angle, inner angle and end face of the pipe end can be evenly processed at one time.
3. For workpieces of different sizes, it is only necessary to make simple adjustments of the cutter head and the clamping die.
4.Using the change of the pulley can change a variety of speeds to adapt to a variety of metal materials and achieve the longest tool life.
5. The two-stage feed speed saves man-hours, and the slow speed is easy to adjust, and the processing is perfect.
