GURKI GPK 40E Factory Made Corrugated Carton Erector Machine
- Category: >>>
- Supplier: Huizhou Gurki Intelligent Equipment Co. Ltd.
Share on (62536749754):
Product Overview
Description
Packing Solutions
Product Description

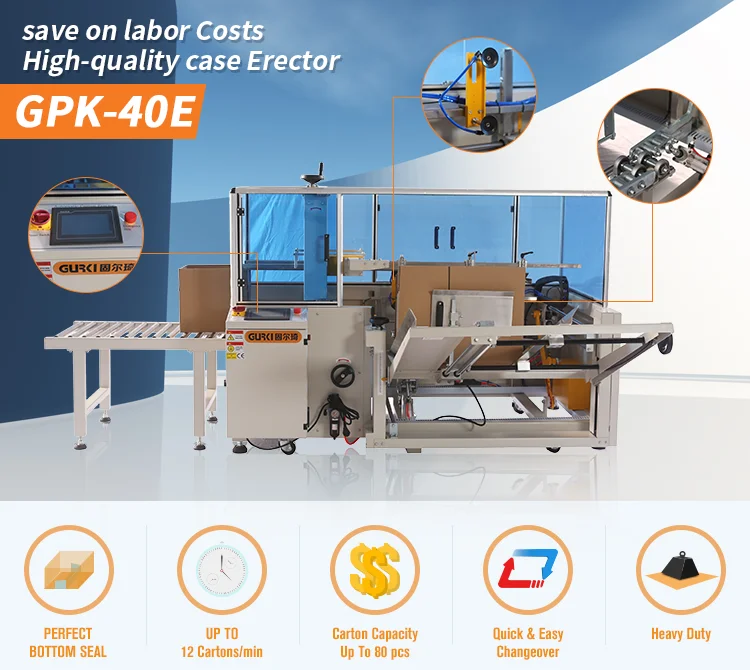

The Automatic Corrugated Carton Erector Machine GPK-40 is a vertical carton box forming machine, speed up to 8-12 boxes/min. PLC with interface control, non-stop in the whole process, which is-suction box, forming, folding bottom and sealing, easy operation and maintenance, stable.Suitable in Food, Medicine, Beverage, Daily necessities, Hardware, Electronic, and other industries.
Product Parameter
| Product No. | GPK-40E |
| Max Carton Size |
L450×W400×H400mm |
| Min Carton Size |
L250×W150×H100mm |
|
Carton Opening Speed |
12 ctns/min |
| Machine Size |
L2100×W2050×H1450mm |
| Power |
240W 110/220V 50/60Hz 1 Phase |
| Machine Weight |
450Kg |
|
Tape size |
48/60/75mm |
|
Carton Storage Quantity |
80-100pcs (800-1000mm) |
|
Air Consumption |
450NL/min |
|
Air Compressing |
6kg/cm3 |
|
Table Height |
620+30 mm |
Features
- Siemens PLC interface control
- Vertical storage box, add a box at any time, non-stop in the whole process
- Replace the carton size and adjust the machine in 1-2 minutes. easy operation and maintenance, stable
- Glass safety cover, automatically stop when the door is open
- Suitable for single machine operation or connecting production line. Standard machines are available in stock. Accept non-standard size customize.
