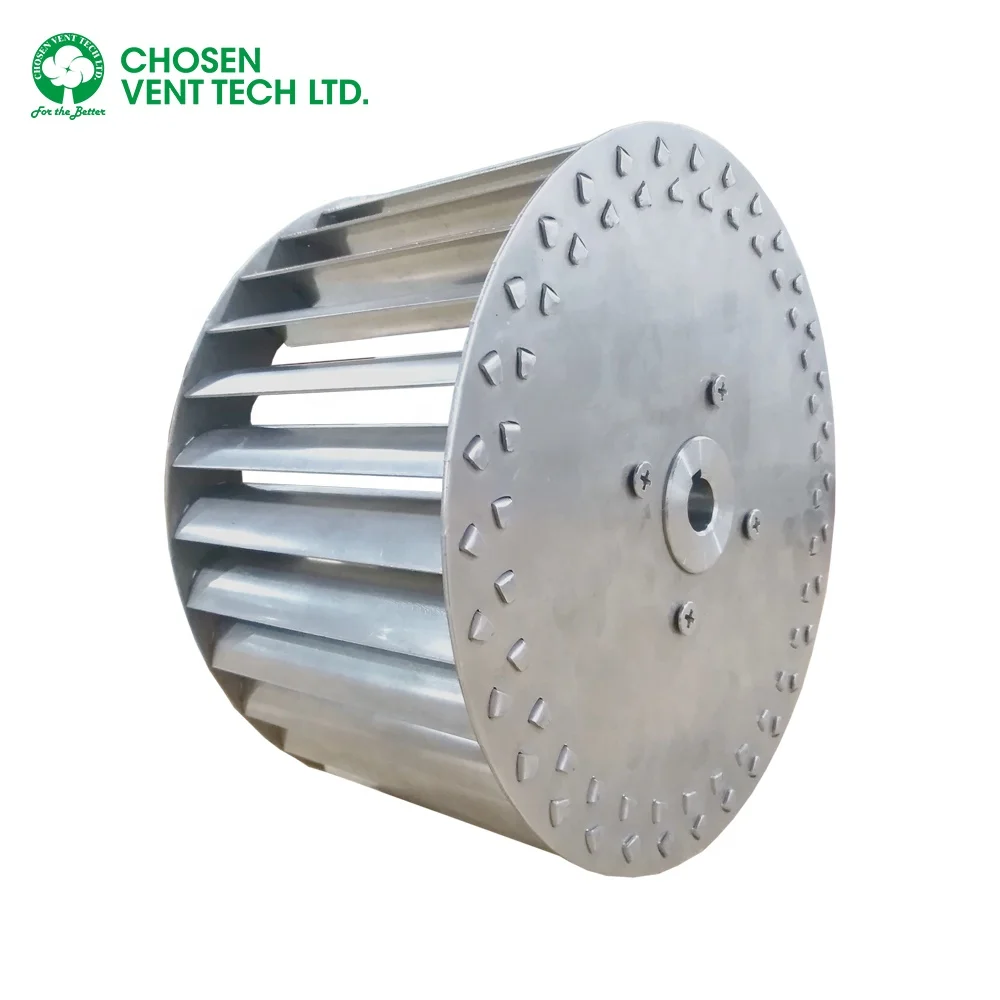

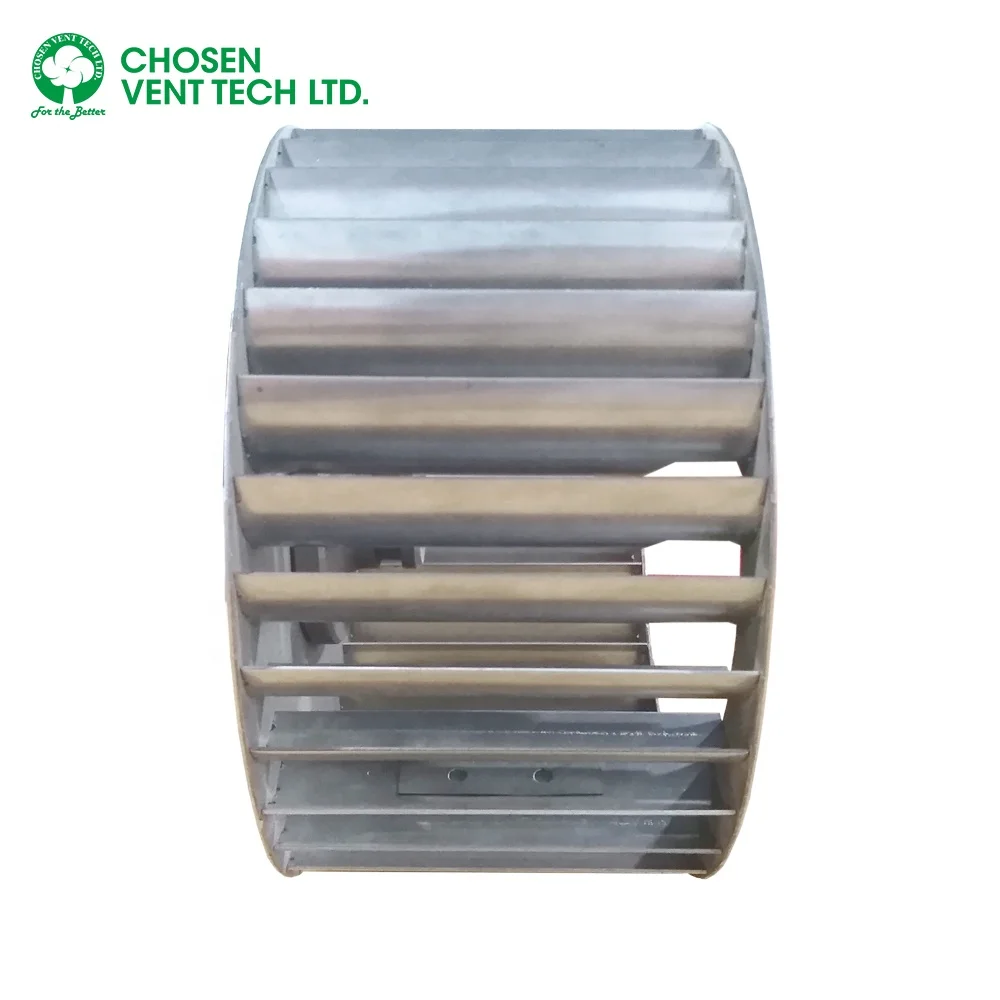

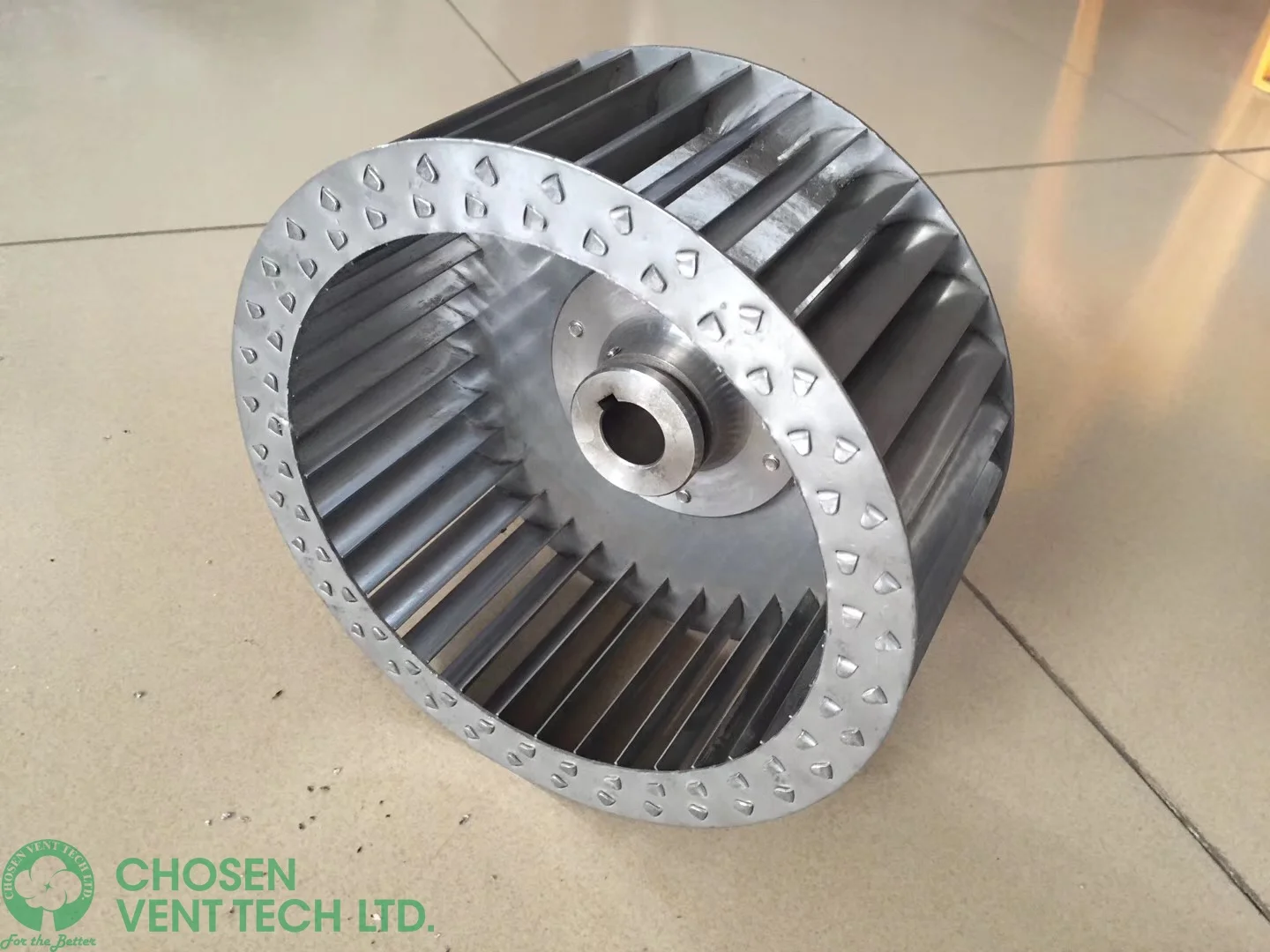

315mm Factory Customized Single Inlet Fan Wheel Centrifugal Impeller Standard,centrifugal Fan Inside The Fan or Machine

Product Overview

Description



 Advantages



1. Various material for option : Galvanized steel, Stainless Steel #304/#316/#316L, Aluminum Alloy.
2. Each impeller will do by dynamic balancing test. It greatly improves the stability of the impeller operation and reduces the vibration & noise.
3. Each impeller also so Radial Running, Axial Viberation.
4. The impeller be test by completed build-up centrifugal fan, the air Performance Parameter is truth and reliable.
5. High static efficiency.

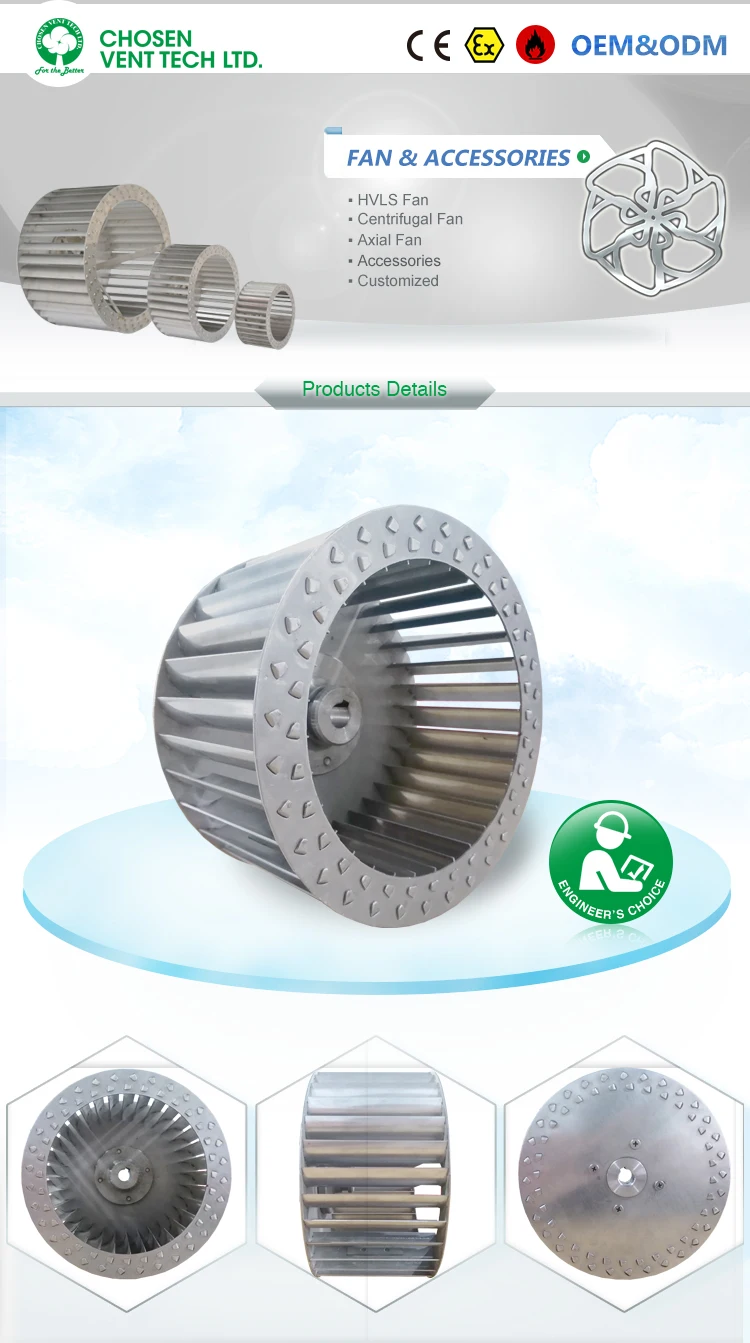

FORWARD IMPELLER(SWSI) - FSWA
Type	Model	φA	B	φD
		mm	mm	mm
Standard type	FSWA-160	160	70	14
	FSWA-190	190	100	19
	FSWA-200-1	200	90	19
	FSWA-200-2	202	88	20
	FSWA-225	228	98	20
	FSWA-230	230	100	19 / 24
	FSWA-250-1	250	100	19 / 24
	FSWA-250-2	254	109	25
	FSWA-270	270	117	19 / 24
	FSWA-280	284	123	30
	FSWA-300-1	300	150	24
	FSWA-300-2	300	195	24
	FSWA-315	318	137	30
	FSWA-350-1	350	150	28
	FSWA-350-2	350	195	28
	FSWA-355	358	154	35
	FSWA-400-1	400	150	28
	FSWA-400-2	400	287	38
	FSWA-400-3	404	174	35
	FSWA-450-1	450	195	38
	FSWA-450-2	454	195	40
	FSWA-500-1	500	287	38
	FSWA-500-2	504	217	40
	FSWA-550	550	287	38 / 42
	FSWA-560	564	243	45
	FSWA-600	600	287	42
	FSWA-630	634	273	45
	FSWA-710	714	309	50
	FSWA-800	804	347	55
	FSWA-900	906	389	60
	FSWA-1000	1006	432	65
	FSWA-1120	1126	483	75
	FSWA-1250	1256	541	80
	FSWA-1400	1406	605	80
High pressure type	FSWA-200-H	200	100	20
	FSWA-225-H	225	110	20
	FSWA-250-H	250	120	25
	FSWA-280-H	280	140	30
	FSWA-315-H	315	158	30
	FSWA-355-H	355	175	35
	FSWA-400-H	400	200	35
	FSWA-450-H	450	225	40
	FSWA-500-H	500	245	40
	FSWA-560-H	560	280	45
	FSWA-630-H	630	305	50
	FSWA-710-H	710	340	50
	FSWA-800-H	800	395	55
	FSWA-900-H	900	450	60
	FSWA-1000-H	1000	500	65
Click here for more product parameters.





 Applications



1. Integrated fans.
2. roof ventilators.
3. ventilation and air-conditioning systems (HVAC/AHU).
4. industrial applications.
