Our 8CH POE NVR can connect 8 cameras max, so you can add extra cameras in the future

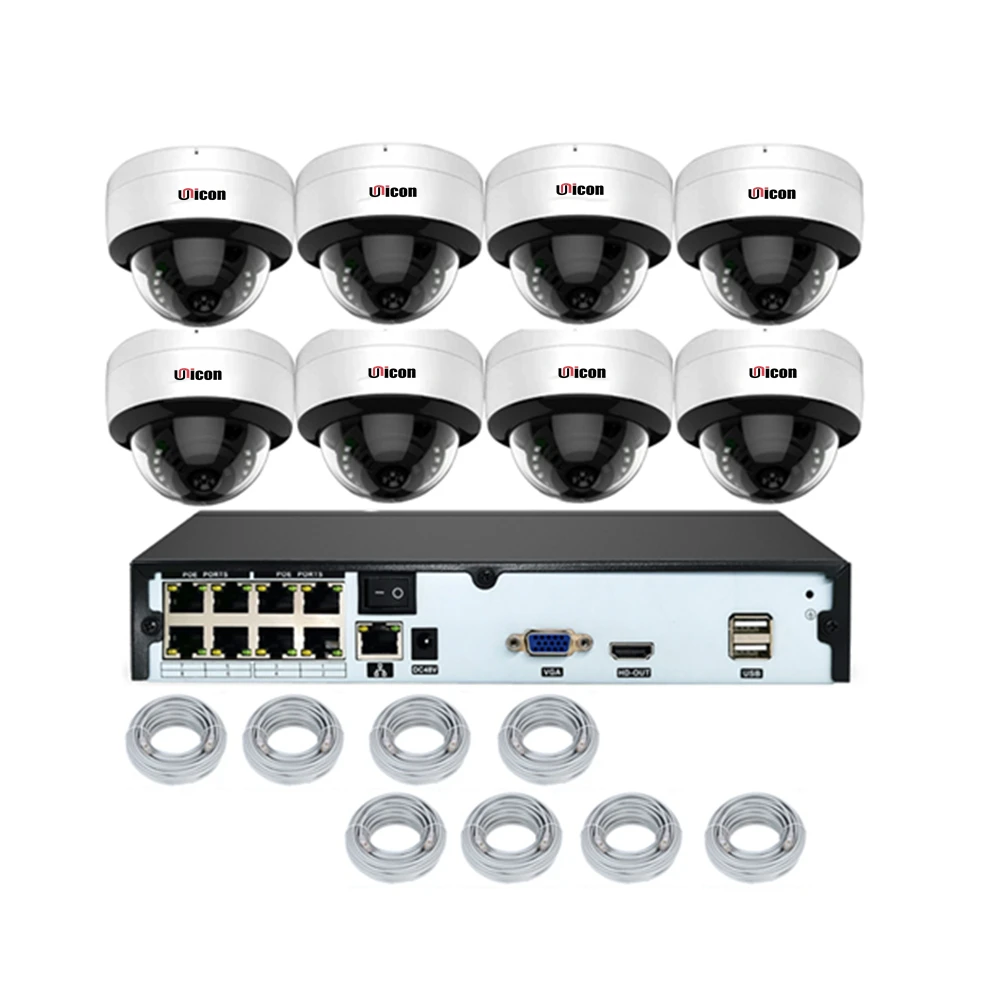

Package Includes
1 x H.265 8CH 1080P 48V NVR built in 8 POE port
8 x 2.0MP 1080P Waterproof Outdoor IP Cameras
8 x 20M Power Network Cable for Cameras
1 x Power Supply for NVR
1 x Mouse for NVR
1 x CD software
1 x User manual
NO HDD (need buy extra)
Compression
H.265 Standard Compression
Operation
Embedded Linux
Image coding-control
Image edit adjustable,both changeable and fix stream optional
Dual stream
Can be set up in each channel
Monitor Image quality
2592 x 1920
Image dynamic detection
Multiple detection areas in each channel
Video frame rate
5MP 20fps
Video mode
Support manual,automatic,dynamic monitoring,alarm trigger video mode
Backup mode
U disk,USB portable disk,USB burn,Network storage and backup
Operate mode
Mouse,Front Panel Control
Login locally
admin and password
Save recording
Local hard disk and network
External Interface
Audio input
RCA*4
Video output
VGA*1, HDMI*1
Audio output
RCA*1
Network interface
10M/100M base-T Ethernet(RJ-45)
USB connect port
USB*2
RS485
RS485*1
Alarm input
N/A
Alarm output
N/A
Hard disk
Internal HDD
1 SATA HDD Port
Maximum Capacity
Maximum 4TB Each SATA
Cell phone monitoring
Support Window Mobile,iphone ,ipad,Android
Power
12V/2A
Operating Temperature
-10~50 degree
Operating humidity
10%-90%
