High Quality 5.5kw 7.5hp Solar Deep Well Pump Submersible Solar power Water Pump

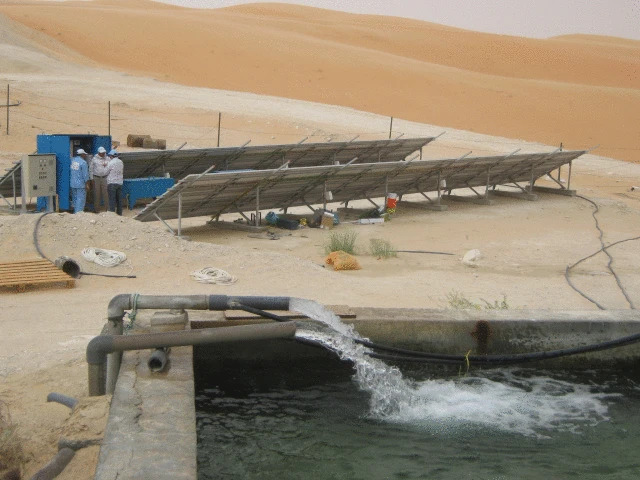

Solar water pumping system

Product Introduction This Product is specially designed solar pump inverters.solar pump inverter transfer solar DC current to be AC to drive the water pump to work. With unattended automatic operation function.No need for batteries,water storage instead of battery,easy installation,low cost and low maintenance,economical and environmental protection,zero carbon emissions. Widely used in solar agriculture irrigation.irrigation station renovation,domestic water suooly,desert greening,etc.area.

 Technical Features

• Applicabal for various motors like IM, PMSM, BLDC etc.


• Use for single-phase 110V/220V and three-phase 220V/380V pumps.


• Power range:0.75KW-220KW. Built-in high-precision MPPT function, with accuracy reach up to 99%, make full use of solar energy.


• Automatic shutdown and restart, fully sutomatic contro, unattended:

                         (1)Well: Automatically stop when shortage of water, and automatically restart when with enough water.

                         (2)Tank: Automatically stop when full of water, and automatically restart when with shortage of water.

                         (3) Automatically sleep when sun is weak,such as sunset;automatically restart when sun is strong, such

                              as sunrise;

• Compatible with solar and mains power (or generator) input;


• Optional boost module for small power solar pump inverter, to reduce the number of solar panel and reduce the system cost.


• RS485 real-time remote monitoring system, remote control and monitoring system status.

Head & Flow Curve

• Model Identification

Note: 1 m³=1,000 litres

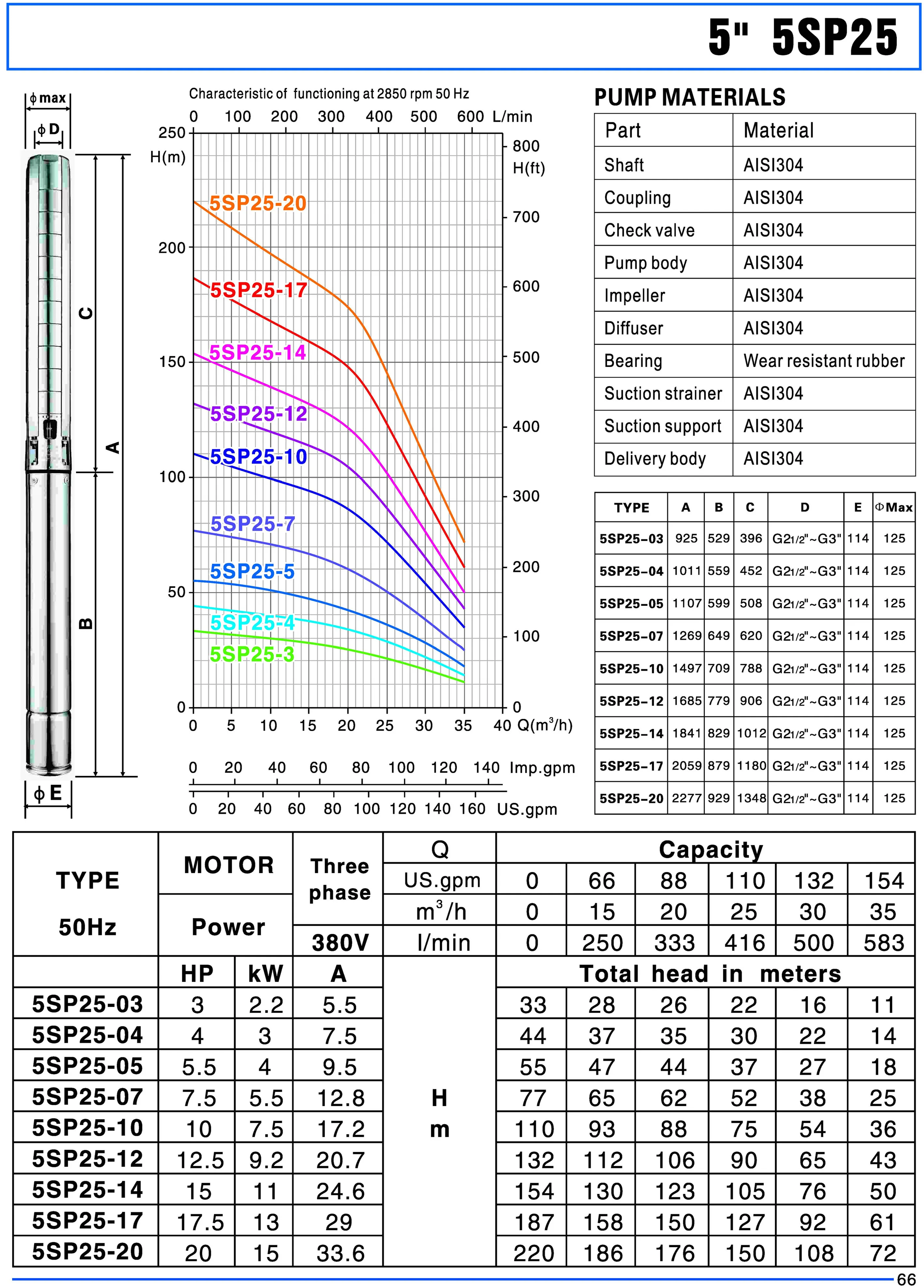

• Head & Flow performance curve

Note: Partial product parameter display

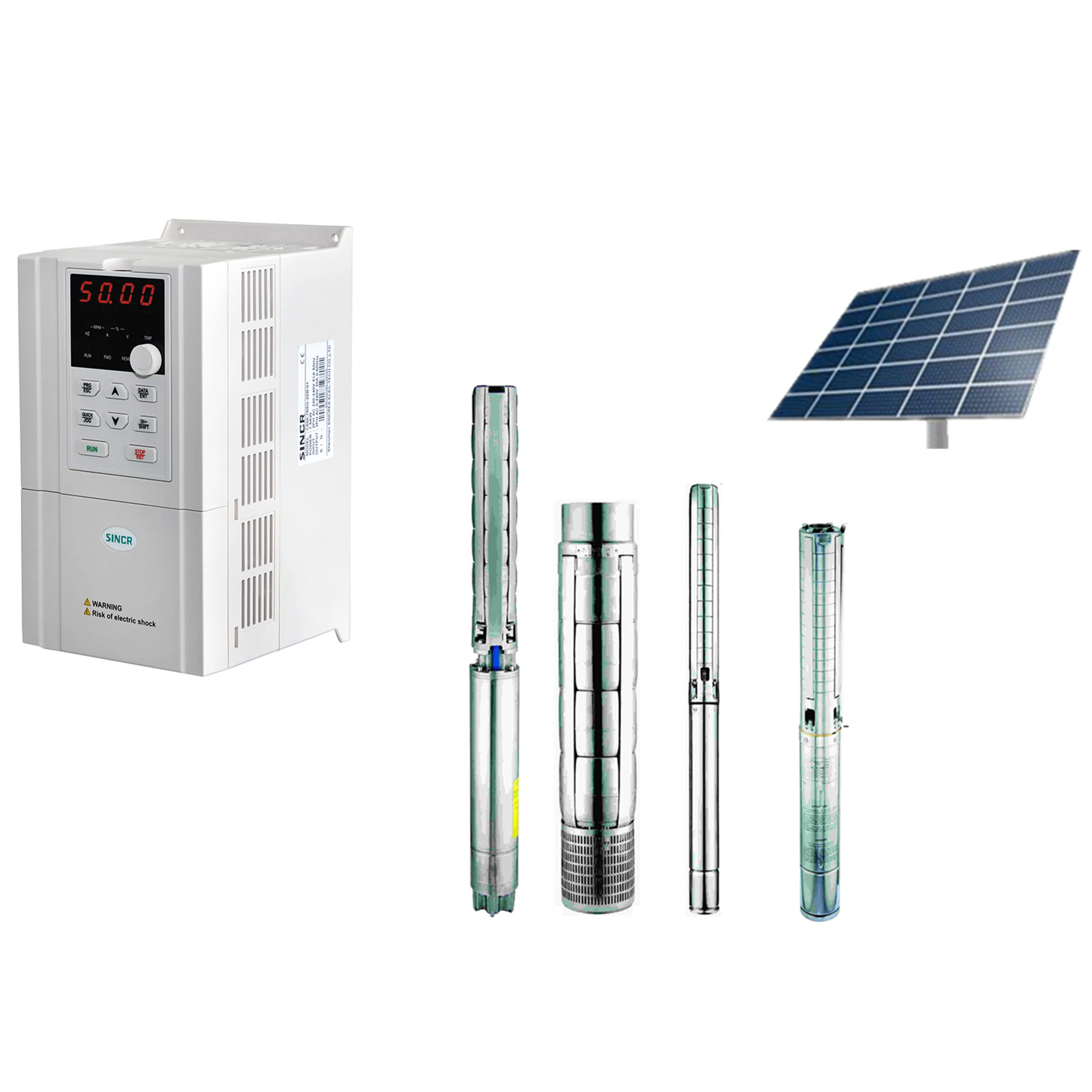

Detailed Images

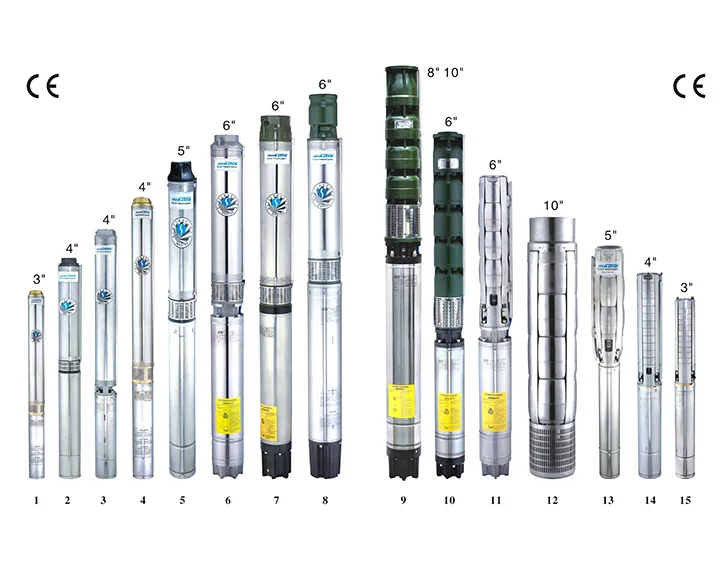

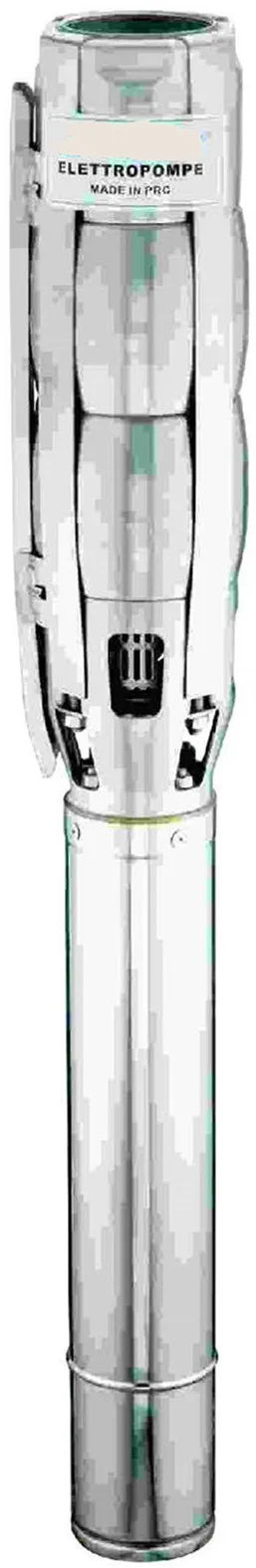

Pump Stainless steel 304, 316, iron casting, etc. Stainless steel screw and rubber stator, permanent Magnet Brushless motor.

Solar Pump Inverter Built-in high-precision MPPT function, with accuracy reach up to 99%, make full use of solar energy. RS485 real-time remote monitoring system, remote control and monitoring system status.

Solar panel High-efficiency monocrystalline and polycrystalline solar module with conversion efficiency up to 19.58%. 10-year material process warranty,25-year line warranty.

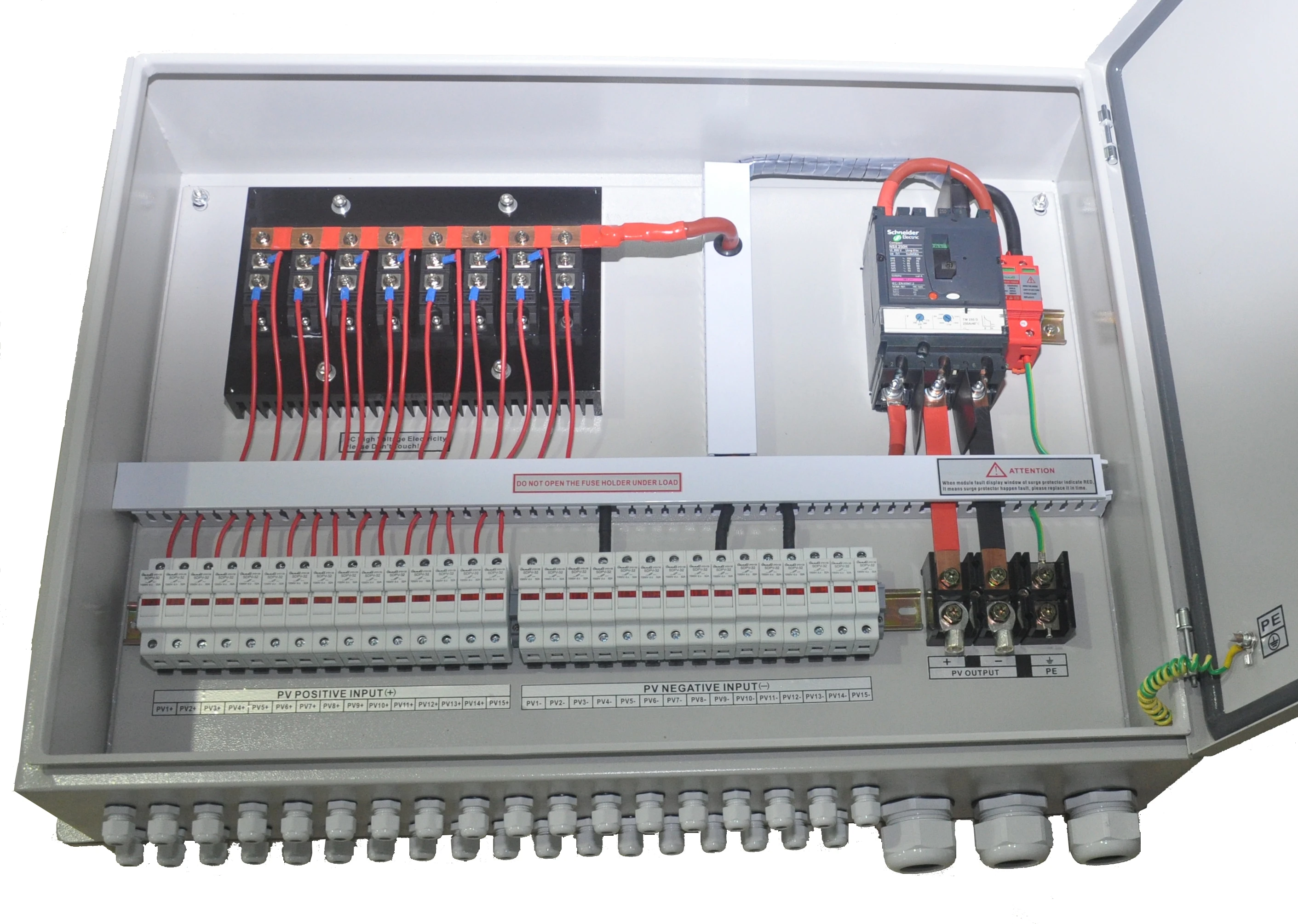

PV Combiner Box Used to reduce the wires connection between photovoltaic module and inverter, to facilitate maintenance, reduce loss, make system safety and reliability. In addition to the function of photovoltaic convergence, it also with many kinds of comprehensive function such as anti-reverse,over-current protection,overvoltage protection, lightning protection and fuse protection.etc. Note: can be customized according to requirements.

Accessories: Various AC/DC cables for the system. AC/DC breaker. MC4 connector MC4 branch connector. Steel wire rope and joint. Water level sensor. Output reactor and filter. PV installation tools. AC/DC multi-meter. Note: Accoring to the installation environment and conditions, other accessories can be configured.

Shenzhen SINCREA Electrical Technology Co., Ltd.is a National&Shen zhen High-Tech enterprises specializing in electric

drive,frequency inverter,industrial control,solar pump inverter, new energy products rese arch and development,production and sales.

SINCREA's production line:low,medium and high voltage inverters,servo drives,solar pump inverter,soft starters,PLC,HMI,UPS

and other products.The company has passed ISO9001: 201 5 quality  systemcertification and CE certification,widely used in plastic

machine,machine tool,textile,chemical,woodworking,metallurgy,mining,pharmaceutical,ceramics,paper,oil,printing,food,lifting,elevator,

power and energy.

SINCREA will adhere to the market-oriented,customer-centric business philosophy,and continuously develop and improve

our products to provide customers with differentiated products and services,and become a popular electric drive,new energy,and system

solutions supplier.

Certification

• CE & ISO9001 & 14001

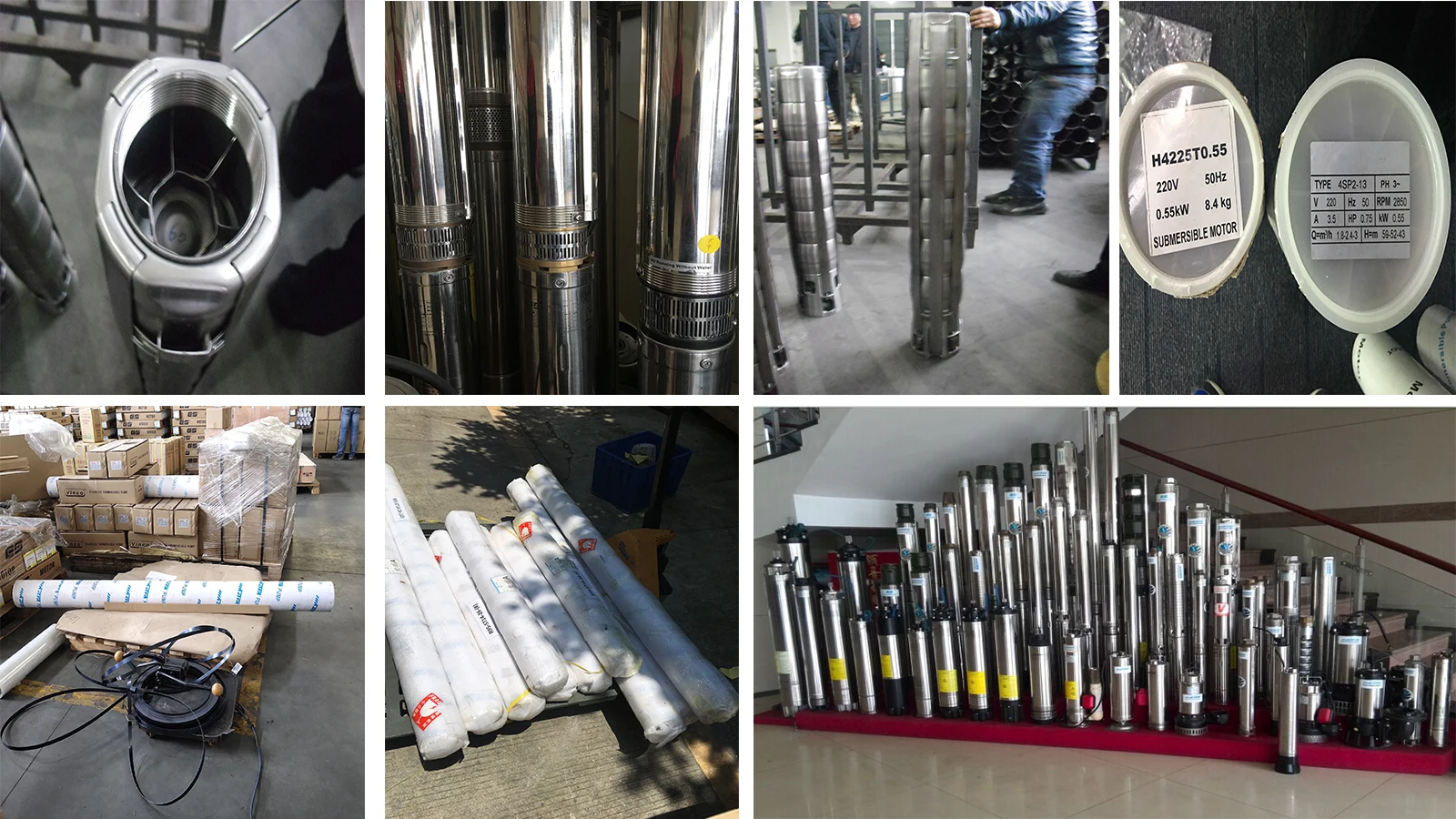

Packaging & shipping

Customer service and technical support :

1. Pre-sale service

• Listen to any raised needs and technical issues;


• Send relevant technical information and solutions quickly;


• Offer the best solution and quotation for the equipments;


• Provide convenience to visit factory and on-site inspections.

2. Sale service

• Treat very contract seriously, impartially and honestly;


• Implement the contracts on time and in good quality strictly ;


• Free to provide the service(installation, debug, trainning.etc).

3. After-sales service

• Free warranty in service period, lifetime cost price maintenance;


• After installation and commission, free training for system;


• Fault site: reply within 12 hours, dispatch staff within 3 days if necessary.
