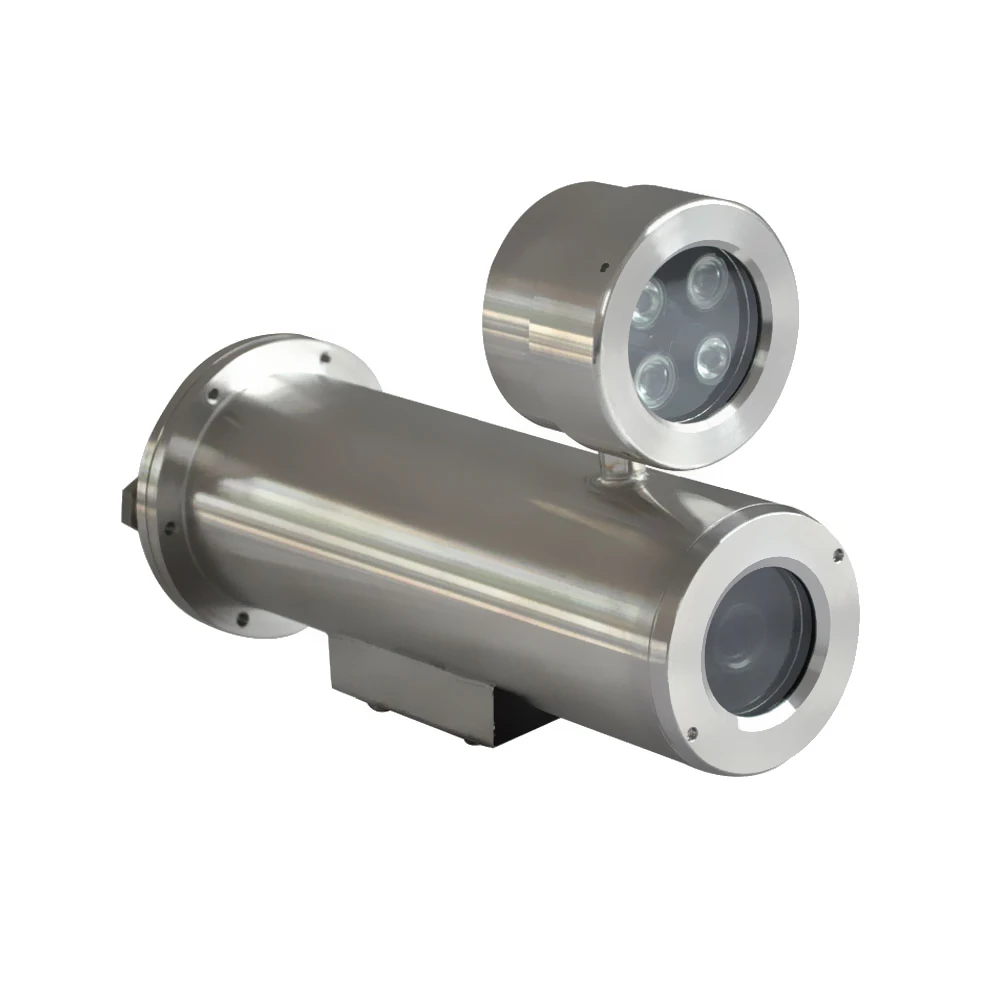

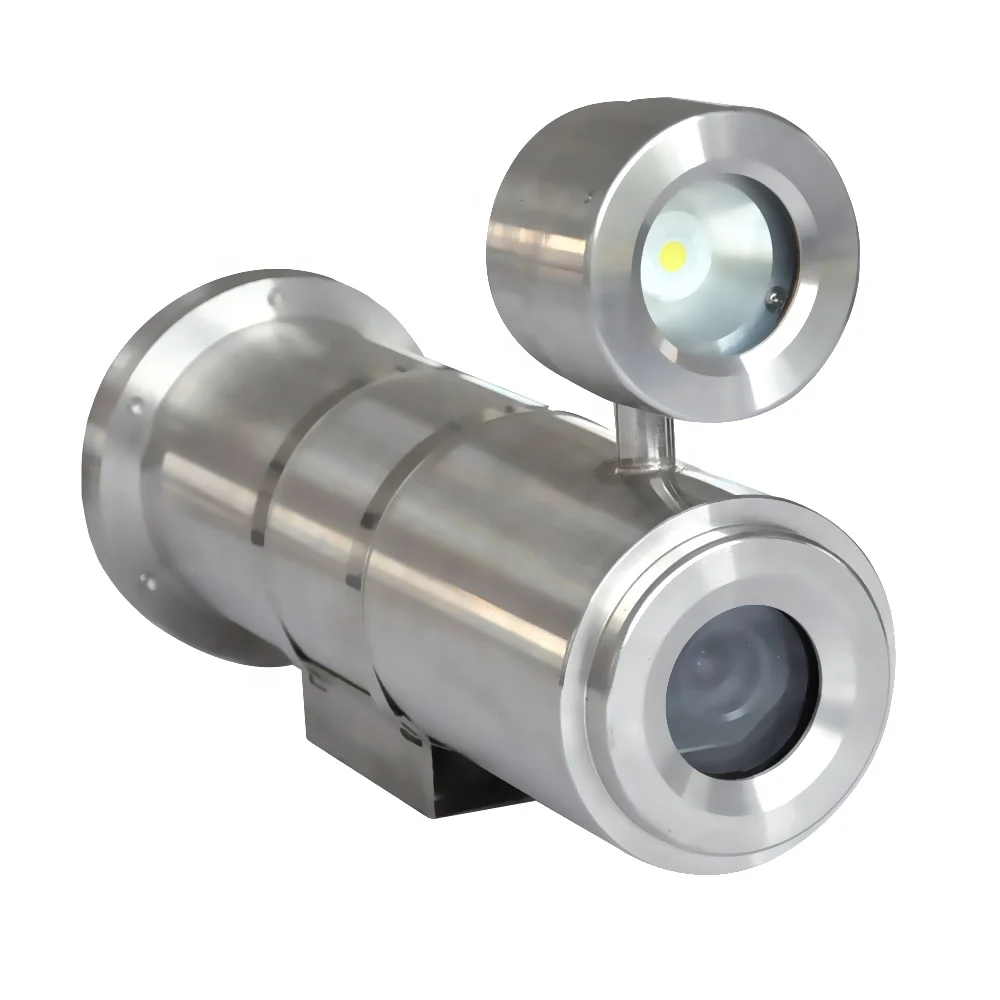

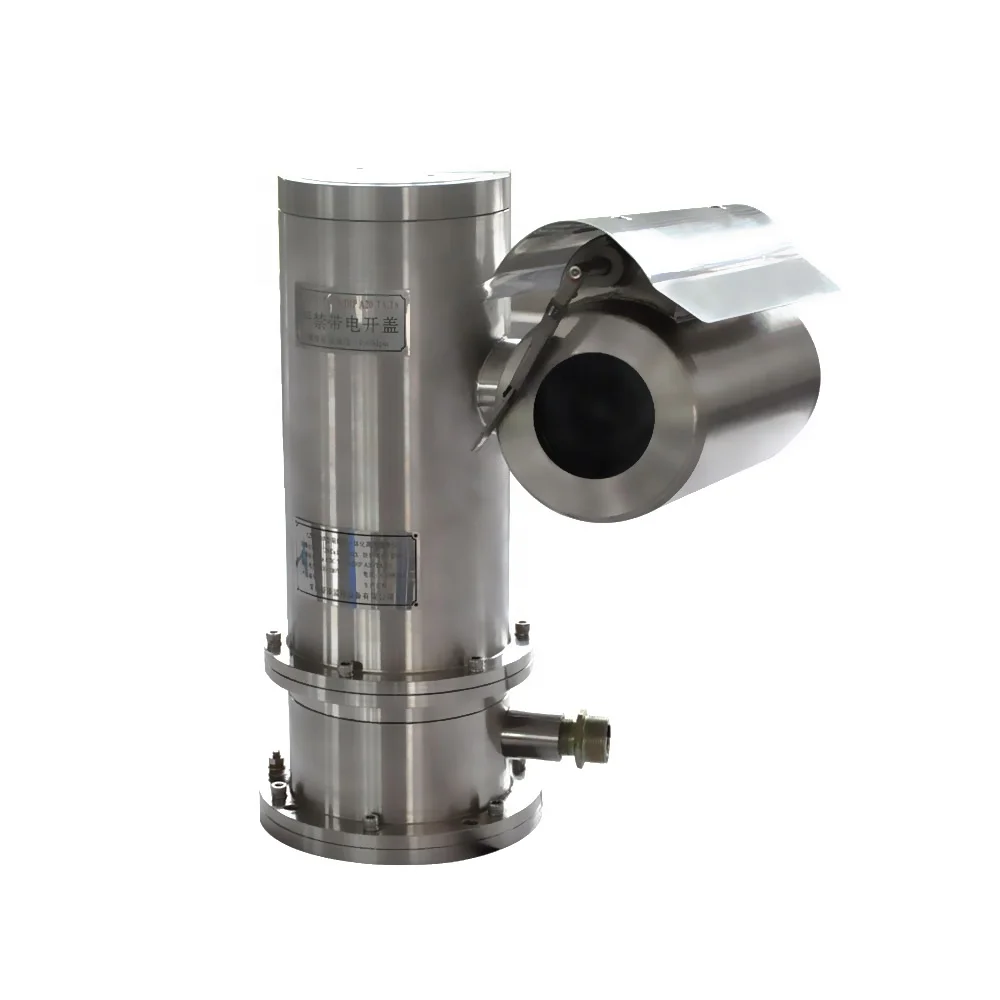

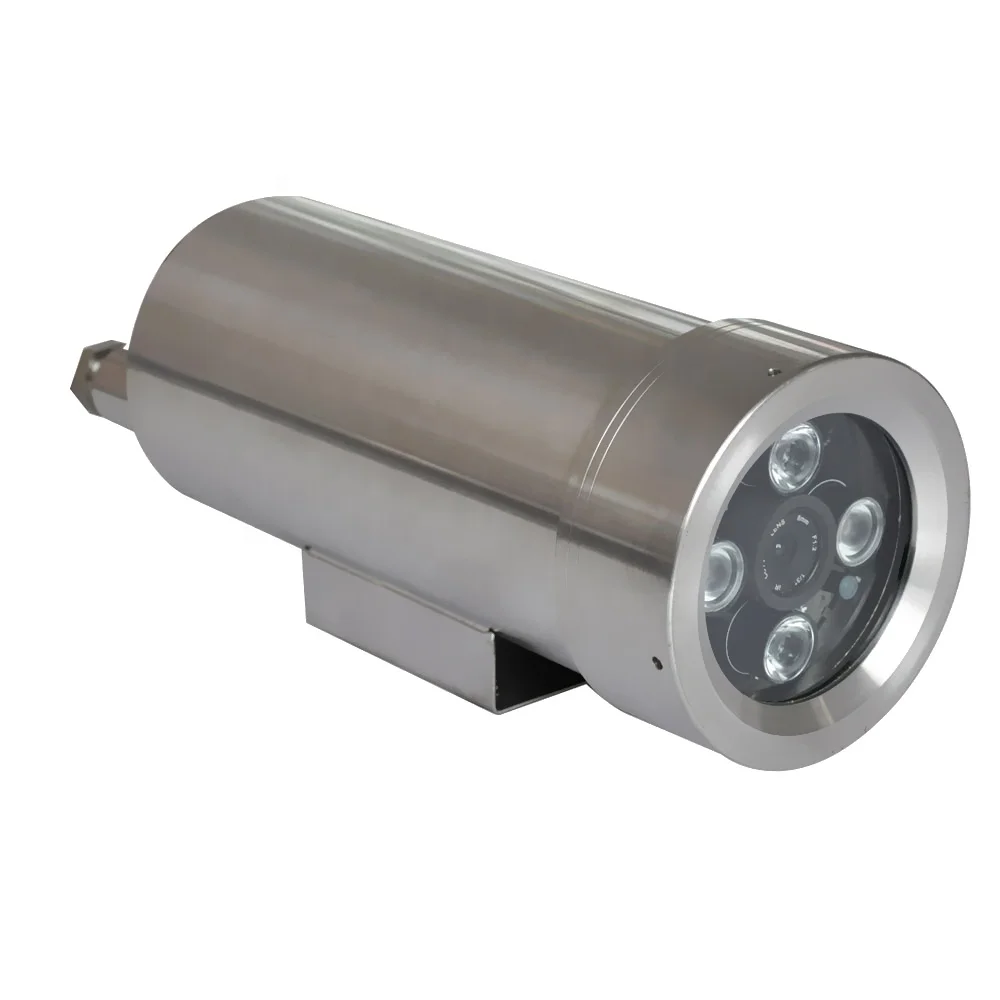

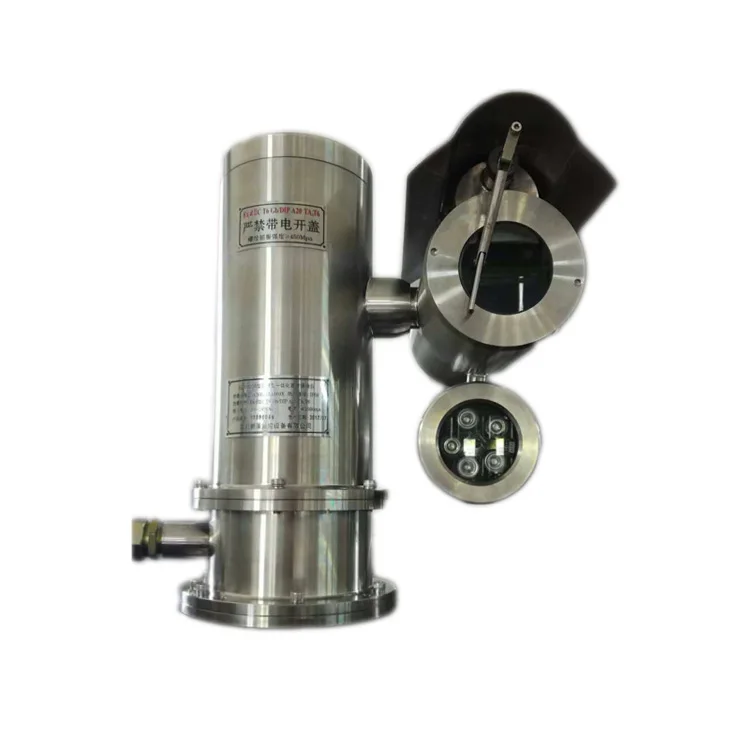

Multifunction PTZ Camera Security System Explosion-proof camera For Chemical Plant


* Our product features
1. Fit for flammable and explosive environments,gas zone 1, zone2. Dust zone 20, 21, 22;
2. The inner construction is broad, and can install any kinds of camera ;
3. Multi-protocol for zoom camera ；
4. Stainless steel design, double explosion-proof certification;
5.Ex- mark: Exd IIC T6 Gb / ExtD A21 IP66 T80 °C
6. Protection rate: IP 68;
7. Installation: mounted on ceiling, wall with pan &tilt, brackets;
8. OEM/ODM/Customized on basis of drawing can be acceptable.


Model
XZW800
Ex-proof Mark
Ex dⅡC T6 Gb/DIP A20 TA,T6
                                                             Environment







Atmospheric Pressure
 80KPa~106Kpa
Ambient Temperature
-40°C~+60°C
Relative humility
≤95%RH(+25°C)
The power supply
Working voltage
AC100~240V
Working Current
≤1000mA
PTZ parameters
Transmission Mode
Master-slave mode、Half duplex、RS485
Communication Rate
2400bps/4800bps/9600bps/19200bps（Adjustable）
Communication Protocol
PELCO-D、PELCO-P（Other agreements are customized according to customers）
 Pan Rotation
360° Continuous
Tilt Rotation
Unobstructed +90° ~ -90°
Pan Speed
0.1°/S ~ 100°/S
Tilt Speed
 0.1°/S ~ 40°/S
Infrared invisible distance
200m max
Wiper parameters
Wiper switch can be controlled by RS485, swing arm frequency 30 times per second


Company Introduction


Our company is a professional enterprise of designing and manufacturing explosion-proof monitoring equipment and high-temperature industrial television systems.Our main products including: Explosion-proof infrared camera, Explosion-proof pan/tilt , Explosion-proof speed dome camera, Explosion-proof integrated camera, Explosion-proof hemisphere camera and other explosion-proof monitoring equipment.We already got the < Explosion-proof certification>,and our items have the signs of Exd II CT6 Gb/DIP A20 TA,T6.They are widely use in petroleum,chemical,natural gas,non-coal dust etc. special industry.




Product Application


All our explosion proof cameras fit for explosive gas zone 1, 2; dust zone 21, 22,which enable safe,effective surveillance for chemical sites,oil and gas facilities,food processing plants,oil refinery plant,gas station,natural gas project,marine,offshore/onshore oil drilling platform,coal mine,grain storage, winery storage etc.




*Our Services & Strength
1. Fast reply your enquires with 24hours.
2. Top of security equipment manufacturer and supplier.
3. OEM/ODM welcome.
4. Exclusive design, different for better products with competitive price.
5. Fast delivery, always have the goods in our stock.

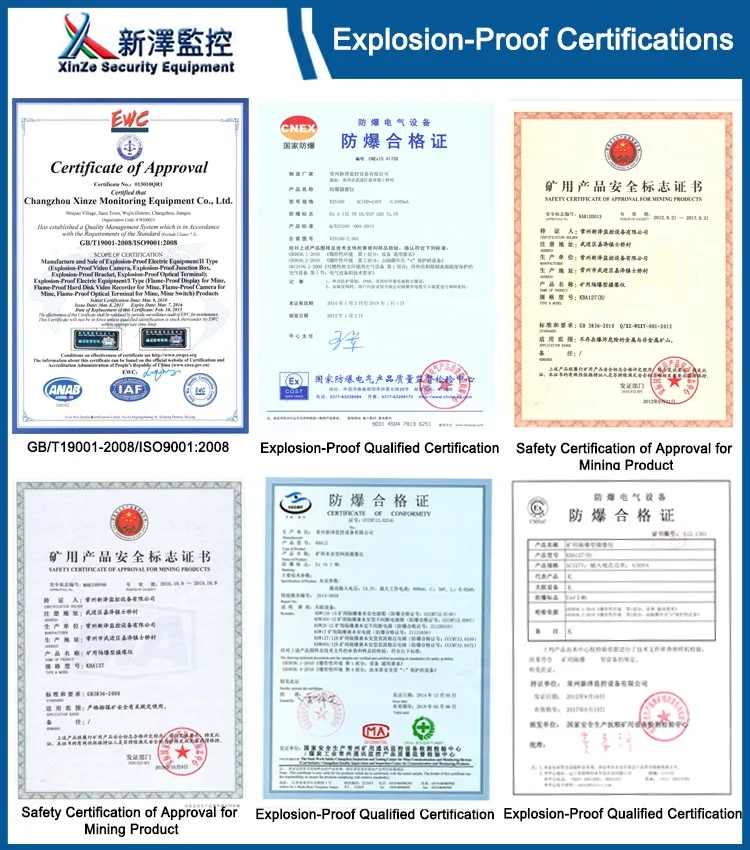

Certifications




Related Products




Packing&Shipping


Package Type: Standard export packing or customized packing available.
Selling Units:Single item
Shipping：Shipping arrangement according to buyers request.
Lead Time : Shipped in 5 days after payment.




FAQ


Q1: What about the warranty?
A1: All products from us enjoy 1 year warranty.

Q2: Can I get your price list?
A2: Yes, please tell us the products and order quantity, then we will offer the price by e-mail.

Q3: What terms of payment do you use?
A3: We accept L/C,T/T,D/A,D/P,MoneyGram,Western Union,Paypal.

Q4: What the main features of your products?
A4: Explosion-Proof/ Anticorrosive/High Temperature Resistance.
