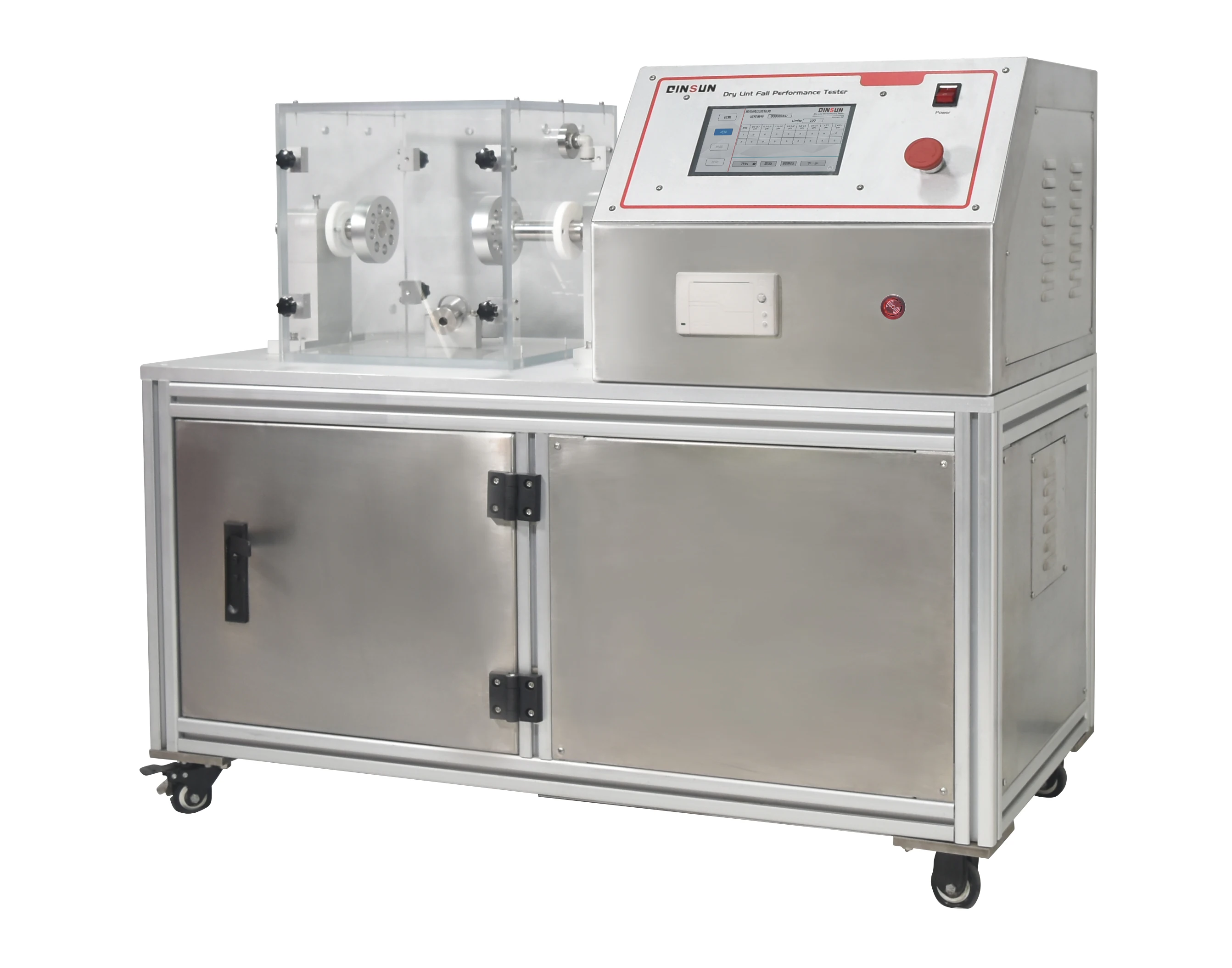

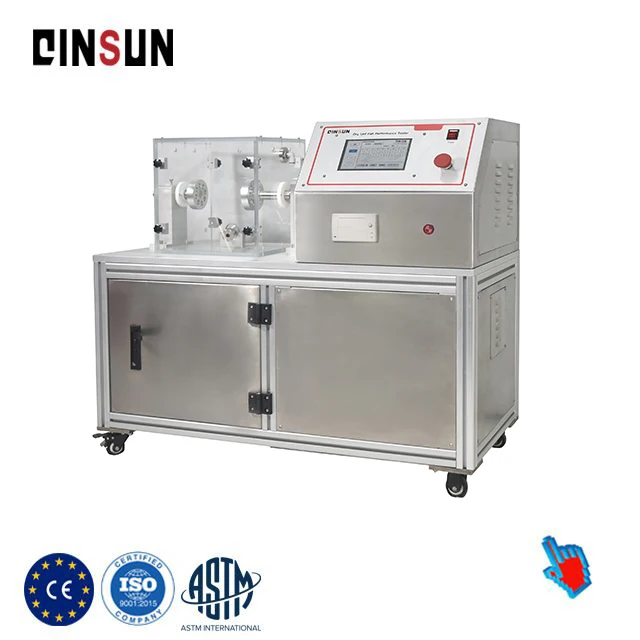

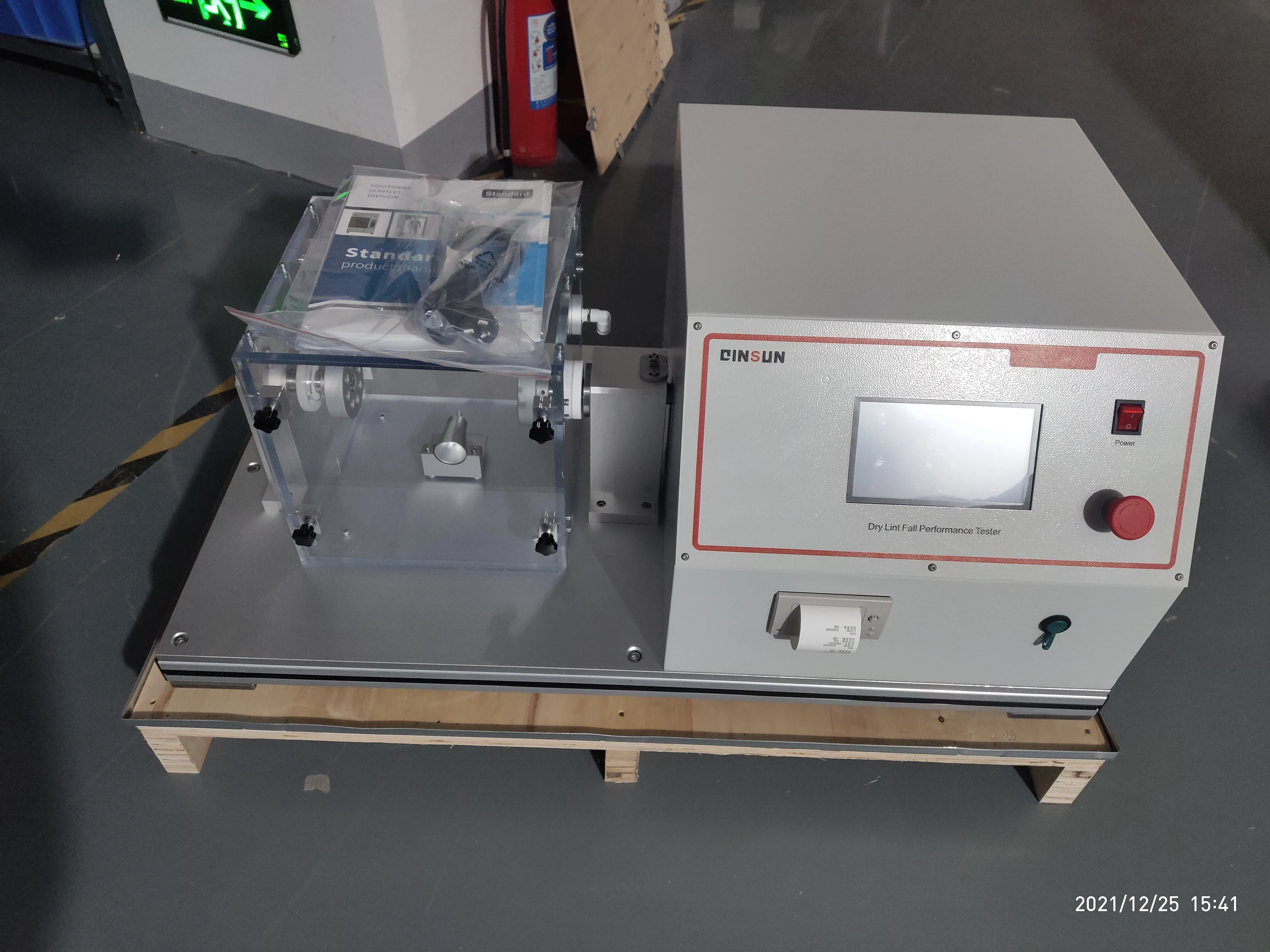

Gelbo Flex Resistance Tester with Particle Counter
- Category: >>>
- Supplier: Qinsun Instruments (shanghai) Co. Ltd.
Share on (62537165124):
Product Overview
Description
Product picture
Brief Introduction:
The tester is used to evaluate the fallen wadding test of non-woven fabrics under dry conditions, and is mainly applicable to the evaluation of the shedding performance of raw material non-woven fabrics and other textile materials used for medical protection (surgical orders, surgical gowns, clean clothes, etc.).

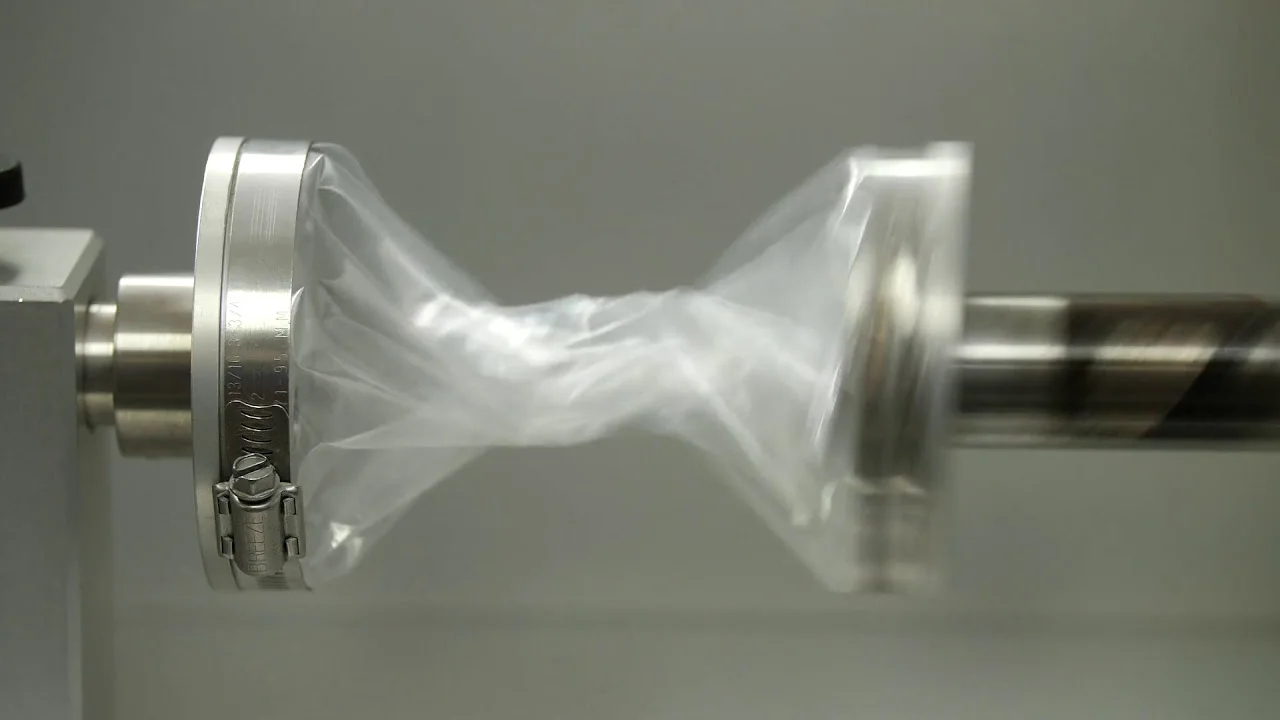

1. Test philosophy: The sample is subjected to the combined action of torsion and compression in the test chamber. Air is drawn from the test chamber during this twisting process, and the test result is evaluated by counting and classifying the particles in the air with a laser dust
particle counter.
2. This instrument has high-resolution large-size color touch screen and it is easy to operate and convenient to use. At the same time, it can simultaneously monitor the number of particles in 8 particle size channels and their changes, and store up to 10×500 groups of data. It is typically used in particulate matter testing, air particle research, indoor air quality assessment in clean houses, as well as in filter performance testing and cleanliness evaluation
Standards compliant
YY/T 5056.6 Surgical sheets, surgical gowns and cleansing suits for patients, medical staff and equipment - Part 4: Dry fallen wadding test method;
ISO 9073.10 Test method for textiles and nonwovens - Part 10: lint and other granules produced in a dry state;
EN 13795-2-2004 Surgical covers, long coats and non-contaminated suits for patients, medical staff and medical equipment, part 2: test methods
Technical Parameters:
Control mode: smart touch;
Control mode: smart touch;
Test speed: 60 times / minute;
Rotation angle: 180 degrees / per time;
(clockwise, counterclockwise alternate);
Diameter of disk:Φ82.8mm;
Starting distance: (between two discs);
Stroke of moving plate: straight line);
Maximum sample concentration allowed: 35,000 / L;
Particle size channel: :0.3,0.5,0.7,1.0,2.0,5.0,7.0,10.0 µm (eight);
Air sampling flflow: 28.3L/min;
Minimum measurable particle size: 0.3μm;
Interval time: 1s ~ 10s 10 options available;
Weight:55kg;
Power supply:220V 50Hz;
Dimension:85cm×60cm×90cm;
Sampling time (ie sampling amount): 20 kinds from 0.5min to 10min.Optional sampling time(ie: 14.15L,28.3L 283L a total of 20 sampling quantities are available);
Qinsun Instruments Co., LTD specialize in the research and development of high quality lab instrument for textile testing industry. Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory,academic research institute and textile lab worldwide.
♥ Main web site1 //www.qinsun-lab.com/
♥ Main web site2 //www.standard-groups.com/
♥ Social Media and other website as following:
https://www.facebook.com/qinsunlab
https://twitter.com/QinsunMarket
https://www.pinterest.com/qinsuninstrumen/pins/
https://cn.linkedin.com/in/qinsunlab-49a255117/en
1,Is your company a trading company or factory?
A:Factory + trade (integration), has 6 years focusing on test instruments field, 6 years
exporting experience.
2,After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item
quantities.
3,What’s the payment term?
A:T/T,L/C and other payment terms could be negotiated.
4,What's the warranty and after-sales service?
A:12 months warranty. Feedback to you within 24h and help you to repair your problem
controller freely, even it's not from our factory.
5,What the standards do you adopt?
AWe have been adopting the world standards and regulation such as ISO, ASTM, DIN, EN, GB,
BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, and CSA.
6,What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. And our Main clients : tuv, BV and Intertek.
7,What's the cooperation Process?
A:Inquiry - quotation - communication - order confirming - deposit payment - production -
testing and debugging - balance payment - packing - delivery - customer receiving - after
service.
8,Why choose us?
1, Considerate Service Different countries plugs, manually change the-voltage from 110V to
220V, insurance indicator.
2,Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even
it's not from our factory. What you need to do is to send us the controller.
3,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your
confidence to us.
4,Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble
film before put them into the wooden case, which not only has good shock absorption, impact
resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture
corrosion, good transparency etc.
