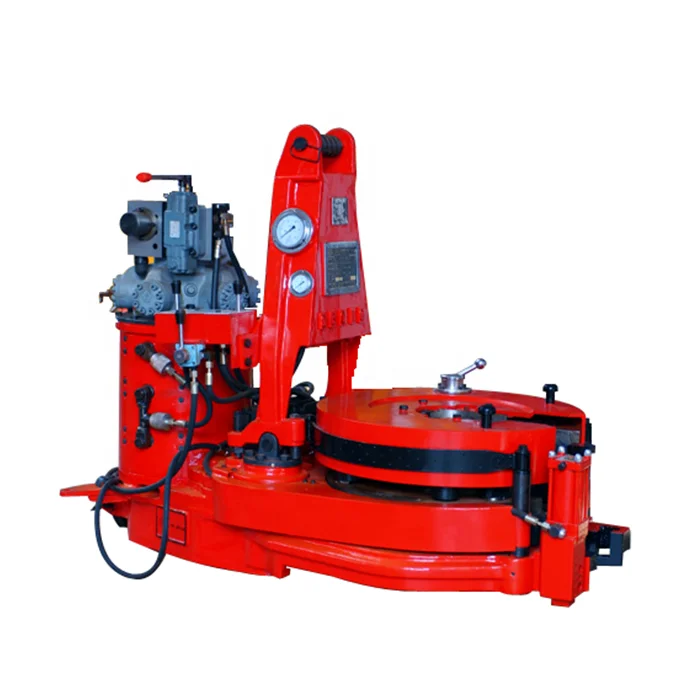

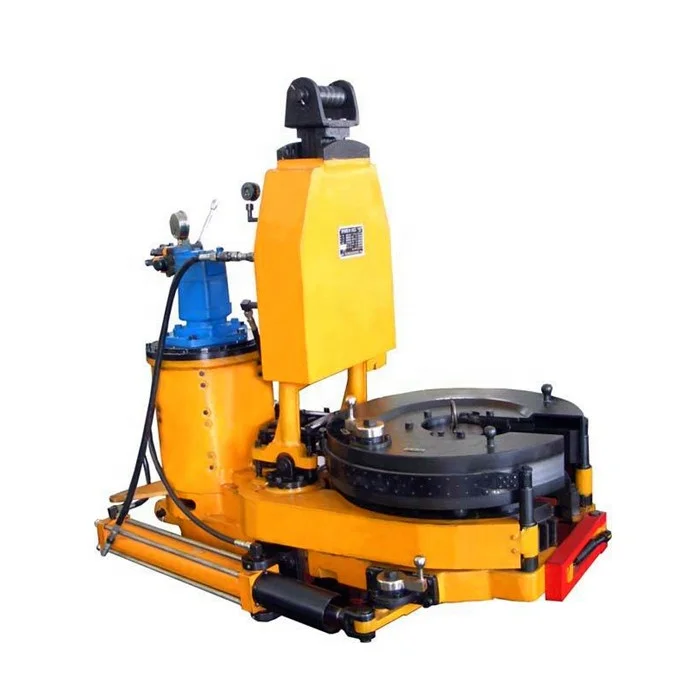

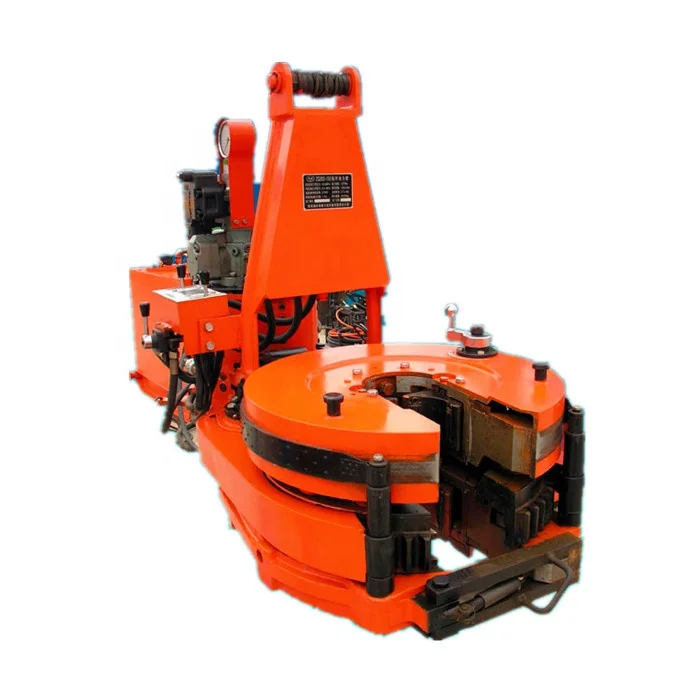

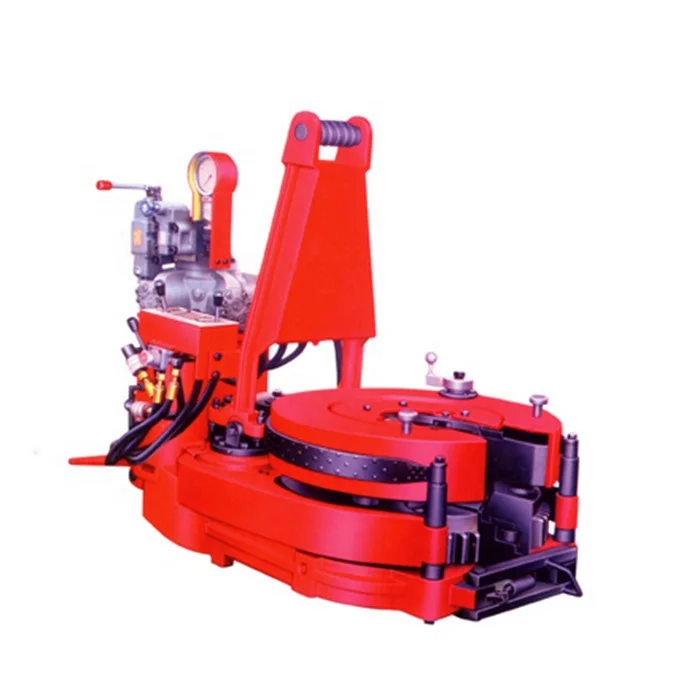

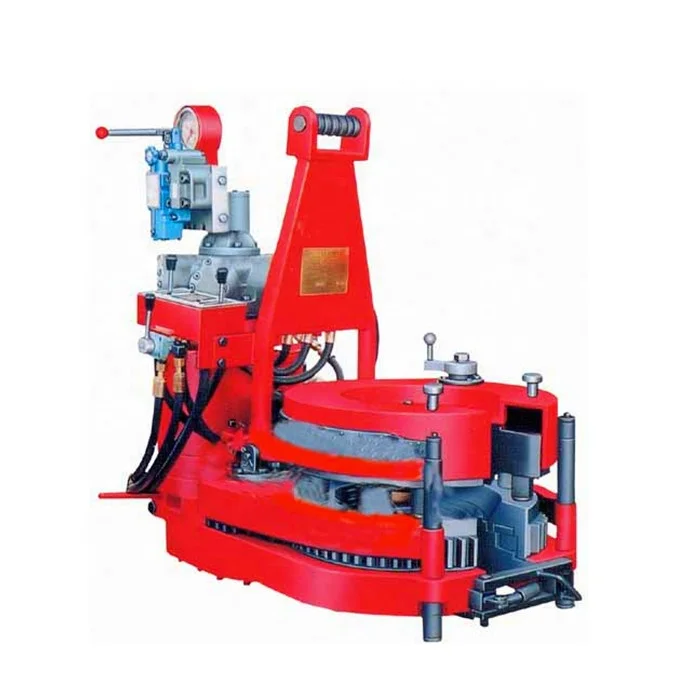

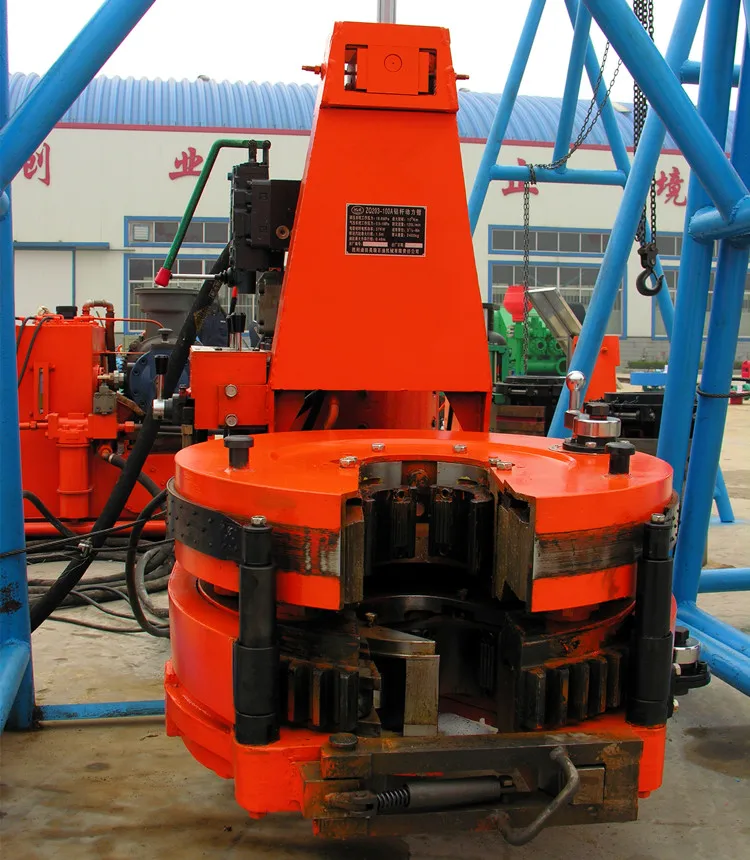

API 7K ZQ series drill pipe hydraulic power tong
- Category: >>>
- Supplier: Qingdao Xinran River Industrial And Trading Co. Ltd.
Share on (62537210413):
Product Overview
Description
Product Description
ZQ series drill pipe power tong is an ideal oil drilling wellhead tools, widely used in marine, land drilling and workover operations on unloading column threaded operations. Use of this clamp can playsafety, effort to improve the ergonomics of the role. The series clamp, open type, be free todisengage the column, the mobile; set torque clamp and spinner clamp at one shackle onalternative catwork, tongs and spin rope. The tongs are in line with norms SY/T5074 standards andAPI Spec 7K.
Model | ZQ127-25 | ZQ162-50 | ZQ203-100 | ZQ203-125 | ||||||
Size rang | Drill pipe | mm | 65-127 | 85-162 | 127-203 | 127-203 | ||||
in | 23/8''~31/2'' | 23/8''~5’'' | 31/2''~8'' | 31/2''~8'' | ||||||
Casing | mm | 65-127 | 114.3~153.7 | |||||||
in | 23/8''~31/2'' | 41/2''~51/2'' | ||||||||
Tubing | mm | 65-127 | 138-156 | |||||||
in | 23/8''~31/2'' | 31/2''~41/2'' | ||||||||
Max.torque | kN.m | 25 | 50 | 100 | 125 | |||||
ft.lbf | 18440 | 36880 | 73750 | 92200 | ||||||
Speed (High gear) | rpm | 65 | 60 | 40 | 40 | |||||
Speed (Low gear) | rpm | 10.5 | 4.1 | 2.7 | 2.7 | |||||
Air pressure | MPa | 0.5–0.9 | ||||||||
psi | 72–130 | |||||||||
Pressure rating | MPa | 12 | 14 | 16.6 | 20.7 | |||||
psi | 1740 | 2030 | 2400 | 3000 | ||||||
Flow rating | L/min | 120 | 120 | 114 | 114 | |||||
gpm | 31.7 | 31.7 | 30 | 30 | ||||||
Shifting distance | mm | 1000 | 1000 | 1500 | 1500 | |||||
in | 39.4 | 39.4 | 59 | 59 | ||||||
Size | mm | 1110x735x815 | 1570x800x1190 | 1760x1000x1360 | 1760x1080x1360 | |||||
in | 44x31x32 | 62x31x47 | 69x39x53 | 69x40.5x53 | ||||||
Weight | kg | 620 | 1500 | 2400 | 2650 | |||||
lb | 1360 | 3310 | 5290 | 5840 | ||||||
Product packaging
The power tong will be packed in plywood wooden box.
Goods will be delivered by sea, train, truck, etc.
Company Introduction
Our main products include welllhead tools: XQ tubing tong, ZQ drill pipe tong, TQ casing tong, WSXQ power tong, WSTQ casing tong, YNJ tubing make-up & break-out unit, YNJ casing make-up & break-out unit, YD160 hydraulic unit, etc. Our products sell well both in domestic oilfields and Europe, Russia, America, southeast Asia, the Middle East and so on, enjoying a good reputation among customers.
Our Services & Strength
XRR regards continuous learning ability as one of the company’s core competitiveness and provides regular training to employees to enhance their comprehensive abilities and skills.
We are committed to focusing on the challenges and pressures of customers' attention, providing competitive solutions and continuously creating the maximum value for customers. Safety and environmental and social responsibility are at the core of all our business activities.
FAQ
1. Are the power tongs in stock?
A: Some are in stock, but some need to be produced by orders.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request.
3. Can I have my own Logo on the product?
A: Yes, but the logo need to be sent to us when signing the contract.
4. Can you produce the power tongs according to my requirements?
A: Yes, we can produce power tongs as per your requirements, but all need to be discussed before signing the contract.
5. Can we visit your company before placing order?
Welcome to our company any time you like.
