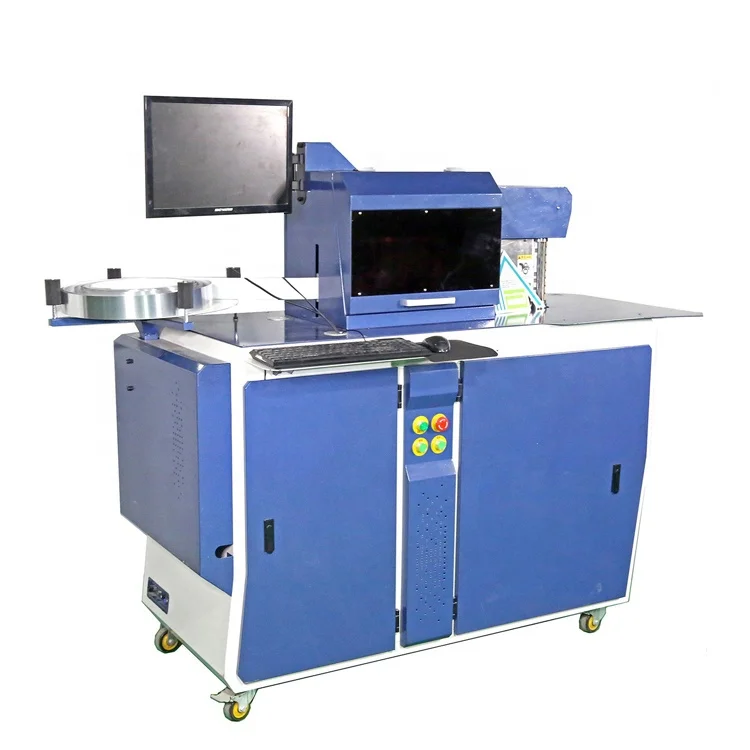

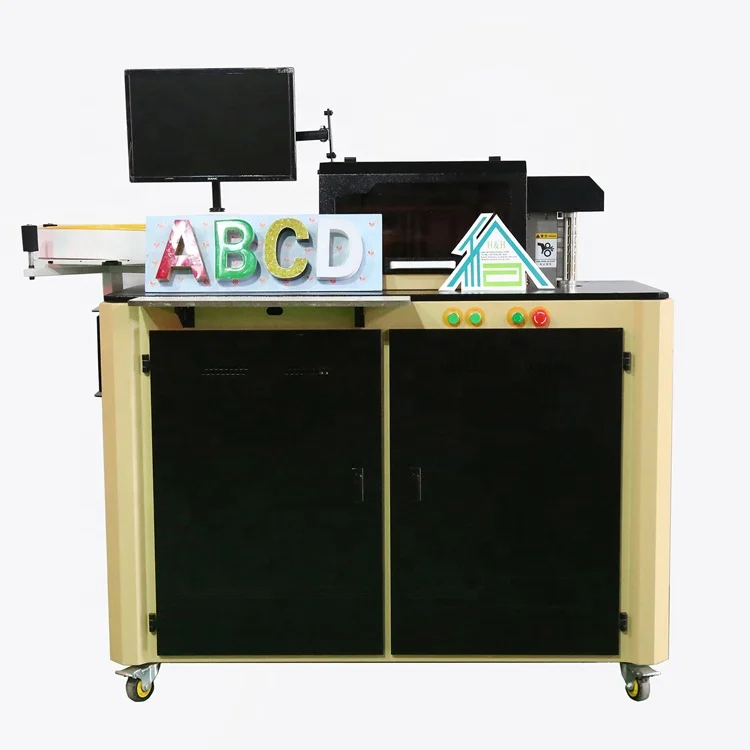

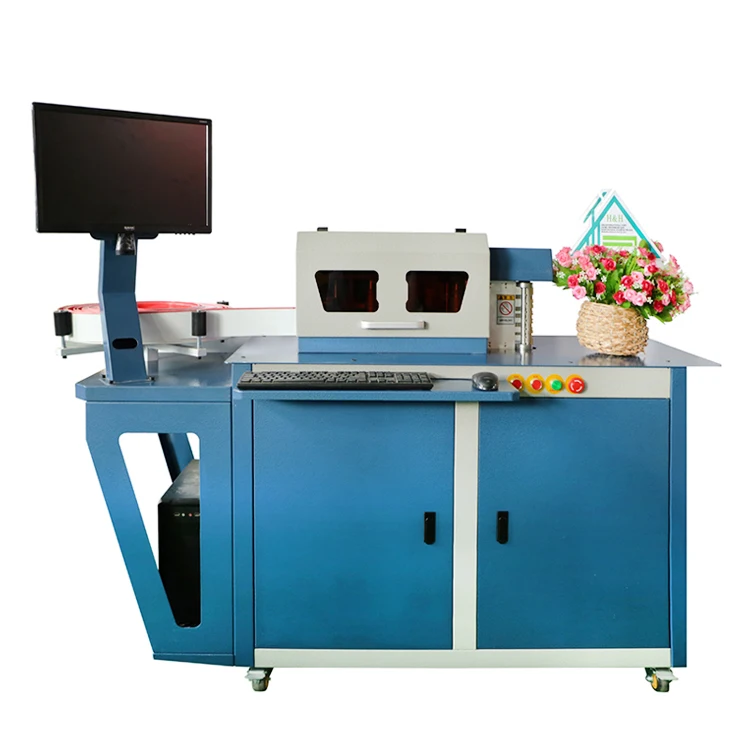

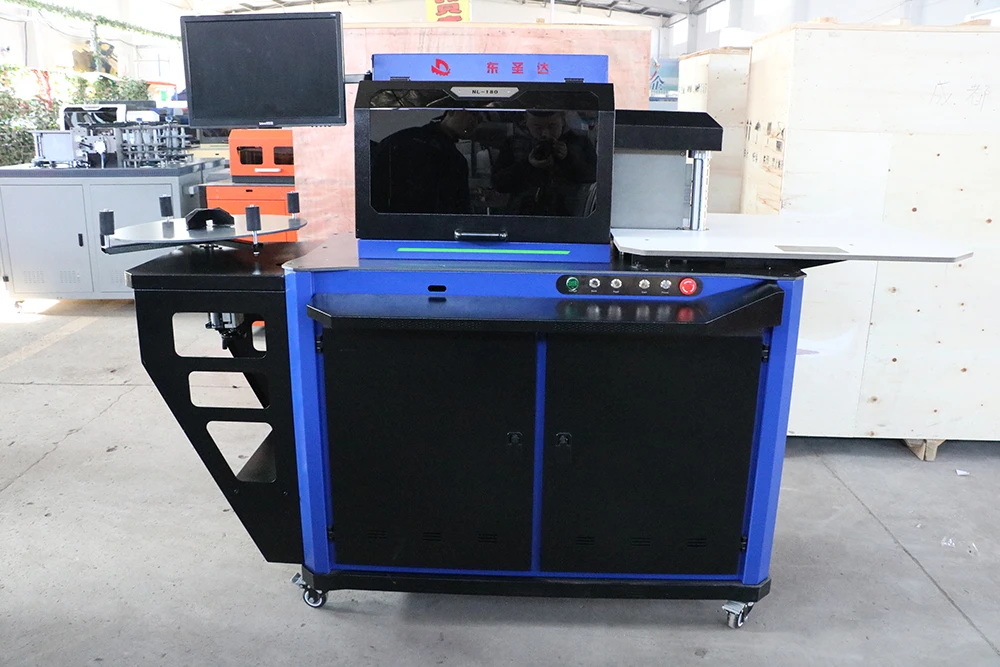

HH-NL130/160/180 Automatic Aluminum Channel Letter Bending Machine
Technical Parameters
Working Principle
High Accuracy Automatic Feeding, Automatic Cutting, Automatic Bending
Model
HH-NL130 Aluminum Letter Bending Machine

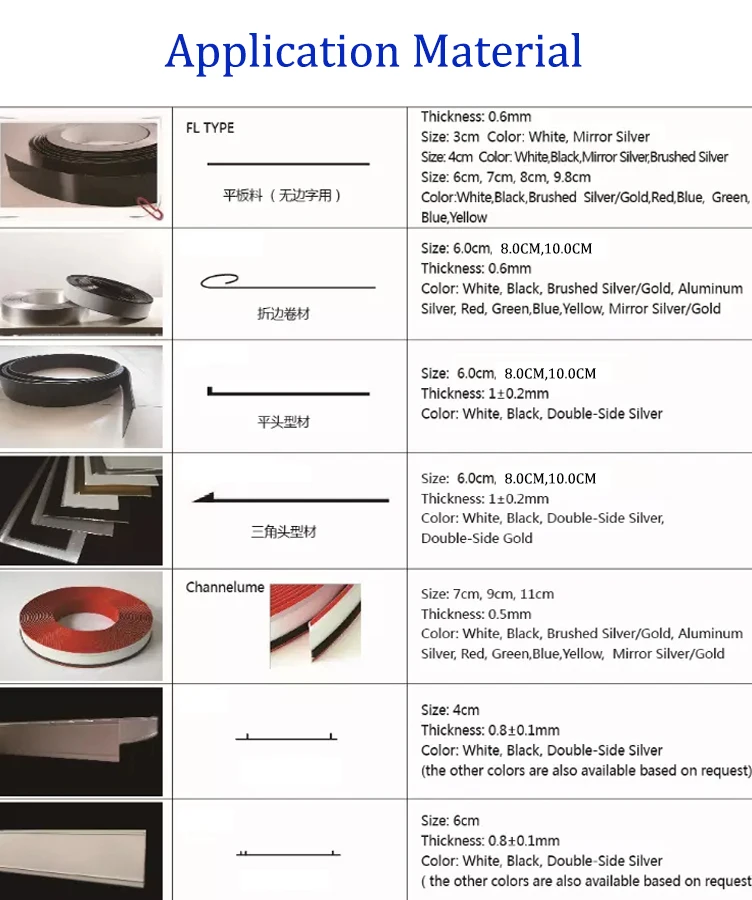

Application Materials
Flat Aluminum Coils, Rectangle/Triangle aluminum Coils,Aluminum Profiles, Channelume, Aluminum Coils with Foam and PC, High Polymer Coils for channel letter
Slot Degree
45-135 Degree(no limit for flat materials)
Bending radius
≥3.5mm
Material Width
≤130mm / 160mm /180mm
Material Thickness
0.3-1.2mm
Total Power
1500W
File format
dxf, ai,plt
Machine size
2300mm*8800mm *1480mm
Weight
350KG
voltage
220V
Air pressure
0.4-0.8Mpa
Main Features
1. Five-axis:
Feeding, lifting, cutting, and bending one-time forming to ensure accurate and stable cutting and
bending .
2. With the closed loop self-test system, the whole deviation is less than 0.1mm.
3. Imported square rails for positioning cutting to ensure the cutting stability
4. The intelligent Rebound coefficient compensation to ensure the letter forming accuracy.
5. One-button operation, very easy to use. Cost-effective, stable cutting, low noises
6.Self-innovated Software, easy operation.
7. Automatic adjustment of cutting depth, convinient,fast,high efficient and stable
8. SimpleMachine Test and Operation
9. High cost performance ratio
10. Special for high quality Aluminum Letters making
Letters Making Steps

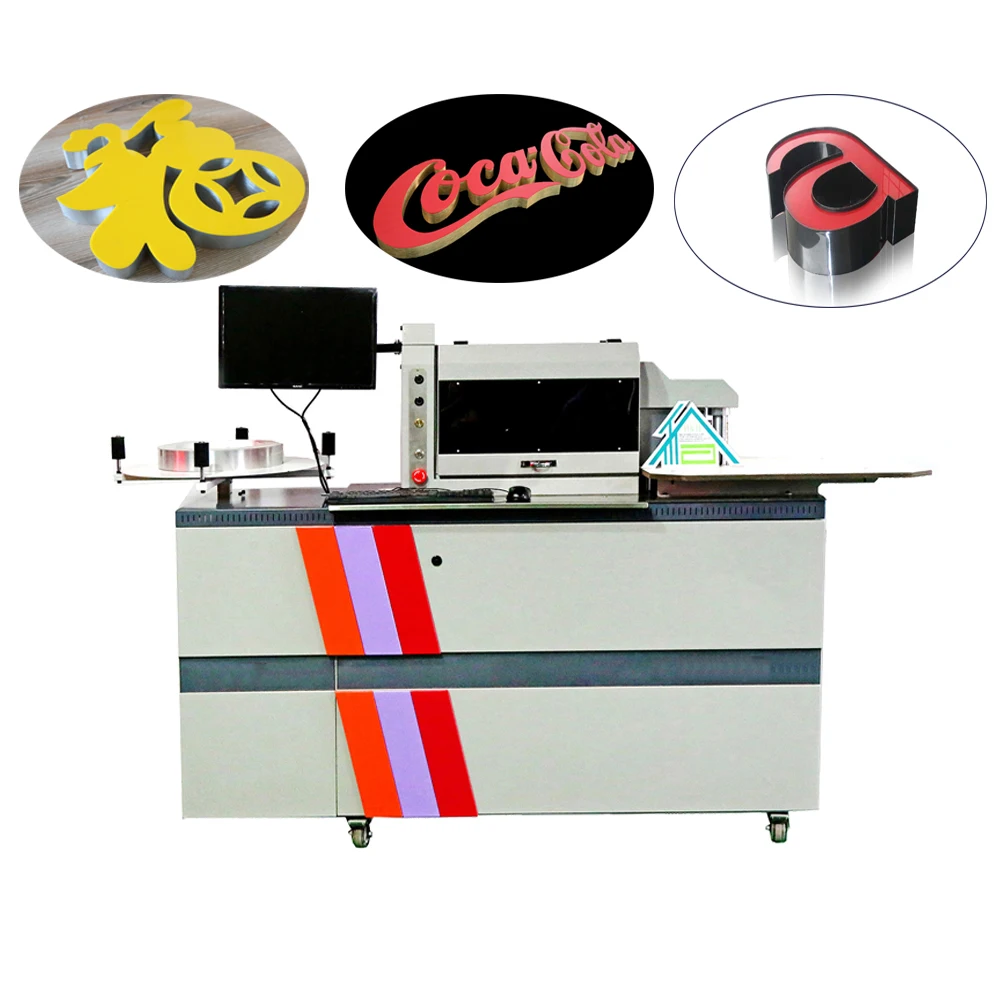

Applications
Rimless Letters,Aluminum Edge Letters,Resin Luminous Letters,Super Letters(Liquid Acrylic Letters),Aluminum Profile Letters,Aluminum Letters with Sponge, High Polymer Luminous Letters,Side Luminous Letters,LED Words and Various Aluminum Luminous Letters
Company and Certifcate
Our Service:Installation and Traning
A. Welcome customers to our factory for training. Our professional technicians will make direct and effective face-to-face training. B.Our engineer will do an on-site training service at customers' factory. C.We provide detailed Videos for machine installation, Commissioning,Software Use and Operation Manual,then we will make training via whatsapp, wechat or email
We will ensure our machines running well in customers factory
Exhibitions Dispaly
FAQ
1.what's the package? we use seaworthy packing,inside is a foam and PE film,outside is wooden case to protect it. 2.what's the warranty? 12months for all machines and 24months for motors. 3.How to install and run the machine? we will send the install and video and user's manual with the machine, most customers can learn by themselves. we also provide romote machine or overseas training sevice. 4.Do you have the any materials for sale? Yes,we have all kinds of materials such as aluminum coil and stainless steel.
