1*DDR3 SO-DIMM sockets supporting up to 8 GB of system memory Support 1.35V DDR3 1333/1600 MHz
Storag
1*M.2（Only the length of SATA protocol 2242 is supported）
2*SATA
Audio
Built in with Realtek ALC269
Network
1*10/100/1000M Ethernet
Expansion Slots
1*Mini-PCIE

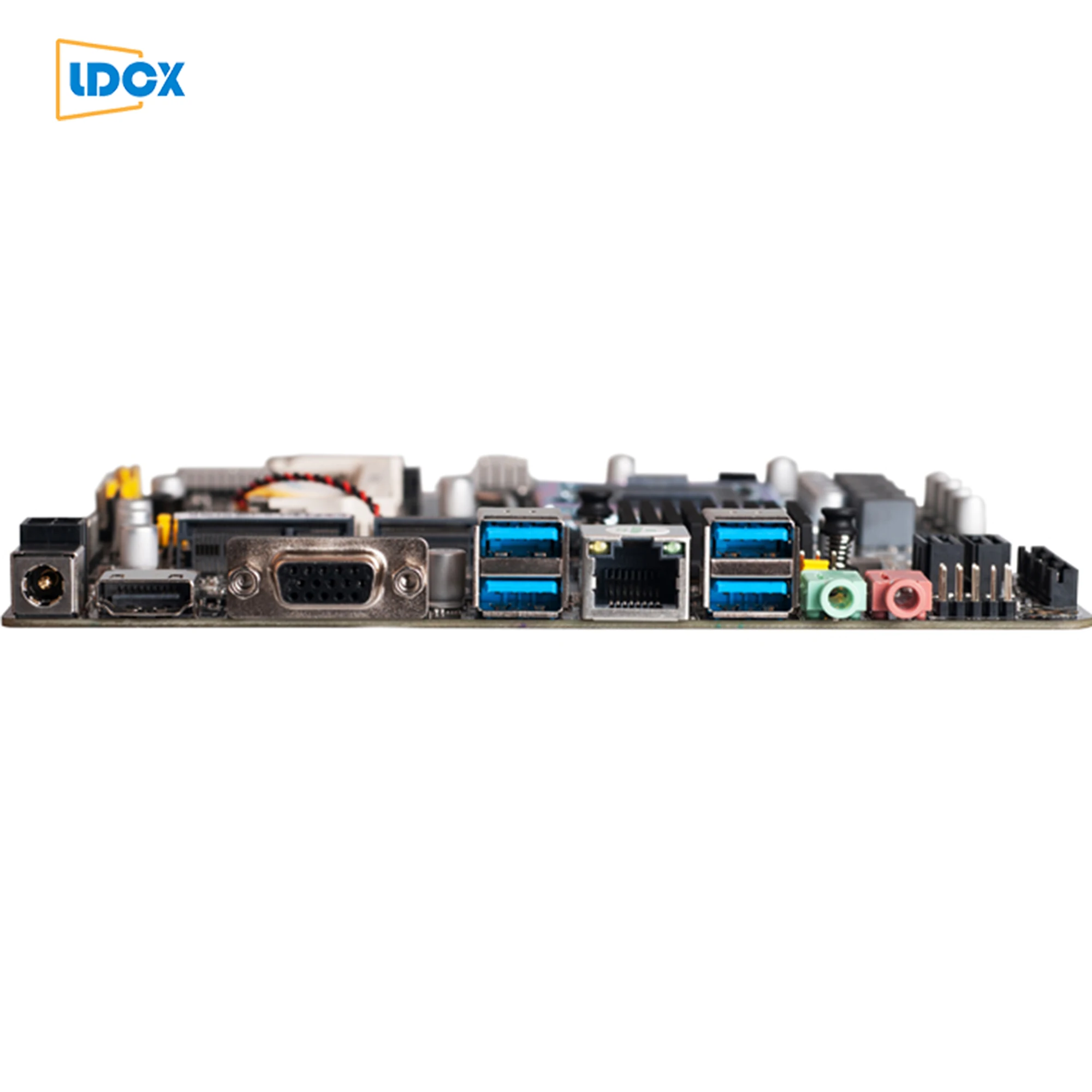

Backplane I / O interface
1* HDMI 1* VGA 1* LAN
4* USB3.0 1* MIC 1* AUDIO
1* DC12V（5525）

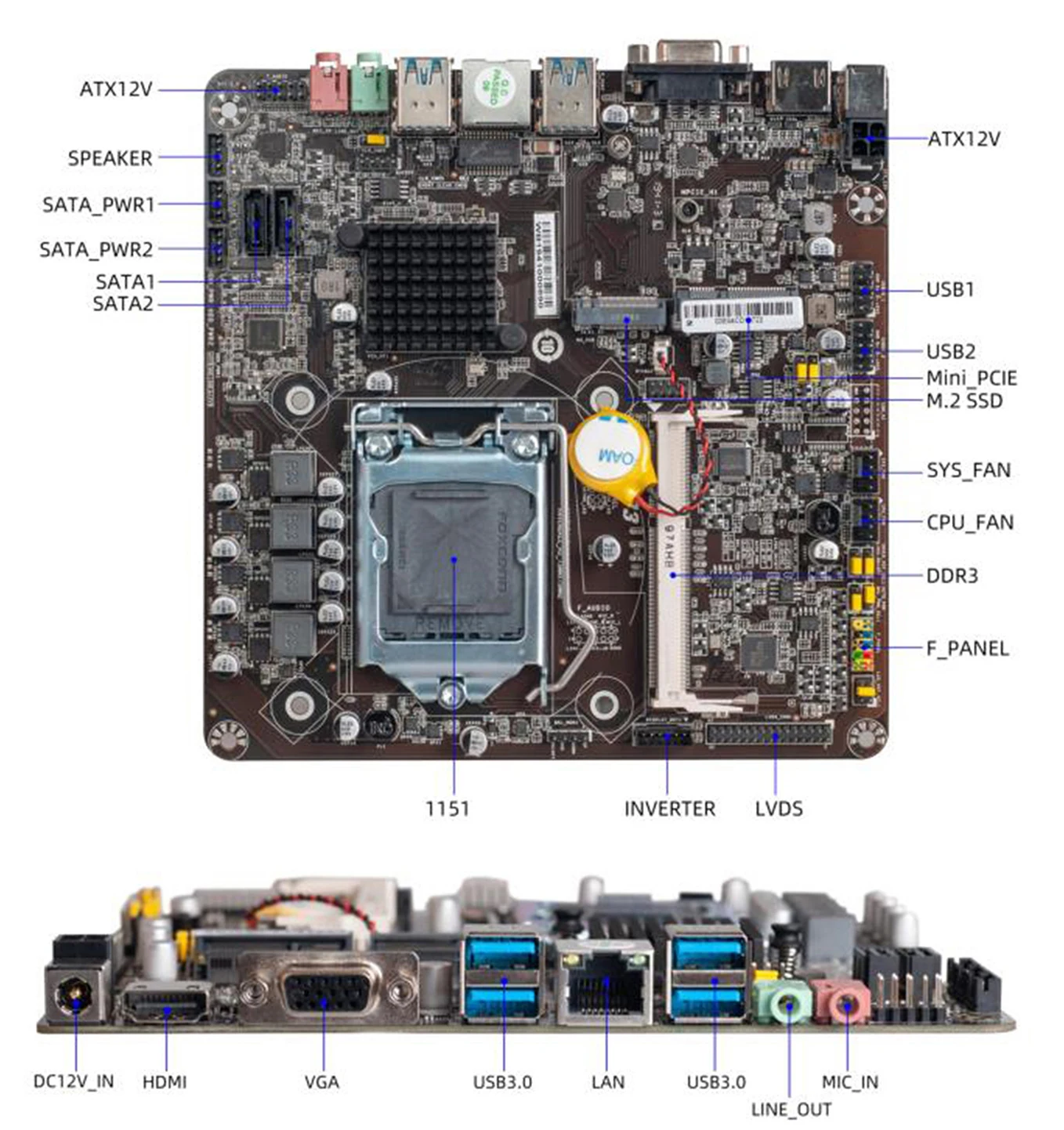

Built in I/0 interface
1* LVDS
1* INVERT
2* SATA_PWR
2* F_USB2.0
1* F_AUDIO
1* F_PANEL
1* SPEAKER
BIOS
AMI 64Mb Flash ROM
Fan interface
SYS_FAN 4pin
CPU_FAN 4Pin
Power Supply
DC12V
Support system
Windons8/10/Liunx
Size
170*170mm
Packing&Shipping
Package list: 1 * Motherboard
1* Computer baffle
1* SATA disk connection
1* SATA power supply line
1 * neutral box
Company Introduction
Official website of Shenzhen LDCX Technology Co., Ltd.，With the core of its R & D strength, aiming to meet and guide the market demand, it provides high-quality products such as mini computer host, supporting chassis, power supply, motherboard, etc. for global enterprises and individual users.
Lianda has a number of senior engineers, aiming to meet the needs of users, to provide the market with cost-effective and stable products; and widely used in: Electric classrooms, enterprise offices, home entertainment, ATM bank terminals, business super system, network security, industrial control, tax control cloud terminals, digital signage, Internet of things applications and many other fields. At present, the main products involved include the following four categories:
1. Based on the main board of 170mm * 170mm, 120mm * 120mm.100mm * 100mm computer, the mini computer quasi system is designed.
2. Based on no fan, energy-saving, miniaturized solution and design of computer DC power supply.
3. Miniaturized computer motherboard based on miniaturization.
4. Customized service of computer case based on various application scenarios, various use environments and special use requirements.
Based on the principle of "high efficiency, good service", the company is a reliable solution and service provider for you to operate steadily step by step to meet customers' demands and gain public praiseShenzhen onetouch trading company is a wholesale company that manufactures good & high quality knitting wear and woven wear, starting from 2006. The company provides the customized products and OEM service. Various new collections and design are coming out each month with the current styles and fabrics. The factory own the proficient skill and updated machine
FAQ
* Q1. What’s the warranty for these PC A1.We support 1 years Warranty, the second year and the third year, We can repair it free. But we will charge for the parts that need to change. * Q2. Can you have my logo or company name to be printed on your products? A2. Yes. We can print your logo, company name on the products; we can provide OEM/ODM service for you. * Q3. What is the Minimum Order Quantity (MOQ)? A3. We can sell one piece sample for your test.
