Donguan Sanchuag Custom High Strength FRP Fiberglass Reinforced Plastic Flat Bar and Strips

Product Overview

Description

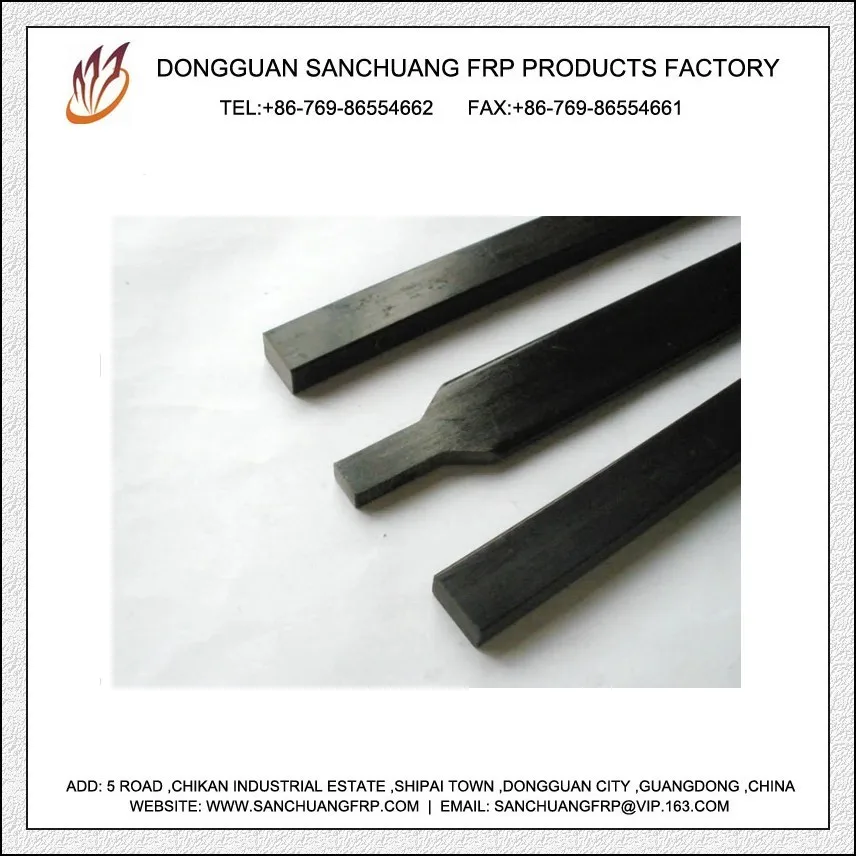

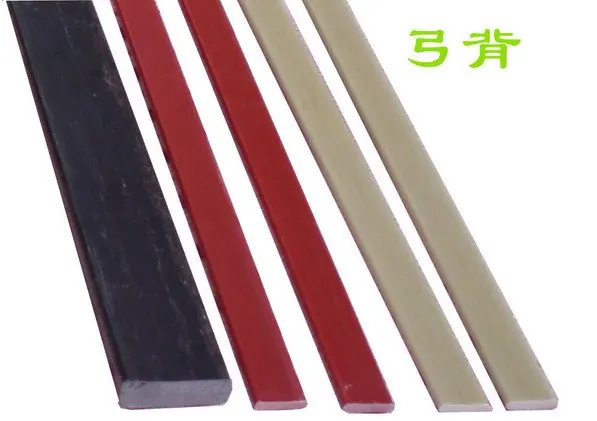

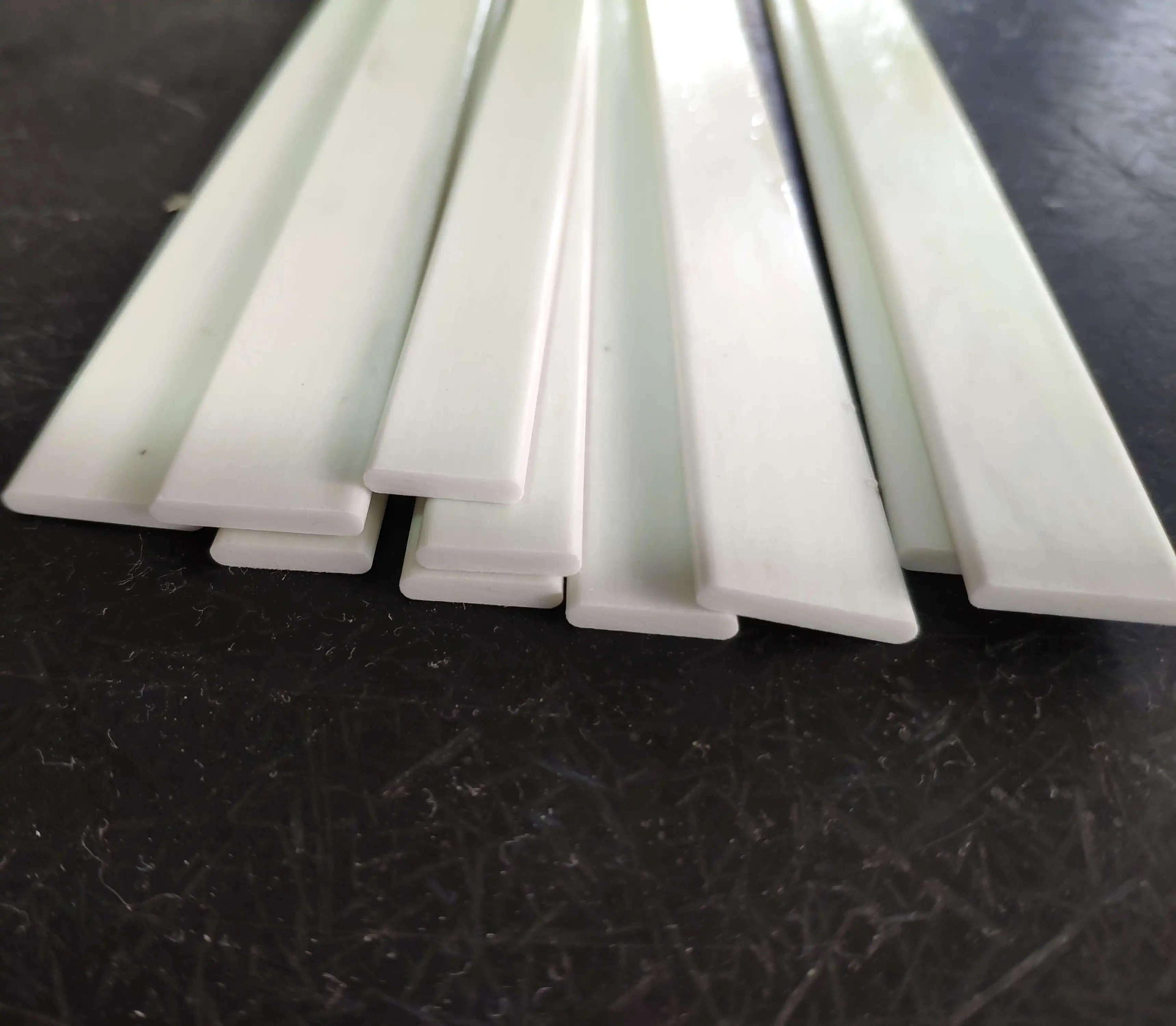

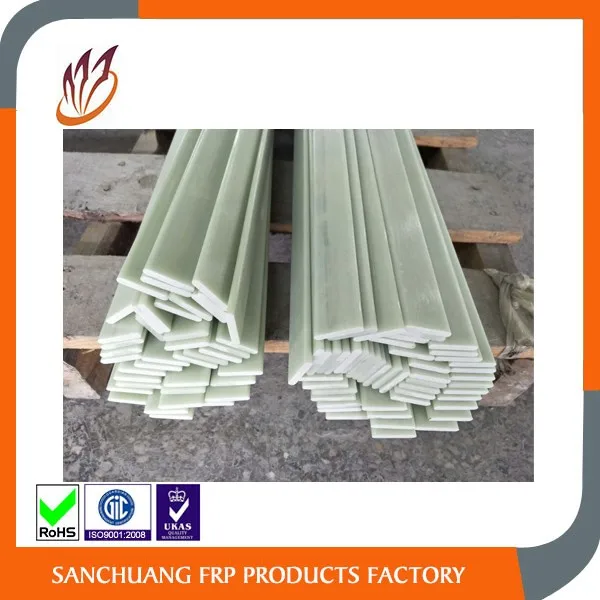

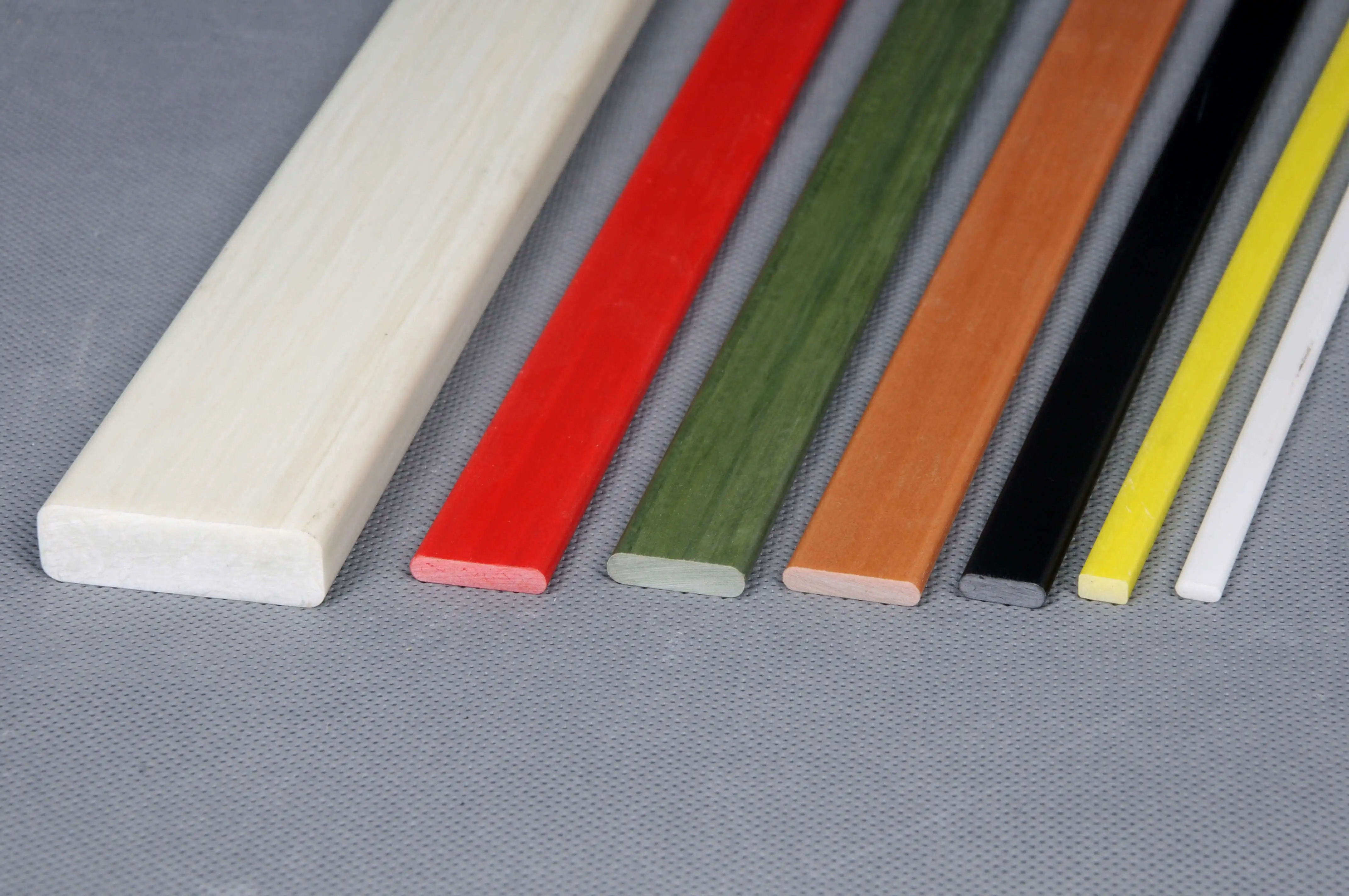

Donguan Sanchuag Custom High Strength FRP  Fiberglass Reinforced Plastic Flat Bar and Strips



1. what is "Pultrusion Products Series":



Pultrusion process is a kind of method to make composite profiles continuously ,which using the twistless roving with other

continuous reinforced composites, polyester surface mat,ect. to proceed the resin impregnation, then go through the forming

 mould with same section, and make the continuous depanning after curing in the intramode. Thus,the pultrusion products

come out by this automatic production process. Pultrusion products includes fiberglass pultrusion profiles,carbon fiber pultrusion

profiles, fiberglass and carbon fiber mixed or pull wound profeiles, ABS/PE or similar thermoplastic with FRP coextrusion

profiles.The common products include round rods,round tubes, flat bars, square tubes, angle bars ,U channel ,I profile ,T profile

 and other kinds of special profiles with same cross section.



2.Features of pultrusion products:



 a.High strength



 b. Low deformation rate.



c. High HDT.



d. Low hydroscopicity



e. Low thermal insulation coefficient



f. Anti-corrosion



g. Anti-aging



h. Insulattion



i. Anti-theft.



3.Physical properties of  ordinary fiber glass pultrusion profile

(No.)	Testing items	Unit	Testing results	Testing standard
1	Density	g/cm3	1.85-1.9	ASTM D792
2	Water absorption	%	0.57	ASTM D570
3	Flexural strength	MPa	302	ASTM D790
4	Flexural modulus	GPa	18.6	ASTM D790
5	Tensile strength	MPa	210	ASTM D638
6	Tensile modulus	GPa	22	ASTM D638
7	Flame retardant rating		V0/V1	UL94
8	Dielectric breakdown voltage	KV	14.98	ASTM D149-09

4.Application of Pultrusion Products



As a kind of material with excellent performance ,pultrusion products are widely used, such as building materials, platform,

 protective guards, antenna cover, insulation ladders, duct rod, nursery stock support rods, tool handles, golf training

poles, flag poles, tent poles, arrow shafts, road marking poles, luggage poles and so on.

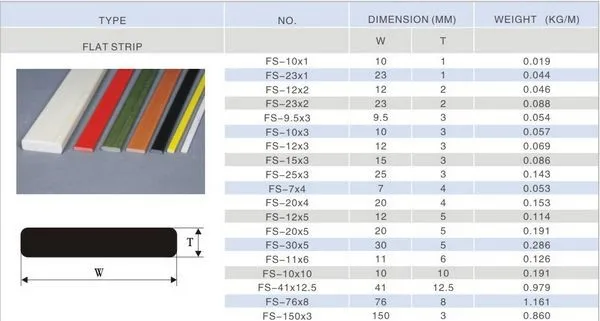

 5. Fiberglass Flat Bar  Sizes:
