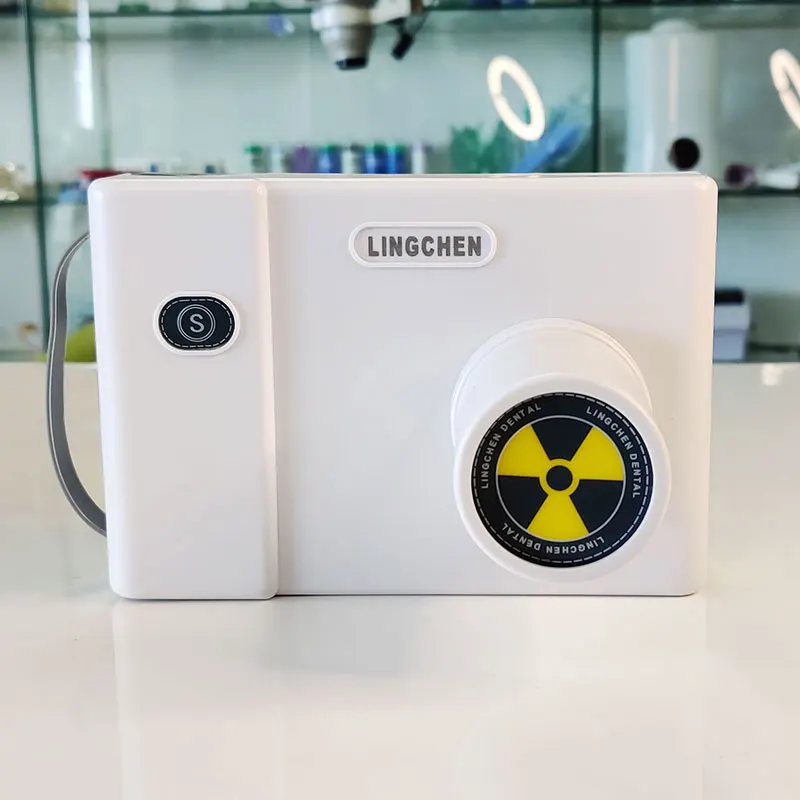

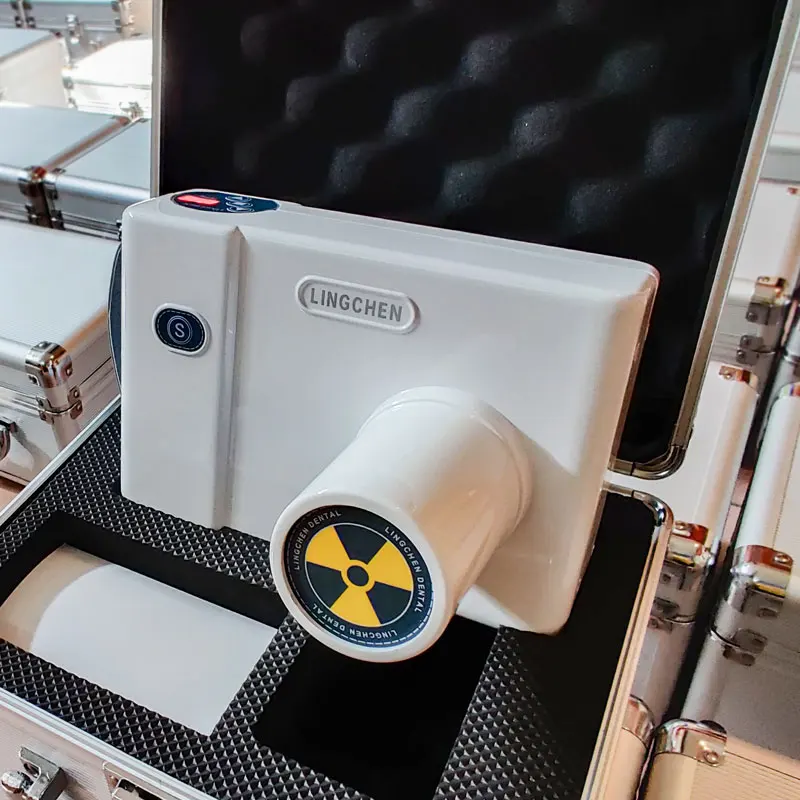

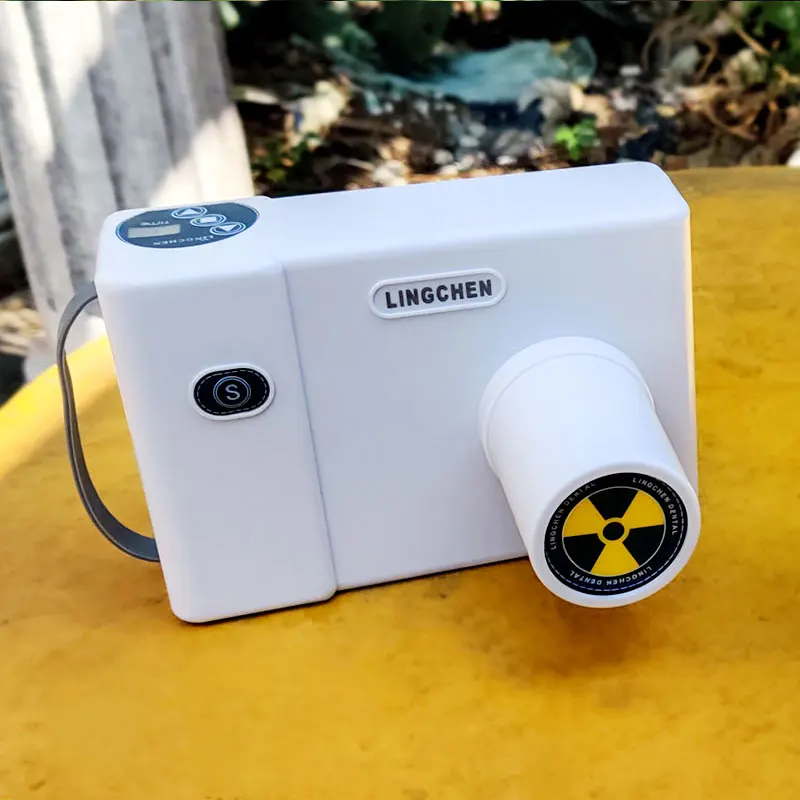

Wholesale Manufacturer 65Kv high frequency low radiation Camera Dental Portable X Ray Machine
Product Description

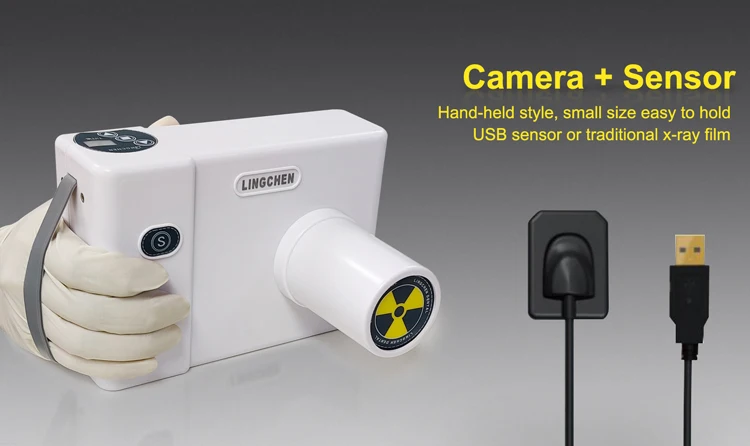

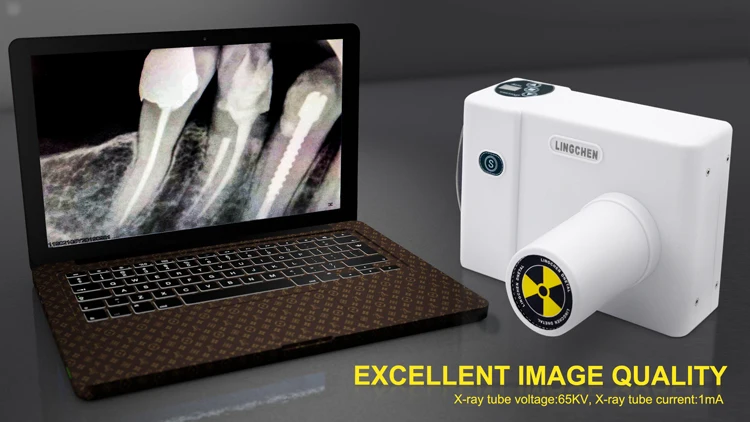

Portable x ray specifically designed for Dentists. Features include; Battery-power, Hand-held SLR sized camera, ease of angle, Low radiation for protection of your patients, USB sensor or traditional x-ray film. Produces excellent high resolution images, catches tooth root problems missed by other machines. Stable x-ray radiation output, shortened exposure time with high frequency inverter technology. Easy battery replacement.
Advantages:

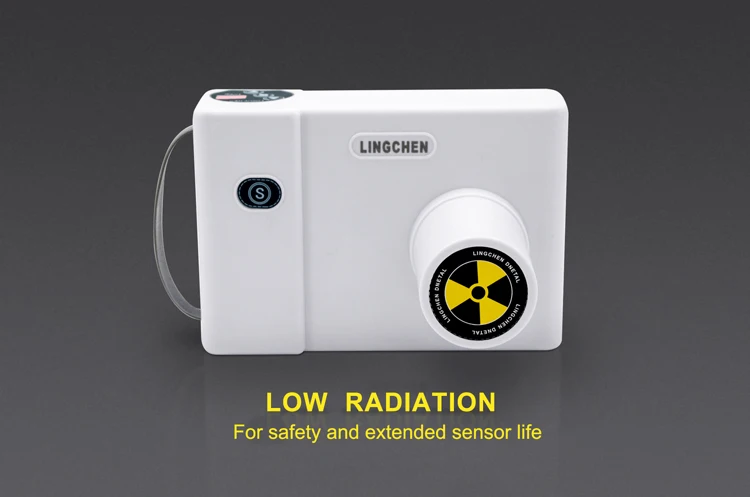

-DC battery operation, functional low radiation to protect your patients and extend sensor life;
-65KV, clear images;
-AA Battery for ease of replacement;
-Easy grip handle, small and simple to manipulate.
2. Exposure time:
1) Choose between Child and Adult settings that correspond size and location to exposure time and angle.
2) Reference tooth to exposure time. (Referential value)
Position of tooth
Time(S)
Back
Middle
Front
Adult
Upper
Tooth
1.5
1.1
0.7
Lower
Tooth
1.3
1
0.7
Child
Upper
Tooth
0.8
0.6
0.5
Lower
Tooth
0.6
0.5
0.4
Upper teeth
8 7 6 5 4 3 2 1
1 2 3 4 5 6 7 8
Lower teeth
8 7 6 5 4 3 2 1
1 2 3 4 5 6 7 8
Note: Above data on the basis of using X ray film; if working with sensor, need decrease by half.
Customer Feedback:
Technical parameters:
Power supply voltage
100~240 VAC
Frequency
50-60Hz
Power
100 W
Exposure time
0.2-6 s
X- ray tube high voltage
65KV
X- ray tube current
1mA
Filament frequency
55 KHz
Excitation voltage frequency
35 KHz
Leakage radiation
< 10 uGy/h
Total filtration
2.3mmAl.
Focus to skin distance
100mm +10mm
Limit diameter
45mm + 5mm
Weight
1.6kg
Volume
17x13x12 cm
Design drawing of plastic support for X-ray tube
Design drawing of plastic oil tank for high pressure silo
About this dental portable x ray camera machine,we are the manufacturer.We develop and produce this product.No headache on after sell service.It is DC,low radiation near to 0,safe for people.
Welcome to visit youtube for Portable x-ray Machine more details:
https://www.youtube.com/watch?v=PZgupD9LiCY&t
