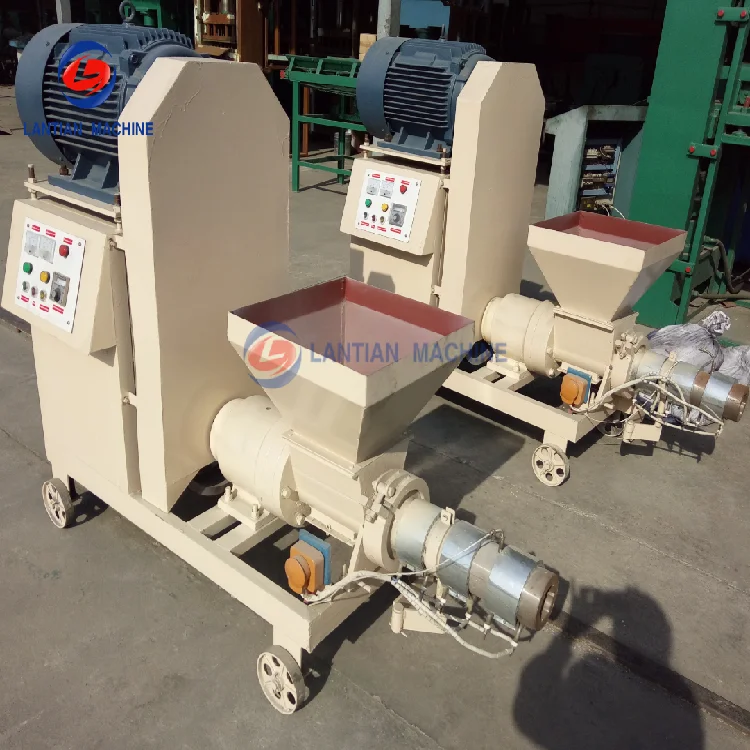

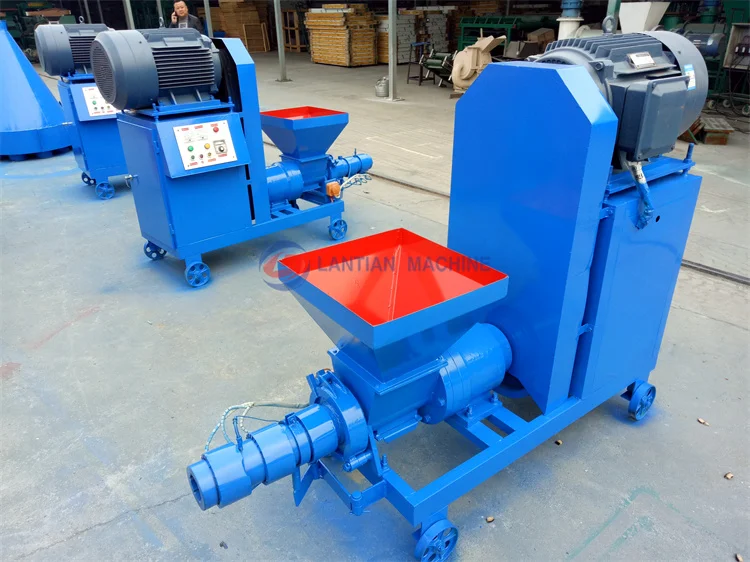

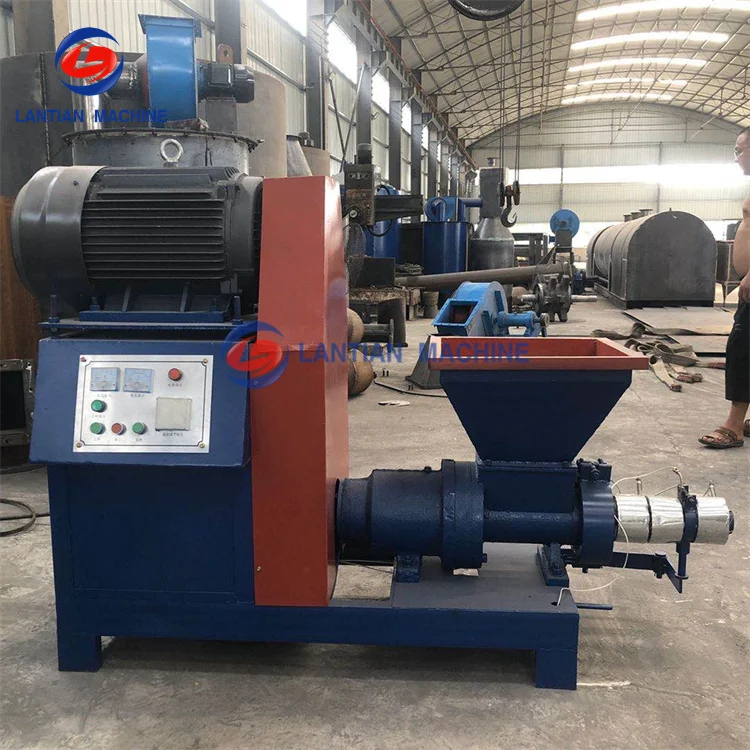

Pini kay sawdust wood briquettes machine

 1-Product description for Pini kay sawdust wood briquettes machine

Pini kay briquettes machine  use high temperature 400 degree, high pressure to shape wood sawdust powder into wood briquettes. Wood sawdust's moisture should be less than 15%, dimension should be less than 3mm. Wood sawdust briquettes' density is around 1.3-1.5 g/cm3, the burning time is around 3.5-4 hours. The whole sawdust briquette machine production line can make both wood briquettes and charcoal briquettes.

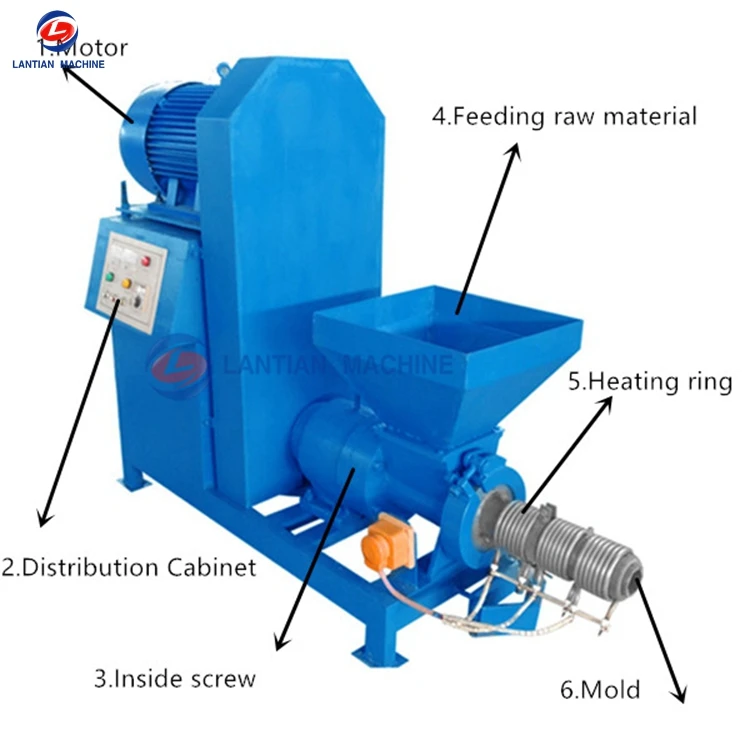

2-Working principle for Pini kay sawdust wood briquettes machine

The motor transmits power to the transmission via a V-belt, the transmission output shaft transmits power to the propelling shaft through a floating coupling, and the propelling on the propelling shaft pushes the coal material through the forming die to produce high density briquettes.

3-Main characters for Pini kay sawdust wood briquettes machine
-The feeding screw lead is large, the feeding is fast, the pushing screw lead is small, and the power is saved.
- The shaft seat and the cylinder are rigidly connected, with high concentricity, anti-reverse thrust, and stable machine.
-The part to be sealed adopts a fault structure, and dirt is leaked from the fault.
-V-belt drive, stable operation, low noise, and overload protection.
- There is a snap ring structure and bolt structure connected to the machine head and the cylinder, which can be selected according to the user's needs.

4-The use and maintenance
- Before starting each shift, check whether the rotating parts are flexible and there are no abnormal sounds. The empty machine can be put into production after running for 2 ~ 3 minutes.
- The raw materials must be processed, the maximum particle size is less than 3mm, add water, add binder, curing agent, and stir for 24 hours before use.
- The feeding opening is blocked. Use wooden or bamboo to dredge. Do not use metal rods.
- The bearing of the rotating part of the machine should be regularly filled with lubricating oil, and the temperature of the bearing part should not exceed 60 degrees.
- Stop feeding before stopping, stop after the material in the cylinder is squeezed out, disassemble the machine head, and reinstall it after cleaning for use after work.

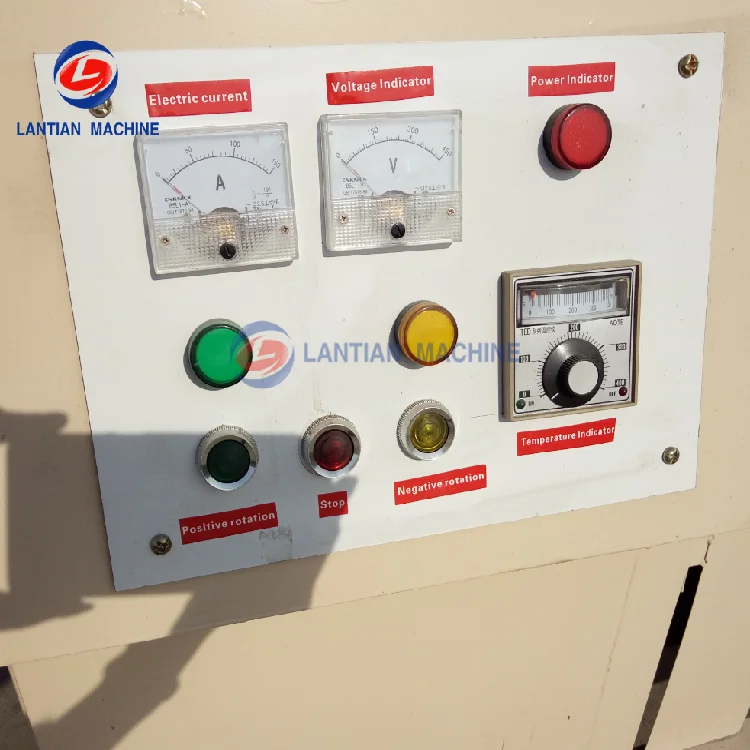

- In order to prevent the motor from overloading, it is recommended that the user install a current and voltmeter, and adjust the feeding amount and water content according to the current meter.

5-Main parameter for Pini kay sawdust wood briquettes machine

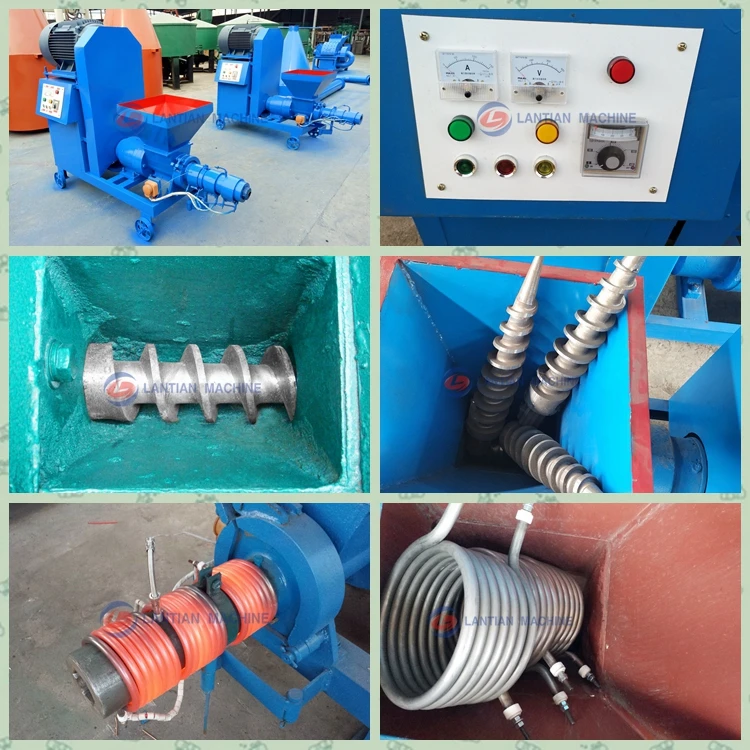

 6-Spare parts for Pini kay sawdust wood briquettes machine

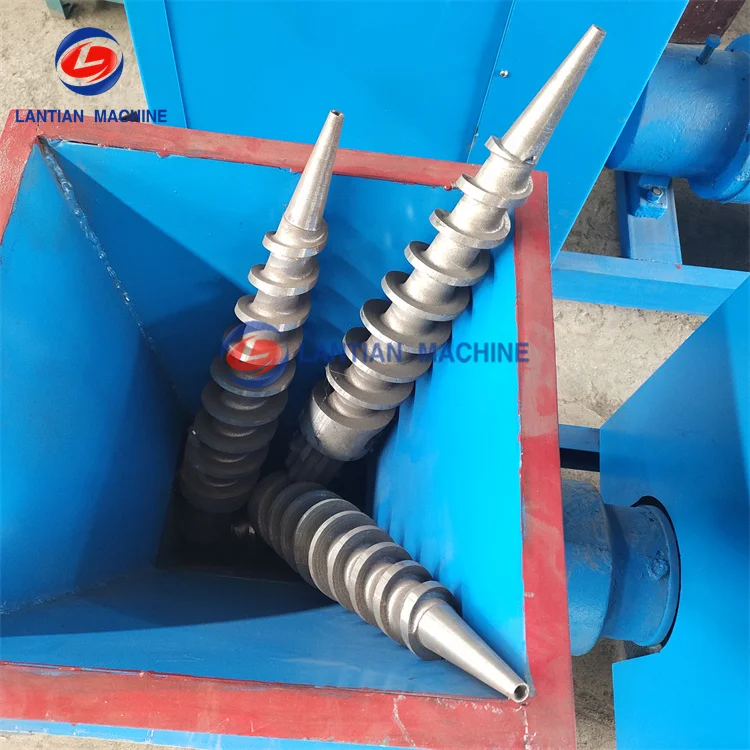

Screw material

A:45# steel rod  material

B:40chromium steels

Material A is better than B, A can use 4-5months,B can use 7-8months.briquettes machine working

Screw character:

The spiral is made of special metal, which has the characteristics of high temperature resistance, wear resistance and no deformation.

during working, screw will become hot,so you need use good steel welding rod welding it every 4-5days, all the screw model extrude machine has this situation.

Heating ring

There are multiple heating rings on the mold to provide heat so that the material can be extruded at high temperatures.

Mold

One set machine suitable different molds

 7-Raw material for Pini kay sawdust wood briquettes machine

Many biomass raw material used to press briquettes,such as rice husk,palm shell, coconut shell,peanut shell,wood log, sawdust,corn rod.

8-Test wood briquettes machine

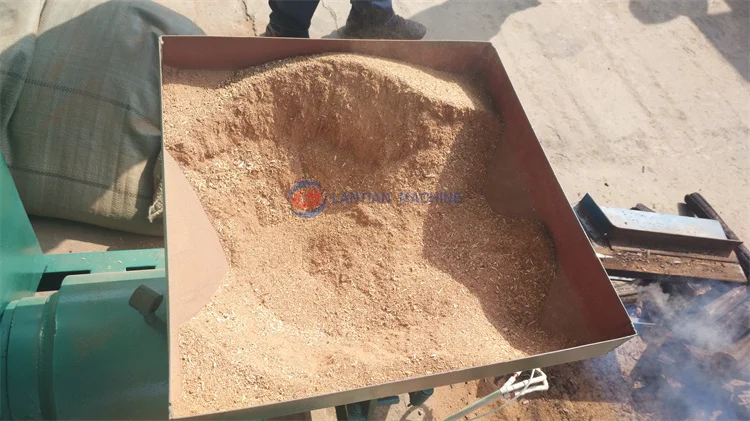

♥Feeding sawdust powder

 ♥Briquettes come out

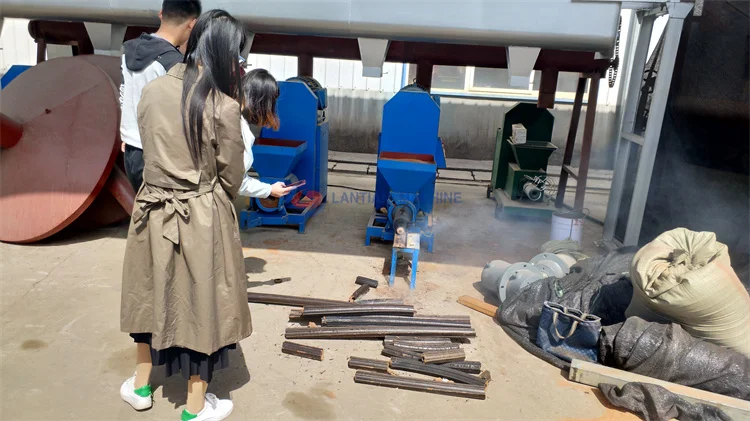

♥Customer's factory

briquettes machine working in customer's factory

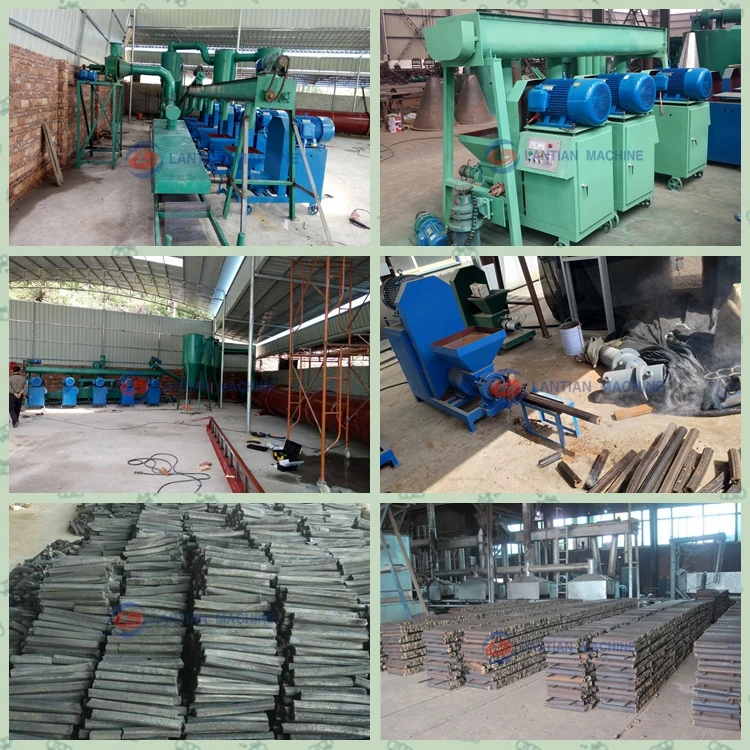

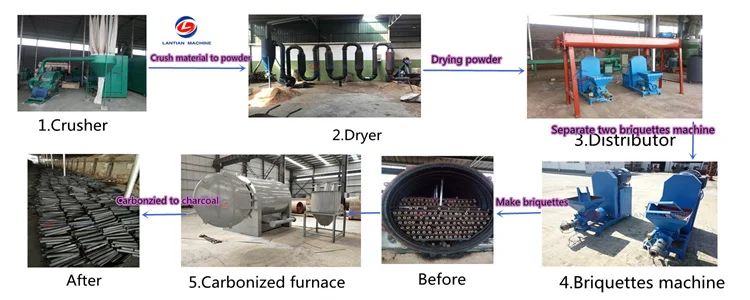

9-Product line for Pini kay wood briquettes machine

As manufacture, we supply full product line from wood crusher- sawdust dryer - extruder machine -carbonzied stove, include related screw conveyor, mesh belt conveyor and distributor, smoke collect equipment.customer no need visit different factory to make full product line ,it will save money and energy.

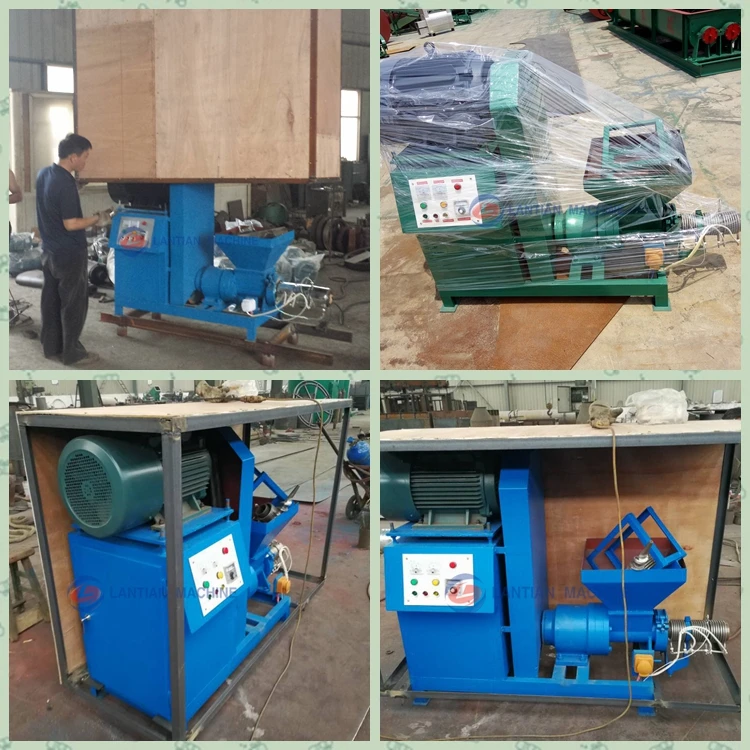

 10-Packing and shipping for Pini kay sawdust wood briquettes machine

Single extruder machine will be packed by plywood box, no need supply Inspection Certificate of Fumigation.

Good packed will keep machine safety during delivery.we have shipping agent with good price shipping cost,welcome customer order machine by CIF term.

Every week we have customer fly to factory check and test machine from different country.if customer not come, we will supply online video and quotation help customer understand machine how to working.

If you are interested this machine ,send me message, i will contact you soon.
