DESCRIPTION

L1/L2 satellite receiver 4GNSS OS-102 GNSS with external antenna, wholesale low price

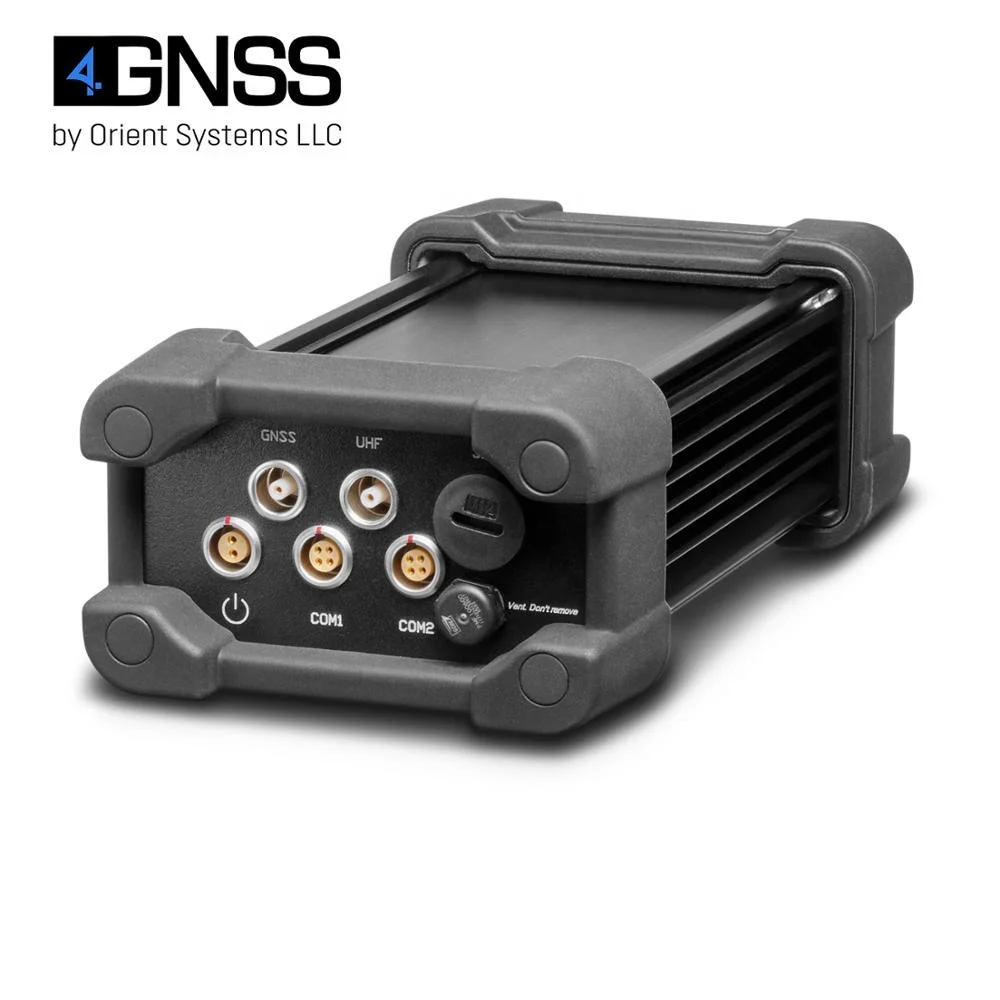

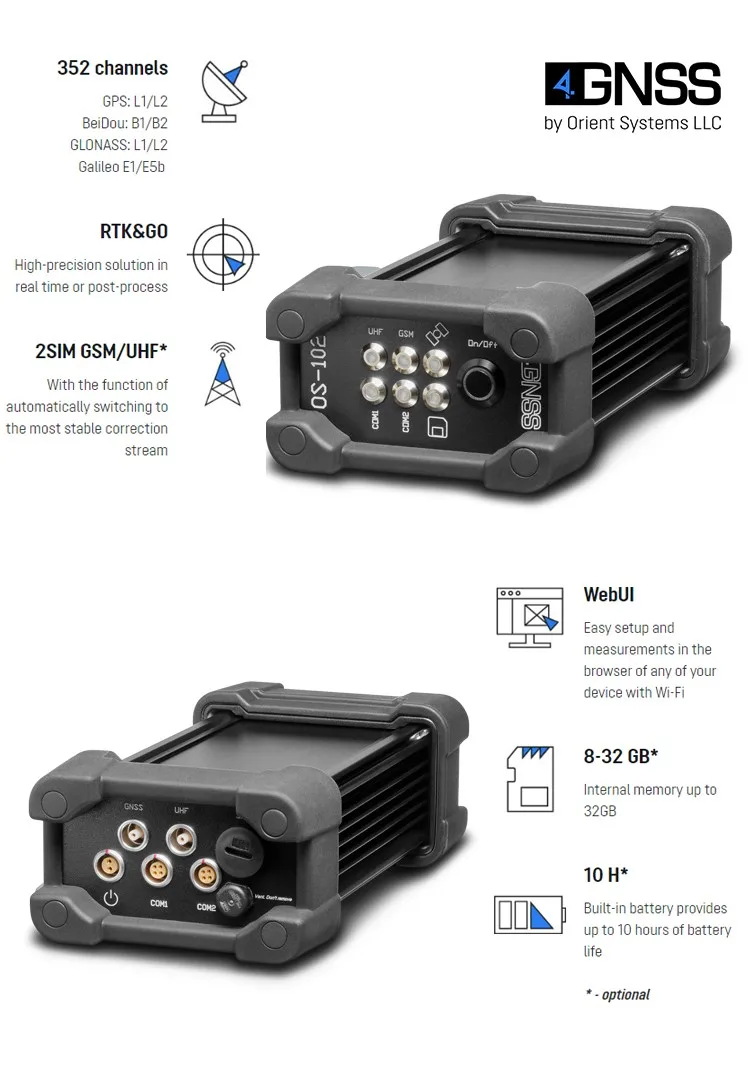

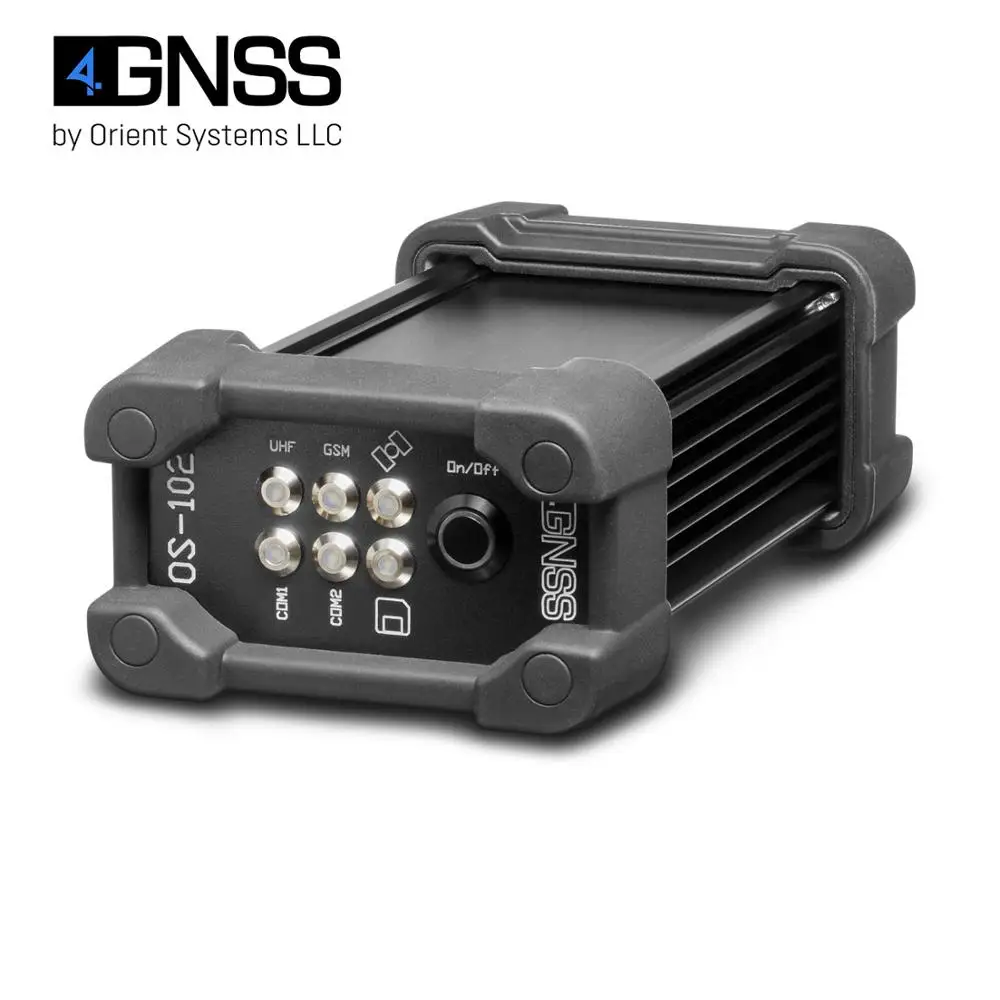

OS-102 is a universal multifunctional L1/L2 GNSS receiver with an external antenna connection. It can be used as a Base or Rover in the RTK, Stop&Go, Static modes and for high-precision trajectory and events obtaining.

OS-102 is an excellent solution for geophysical, geodetic, photogrammetry and other applications that require a high-precision solution.


Measurements are recorded in the internal memory of 8 GB (up to 32 GB). Supports RTCM 2.x, 3.x, CMR corrections. Raw data is easily converted to RINEX by the receiver's internal WebUI or PC free utility. WebUI to configure and control the receiver. Optionally includes an internal battery for 10 hours of autonomous working.

Purpose: Rover or Base station.
Design features: IP67. Supplied with shock-absorbing rubber bumpers.
Frequencies: 352 channels: GPS L1/L2, GLONASS L1/L2, BeiDou B1/B2, Galileo E1/E5b, SBAS

WebUI: yes

Memory: 8Gb up to 32 Gb*

Optional: built-in battery, 1W or 2W UHF modem, 1SIM 3G GSM modem
Size (LxWxH), mm: 164 x 87.4 x 53.6
Weight, kg: 0.6

FEATURES
TECHNOLOGIES
SPECIFICATION
\t
Signal Tracking
\t
352 channels
\t
GPS L1 C/A, L2C, L2P
\t
BeiDou B1, B2
\t
GLONASS L1 C/A, L1P, L2 C/A, L2P
\t
Galileo E1, E5b
\t
SBAS: WAAS, EGNOS, MSAS, GAGAN
\t
Performance Specifications
\t
Acceleration 4g
\t
Overload 15g
\t
Cold start <50s
\t
Warm start <30s
\t
Signal reacquisition <1.5s
\t
Velocity Accuracy 0.03m/s
\t
Time Precision
\t
20ns
\t
Positioning Specifications
\t
Post Processing Static
\t
2.5 mm+1 ppm Horizontal
\t
5 mm+1 ppm Vertical
\t
Single Baseline RTK
\t
8 mm + 1 ppm Horizontal
\t
15 mm + 1 ppm Vertical
\t
DGPS
\t
0.4 m 3D RMS
\t
SBAS
\t
1 m 3D RMS
\t
Standalone
\t
1.5m 3D RMS
\t
Communications
\t
Communication port
\t
• 2 RS232 Lemo4 (f) baud rates up to 230400bps
• 1 Pulse Per Second (PPS) output
• 1 Event Marker input
• Bluetooth
• Wi-Fi 802.11 (APN, client)
• GNSS antenna Lemo1 (f)
• 6 LED indicators show the working status
\t
Build-in GSM modem
\t
2G/3G: 900/2100 MHz
• TCP-IP/UDP-IP (client, server)
• NTRIP (client, server)
• OS-Stream
\t
Built-in UHF modem*
\t
- 410-470 MHz
- Up to 2W
- TRIMTALK, TRANSEOT, TRIMMK3
- UHF antenna Lemo1 (f)
\t
WebUI
\t
FTP-server and FTP-Push
\t
Positioning data outputs
\t
1Hz, 2Hz ,5Hz, 10Hz, 20Hz (depends on installed option)
\t
Data Format
\t
Correction data I/O
\t
CMR, RTCM 2.x,3.x, RTCM COMPASS
\t
Position data output
\t
ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST; PTNL, PJK; PTNL, GGK; PTNL, AVR; NAVPOS
\t
ComNav Binary data
\t
Physical
\t
Size(L×W×H)
\t
164mm × 87.4mm × 53.6mm
\t
Weight
\t
 0.6 kg
\t
Antenna
\t
1 x SMA female (GNSS), 1 x SMA female (UHF)
\t
Environmental
\t
Working temperature
\t
-40℃ to +85℃
\t
Storage temperature
\t
-40℃ to +85℃
\t
IP protection
\t
IP67
\t
Electrical
\t
Input voltage
\t
9-28 VDC
\t
Power consumption
\t
up to 3W (3 constellations)
\t
Memory
\t
8 GB up to 32 GB*
\t
Features
\t
UHF 2W (OC-102UHF) without internal battery
\t
WebUI
\t
Advanced QuantumTM Algorithm
\t
Support short baseline RTK
\t
Support PPS and Event Marker
\t
Low power consumption and compact size
\t
* - optional
