Product Overview

Description

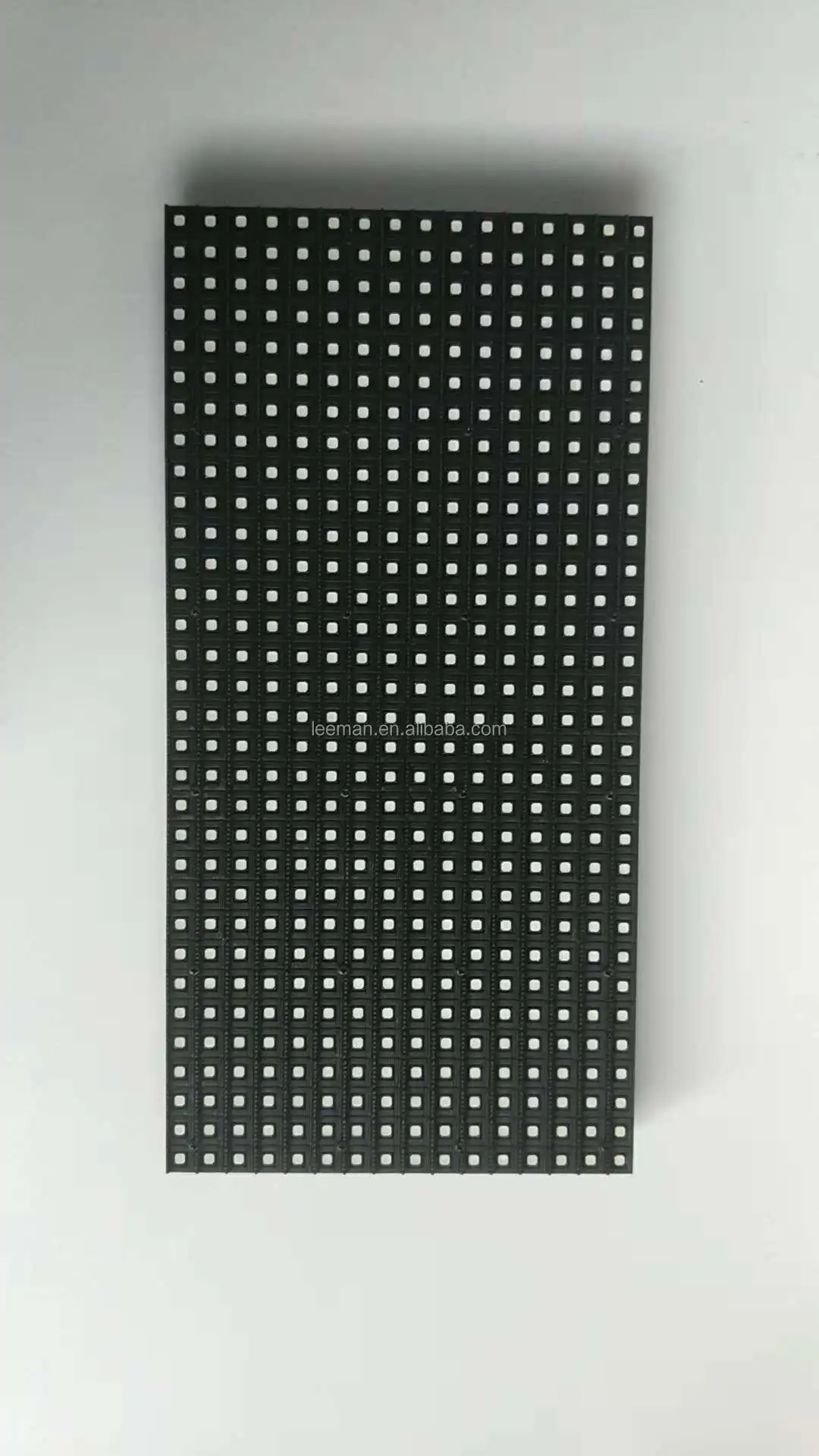

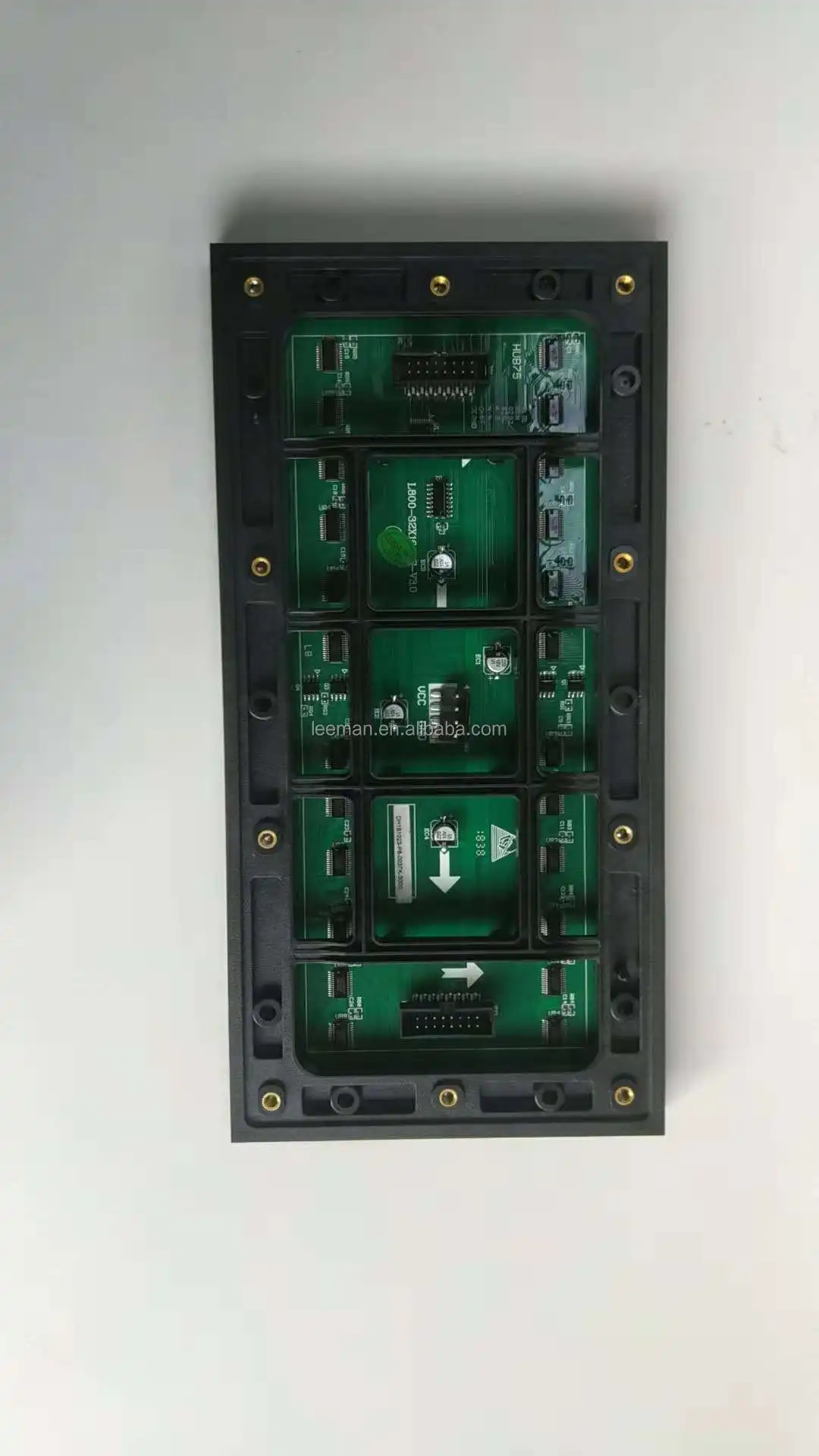

LEEMAN P8 SMD RGB FULL COLOR LED DISPLAY module 320mm x 320mm and 256m x 128mm and 320mm x 160mm



Outdoor Waterproof SMD RGB LED Display P2mm / P2.5mm / P3mm / P3.9mm / P4mm / P4.8mm / P5mm / P6mm / P6.67mm / P5.95mm / P7.62mm / P8mm / P8.928mm / P10mm / P10.42mm / P12.5mm / P16mm / P20mm / P25mm



You could contact us to get a free sample now!

LED Display Screen

LED Display Module

LED Controller card

HDMI video processor

LED Stage light

DLP Projector

LCD Projector

LED light box



Technology Specification Datasheet

S/N	Item	Technical Parameters
LED Parameters
1	Item Name	LED Type	Brightness	Wave Length	H/V  Visual Angle
2	Red LED	SMD3535	600-800mcd	620-625nm	160º/120º
3	Green LED	SMD3535	1800-2000mcd	520-525nm	160º/120º
4	Blue LED	SMD3535	400-600mcd	470-475nm	160º/120º

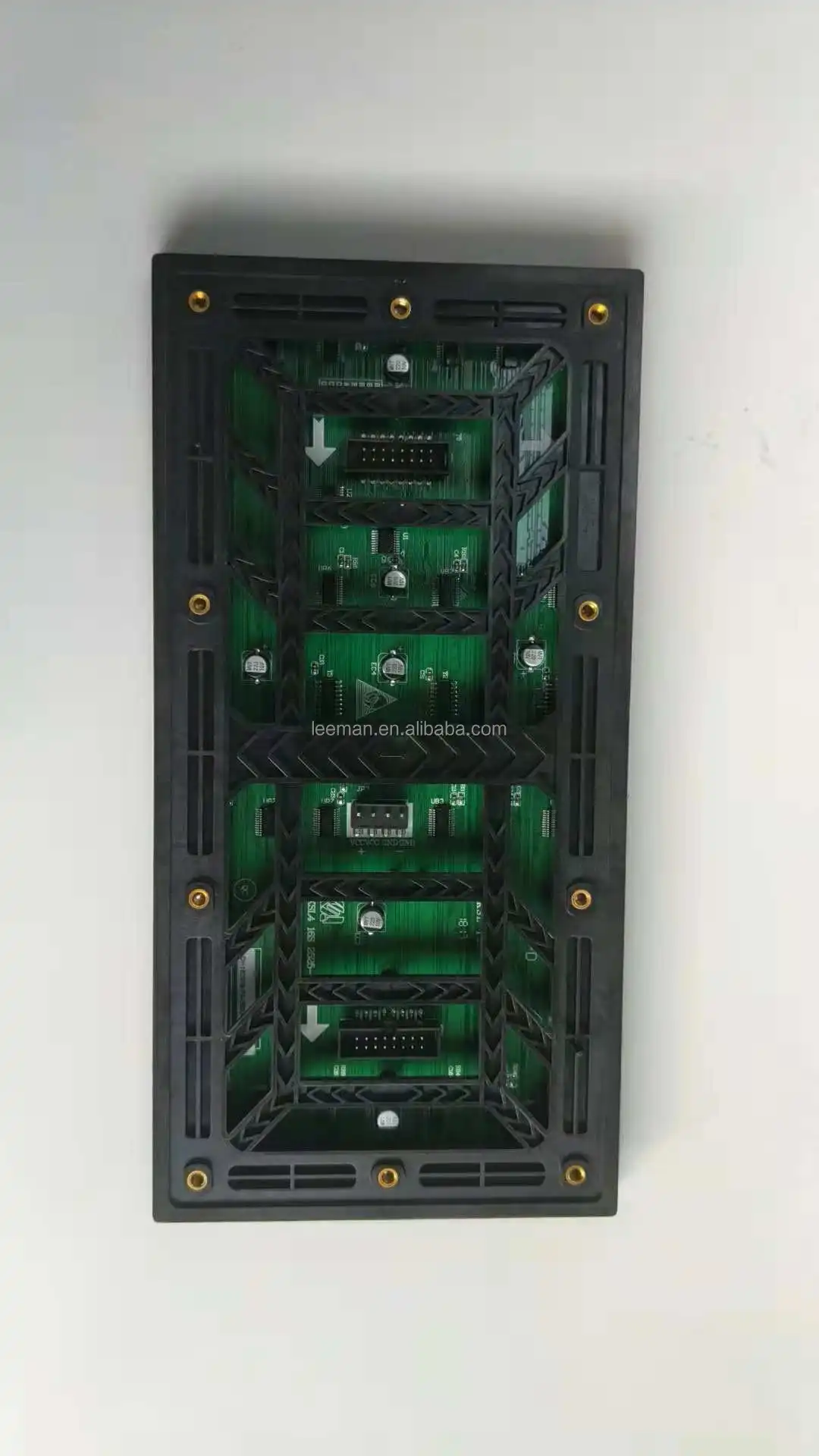

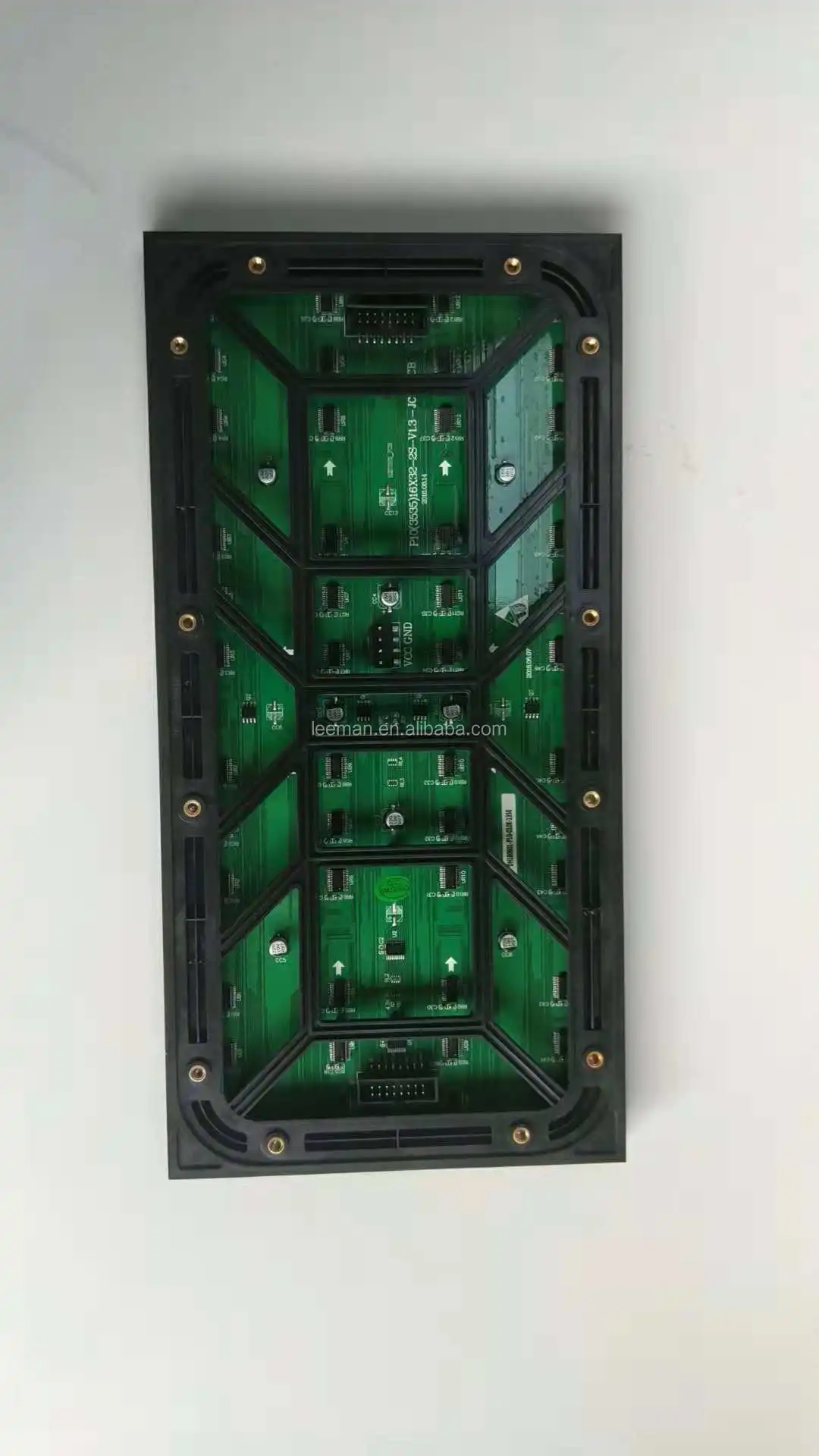

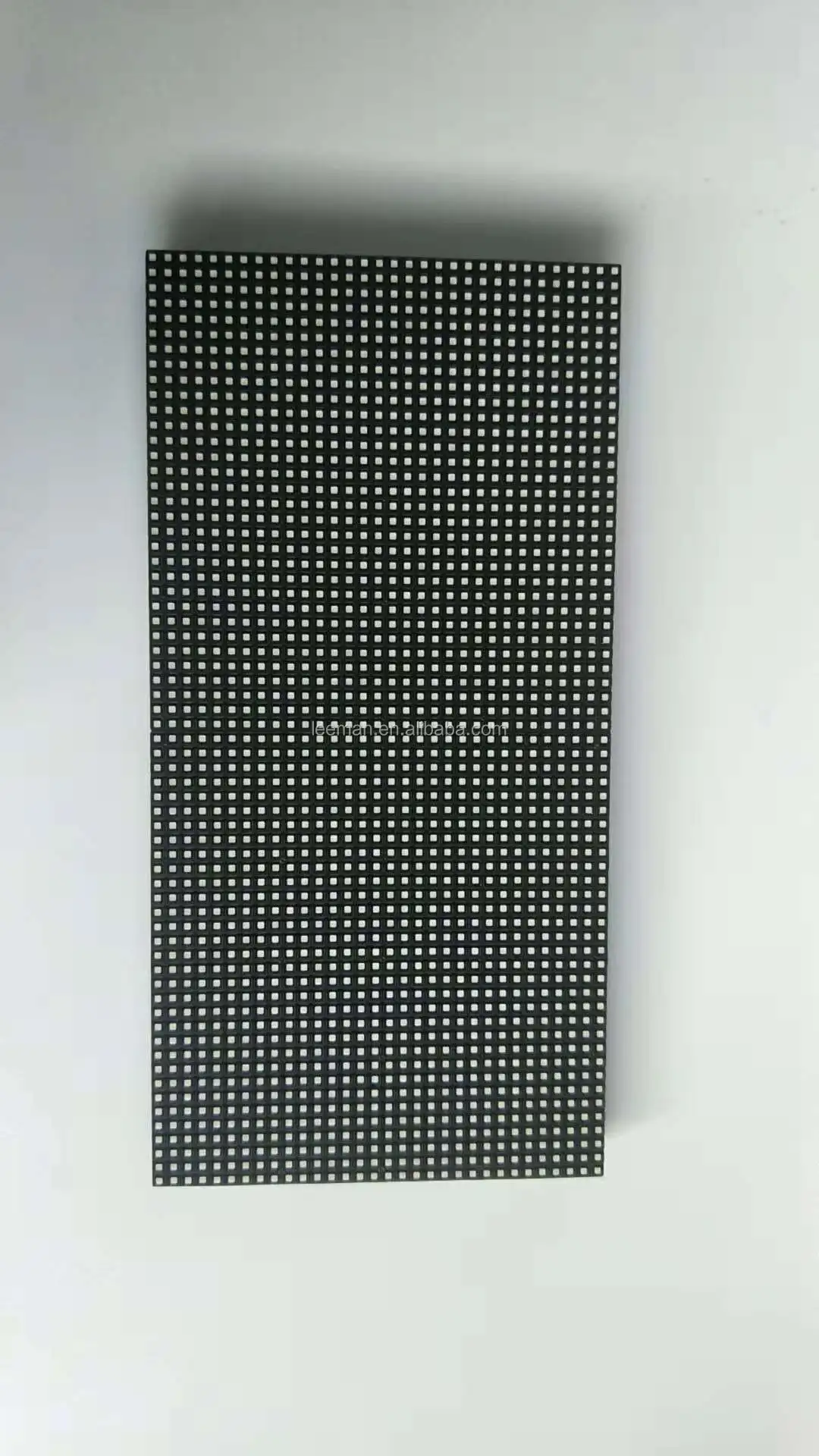

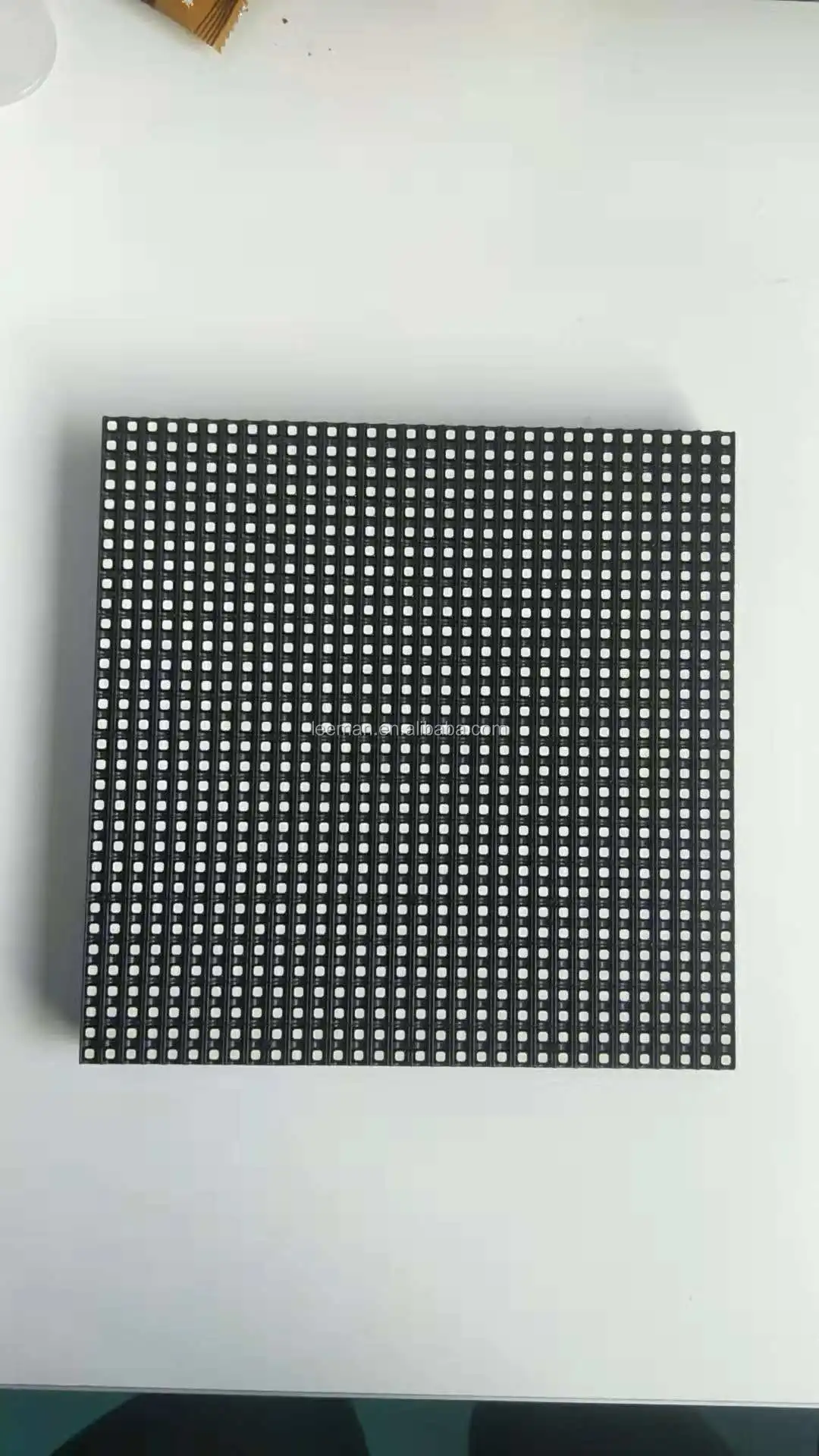

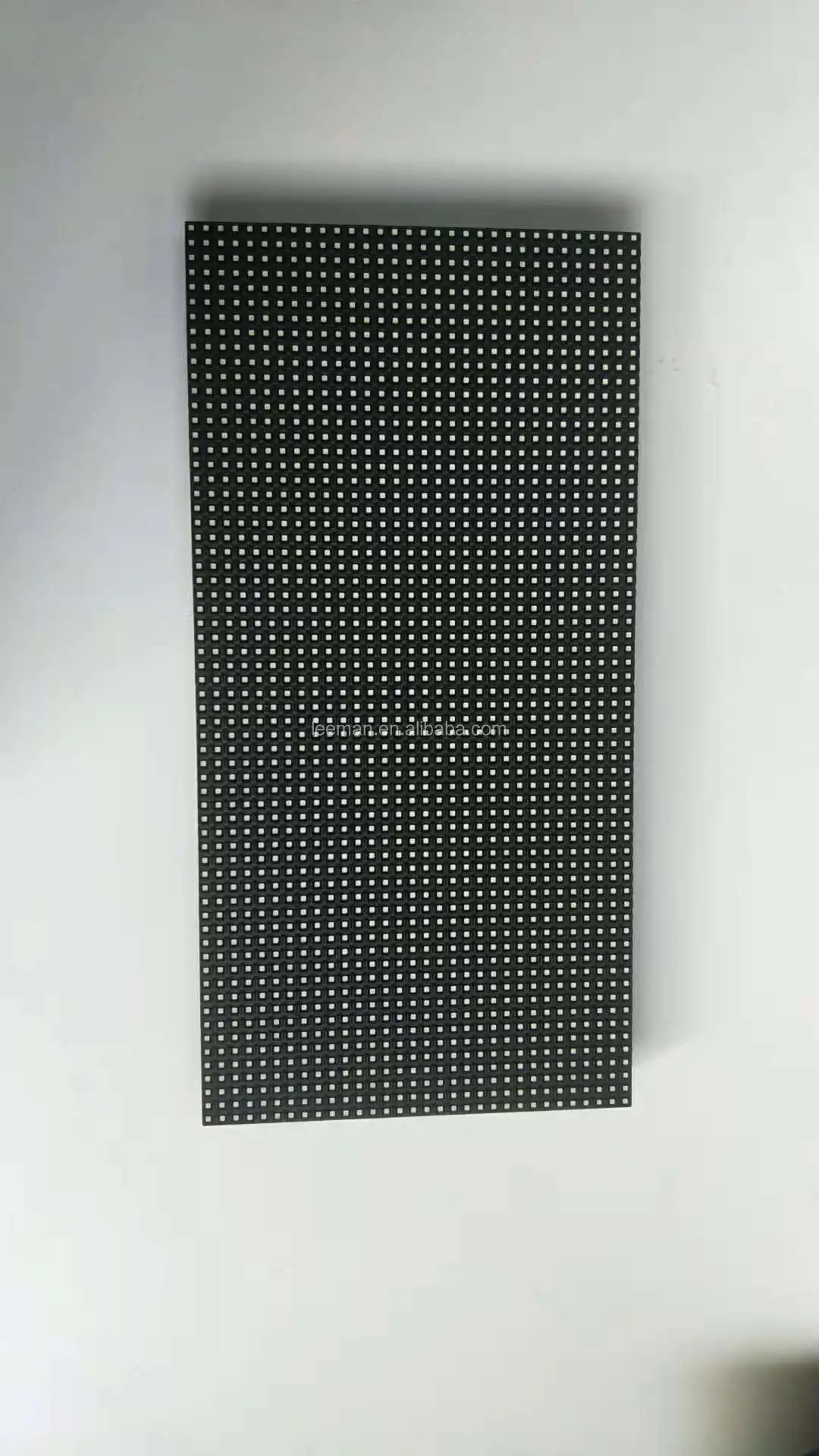

Module Specification
1	Pixel Pitch	8mm
2	Pixel Configuration	NATIONSTAR SMD3535 RGB(3in1)
3	Module Resolution	40 x 20 pixels
4	Module Pixles	800 pixels
5	Module Size	320mm X 160mm
Cabinet Specification
1	Cabinet Size(W X H X D)	960mm x 960mm x 142mm
2	Cabinet Resolution(dot)	120 x 120 pixels
3	Module Quanity (pcs)	18pcs
4	Cabinet Pixels	14400 pixels
5	Pixel Density	15625 pixels/m2
6	Cabinet Materials	Iron or Aluminum
Whole Screen Specification
1	Screen Brightness	≥8000cd/m2
2	Driving Method	1/5 scan
3	Best Viewing Distance	8m - 150m
4	Max. Power Consumption	600W/m2
5	Average Power Consumption	300W/m2
6	Gray Level	16bits input, 4096 levels(212)
7	Display Color	256M
8	Frame Frequency	≥60Hz
9	Refresh Frequency	≥3800Hz
10	Uninterrupted Working Hours	≥72 hours
11	Screen Life-span	≥100,000 hours
12	MTBF	≥5,000 hours
13	Discrete Blind Spot Rate	<1/10000
14	Continuous Blind Spot Rate	None
15	Blind Spot Rate	<1/10000
16	Protective Scale	IP65
17	Screen Plainness	<±1mm
18	Power Supply Mode	AC220±10%  50Hz/AC110±10%  60Hz
19	Environment Temperature & Humidity	Temperature:-20 Celsius~+60 Celsius
		Humidity:10%~90% RH
20	Control Mode	Synchronous display with control PC by DVI
21	Control System	DVI video card + full color control card + fiber system( optional)
22	Display Content	Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
23	Interface	Standard Ethernet
24	Transmission Distance	Multi mode fiber <500m, single mode fiber <30km,internet cable <100m





Feedback from our customers



" Yes, I'm satisfied with this seller Leeman's LED screens, perfect. "  Mr Richard L.A. Meijs, MBA, Vegas, United States, LED Screens LLC.



" Great quality at an affordable price and excellent costumer service from Leeman Display Technology Limited, any problem is timely solved. " Mr PEDRO JESUS CONDE HERNANDEZ, Mexico, LED DMX TECH.



" Your LED display is working excellent and our governments are very satisfied with your screens. " Mr Jorge Gomez Torres, Columbia, AlfaCom SAS, Group.



" I recommend this seller Leeman and give 5 stars, hight quality and fast delivery." Mr Marcelo Gaete Crichton, Chile, GRUPO 3G LED LTDA.



"Leeman Display Technology Limited is an amazing company, I always buy a lot of LED displays from them." Mr. JUAN CARLOS ALFARO, Trujillo, Peru. ALAC OUTDOOR SAC.



" Glad to cooperate with Leeman people again,they are patient to answer each questions. High quality & best oversea service. " Mr Daniel Reynolds, UK, Dynamo LED Displays Ltd.



" I want to buy many LED screens from Leeman Display Technology Limited again. "  Mr Fabio Alex de Moraes, Brazil, Best Print Comercio e Suporte para Imporessora Solvente Ltda.



" My partner and I visited Leeman factory in 20th - 25th July, the workshop's environment is very good, the Outdoor P10 Full Color LED Screen 320sqm gave us a great visual effect." Mr Mohammed Abahssain, Germany, LEDALL Advertising Technology.



" Leeman LED display modules are working extremely well, very very low price with high quality, also we're satisfied with the services provided." Mr. Johnson Z. X. Alicante, Spain. LEDITECH LED.



"We strongly recommend you Leeman's LED video wall Screen, perfect products."  Mr Marc OSSWALD - C.E.O.  in France, Europe. LED Winlight International.



" Happy to build long-term cooperation with Leeman's people, they are very very professional and responsible, we trust them. " Mr Paul Grady, United Kingdom, PRO LED LIGHT UK LTD.



" We are looking forward to building a long-term relationship with Leeman Display Technology Limited. " Mr Vasyliy Melnik , Ukraine, LEDStyle.



" I'm very happy with Leeman's People, good communication and excellent overall service." Mr Stefka Kandeva, Bulgaria, LESI-2000 Ltd.

Get a huge discount now

LEEMAN LED Display & LED Module Price

P1.667 Indoor LED Display screen 500USD/M2
P1.875 Indoor LED Display screen 480USD/M2
P2 Indoor LED Display screen 450USD/M2
P2.5 Indoor LED Display screen 420USD/M2
P3 Indoor LED Display screen 400USD/M2
P3.91 Indoor LED Display screen 380USD/M2
P4 Indoor LED Display screen 350USD/M2
P5 Indoor LED Display screen 320USD/M2
P6 Indoor LED Display screen 300USD/M2



P3 Outdoor Video LED Displays 450USD/M2
P3.91 Outdoor Video LED Displays 400USD/M2
P4 Outdoor Video LED Displays 380USD/M2
P4.81 Outdoor Video LED Displays 350USD/M2
P5 Outdoor Video LED Displays 320USD/M2
P6 Outdoor Video LED Displays 300USD/M2
P8 Outdoor Video LED Displays 280USD/M2
P10 Outdoor Video LED Displays 250USD/M2

If you need more info, please contact us now.
