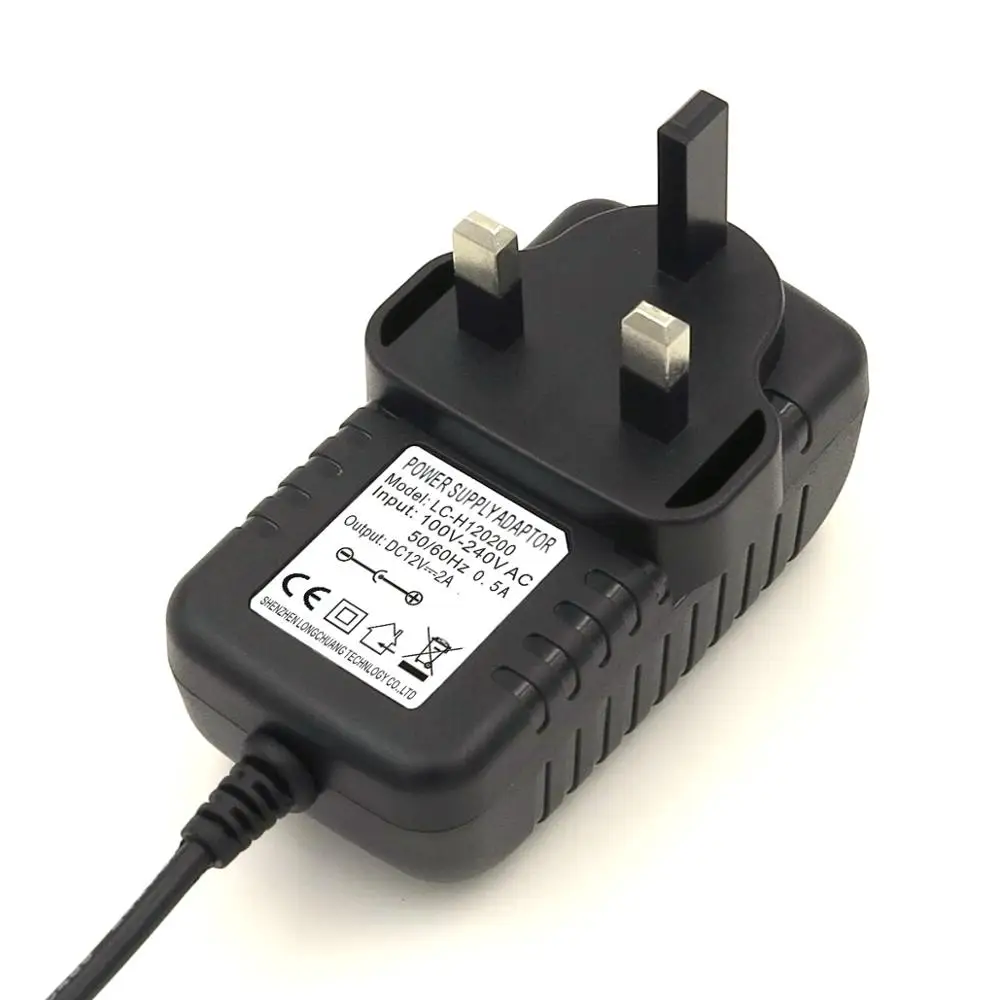

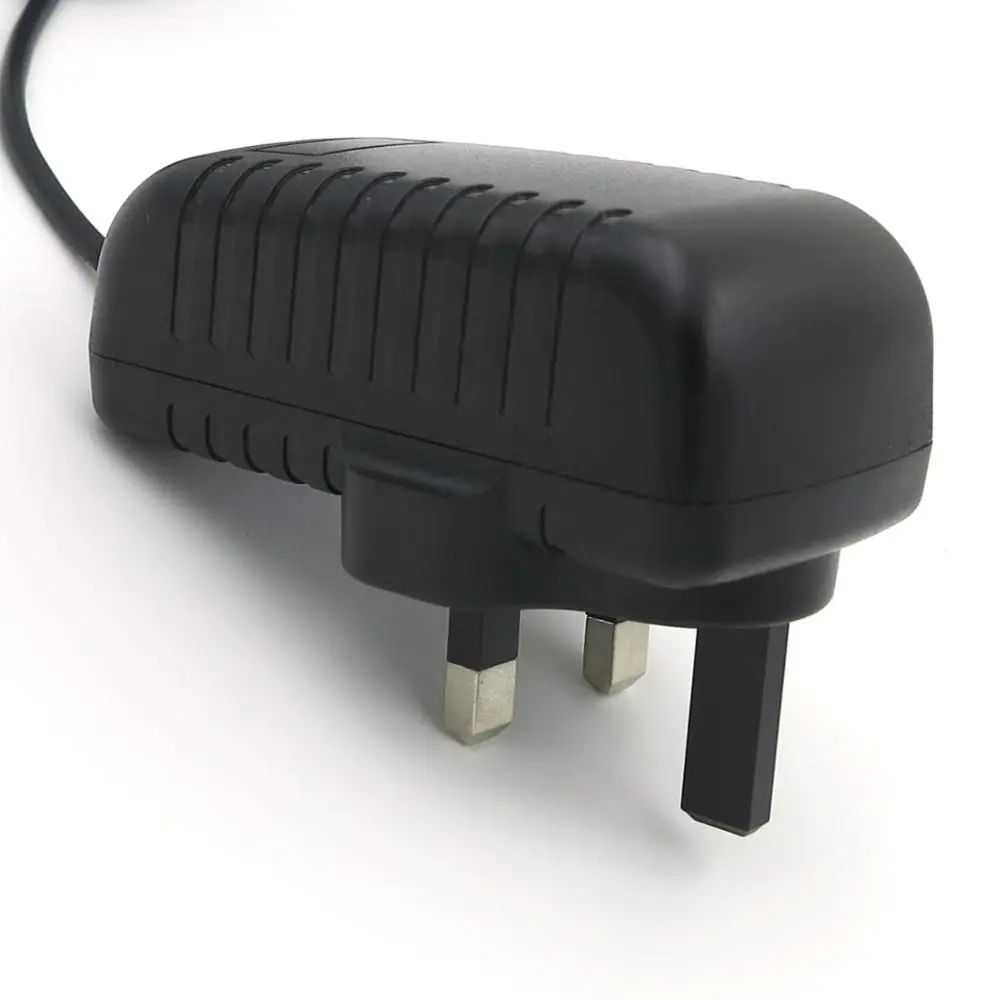

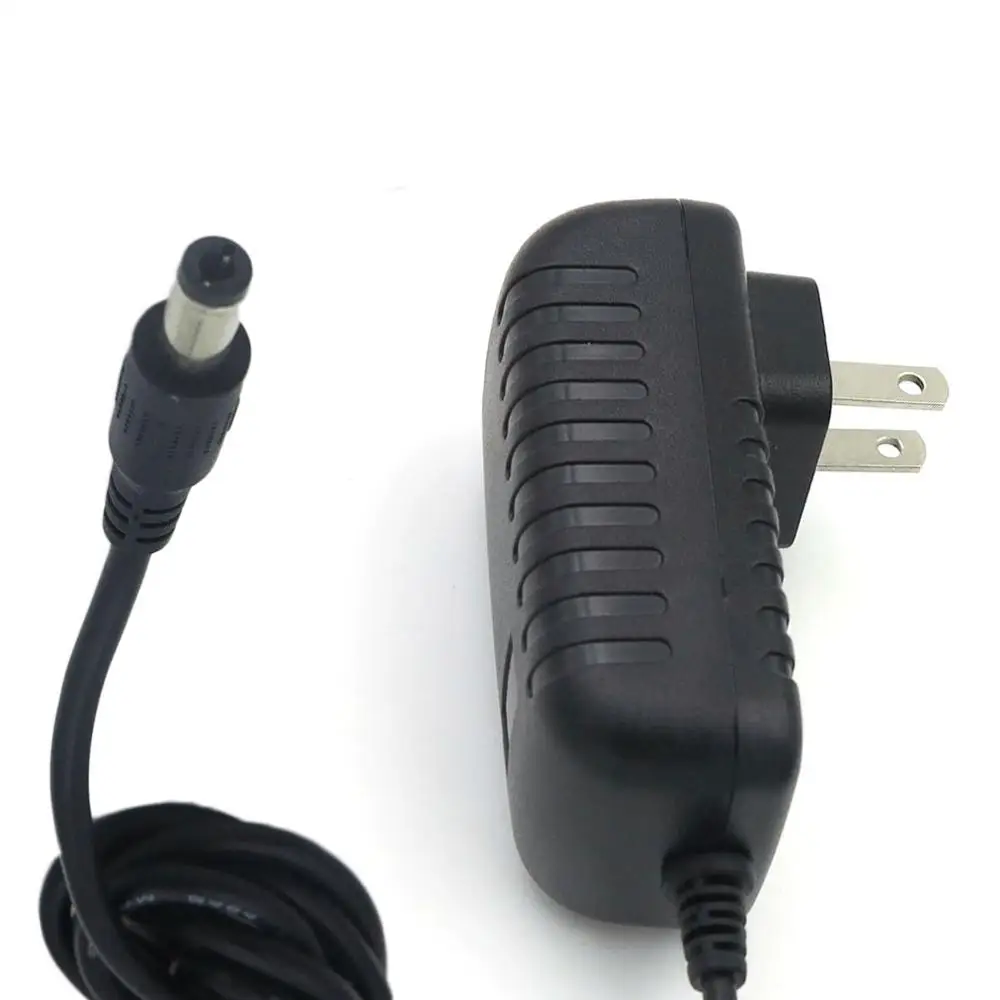

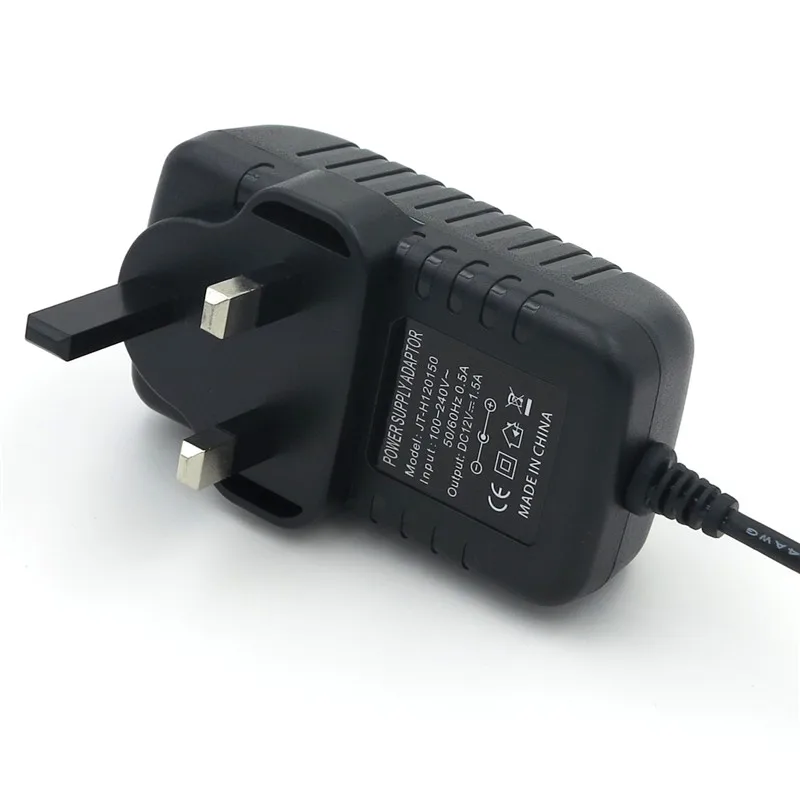

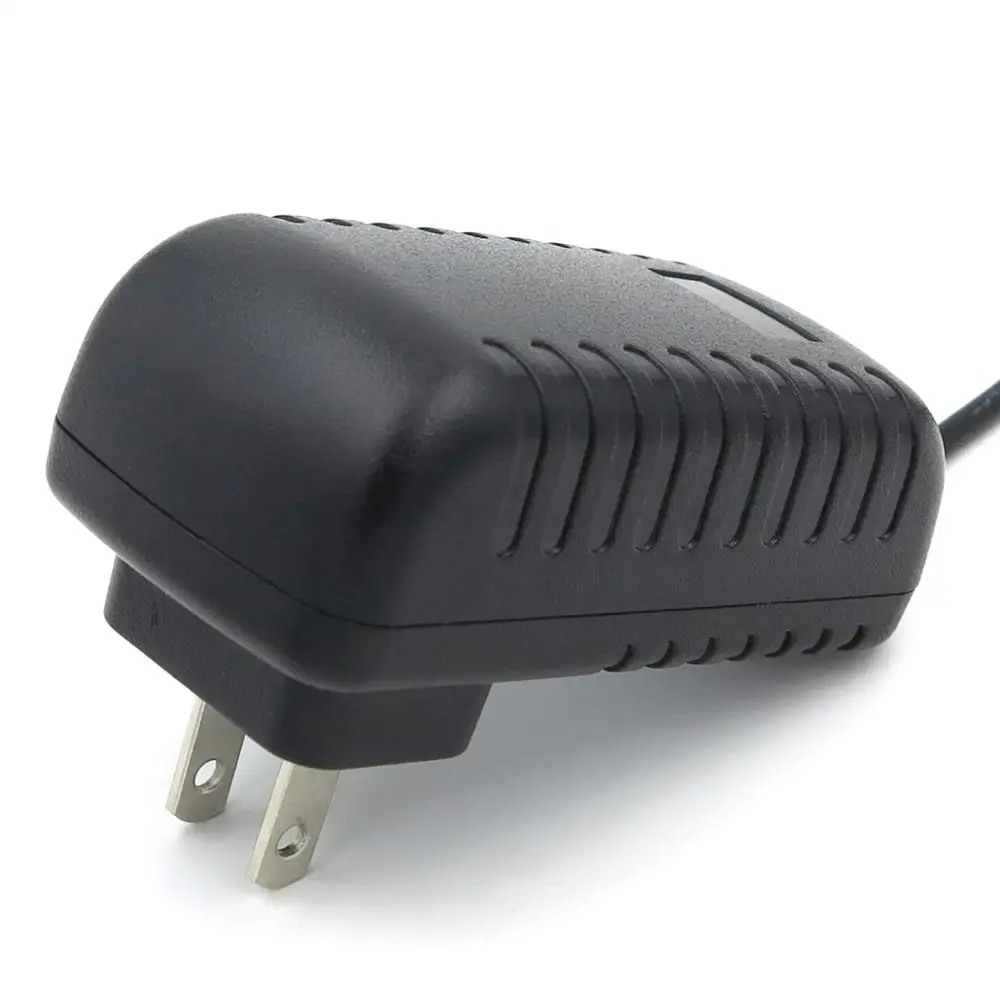

12v3a 9v 4a 24v1.5a 36w wall mount power supply adapter charger for hair removal instrument
- Category: >>>
- Supplier: Shenzhen Longchuang Electronic Technology Co. Ltd.
Share on (62537695539):
Product Overview
Description
Product Description
When order ,please contact supplier ,confirm the AC plug,DCconnector,cable length ,with led light or not . | ||||
Base Information | Product Name | 12v3a 9v 4a 24v1.5a 36w wall mount power supply adapter charger for hair removal instrument | ||
Brand | OEM | |||
Model # | LC-H120300 | |||
Size | 83*40*45mm | |||
Material | ABS+PC | |||
Place of Original | China (mainland) | |||
Product details | AC Input voltage range | 90-240V | ||
AC Input current | 0. 3A | |||
Inrush current | 30A Max. | |||
AC input Frequency | 50/60Hz | |||
Rated output voltage | DC 12.0V | |||
Rated output current | DC 3.0A | |||
DC Output range | 11.8V-12.5V,0.1-3.5A | |||
Tolerance | ±5% | |||
Efficiency | 85% (Min.) | |||
Plug type | US/UK/AU/EU/KC/ASS/CCC | |||
DC cable length | 1.2M/1.5M/1.8M | |||
IEC connector | Optinal | |||
Cable material | 18AWG/20 AWG/ 22AWG | |||
Safety Approval | UL 60950-1 2dn edition,EN60950-1 | |||
Safety Protections | OCP,OVP,OLP,SCP | |||
MBTF | 50000 hours | |||
Standby power consumption | 36W | |||
Leakage current | 5mA | |||
Turn-on | 2S | |||
Hold-up | 8S | |||
Ripple & Noise | 100mV Max. | |||
Safety | Hi-pot Test | INPUT TO OUTPUT:2000Vac,5Minute,Cut off current≤5mA | ||
Burn-in Test | 40℃ Ambient,80% load,45min.ON and 15min.OFF,Burn-in 4Hrs | |||
Operating Temperature | -10-40℃ | |||
Relative Humidity | 10-90%RH | |||
Storage Temperature | -20℃~70℃ | |||
Storage Humidity | 0%-90%RH | |||
Warranty | 24 months | |||
1. Do not place the adapter near high temperature or fire source. 2. It is necessary to maintain good air circulation in the room to avoid direct sunlight and corrosive gases. | ||||
Product performance description
12v3a 9v 4a 24v1.5a 36w wall mount power supply adapter charger for hair removal instrument
Details Images

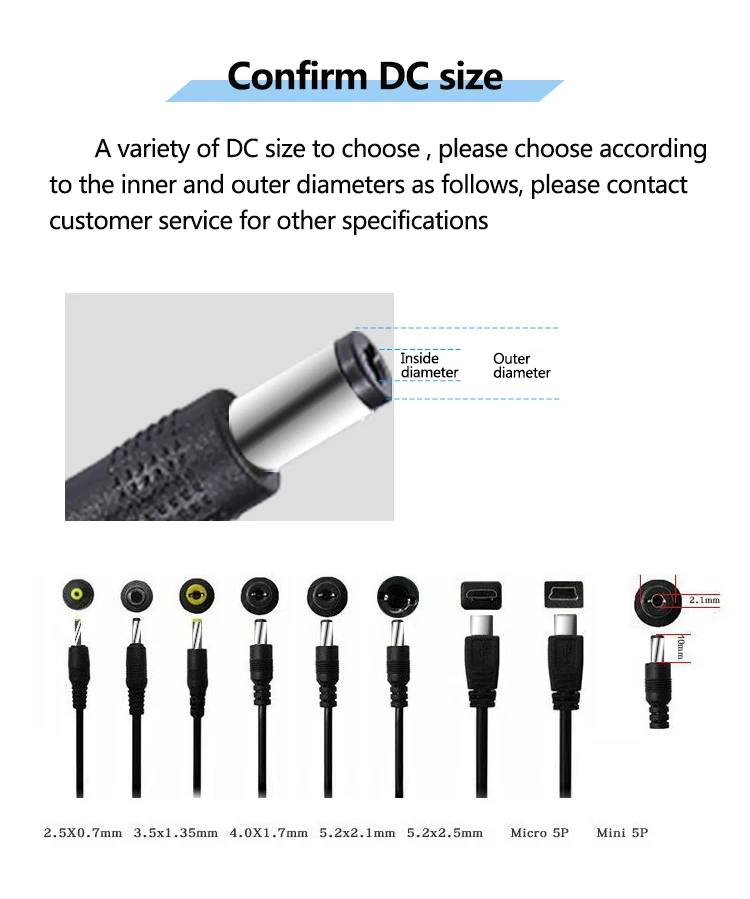

Please contact supplier ,confirm Certifications , the AC plug, DCconnector,cable length ,with led light or not .
Related Products

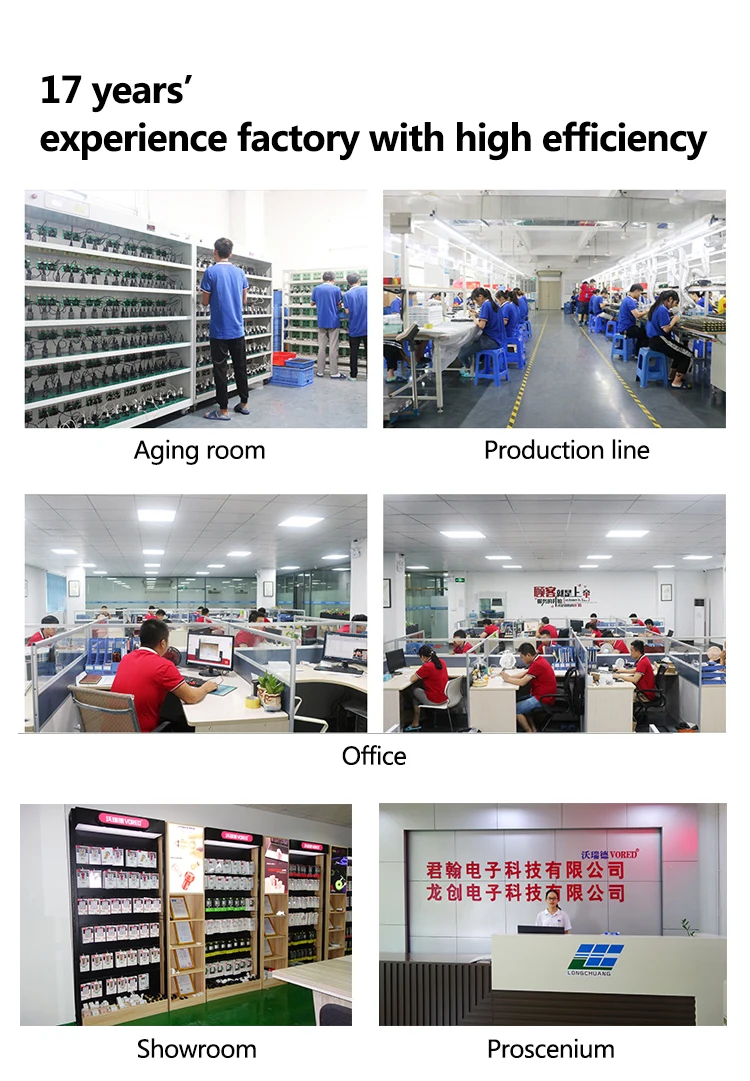

Company Introduction
Shenzhen Longchuang Electronic Technology Co.,Ltd. was established in 2003, which is specializing in design,development and production of different kinds switching power supplies, power adapters,LED power supplies, waterproof power supplies,battery chargers, data cables,AC DC converter adapters and bare board power supplies.
With more than 15 years production accumulation ,our products have a wide range of specifications from 0.5W-480W (voltage from1V-65V, current from 300mA-7500mA) a total of more than 600 models and specifications of the entire series through the United States UL, Canada CUL / CSA, Europe TUV / GS, CE, British BS, Australian SAA, South Korea EK, Japan PSE, and ROHS, LVD, CEC, EMC,CB and other safety certification and they are widely applied in home appliances, communication, monitoring and medical equipment, LED lighting, audio, E-bike, 3D printer, beauty equipments, massage chair, unmanned aerial vehicle, robot,and automation etc. We also provide personalized customization (OEM/ODM) service.
FAQ
Q1:What products does your company mainly supply?
A1: We engaged in design,development and production of different kinds chargers, switching power adapters,AC/DC converter adapters and cables.
Q2: Can you handle OEM&ODM service business?
A2:Certainly.Including IC scheme, appearance designs, labels,packages.There are 4 rich experienced professional engineers work for us,we are confident to provide you most suitable solution.
Q3:How soon can I get samples to check quality?
A3:After price confirmed,for our conventional product(not customized products),we can prepare within 3 days.And our samples usually is free charge,you should just pay the express fees.
Q4:How about your lead time?
A4:Its according to the order quantity, normally
1K-10K units 15-20 business days
10K-50K units 20-25 business days
50K-100K units 30-40 business days
Q5:What’s your payment terms?
A5:Standard payment terms: T/T 30% in advance, 70% paid before shipment. Large amount: L/C at sight. Small amount : Paypal and Western Union.
Q6: What is the warranty for your product?
A6: All out products, we provide 1 year warranty. Any quality problem happened in this period of time for our reasons,we will send
the replacement products in next order.
A1: We engaged in design,development and production of different kinds chargers, switching power adapters,AC/DC converter adapters and cables.
Q2: Can you handle OEM&ODM service business?
A2:Certainly.Including IC scheme, appearance designs, labels,packages.There are 4 rich experienced professional engineers work for us,we are confident to provide you most suitable solution.
Q3:How soon can I get samples to check quality?
A3:After price confirmed,for our conventional product(not customized products),we can prepare within 3 days.And our samples usually is free charge,you should just pay the express fees.
Q4:How about your lead time?
A4:Its according to the order quantity, normally
1K-10K units 15-20 business days
10K-50K units 20-25 business days
50K-100K units 30-40 business days
Q5:What’s your payment terms?
A5:Standard payment terms: T/T 30% in advance, 70% paid before shipment. Large amount: L/C at sight. Small amount : Paypal and Western Union.
Q6: What is the warranty for your product?
A6: All out products, we provide 1 year warranty. Any quality problem happened in this period of time for our reasons,we will send
the replacement products in next order.
