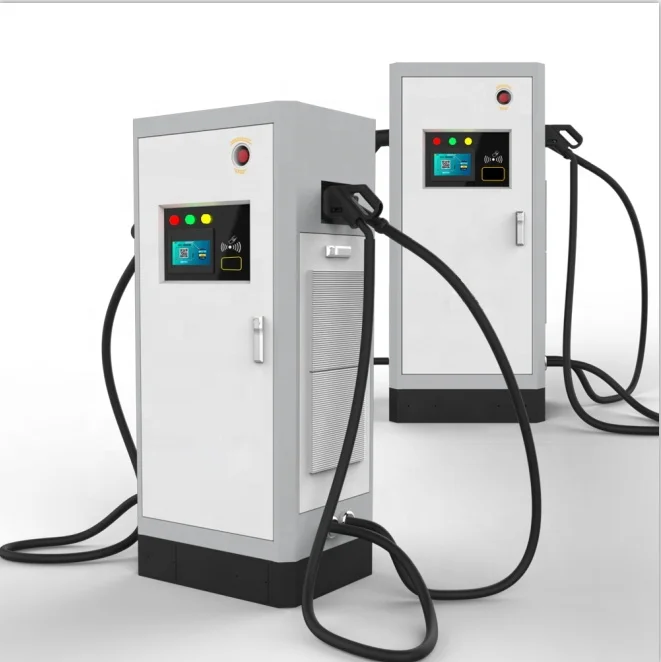

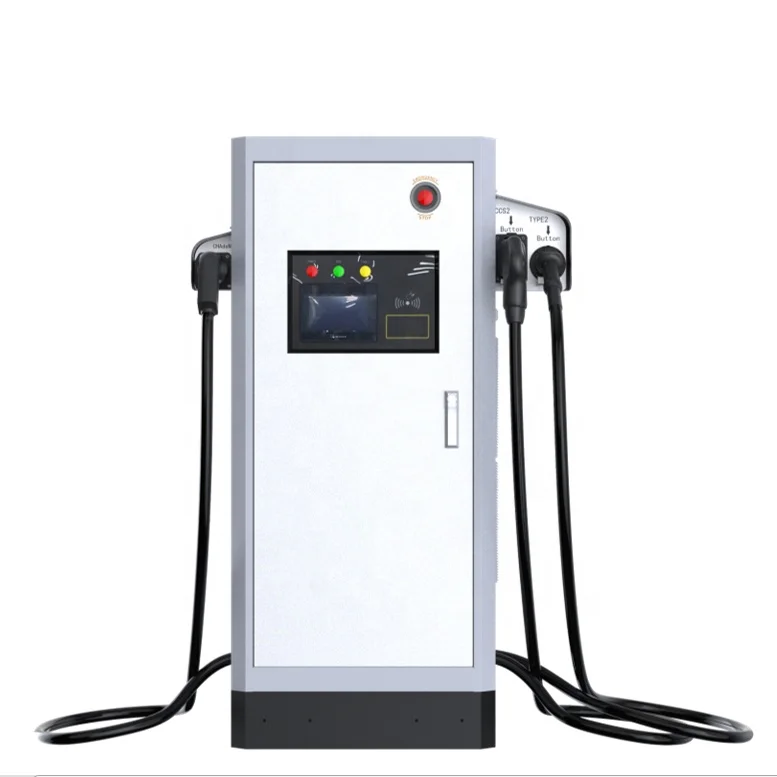

Electir Car DC Fast Charger Business Centre / Parking Lot / Shopping Centre 60KW Charging Station
- Category: >>>
- Supplier: Chongqing Senku Machinery Imp And Exp Co. Ltd
Share on (62537870436):
Product Overview
Description
Electir Car DC Fast Charger Business Centre / Parking Lot / Woring Place / Shopping Centre 60KW Charging Station CCS Type 2 Chademo
Overview
This 60kw multi connectors ev charger is designed for public use,applications for CCS2 CHAdeMo and Type 2 standards fast charging (60KW DC + 22KW AC ouput). IP54 high protection level,sturdy and durable for outdoor application.
Features
- CCS2 CHAdeMO and Type 2 Support
This Series DC EV charger MAX with 2 output connectors design, support 3 different charging connectors combination.
Connectors Optional configuration:
1* Combo CCS2+ 1* Combo CCS2
MAX 2 Connectors charging at the same time
- Internet with 4G; OCPP 1.6 compliant
- Supporting RFID card and smart phone charging
- Wide output 550V DC output, compatible with most EV on the road
- Max. 95% power efficiency
- Three types of connectors: DC CCS2 DC CHAdeMO AC Type2
- 7‘’ LCD Touch Panel
- IP54 design for harsh environment
- TUV CE certificated and more than 8 aspects advanced safety features
- Customized Brand Painting support
EV Charger Technical Data
Specification | ||
Connectors | Standard | Combo CCS2 + CHAdeMo + Type2 |
AC Nominal Input | Input Voltage | 400V AC; 3-phase ; 50Hz-60Hz; L1+L2+L3+N+PE |
DC Nominal Output | Output Efficiency | >96% (Rated input and output) |
Output Voltage | DC CCS2:150-550Vdc, DC CHAdeMO:150-500Vdc; AC:400V±10% | |
Output Current | DC: 125A MAX ; AC Part: 32A Max | |
Output Power | DC: 60KW ; AC Part: 22KW | |
Electrical Specification | LED Indicator | Green (Power Led) / Yellow (Charging Led) / Red (Alarm Led) |
HMI | Colorful 7" Touch screen + LED Light | |
RFID Function | YES (Authorized RFID cards can charged only) | |
Smart Phone APP | Yes (Support use the smart phone to charge and make payment) | |
Energy Meter | 2*DC energy meter + AC Meter | |
Structure Design | Housing Material | Metal case |
Application Scenes | Commercial / Public Use (Both indoor & Outdoor Installation) | |
Charging Outlet Quantity | 3 Connector with 4M Length Cable | |
Communication | Network Method | 4G |
Communication Protocol | PMW, CAN, PLC (DIN70121 and ISO15118) | |
OCPP 1.6 JSON ( Charger with ocpp board inside) | ||
Environmental Index | Operating Temperature | -20~+50°C |
Working Humidity | 5%~95% without condensation | |
Protection Grade | IP54 / IK08 | |
Security Protection | Multi le Protection | Over-current, Over/Under Volatge, Short Circuit Protection, Reverse Polarity, Over-temperature, Protect Earth Connect Monitoring, RCD Protections |
MTBF | 100,000 hours | |
Safety Standard | TUV CE Certificated ( IEC 61851-1:2017; IEC 61851-23:2014) | |
Warranty | 12 months | |
WE BELIEVE IN
ONE GOOD Quality Charger> N Poor Quality Chargers
Senku Machinery EV charging station is strictly design and produce according to the CE and IEC 61851 standards. We choose the international high quality components as raw material, ensure the charger stable performance, safe and the long service life of the charger. Instead of using the inferior components.Because poor quality EV charger will bring many additional invisible operations and maintenance costs.
Especially for EV operators,once the EV charging station installed, it will serve many electric vehicles, so a stable & secure and real high efficiency charging station is important, so we always believe one good quality charger can bring more profit.
Produce Process
Part of Certifications
What are you waiting for? Get in touch with us to experience quality products and services!!!
BBB
FAQ
What after service you support?
1 Year warranty and while service life technical support.
During the warranty time, we provide comprehensive technical support.In normal conditions, we provide after-sales technical training by providing written training materials or videos, also we support online remote technical service. If there is a urgent situation, we will also send our professional technicians to provide local on-site support.
And we supply "One time purchase, lifetime service” , even the EV charger which you buy is out of warranty time, you also can contact us to get in time service support.
How I know which connector i should choose?
CCS1: also know as Combo CCS Type1 or Combo CCS-1.
This is the DC fast EV charging standard North America market.
Typical EVs: Chevy Bolt.
CCS2: also know as Combo CCS Type2 or Combo CCS-2.
This is the DC fast EV charging standard for Europe.
Typical charging EVs: BMW i3, VW e-Golf, Porsche Mission-e.
CHAdeMO:
DC fast charging standard for Japan
Typical charging EVs: Nissan Leaf.
Chademo EV charger also can charge Tesla EVs with CHAdeMo adapter.
Any other questions please contact us to get details.
