Low Intensity Dual Light Navigation Obstruction LED lamp Led Aircraft Warning Light for Tower Building

Share on (62537871068):


Price:$129.00 - $149.00

Quantity:


Product Overview

Description

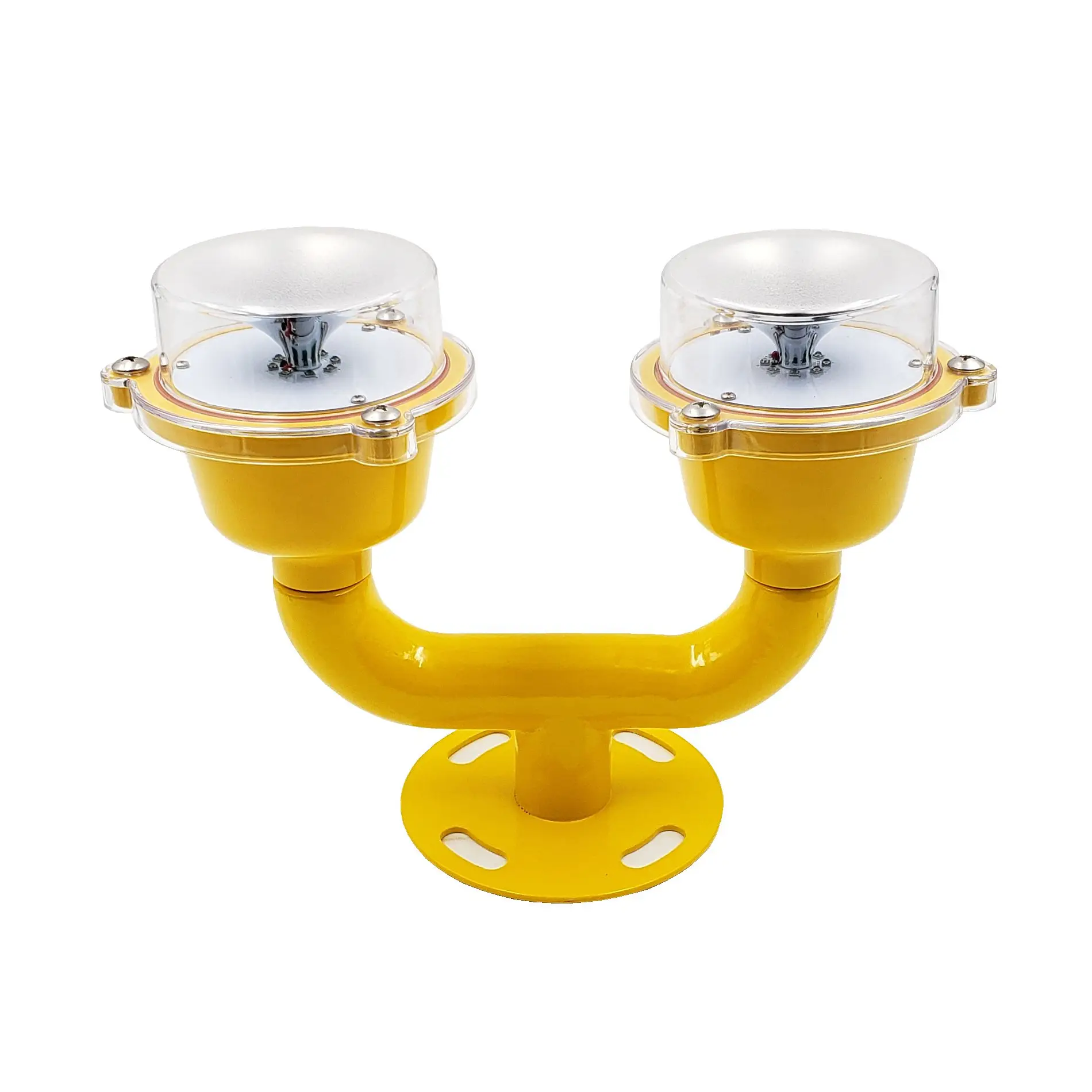

Dual Navigation Obstruction LED lamp




Double low intensity obstruction light.jpg




Product Details




double low intensity led obstruction light/LED aircraft warning light for telecom project Base adopts metal stoving varnish. Light source adopt with independent research and development dedicated LED chip, which have the specific of high light intensity, low power consumption and long service life. Lampshade adopt with PC material, it can resist corrosion, anti-UV, anti-shock.






Management circuit with strong lightning protection and with the surge protection device, which can adopt to extremely bad working environment. This lamp with photoswich, it can turn on when light intensity less than 50LUX, and turn off when above 50Lux.




















































































Name



Parameter



FAA Classify



L-810



Model



GS-LI/D



Power voltage



Optional : AC220V, AC120V, DC24V, DC48V



Power Supply Frequency



50HZ~60HZ



Power Consumption



3Wx2



Working mode



Optional: steady burning, flashing, steady burning backup, flash alternately



Light Intensity



Type B ≥32.5cd    Type A 10cd



Horizontal Out-put



360°



Vertical Divergence



10°



Optional Emitting Light Colors



Red



Service Life of the Light Source



20years



Overall Size(mm)



143x143x125(mm)



Installation size



3/4inches screw installation or chassis installation



IP Protection



IP65



Optically Controlled Ambient Brightness



50/100Lux



Ambient Temperature



-40℃~70℃



Weight



0.6KG



Anti Wind Ability



120m/s










Our Company






case


_20200109165611


lvyou_04





 Feedback



2
FAQ





Q1. Can I have a sample order for Obstruction  light?




A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.








Q2. What about the lead time?




A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.








Q3. Do you have any MOQ limit for Obstruction light order?




A: Low MOQ, 1pc for sample checking is available.








Q4. How do you ship the goods and how long does it take to arrive?




A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.








Q5. How to proceed an order for Obstruction light?




A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.








Q6. Is it OK to print my logo on led light product?




A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.








Q7: Do you offer guarantee for the products?




A: Yes, we offer 2-5 years warranty to our products.








Q8: How to deal with the faulty?




A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
