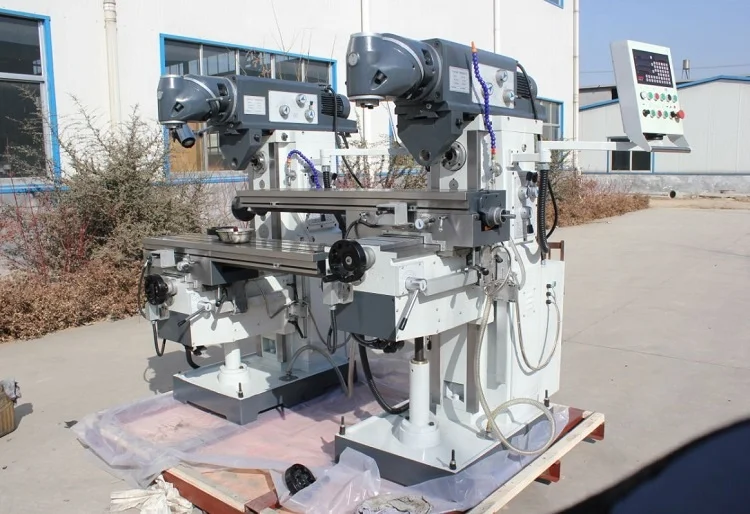

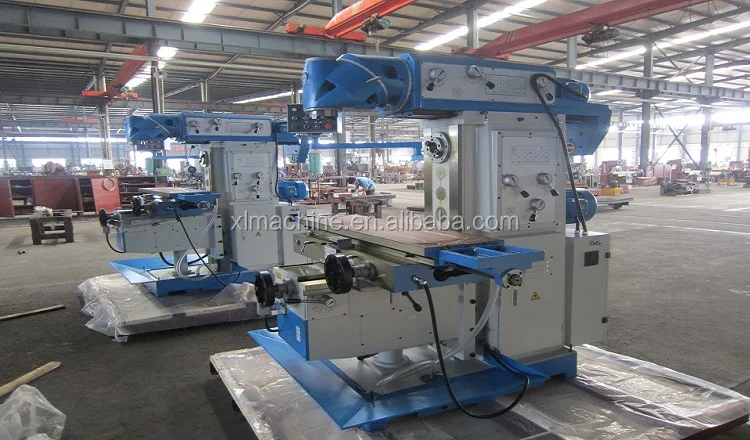

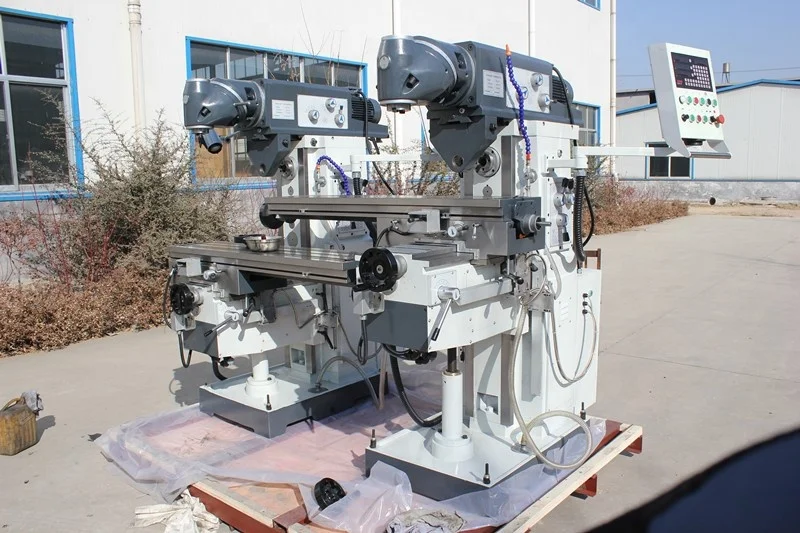

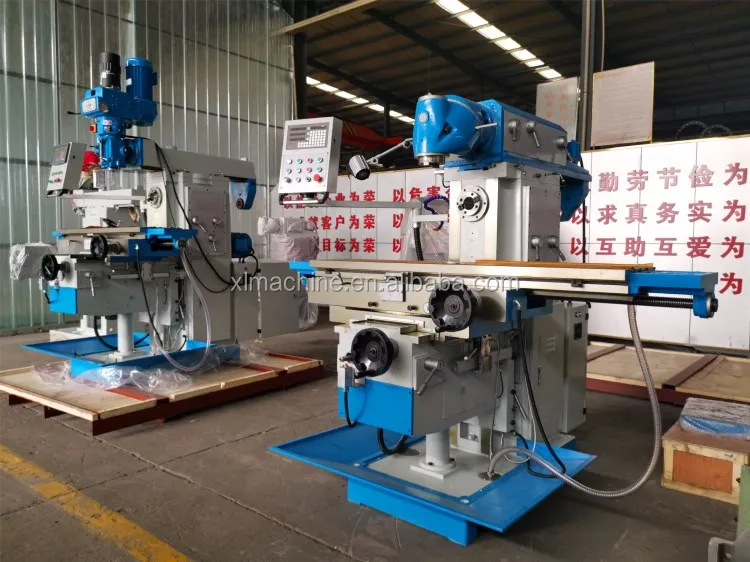

XQ6432 milling machine with vertical and horizontal spindles
- Category: >>>
- Supplier: Tengzhou XILI Machine Tool Co. LTD.
Share on (62538480449):
Product Overview
Description
multi function milling machine XQ6432 ram type universal milling machine tool
Product Description
Ram milling machine XL64-series is a kind of medium and small general metal cutting machine tool, with horizontal milling and vertical milling functions.
Machine is equipped with servo motors, driving for 3-axis table feeds.
Spindle taper hole of the machine can be directly, or through attachments, installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool.
Suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear.
Products Feature
1). servo motor drive for X Y Z 3-axis, ensures automatic feed, fast feed ,finely graduated table feeds in all axis
2). horizontal spindle with large speed range, suitable for low-speed heavy duty processing & high-speed precision processing
3). sliding ram type, 360° swivel head vertical milling head, ensures large processing range
2). horizontal spindle with large speed range, suitable for low-speed heavy duty processing & high-speed precision processing
3). sliding ram type, 360° swivel head vertical milling head, ensures large processing range
XQ64-series specifications
ITEM | UNIT | XQ6432 | XQ6432A | XQ6432C | ||
Table size | mm | 1270*320 | 1370*320 | |||
Table travel (X/Y/Z) | mm | 720/300/400 | 820/300/400 | 1000/380/400 | ||
Table feed (X/Y/Z) | mm/min | 30-830 / 30-830 / 23-625 | ||||
Table rapid speed (X/Y/Z) | mm/min | 1335/1335/1000 | ||||
Spindle taper | (V)IS040 (H)IS040 | |||||
Arm travel | mm | 460 | ||||
Distance between spindle nose and table surface | mm | 260-660 | ||||
Distance between horizontal axis and table surface | mm | 75-475 | ||||
Distance between spindle axis and arm surface | mm | 180 | ||||
Spindle speed range | r.p.m | (V)11 steps, 45-1660rpm (H)12steps, 35-1500rpm | ||||
Slots (NO./width/pitch) | mm | 3/14/80 | ||||
Main motor power | Kw | (V)2.2 or 3kw (H)3kw | ||||
feed servo motor torque | N.m | 10 | ||||
Overall size | mm | 1720*1680*1860 | 1820*1680*1860 | |||
Net weight | kg | 1850 | 1900 | 1950 | ||
OPTIONAL CONFIGURATION
-3-axis DRO
-spindle cover
-worktable cover
-LED work lamp
-rotary table ±45°
-spindle cover
-worktable cover
-LED work lamp
-rotary table ±45°
-aluminum alloy hand arm
-centralized lubrication
-Schneider electrical components
