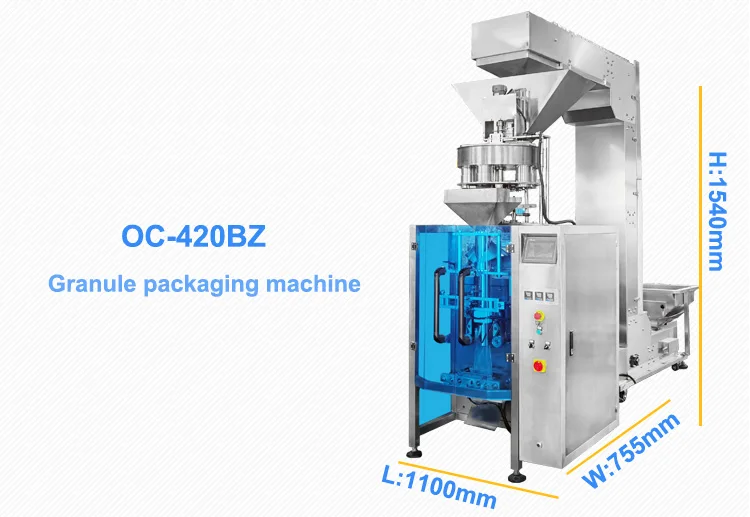

OC 420BZ automatic silage packing machine
- Category: >>>
- Supplier: Foshan Ocpack Packaging Machinery Co. Ltd.
Share on (62538588565):
Product Overview
Description
Products Description
Technical specifications | ||||||||
Type | OC-420BZ | OC-520BZ | OC-720BZ | |||||
Film width | Max.420mm | Max.520mm | Max.720mm | |||||
Bag length | 80~300mm | 80~350mm | 100~450mm | |||||
Bag width | 60~200mm | 80~250mm | 100~350mm | |||||
Packing rate | 5~60bags/min | 10~50bags/min | 10~40bags/min | |||||
Measuring range | 150~1500ml | 150~2000ml | 150~4000ml | |||||
Machine weight | 650KG | 750KG | 900KG | |||||
Application
>What do you want to pack?
Suitable for packaging granular objects such as soybeans, peanuts, coffee beans, cashews, rice, wheat, oats, corn kernels, etc.
Optional Devices

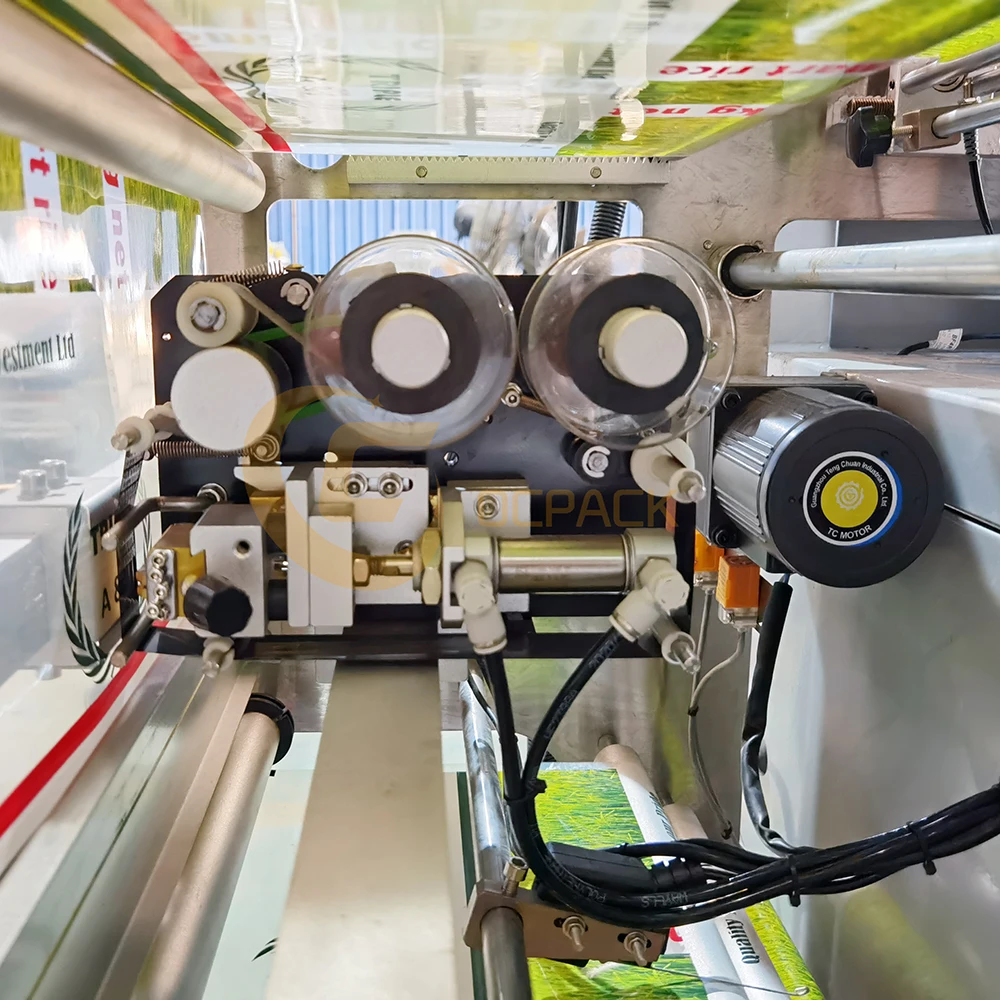

It can be equipped with date coding device, nitrogen gas filling device, easy tear device, punching device, gusset device, etc.

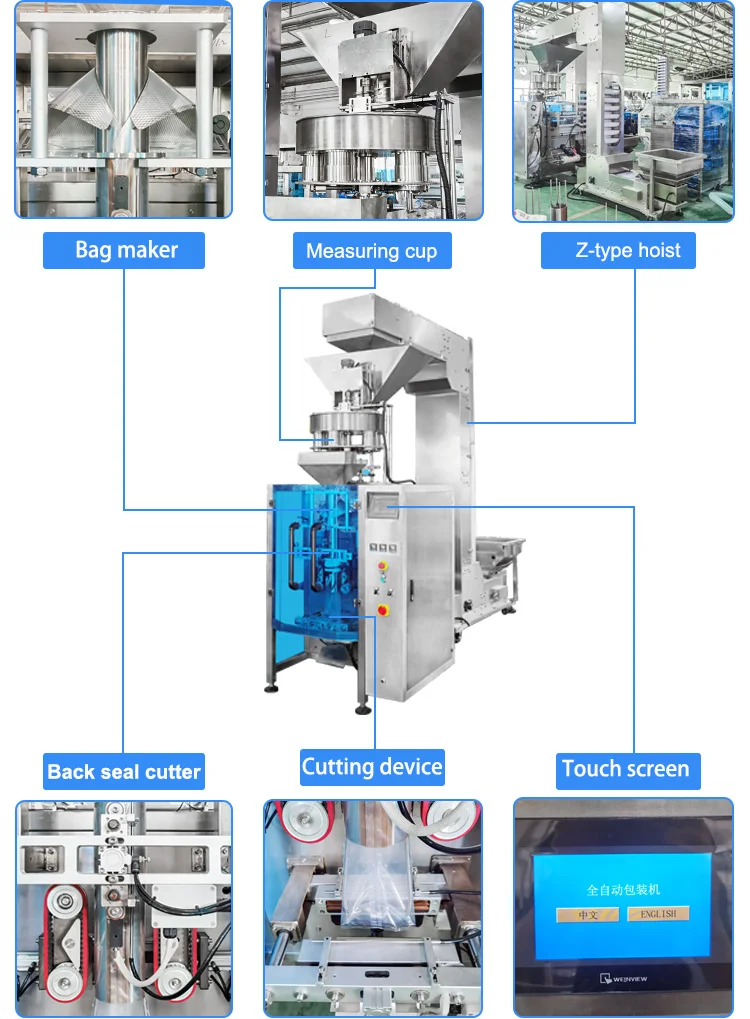

Machine display

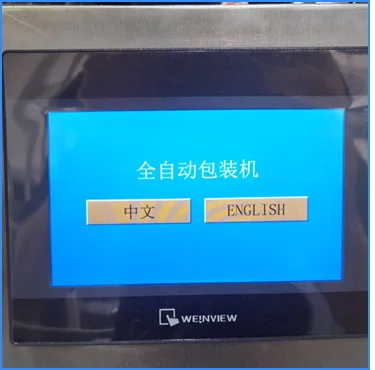

Touch Screen
Brand: Weinview or customized according to your needs
Language: You can choose seven languages, For example: English, Russian,Spanish, French,etc. You can also customize the language as needed.
Function: You can set and change the weight of the packaging material and the length of the bag

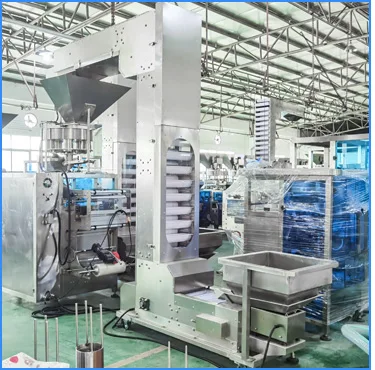

Z-type Hoist
Function: Transport materials
Features: 304 food grade steel plant, this is used in conjunction with an electronic scale and has the characteristics of
automatic feeding and automatic shutdown.
*Scope of application: potato chips, rice, food, plastic, industrial, chemical and other granular objects
Features: 304 food grade steel plant, this is used in conjunction with an electronic scale and has the characteristics of
automatic feeding and automatic shutdown.
*Scope of application: potato chips, rice, food, plastic, industrial, chemical and other granular objects

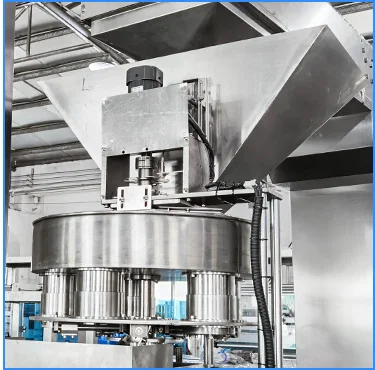

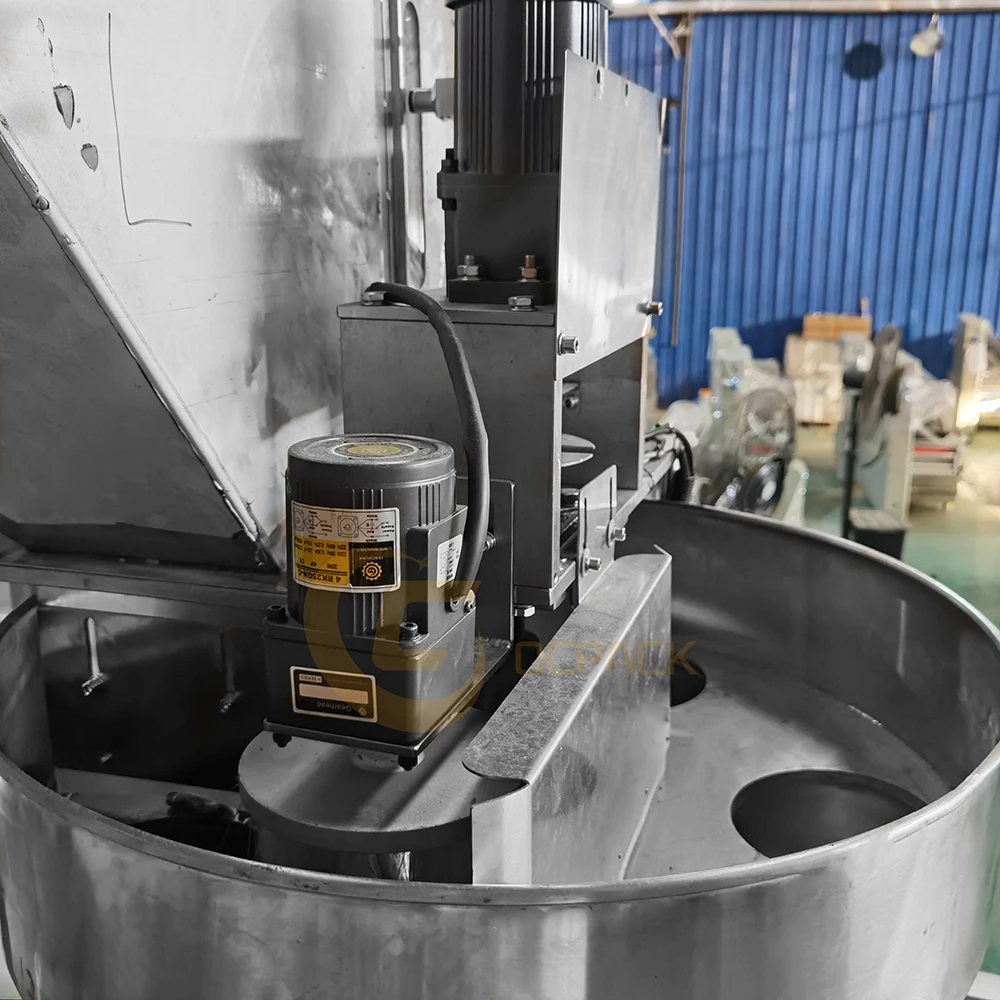

Measuring Cup Device
Material: Food Grade 304SUS+ plastic Quantity: 4 pcs Volume Stainless Steel
* Using volume conversion principle
technology, simple and small error range * Automatic filling goods if full will be stop filling, not need people manual.
technology, simple and small error range * Automatic filling goods if full will be stop filling, not need people manual.
* It suitable for all small granule products, like rice, white sugar, beans, washing powder, candy.

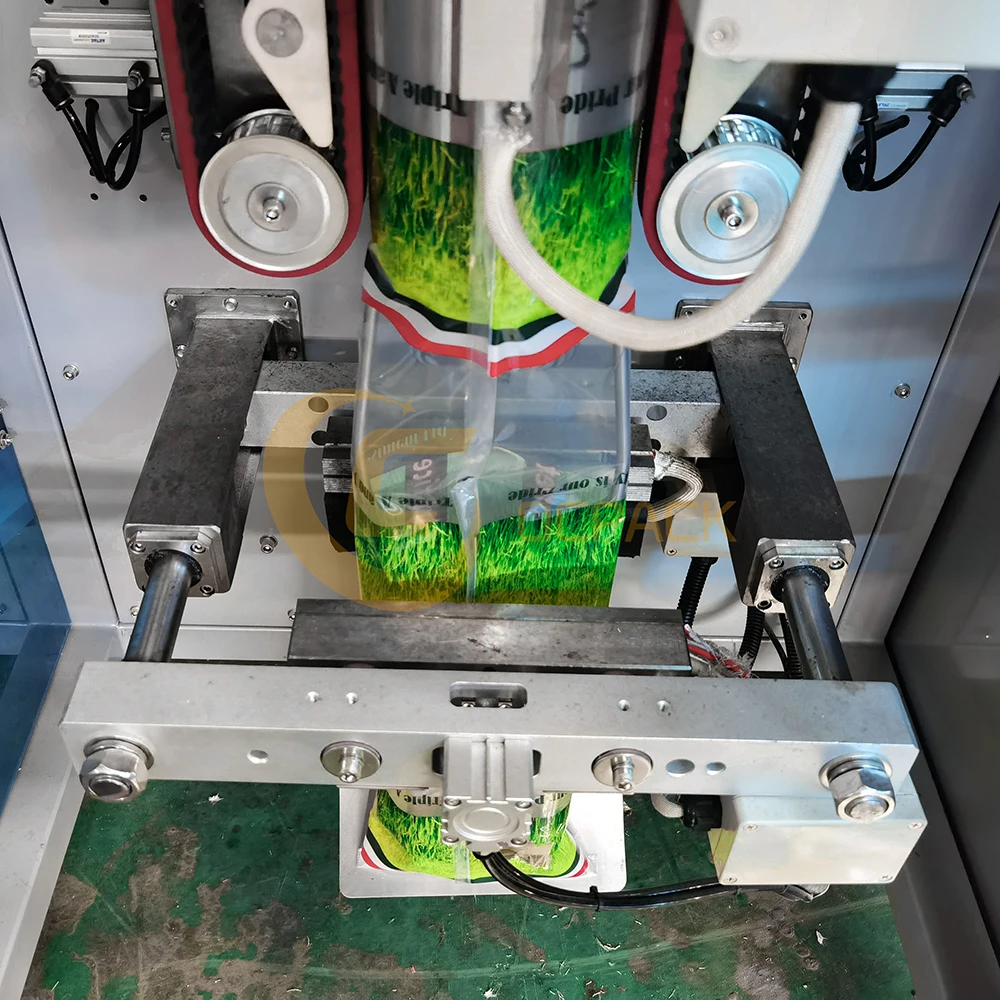

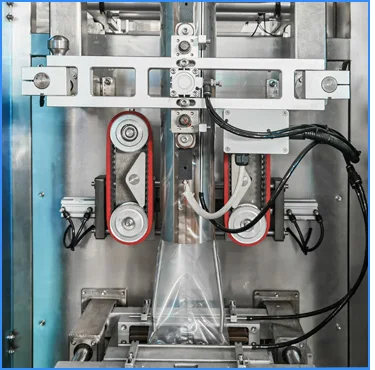

Cutting & Sealing Parts
*It is Stainless steel of material to making it will than the iron will be strong more, he life can using more then 2 years.
*Customized sealing patterns and notch or automatic punching device.
Back seal: adopt servo motor double belt to pull film Port sealing: The end face sealing cutting machine adopts servo-controlled opening and closing movement and independent temperature control.
*Customized sealing patterns and notch or automatic punching device.
Back seal: adopt servo motor double belt to pull film Port sealing: The end face sealing cutting machine adopts servo-controlled opening and closing movement and independent temperature control.
Tell us your requirements, tell us your product information,
we will have a professional staff to provide you with a most suitable packaging solution!
You can also send us samples, we can provide free trial packaging service!
Company Profile
Transaction customer
Why Choose Us
1. Professional and Strong Team
Ocpack has a professional team that can provide customers with various packaging solutions. After fully understanding the customer's needs, we provide the most suitable packaging solution to the customer. Then start the production of the machine. We have a strong production and processing capacity, from the customized processing of accessories to the assembly and debugging of the machine. Finally, it is packaged and shipped, and it only takes a week to complete.
2. Excellent transportation service
According to the needs of customers, we can provide sea transportation, air transportation, and land transportation services, so that you can get the machine as soon as possible. Provide door-to-door transportation services.
3. Timely and effective after-sales service
Choosing us is not only buying a machine, but also our professional and timely service.
1. When the machine is delivered, we will attach a video of the installation and operation of the machine, so that you can use the machine quickly.
2. All electrical appliances of our machines have a one-year warranty, and we will replace them if they fail. 3. When your machine fails, we will have professional engineers to provide professional online after-sales service to help you solve the problem.
4. If the problem cannot be solved online, we will arrange an engineer to repair it on site within a week.
