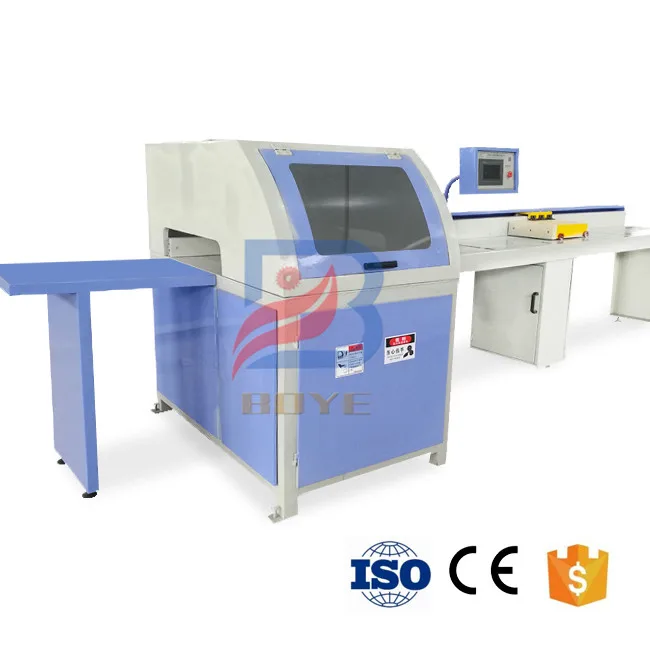

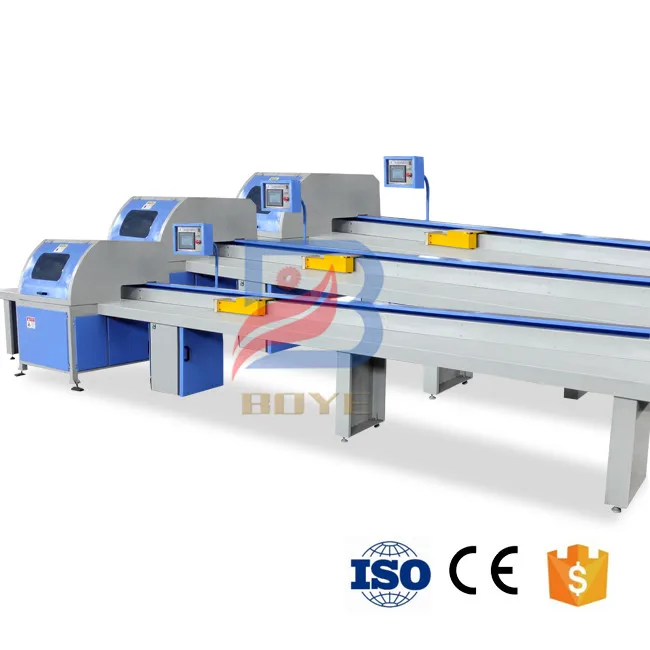

High accuracy wood cross cut saw machine

Share on (62538610255):


Price:

Quantity:


Product Overview

Description

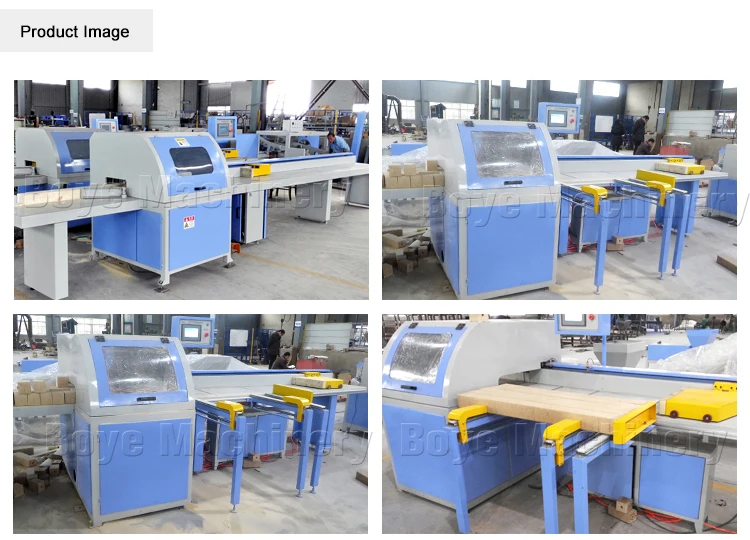

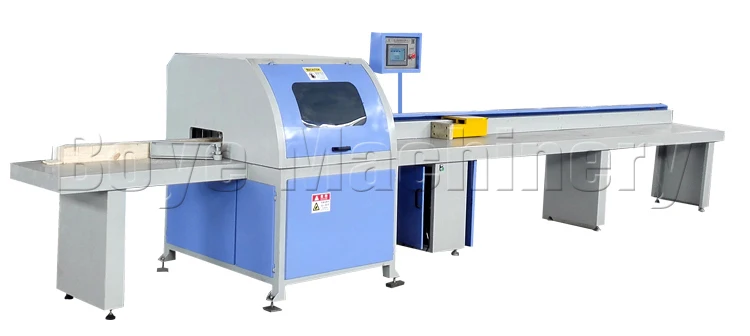

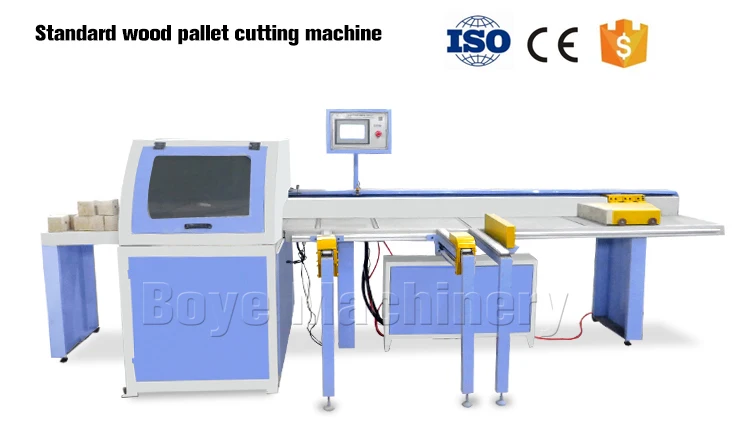

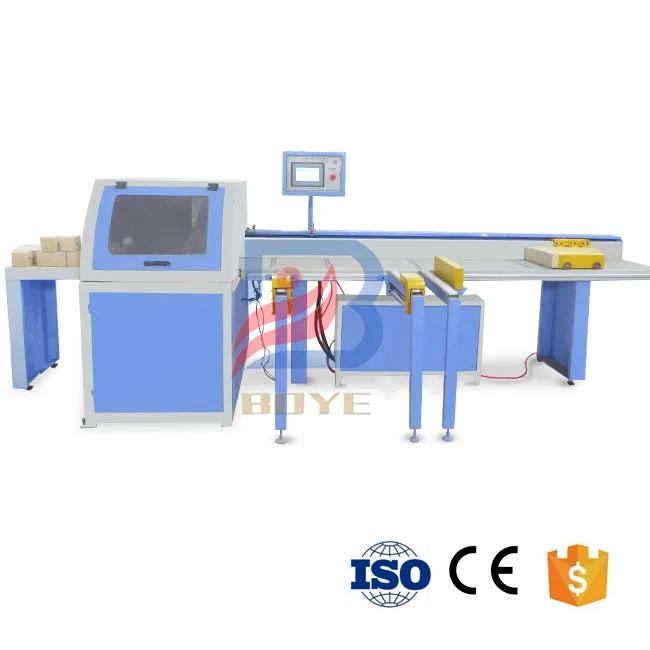

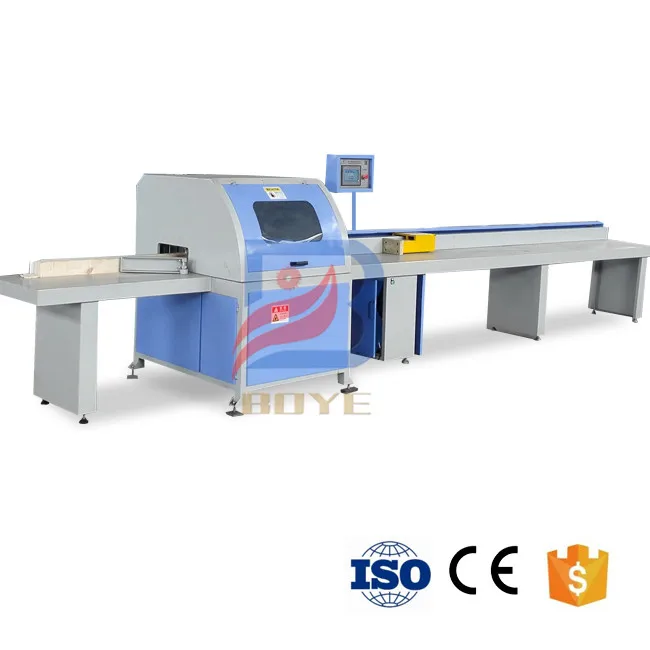

Automatic Wood cross cut saw machine



Product Description


Wood cross cut saw machine is used for cutting the wood board ,plank,wood pallet blocks into the right size you want.




Advantage of Wood cross cut saw machine

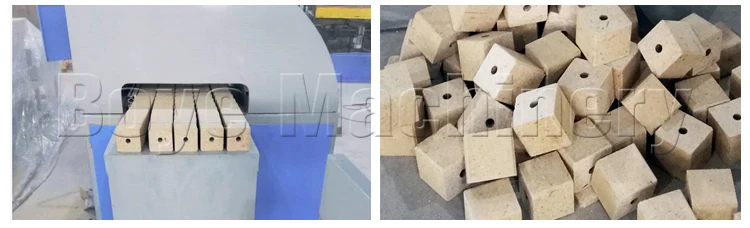

1.High precision, cutting the long wood to blocks or pallet feet, the product completely vertical cross-section, smooth.
2.High capacity:cutting speed is 35-40pcs/min, an hour can cut 2400 pcs (max).
3.Easy to operate, Just need one worke to enter the size to be cut, then feeding the material, the machine will cutting the wood log or long wood block automatically to setted size.
4.Cutting Size adjustable, various dimension can be combined at the same time to reduce the perious cutting wastage.
5.Security, cutting part set in the cabinet, worker's finger don't access to the blade.


6.It can cut a row of wood log or long wood block at one time.









Specification


Technical parameters of Wood cross cut saw machine






































































Cutting length



Max. 2m/ 4m/ 6m



Cutting height



10-120mm



Cutting width



30- 200mm



Cutting sectional area



120*120mm/100*200mm



Feeding speed



5-30m/min



Cutting speed



35-40pcs/min



Blade diameter



450mm



Cutter axle rotation speed



3500rpm



Feeding method



Servo drive



Pressing method



Cylinder, air pressure 0.5-0.7Mpa



Cutting tolerance



In +/-1mm



System working dimension



6.4*1*1.5m, 7.4*1*1.5m, 9.4*1*1.5m



Deducting interface



Contains



Electrical components



(Can  be customed as Schneider)



PLC Touching screen



(Can  be customed as Siemens)



Total power



8.25kw

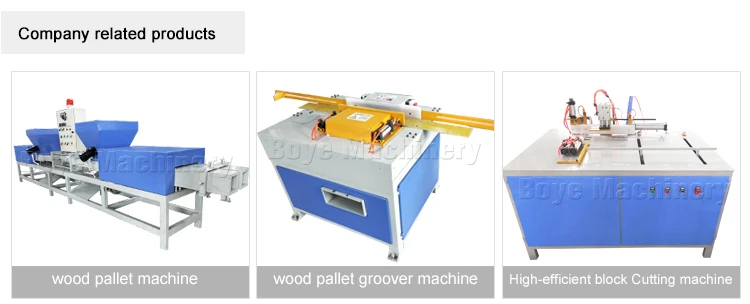

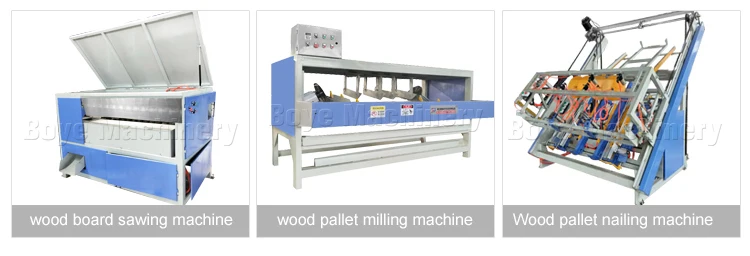

related machine









Our certificate







contact


 Welcome to contact us more detail of Wood cross cut saw machine.
