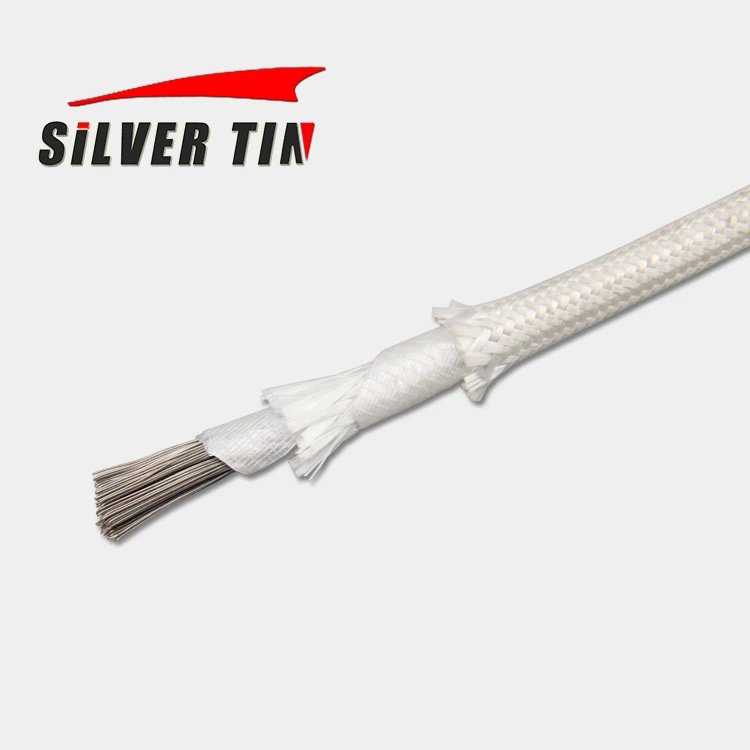

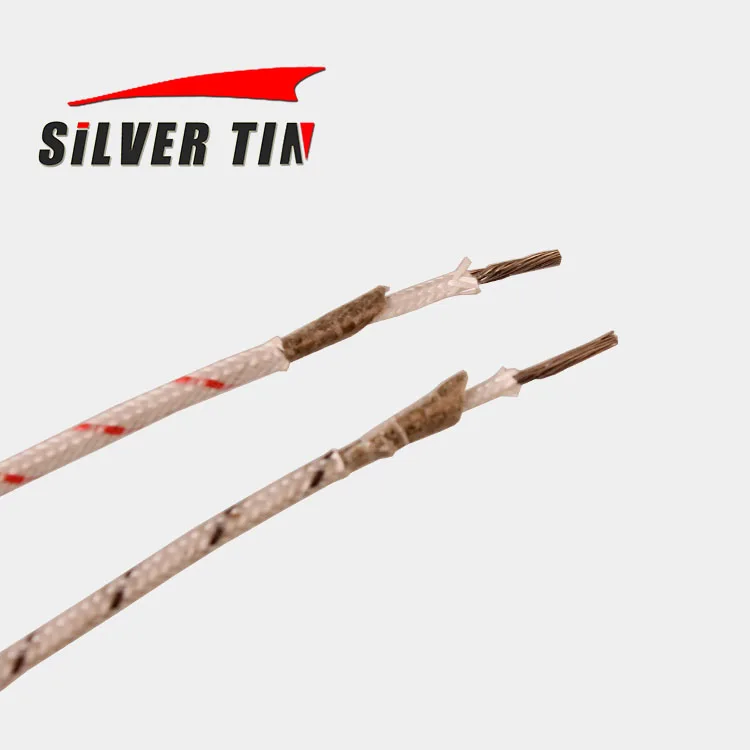

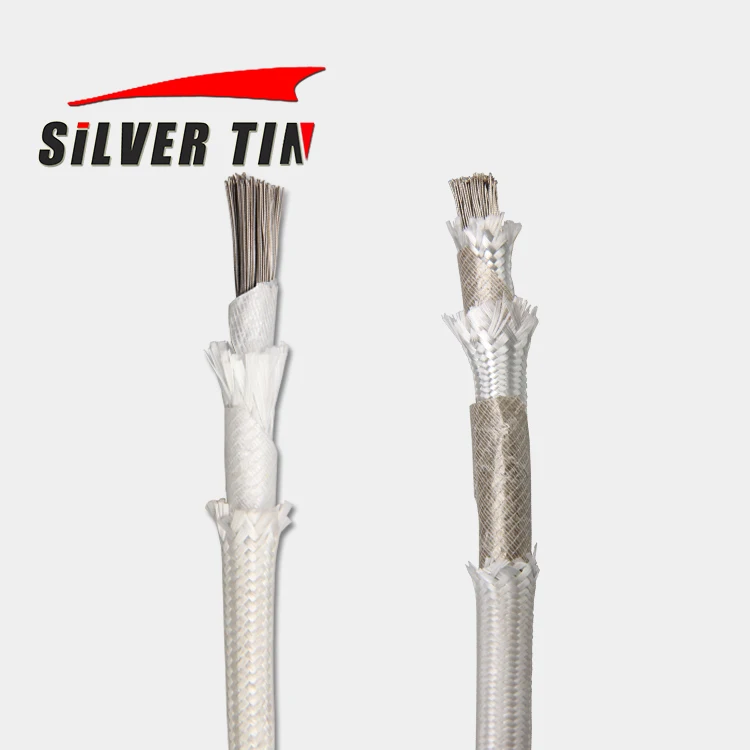

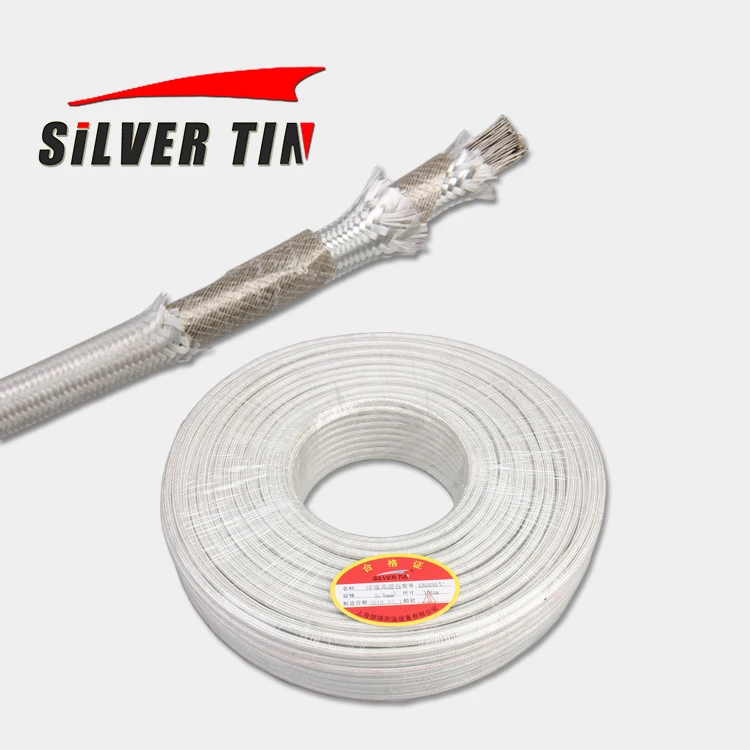

Pure nickel fiberglass braid mica wrapped 24awg 22awg 20awg 18awg 16awg 14awg wire cable
- Category: >>>
- Supplier: Shanghai Silver Tin Temperature Measuring Equipment Co. Ltd.
Share on (62538612030):
Product Overview
Description
Product Description
Pure nickel fiberglass braid mica wrapped 24awg 22awg 20awg 18awg 16awg 14awg wire cable
Application
Applicable to high-temperature environment AC rated voltage 600V or less electrical circuit installation and connection, widely used in electromagnetic heating coil, metallurgy, petroleum, chemical, oil refining, natural gas and other special environments, various mechanical manufacturing fields, various electrical devices requiring fire performance The required wire and cable, as well as various electric heating equipment, electric heating devices and so on.
Product Description

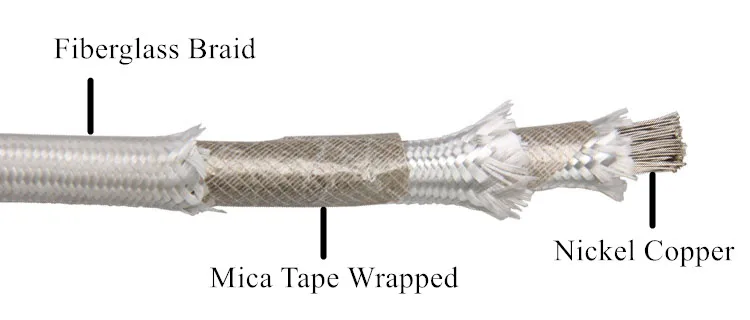

GN800 Mica Wrapped Fiberglass Braided High Temperature wire | ||
Insulation | Mica Fiberglass | |
Conductor | Pure Nickel | |
O.D.Tolerance | ±0.1mm | |
Temperature Range | -60℃~1000℃ | |
Rated Voltage | 450V/750V | |
Colour | Red/Black/Yellow/Green/Blue/White/ | |
Application | Chemical Industry,Natural gas,etc.High Temperature Environment and Various Electric Appliance. | |
Product Specification
Conductor | Outer Diameter mm | Electrical Properties mm | ||
Sectional Area mm² | Jacket Thickness mm | Max. Conductor Resistance DC 20℃ Ω/km | ||
0.50 | 7x0.30 | 2.6±0.3 | 39.0 | |
0.75 | 11x0.30 | 2.7±0.3 | 26.0 | |
1.0 | 14x0.30 | 2.8±0.3 | 19.5 | |
1.5 | 21x0.30 | 3.0±0.3 | 13.3 | |
2.0 | 28x0.30 | 3.3±0.3 | 10.0 | |
2.5 | 35x0.30 | 3.6±0.5 | 7.98 | |
4.0 | 56x0.30 | 4.5±0.5 | 4.95 | |
6.0 | 84x0.30 | 5.5±0.5 | 3.30 | |
10 | 140x0.30 | 6.6±0.5 | 1.91 | |
16 | 228x0.30 | 7.8±0.5 | 1.21 | |
25 | 361x0.30 | 9.5±0.5 | 0.78 | |
35 | 494x0.30 | 11.2±1.0 | 0.554 | |
50 | 703x0.30 | 13.2±1.0 | 0.386 | |
70 | 988x0.30 | 15.4±1.0 | 0.272 | |
95 | 960x0.40 | 17.4±1.0 | 0.206 | |
1.High-quality materials
Made of FEP/PVC silicone rubber as insulation sheath for good flexibility
2.Wear-resistant flame retardant
High-strength flame-retardant material with good insulation and flame retardancy and strong anti-aging ability.
3.Stable performance
Strictly in accordance with the national standard production, carefully prepared goods
4.Support customization
Different products can be customized according to different needs of customers to meet the needs of different people.

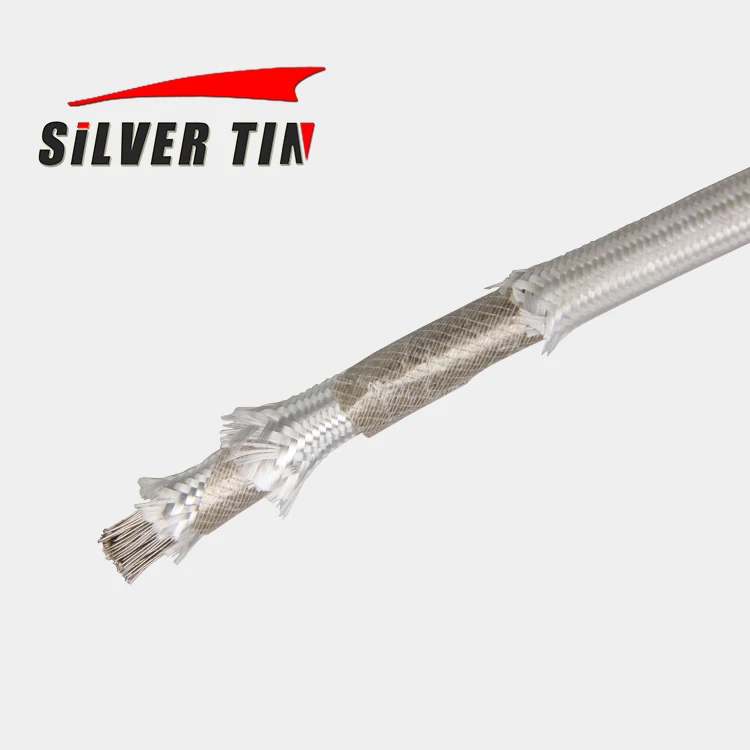

Detailed Images
Related Products
Fiberglass braided silicone rubber insulation wire
Silicone rubber insulation wire
PFA/FEP/PTFE insulation wire
Packing Details
Our Company
Shanghai Silver tin Temperature Measuring Equipment Co., Ltd. is a high-tech enterprise specializing in the R&D and manufacture of electric heating technology. It has introduced European advanced production technology and equipment, also research and develop heating cables and related accessory products for building comfort heating, pipe insulation and antifreeze, outdoor snow melting and ice melting.The company owns a production base company and a sales company with strong strength, complete production equipment and perfect testing methods.
''Quality first and user uppermost" is our principle. We always strive for best quality and after-sales services to satisfy customers' demands.
