calentador de agua Air Source Water Heat Pump Water Heater Boiler For Industry Hot Water

Share on (62538698487):


Price:$9,880.00 - $10,660.00

Quantity:


Product Overview

Description

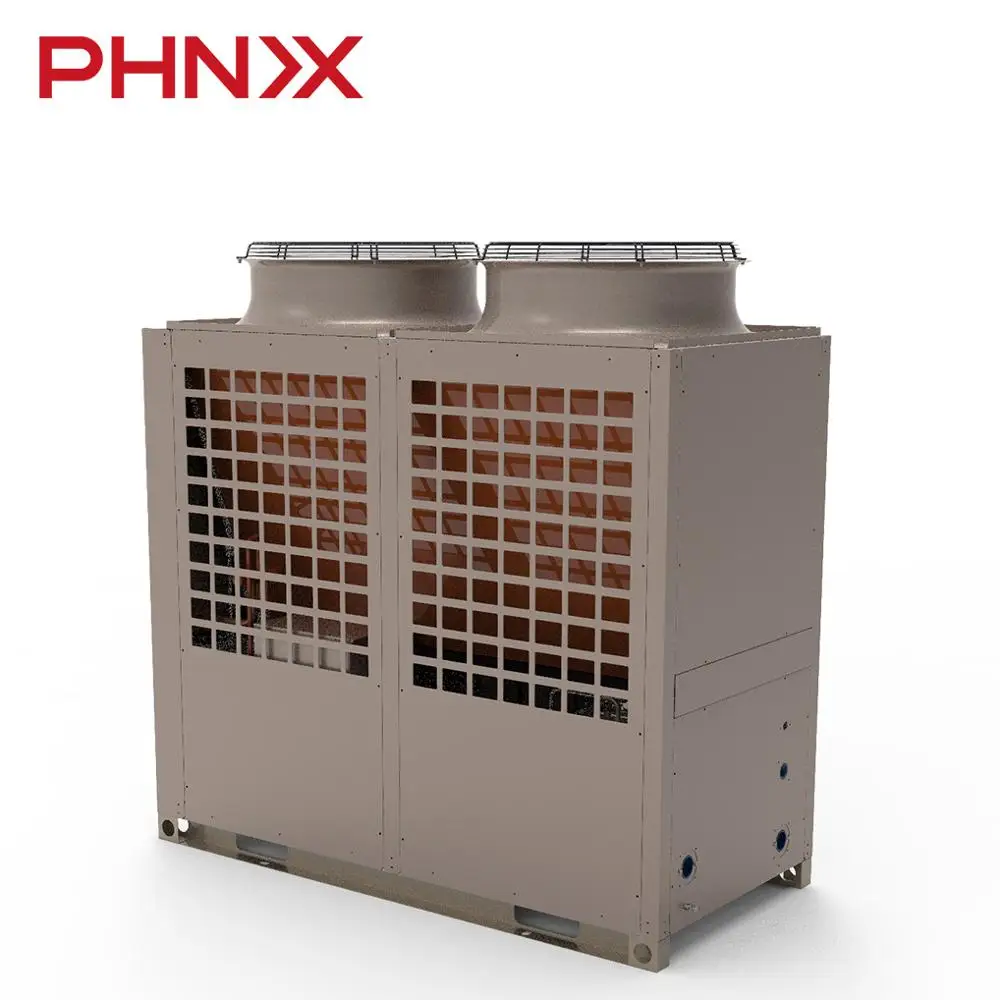

calentador de agua Air Source Water Heat Pump Water Heater Boiler For Industry Hot Water




Product Parameter


Product Parameter

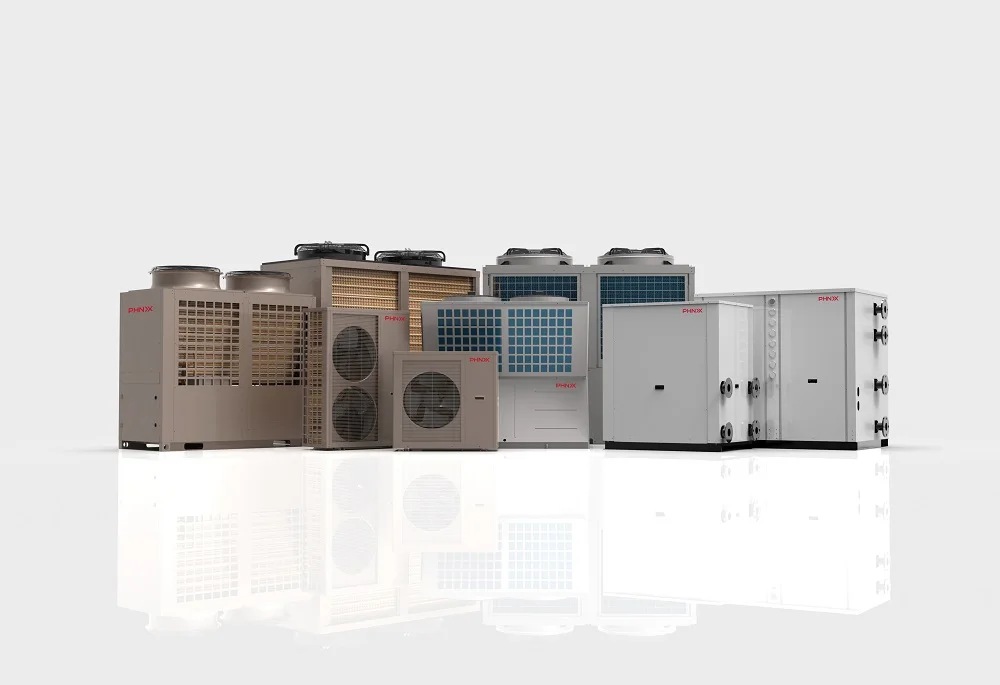

Product Family of Commercial Heat Pump Waters

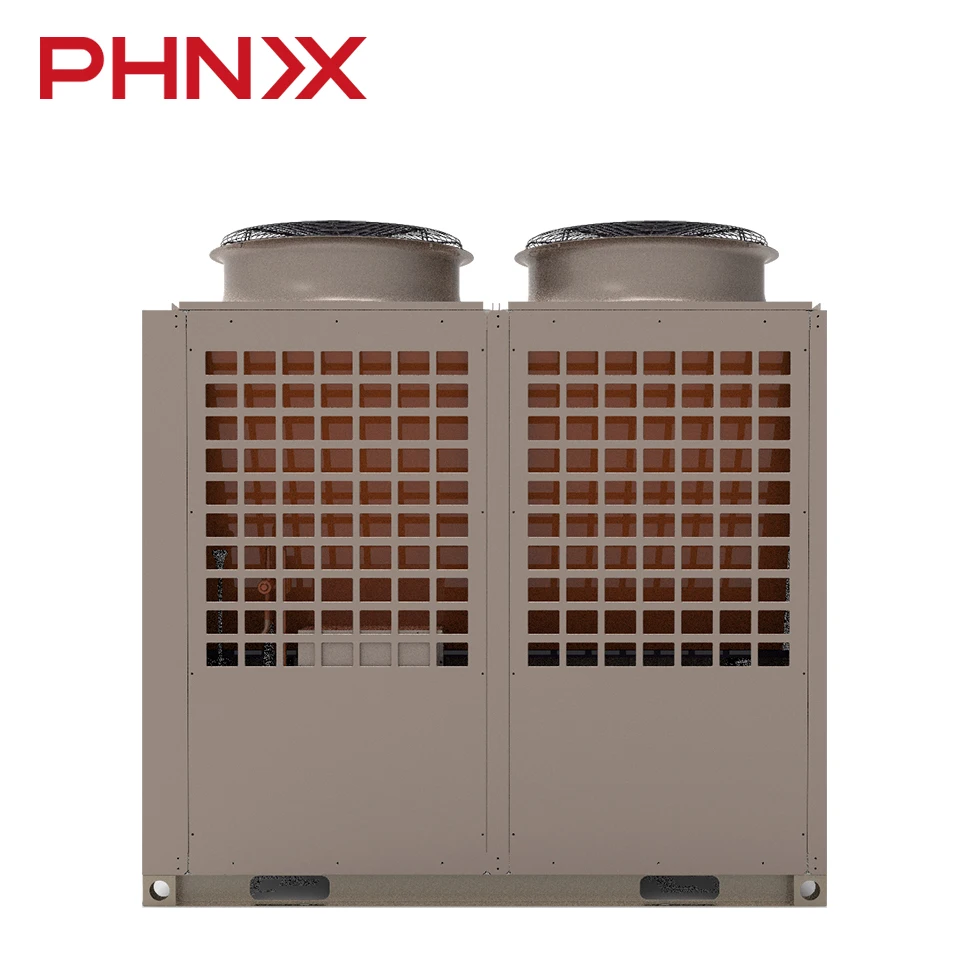

Product Model: PASHW130S-XA


































































































































































































































PHNIX HeatPlus High COP Heat Pump Water Heaters
ModelPASHW050S-XI060S-XA100S-XA130S-XA300S-PS
Hot Water CapacitykW17.223.037.048.0104.0
Rated Power InputkW3.804.847.459.9722.5
COPW/W4.534.754.964.814.62
Hot Water VolumeL/h37049479510312240
Max. Power InputkW5.856.9010.014.341.5
Max. Running CurrentA9.2011.516.924.276.9
Power SupplyV/Ph/Hz380~415V/3N~/50Hz
Compressor Quantity/11222
Throttle Device/Electronic Expansion Valve
Fan Quantity/2
Fan Motor InputW60×275×2200×2200×21100×2
Water Flow Volumem3/h3.04.06.58.317.9
Water Pressure Dropkpa60.01296411065
Water ConnectionInch11.21.51.5DN80 Flange
NoisedB(A)565866
Air Discharge Type/HorizontalVertical
Max. Outlet Water Temp.60
Operation Range-15-43
Condenser/PHNIX Patented Tube in Shell Heat Exchanger
Defrosting/by 4-Way Valve
Controller/PHNIX Multi-function Controller
Refrigerant/R410A
Cabinet/Eco-friendly Galvanized Metal /Stainless Steel for Option
Net Weightkg126152327350778
Gross Weightkg141175377400823
Net Dimensions(L/W/H)mm1050/400/12451000/395/13151700/800/17351700/800/17352180/1080/2100
Shipping Dimensions(L/W/H)mm1100/455/13751070/450/14451830/880/19001830/880/19002300/1230/2240
Test Condition: Ambient temperature 20 ℃/15 ℃, water circulation from 15℃ to 55℃.
The data above is for reference only.For more specific data, please refer to the nameplate on the unit.

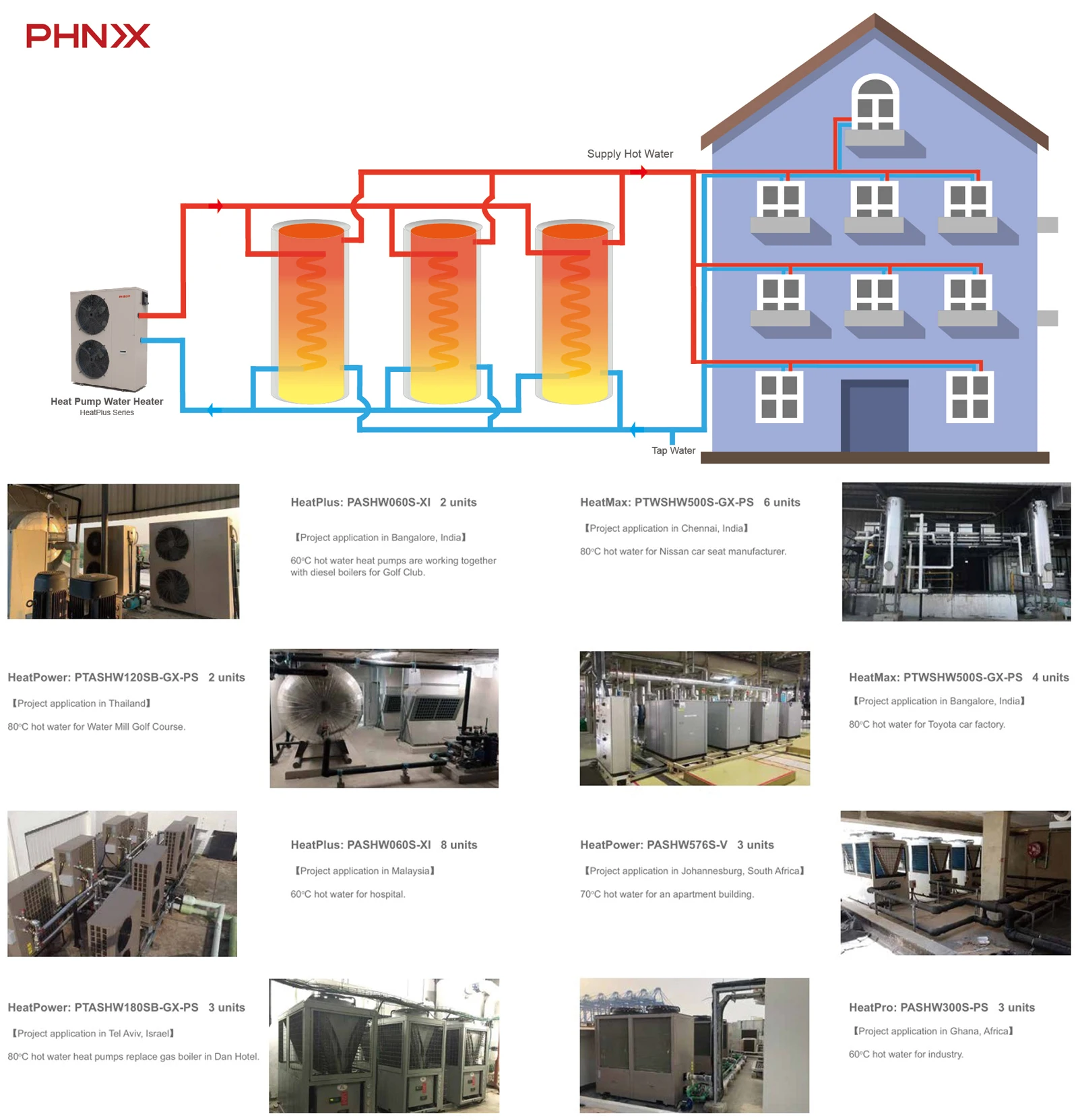

Product Appliction


Product ApplictionApplication.jpg








Product Detail


Product Detail.jpg







Certificate


Certificate


20151107_02 (2)





Packaging & Shipping


Packaging & Shipping.jpg


Packing6





About PHNIX


About PHNIX.jpg


Founded in 2002, PHNIX is one of the largest manufacturers of Swimming Pool Heat PumpsHouse Heating Heat Pumps and Heat Pump Water Heaters in China. With more 487 patents, 355 licensed patents and 10 copyrights, PHNIX has built up a complete heat pump industrial chain.





PHNIX attaches great importance to high-end overseas markets, exporting more than 50 percent of its products to EuropeNorth AmericaMiddle EastAustralia, and other developed regions.





PHNIX Factory has an area of more than 35000 square meters. Over 30 percent of automatic production devices are put into use in manufacturing process, involving Copper Pipe Cutter, Pipe Bender Robot, Automated Vacuum Circulatory System, Robotic Palletization and Packaging and AGV and so on.





PHNIX values product quality control, which account for about 8% of the company's sales revenue. PHNIX has 13 laboratories, whose test types include UV, RoHS, heat exchanger efficiency, constant temperature, humidity, pressure and so on. PHNIX’s integrated performance laboratory can meet product testing standard EN14511 and EN14825 of the European and American areas.


About PHNIX2.png








FAQ




Q: How many years have your company been in heat pump industry?


A: We are the NO.1 heat pump exporter in China.


We PHNIX has full experience in the field of heat pumps for more than 18 years. PHNIX has kept growing rapidly during these years since it was established. In 2016, our turn over reached an amount of 101 million US dollars and in the same year PHNIX was loaded on the China’s New OTC market.





Q: Do you accept OEM & ODM?


A: Yes. We can produce PHNIX standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.





Q: How about the channel management?


A: First, in order to lead global positive market competition, PHNIX will not sell the same product to two clients in one region. Second, we are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients, or offer PHNIX’s own brand products and services to dealers.





Q: What support do you offer to clients?


A: We can: provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.





Q: How long can I get the salesman's contact after sending the inquiry?


A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 36 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
