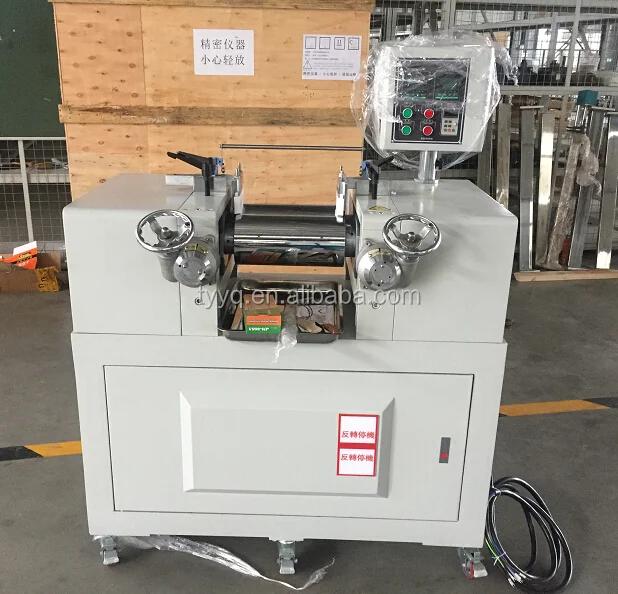

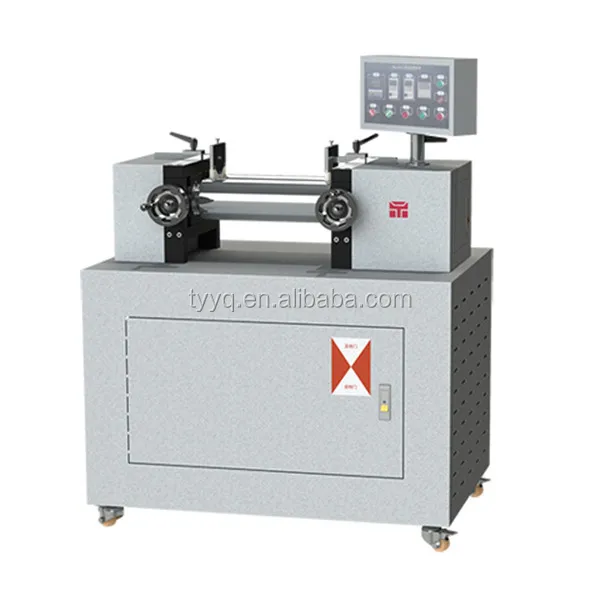

Two Rollers Open Mixing Mill For Plastic Polymer

Model

TY-7007

Roller size

Φ150×L320mm

Temp. Controller

LED digital display, key setting input, digital display output

Temperature

RT~250℃

Temp. Accuracy

±5℃

Heating mode

Heating pipe

Cooling mode

Nature Cooling

Speed ratio of rollers(front : rear)

1:1.27

Rotation speed

0~35r/min Single frequency converting

Roller spacing

0.1~8mm adjustable

Roll Material

HRC60 Mirror chrome plated

Safety Device

Emergency Stop Rod,

Emergency Stop Buttons,

Knee braking system

External dimension

990×430×1150mm

Power supply

AC380V, three-phase five-wire

Weight

690Kg

Accessories

1. One scraper for cutting materials

2. 1pc of user manual.

3. 1pc of quality card.

4. Oil gun 1pc.
