450kg/h Air Cooling TPR Plastic Granules Making Machine Line

This granule line is specialized for TPR granulizing and working with same specification kneader to effect plasticizing, extrusion, granulizing, cooling, filtration and packing. The finished products are widely used as TPR shoe material and in other industries. It utilizes water cooling or air cooling technique to make reasonable design on the production structure to offer stable temperature environment of mixing, plasticizing and extruding for TPR resin and assistant agents.

The whole production line:

Kneader – Bucket Conveyor – Extruder Mainframe –Granulating Auxiliary Machine – Cooling System – Cooling Conveyer –Cooling System (Two Times) –Mixing Machine – Finished Products(Air Cooling)

Technical Parameter

SJΦ130 TPR Air Cooling Granule Line
No.	Item	Description	Specification

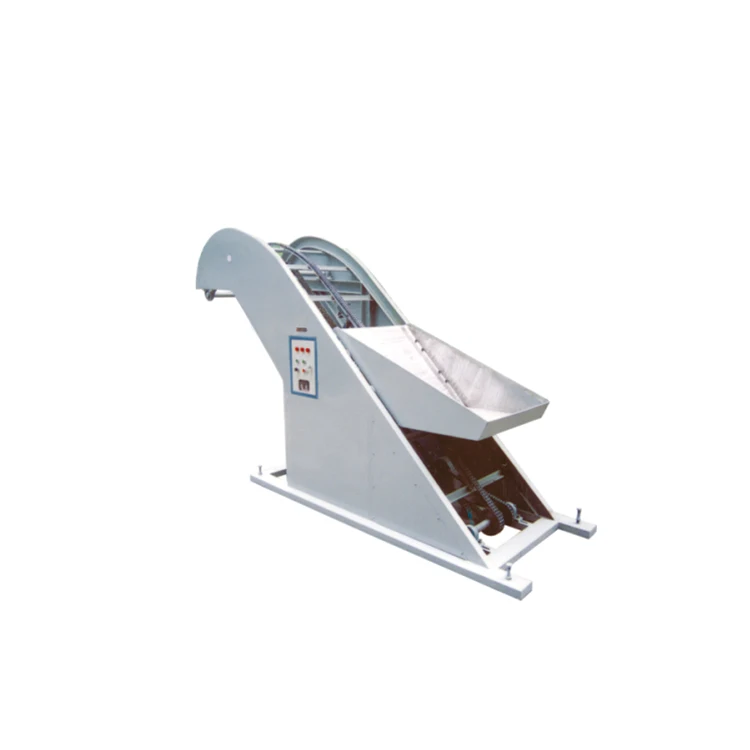

1	Bucket conveyer for TPR	Material	Stainless
		Motor Power	1.5kw
		Bucket dimension	700*600*300mm
2	Main extruder	Screw  dia	Φ130mm
		Screw Speed	0~55r/min
		Cutter speed	0~1440r/min
		Main motor power	30-4kw (with inverter)
		Cutter motor power	1.5-4kw (with inverter)
		Heat power	12kw
		Gear box	oil bath lubrication,hardened gear reducer
		Cutting system	air cooling
		Screw/barrel material	38CrMoAIA nitriding
		Barrel cooling system	air cooling
		Granule diameter	3-5mm
		Output	450-500kg
		Overall dimension (L*W*H)	4335*1900*1450mm
		Weight	2500kg
3	Whirlwind cooler	a. Cooling tank diameter	Φ600*1set
		b. Cooling tank diameter	Φ750*2sets

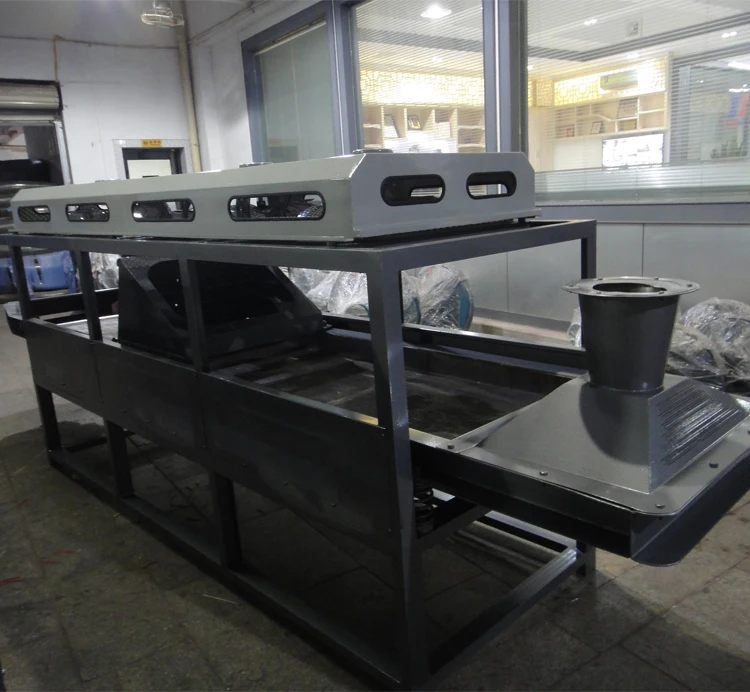

4	Cooling conveyer	Length and width	2800*510mm
		Thermal Design Power	0.36kw
		Excitation power	0.2kw
5	Blender	Material	A3
		Capacity	1000L
		Spindle speed	10r/min
		Motor power	11kw
6	Air machine	Motor power	4.0kw
		Screw speed	2880r/min
7	Air machine	Motor power	5.5kw
		Screw speed	2880r/min

Product Show

Packing & Delivery

Packaging
Size	13*2.3*2.35
Weight	9T
Packaging Details	For the full container, it's usually nude packing. (with pe film) Wooden packing is also acceptable.
