Product Overview
Description

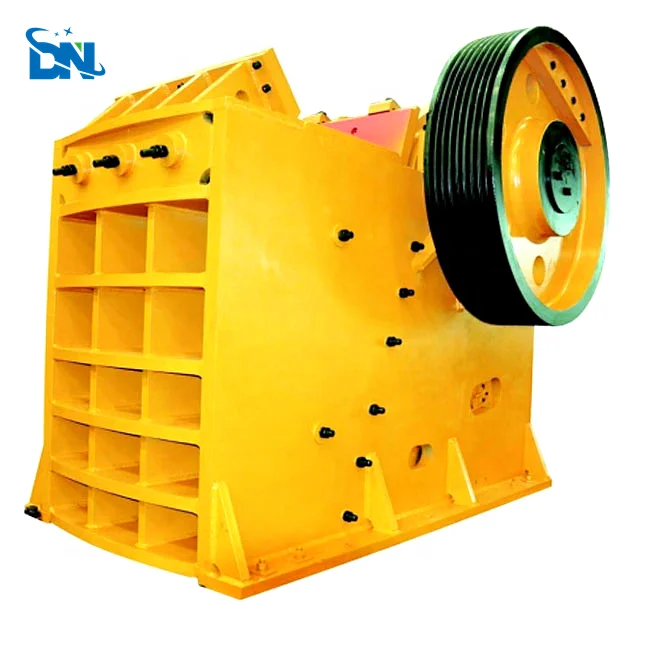

Large Size Big Heavy Crushing Machine Stone Production Line Large Capacity Jaw Crusher Price Jaw Stone Crusher Line
Product Description
Product Introduction:

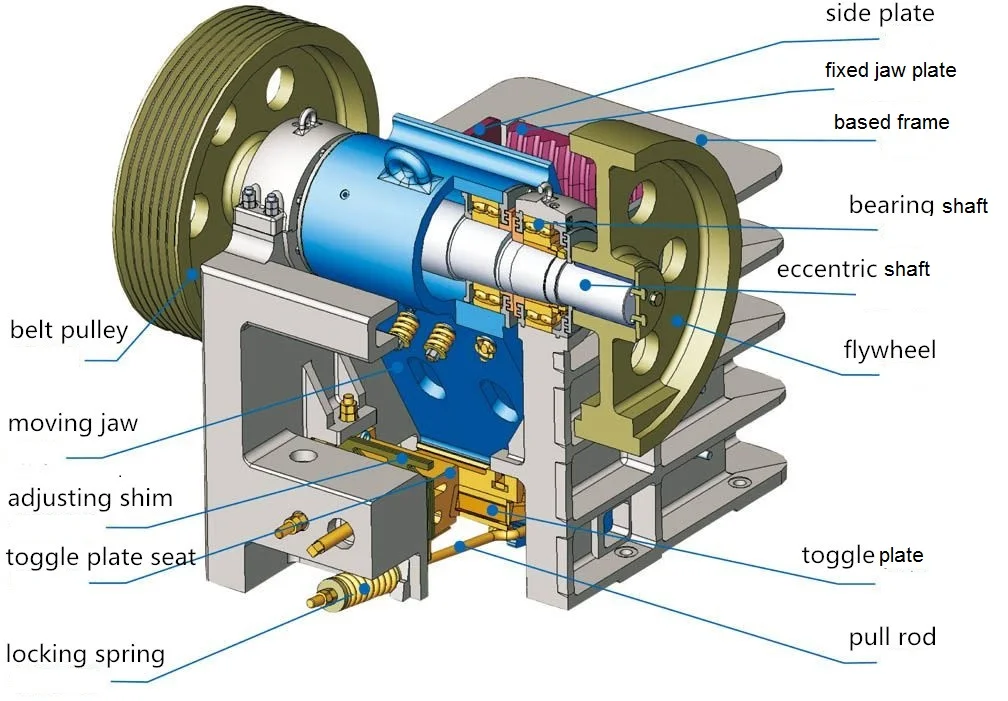

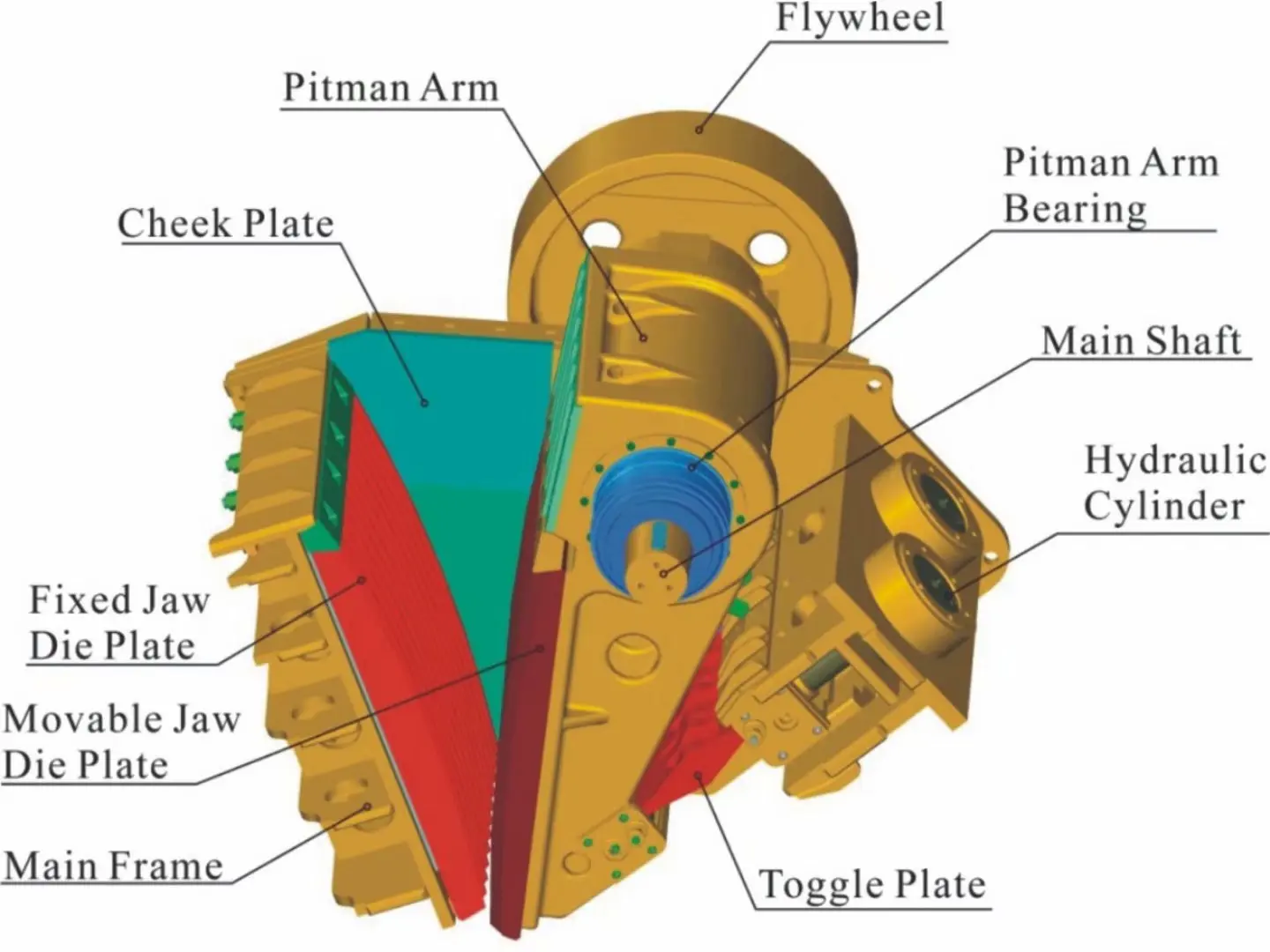

The jaw crusher uses the principle of mutual extrusion of the jaws to process the material. It used in the first step for a

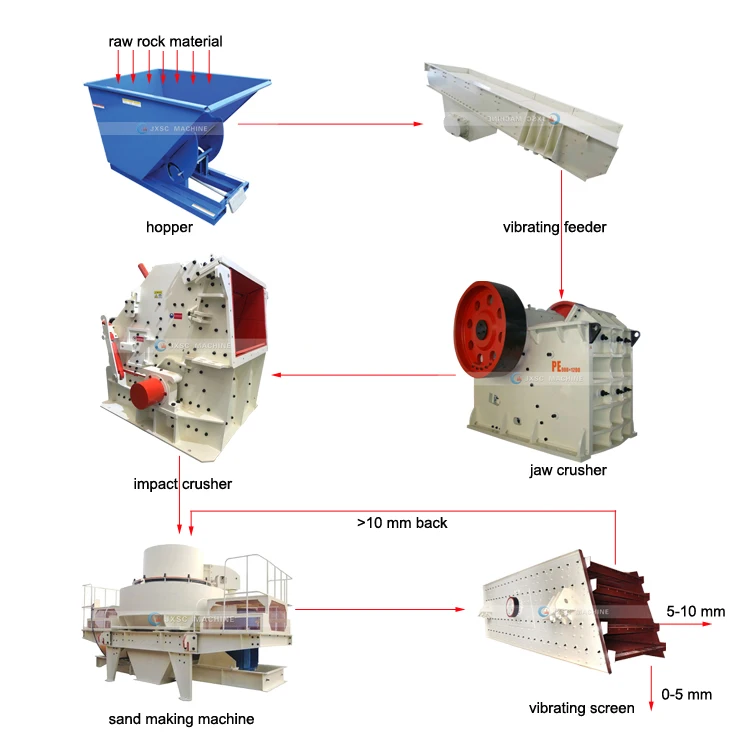

variety of ore rock broken. All kinds of ores which compressive strength is not higher than 320Mpa can be one-time processing to moderate granularity. Often forms a complete set of sand production line with the cone crusher, impact crusher, sand making machine, etc. It widely used in mining, metallurgy, chemical industry, building materials, electricity, water conservancy, transportation and other fields.
Performance characteristics:
① Simplestructure, convenient in use and maintenance. Stable performance, low operationcost.
② Crushingcavity depth and no blind spot, increasing the feeding ability and capacity.
③ Highcrushing ratio, uniform product size.
④ Gasket typedischarging mouth adjusting device, reliable, convenient and the adjustingrange is big, increase the flexibility of the equipment,can meet the requirements of different users.
⑤ Lubricationsystem safe and reliable, easy to parts replacement, small maintenance workload.
⑥ Energysaving: stand-alone energy saving 15% ~ 30%, the system energy saving more thandouble.
⑦ Low noise,little dust.
The jaw crusher uses the principle of mutual extrusion of the jaws to process the material. It used in the first step for a
variety of ore rock broken. All kinds of ores which compressive strength is not higher than 320Mpa can be one-time processing to moderate granularity. Often forms a complete set of sand production line with the cone crusher, impact crusher, sand making machine, etc. It widely used in mining, metallurgy, chemical industry, building materials, electricity, water conservancy, transportation and other fields.
Performance characteristics:
① Simplestructure, convenient in use and maintenance. Stable performance, low operationcost.
② Crushingcavity depth and no blind spot, increasing the feeding ability and capacity.
③ Highcrushing ratio, uniform product size.
④ Gasket typedischarging mouth adjusting device, reliable, convenient and the adjustingrange is big, increase the flexibility of the equipment,can meet the requirements of different users.
⑤ Lubricationsystem safe and reliable, easy to parts replacement, small maintenance workload.
⑥ Energysaving: stand-alone energy saving 15% ~ 30%, the system energy saving more thandouble.
⑦ Low noise,little dust.
Model | Feeding size(mm) | Max feeding size(mm) | Discharging Range size(mm) | Capacity (t/h) | Motor power(kw) | Weight (t) | Overall dimension(LxWxH)(mm) |
PE-250*400 | 250*400 | 210 | 20-80 | 5-20 | 15 | 2.8 | 1450x1315x1296 |
PE-400*600 | 400*600 | 340 | 40-100 | 16-60 | 30 | 6.65 | 1565x1732x1586 |
PE-500*750 | 500*750 | 425 | 50-100 | 40-110 | 55 | 11.73 | 1890x1916x1870 |
PE-600*900 | 600*900 | 500 | 65-180 | 80-180 | 55-75 | 16.13 | 2305x1840x2298 |
PE-750*1060 | 750*1060 | 630 | 80-180 | 110-320 | 90-110 | 28 | 2450x2472x2840 |
PE-800*1060 | 800*1060 | 680 | 100-200 | 140-340 | 90-110 | 30 | 2610x2556x2800 |
PE-870*1060 | 870*1060 | 750 | 170-270 | 180-360 | 90-110 | 31.22 | 2660x2556x2800 |
PE-900*1060 | 900*1060 | 780 | 200-290 | 200-380 | 90-110 | 31 | 2690x2556x2800 |
PE-900*1200 | 900*1200 | 780 | 95-225 | 220-450 | 110-132 | 49 | 3335x3182x3025 |
PE-1000*1200 | 1000*1200 | 850 | 195-280 | 280-550 | 110-132 | 51 | 3435x3182x3025 |
PE-1200*1500 | 1200*1500 | 1020 | 150-300 | 400-800 | 160-220 | 100.9 | 4200x3732x3843 |
PE-1500*1800 | 1500*1800 | 1200 | 210-360 | 525-1120 | 280-335 | 132 | 5100x4700x4300 |
PEX-150*750 | 150*750 | 120 | 18-48 | 8-25 | 15 | 3.5 | 1380x1658x1025 |
PEX-250*750 | 250*750 | 210 | 25-60 | 13-35 | 30 | 4.96 | 1545x1667x1330 |
PEX-250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 30-37 | 6.5 | 1530x1992x1380 |
PEX-250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 37-45 | 8.52 | 1900x2192x1430 |
PEX-300*1300 | 300*1300 | 250 | 20-90 | 25-95 | 55-75 | 12.6 | 1750x2320x1724 |
PEX-350*1200 | 350*1200 | 300 | 70-140 | 25-120 | 75 | 12.35 | 2162x2220x1723 |

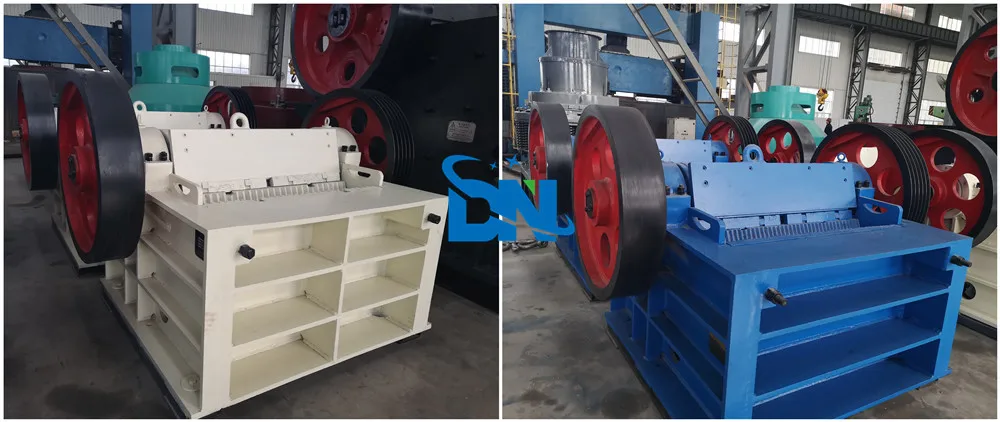

PEX Fine Jaw Crusher

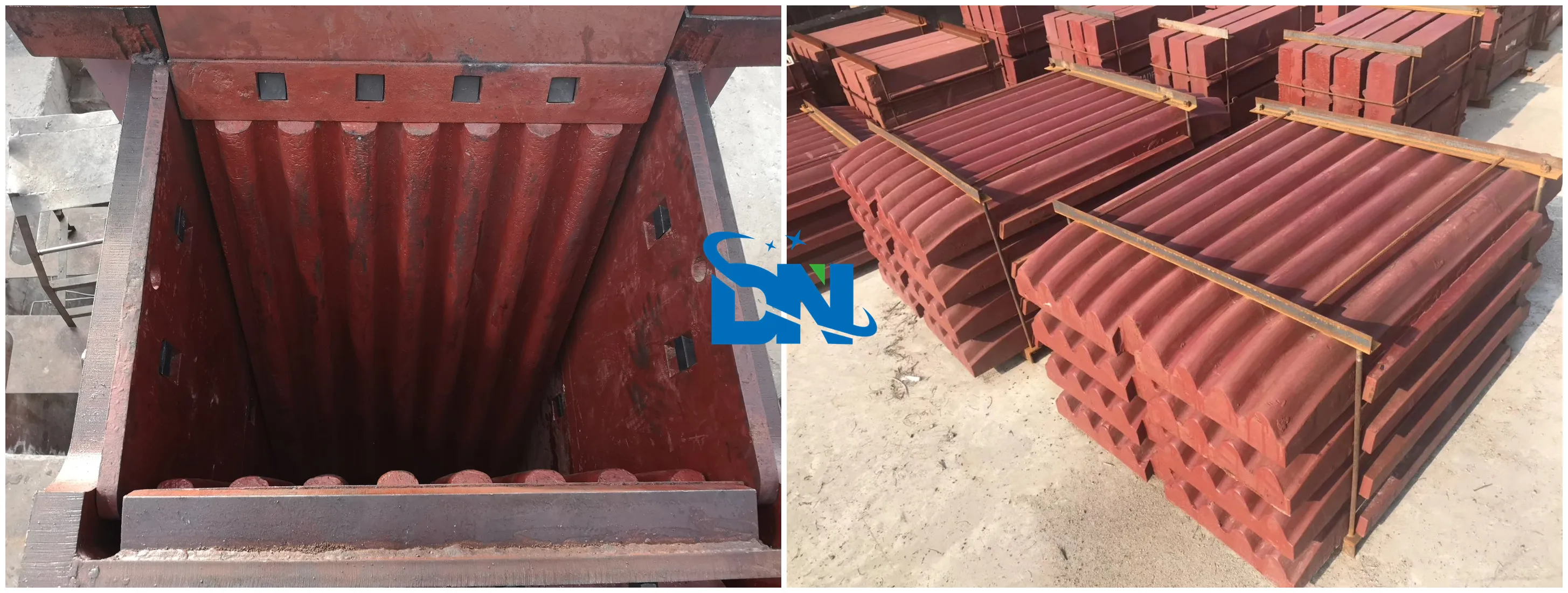

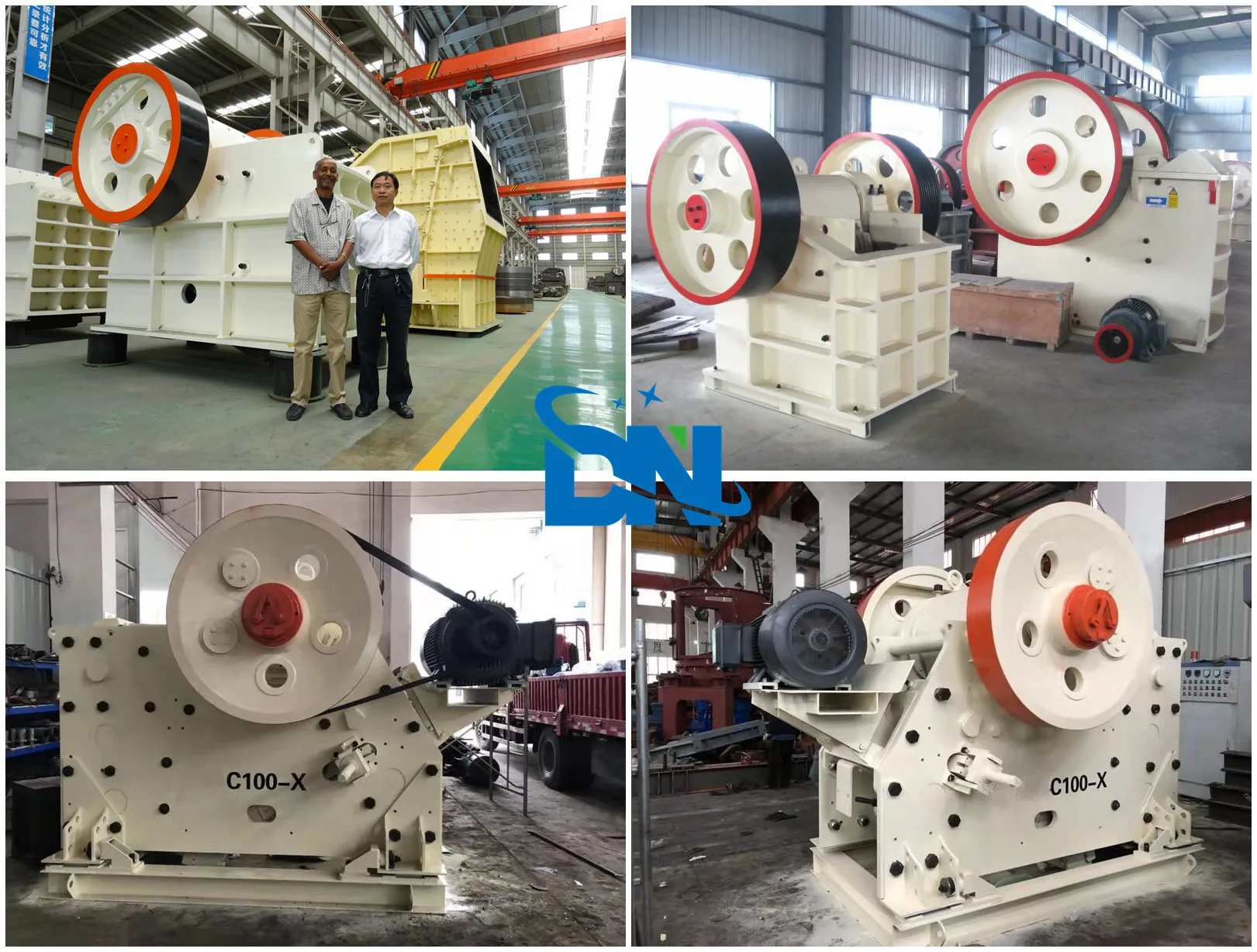

Jaw Crusher Plate in DN factory

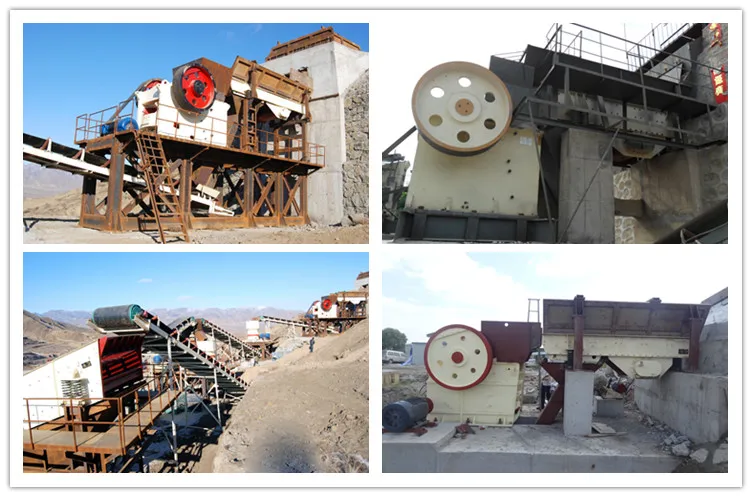

DN Crusher Successful Cases

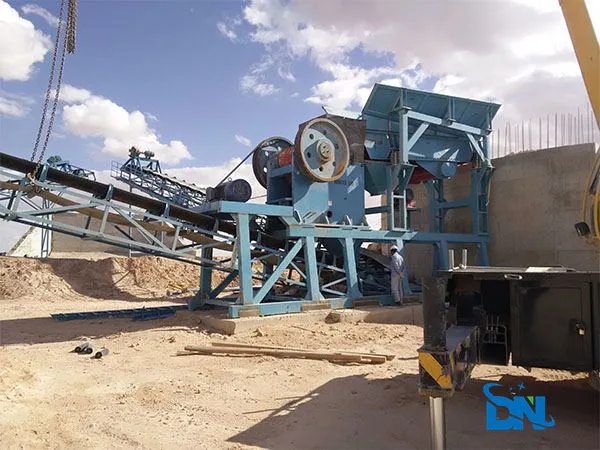

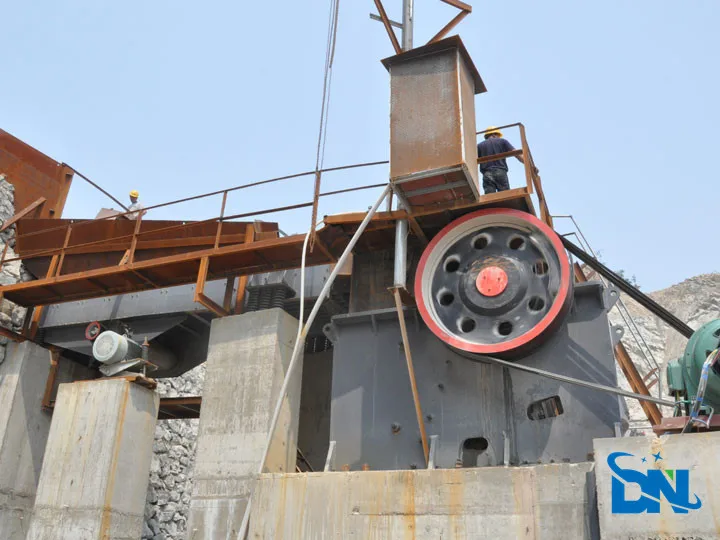

Jaw Crusher Plant in Malaysia
Tanzania Jaw Crusher Machine in Mining
India Customer Stone Crushing production line

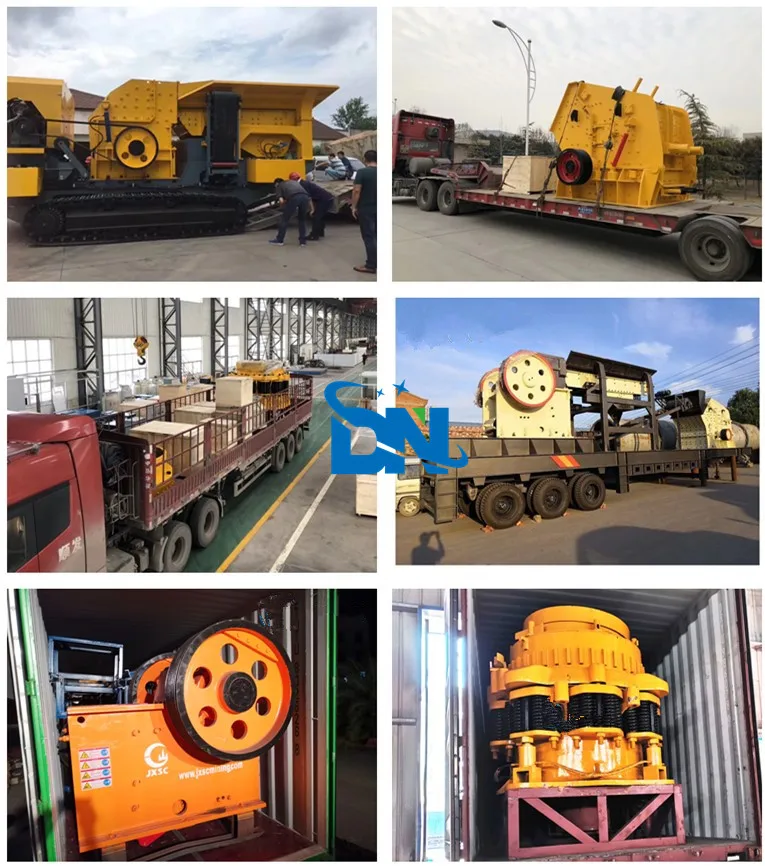

Packing&Shipping
Company Introduction
Ganzhou Dongneng Technology Co, Ltd. (DN) is a privatization enterprise, which focuses on mining equipment R&D, manufacturing and sales, the main products include all resires of stone crushers: jaw crusher, impact crusher, cone crusher, sand and stone making equipment, new type dry technology cement producing equipment, limestone producing
equipment etc.
equipment etc.
Besides, we also design and install sand project and ecological improvement equipment, and self-operate and agent import and export business for all kinds of products. The stone and sand making production process, mineral separation system, grinding system and drying system which independently R&D by our company have been the world leading level.

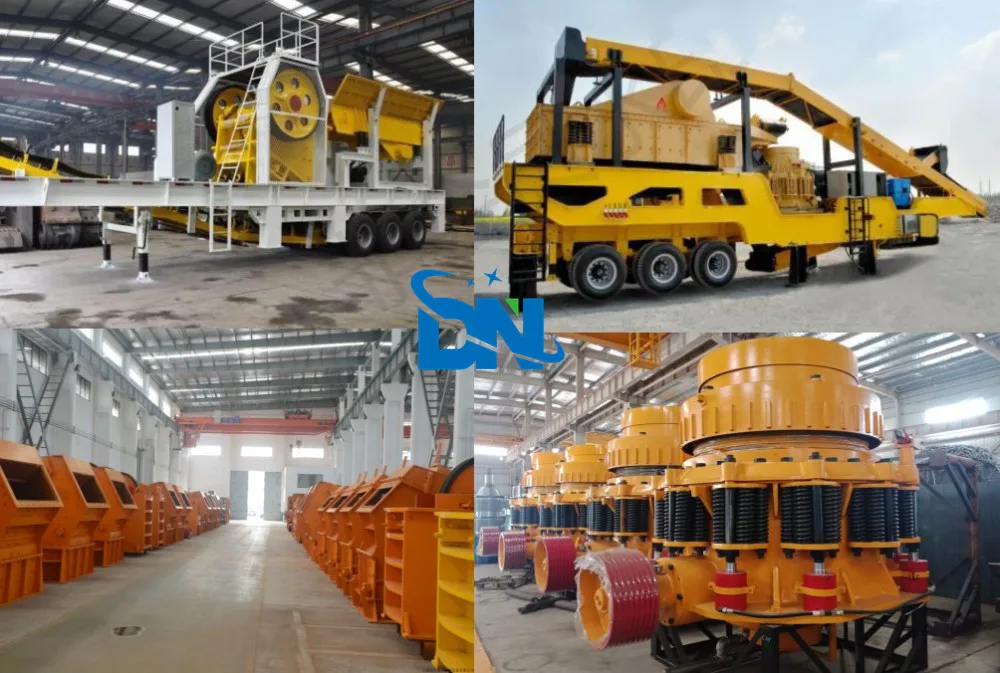

DN Workshop
