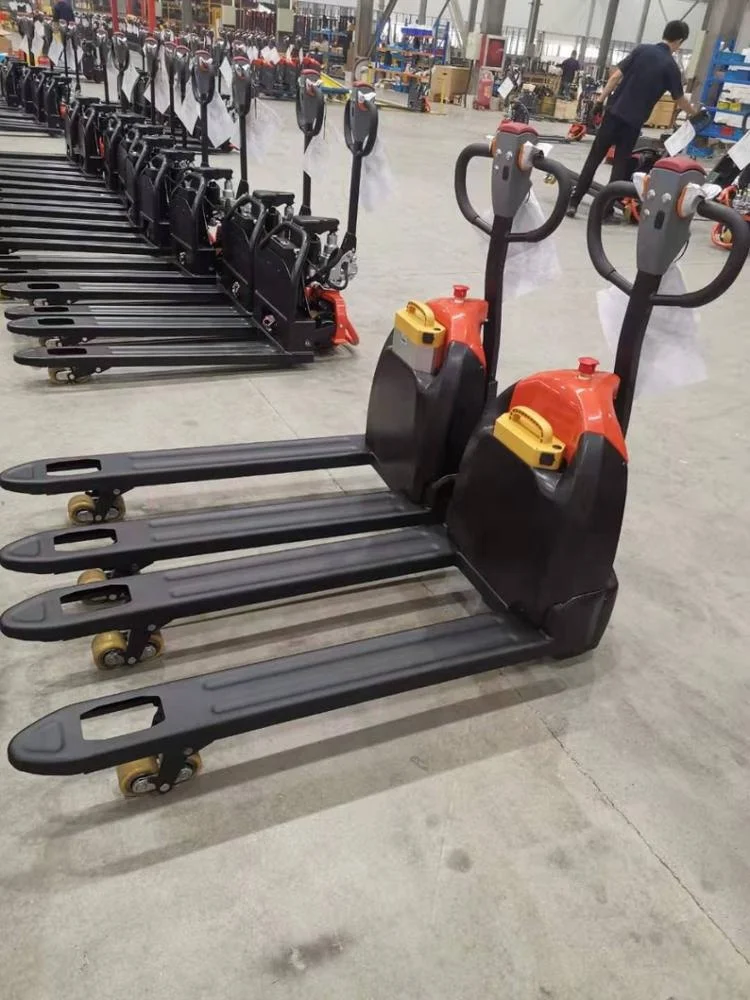

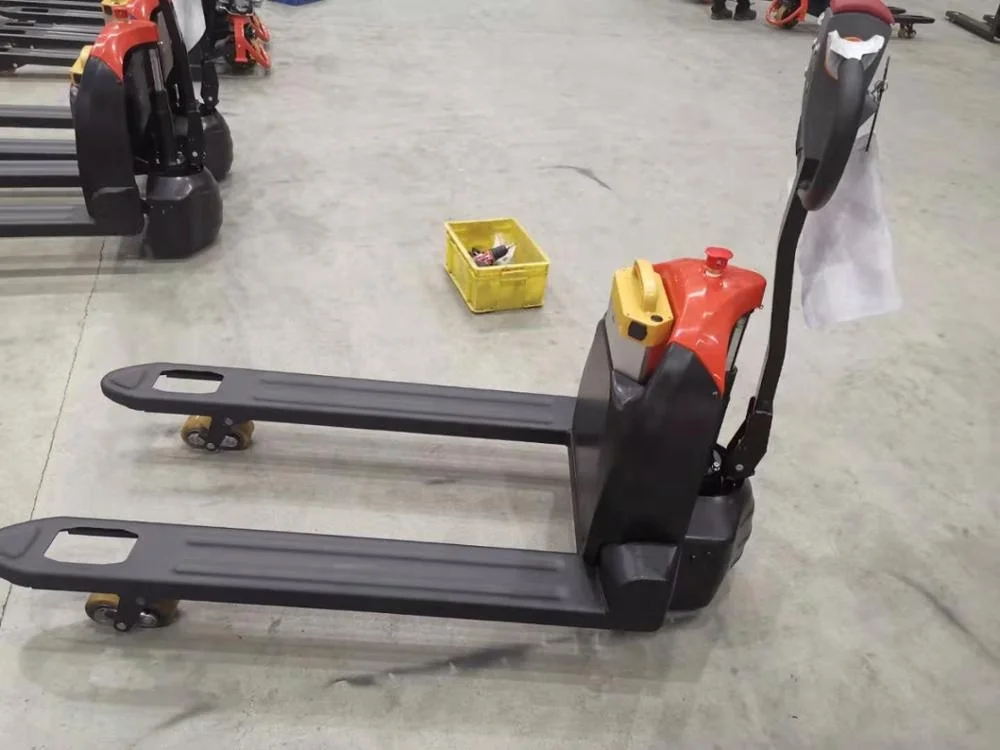

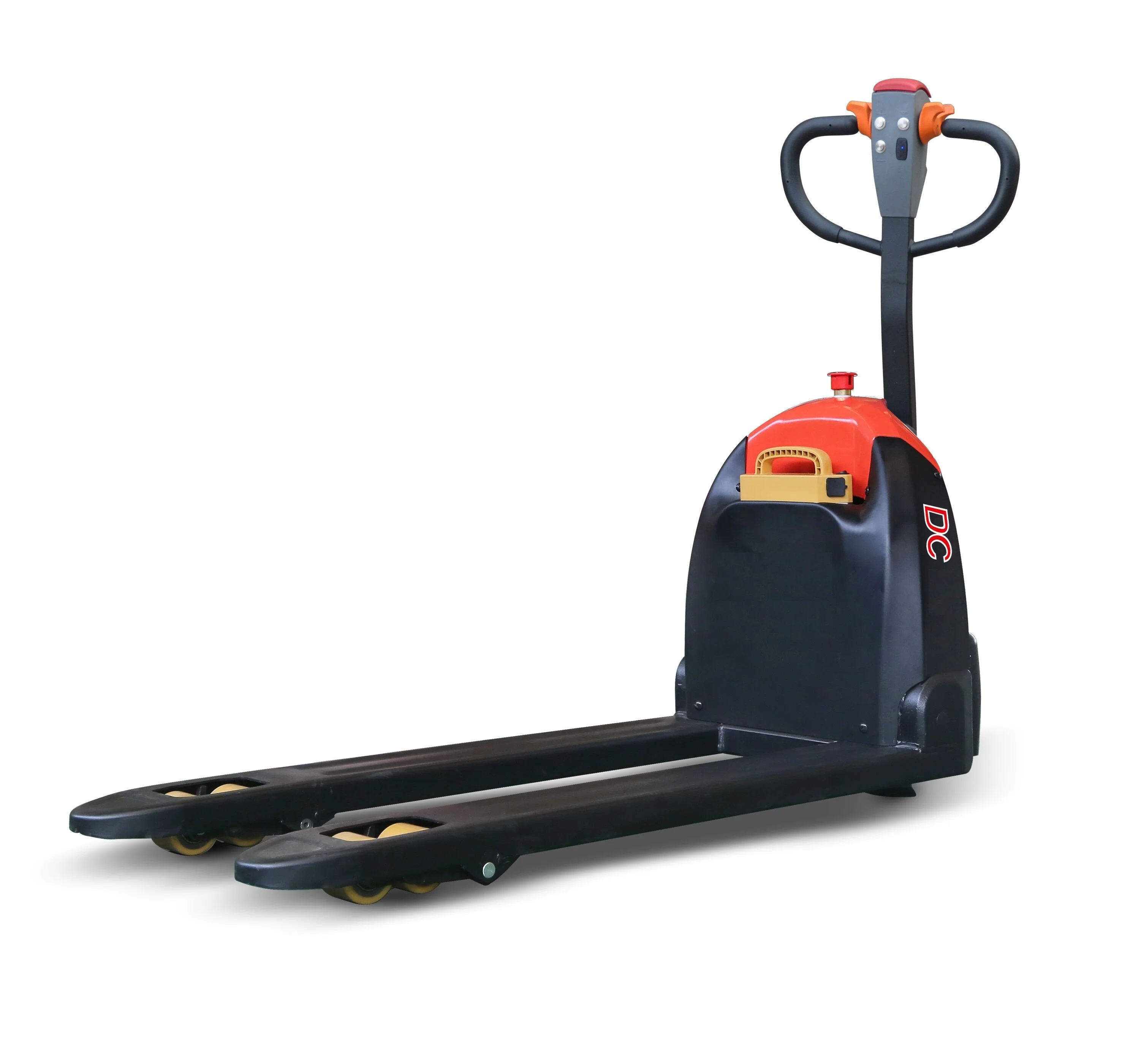

Грузовик поддон с литиевым аккумулятором 1800 кг 1,8 т 2000 кг 2,0 т
Грузовик-поддон с литиевым аккумулятором 1800 кг 1,8 т 2000 кг 2,0 т
Грузовик-поддон с литиевым аккумулятором 1800 кг 1,8 т 2000 кг 2,0 т
Грузовик-поддон с литиевым аккумулятором 1800 кг 1,8 т 2000 кг 2,0 т

Грузовик поддон с литиевым аккумулятором 1800 кг 1,8 т 2000 кг 2,0 т

Share on (62538933852):


Price:

Quantity:


Product Overview

Description







Characteristics
1
Manufacturer
WELIFT
2
Model
EPT-18B EPT-20P
3
Load capacity
kg
1800/2000
4
Load center
mm
600
5
Wheel base
mm
1184
6
Operator type
Pedestrian
Wheels
7
Wheels type
PU
8
Wheel quantity
1x+2/4
Wheels,number front/rear(x=driven)
9
Driving wheel size
mm
Φ210x70
10
Loading wheel size
mm
Φ80×60
11
Track width,rear,loading side
mm
400/535
Dimension
12
Overall length
mm
1543
13
Length to fork face
mm
465
14
Overall width
mm
550/685
15
Fork Dimensions
mm
50/150/1150
16
Width of forks
mm
550/685
17
Lowered height
mm
85
18
Aisle width with pallet 1000x1200 across forks
mm
1760
19
Aisle width with pallet 800x1200 along forks
mm
1810
20
Min.Turning radius
mm
1355
Performance
21
Travel speed with/without load
km/h
4.2/4.5
22
Max.gradeability laden/unladen
%
5月10日
23
Service brake type
Electromagnetic brake
24
Drive motor,output S2 60min
kW
0.75
25
Battery voltage/rated capacity
V/Ah
24/28; 48V/20Ah
26
Battery weight
kg
6.8 ; 7.5
Others
27
Type of drive control
DC
28
Steering type
Mechanical steering
5.3
Battery capacity
Ah
165
5.4
Brake
Electromagnetic
5.5
Controller
CURTIS
5.6
Steering system
Electronic
Weight
6.1
Battery weight
kg
160
6.2
Service weight with battery
kg
720
Advantages:
Capacity:2000kg,Original Curtis Controller, fork size: 550*1150/680*1200mm, both lifting up
and down,driving are electric,high efficient.
Lead-acid battery 24V/165Ah,outside automatic charger with strong power.
Quality German Bucher pump motor and other quality parts,Multi-function integrated handle.
Equipped with double cylinder, and electronic steering system,electromagnetic/regenerative
brake system.
AC free maintenance motor, without carbon brush.
Stepless speed control,easy to operate for driver.
Emergency stop/hour meter/battery level indicator. Foldable platform and protection arms make
the operation more fast and efficient.




















FAQ


1.What's the Certificate do you have?
All our products are confirmed with ISO 9001/CE/CIQ Standard


2.Can you customize and design as the clients' requirement?
We have our own R&D and design team to expand the product line
Customized service:
①Customize non-standard models;
②Customize color, logo and manuals;
③ Professional design plan;


3.What's the payment terms do you accept?
Payment method: T/T, LC,...


4.How long is the warranty of your products?
12-months Warranty


5.Delivery time:
Short lead time: about 10-25days
