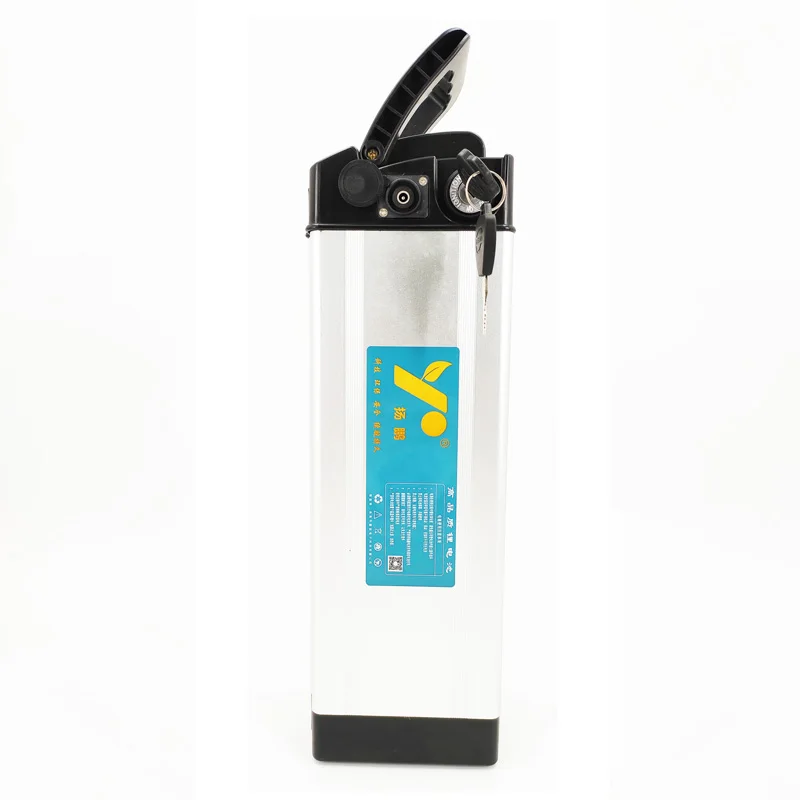

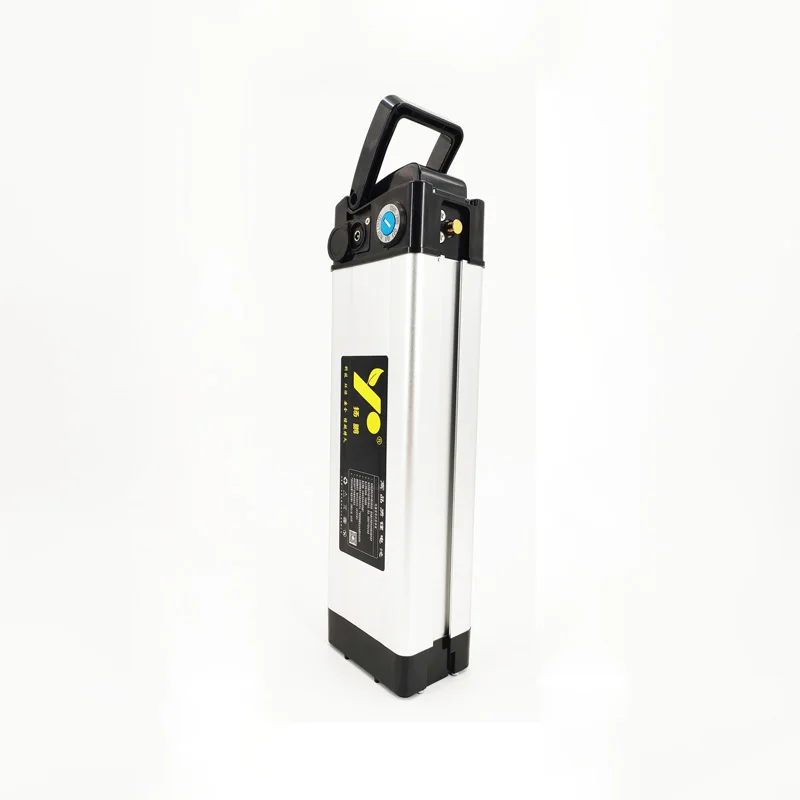

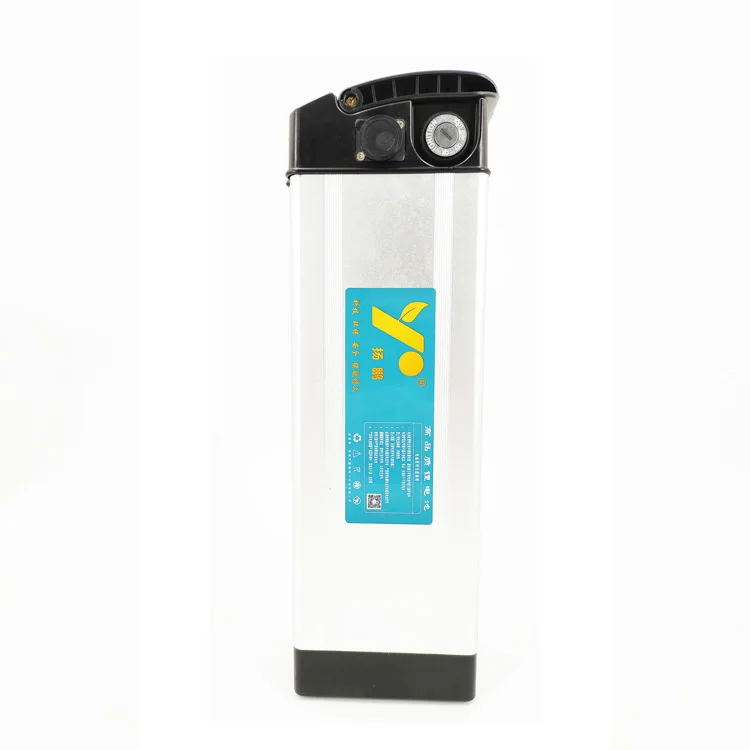

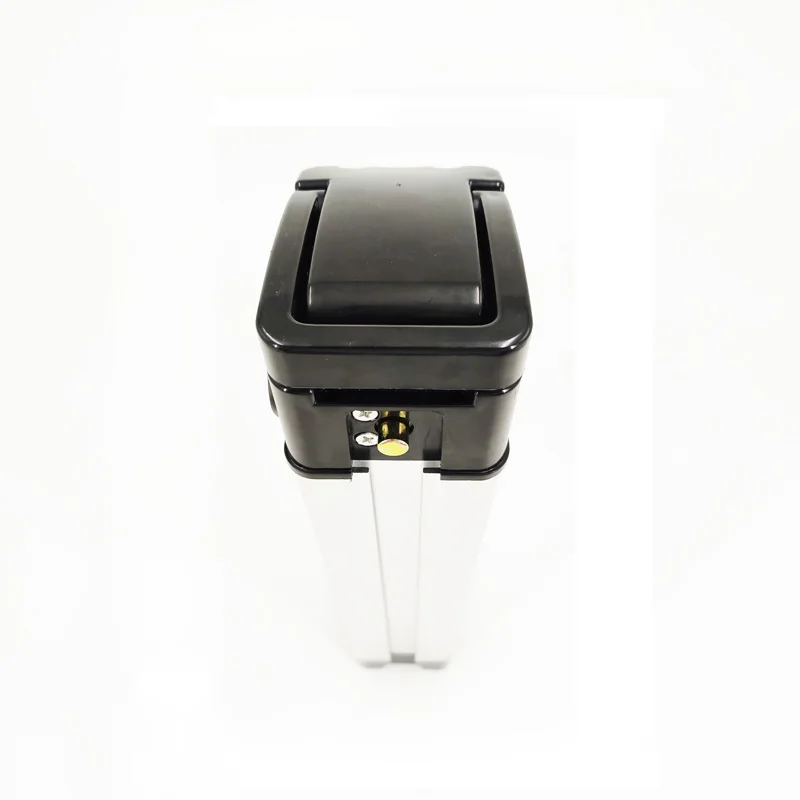

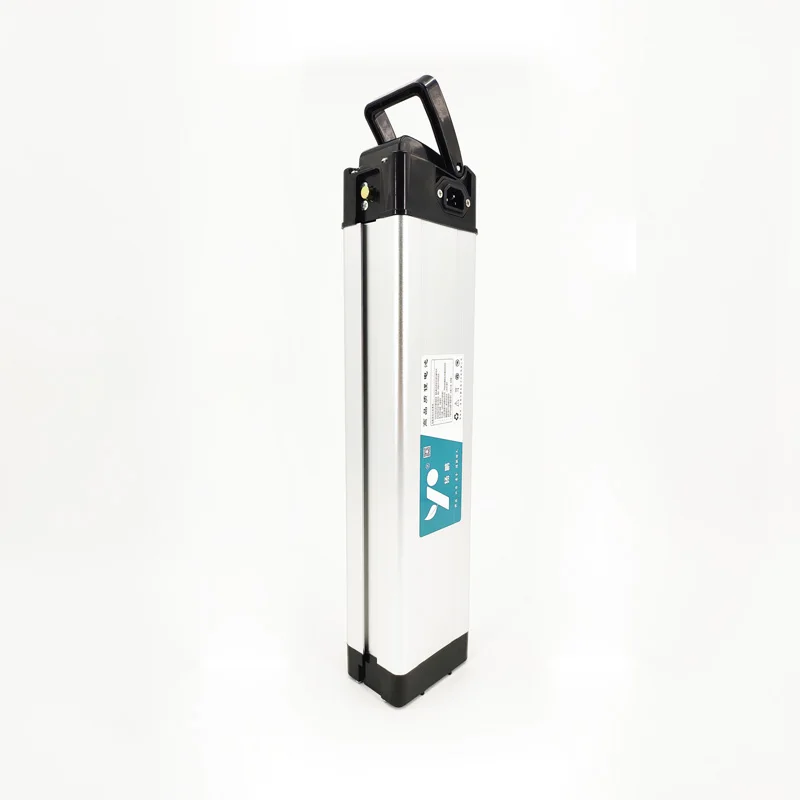

48V 20ah Electric Bike Battery Electric Scooter Lithium Battery Pack 21 30ah Acceptable High Power 12 Months 36~72V
- Category: >>>
- Supplier: Zhuhai Greaton Electronic Technology Co. Ltd.
Share on (62538943296):
Product Overview
Description
Product Description

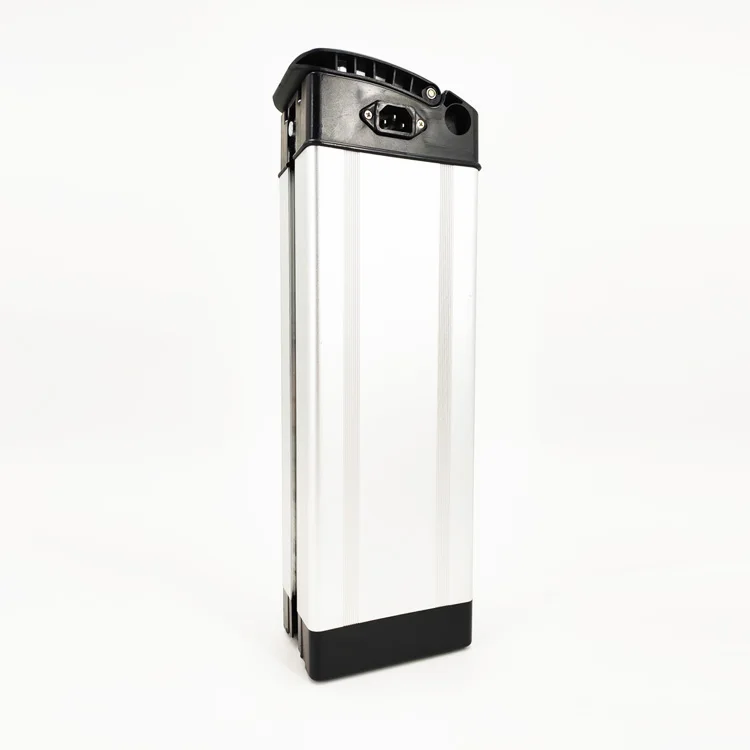

Product | 48V 20Ah Electric Bike Battery Electric Scooter Lithium Battery Pack |
Nominal Voltage | 36V, 48V, 60V, 72V, or customized |
Nominal Capacity | 10~100Ah, or customized |
Cycle Life | more than 800 times |
Charging/Discharging Temperature | 0℃~45℃ / -20℃-60℃ |
Application | widely used in electric bicycle, motorcycle, scooter, golf cart, electric vehicle, wheelchair, electric forklift, skateboard, hoverboard, lawn mower, golf trolley, electric boat, etc. |
Features of Electric Bike Battery 48V:
- High-end lithium ion battery cells
- Higher capacity, longer cycle life, wider operating temperature range, more eco-friendly, safer
- PACK glue filling in low temperature and explosion-proof design
- Meet the requirements of continuous large current charge and discharge

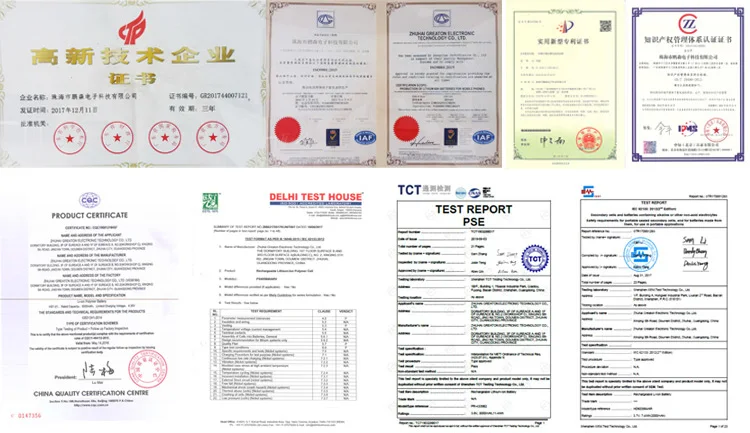

- Comply with UL, CE, CB, PSE, BIS and other certification standards
- Flexible design in shape and size
- OEM/ODM is accepted, all of our battery products can be customized to meet your requirements.
- PACK glue filling in low temperature and explosion-proof design
- Meet the requirements of continuous large current charge and discharge
- Comply with UL, CE, CB, PSE, BIS and other certification standards
- Flexible design in shape and size
- OEM/ODM is accepted, all of our battery products can be customized to meet your requirements.

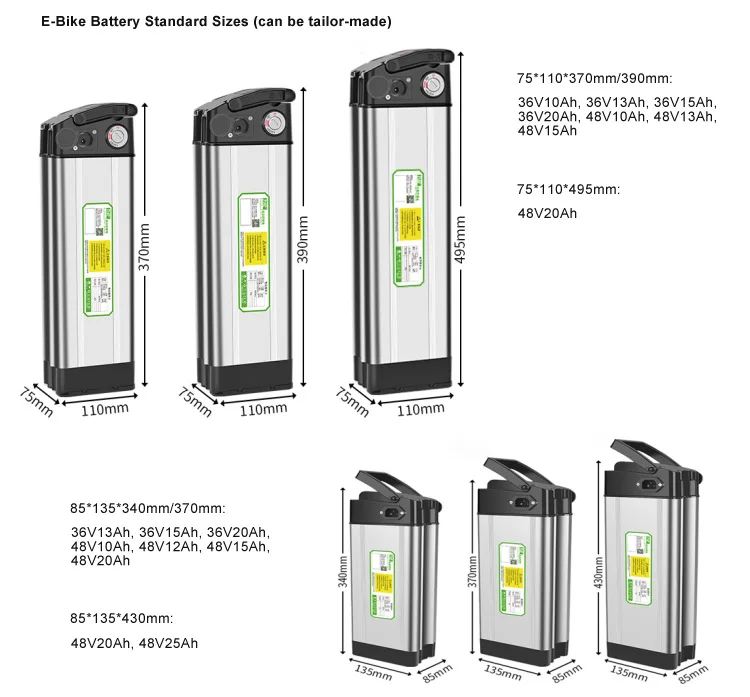

Voltage & Capacity | Size | Weight | Connection | Charger | Cell Capacity | |||||
36V10Ah | 75*110*370/390mm or 85*135*340/370mm | 2.6±0.3kg | 10S5P | 42V2A DC | 2000mAh 3C | |||||
36V13Ah | 3.0±0.3kg | 10S5P | 42V2A DC | 2500mAh 3C | ||||||
36V15Ah | 3.4±0.3kg | 10S6P | 42V2A DC | 2500mAh 3C | ||||||
36V20Ah | 4.0±0.3kg | 10S8P | 42V3A DC | 2500mAh 3C | ||||||
48V10Ah | 3.2±0.3kg | 13S5P | 54.6V2A DC | 2000mAh 3C | ||||||
48V13Ah | 3.6±0.3kg | 13S5P | 54.6V2A DC | 2500mAh 3C | ||||||
48V15Ah | 4.0±0.3kg | 13S6P | 54.6V2A DC | 2500mAh 3C | ||||||
48V20Ah | 75*110*495mm | 6.0±0.3kg | 13S8P | 54.6V3A DC | 2500mAh 3C | |||||
All parameters of Electric Bike Battery 48V can be flexible and customized based on your requirements. | ||||||||||

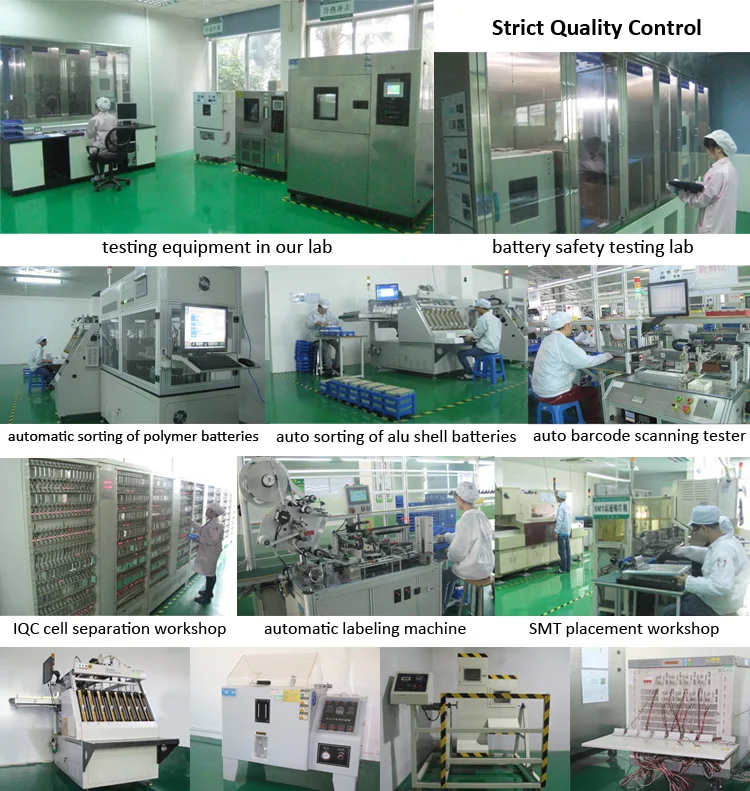

Production & Quality Control
Incoming Quality Control (IQC)
To strictly check the quality of the battery cell, we do safety tests including 130℃ furnace thermal test, heavy object impacttest, squeeze test, etc. If the safety does not pass, we will seal this batch of batteries and return to the incoming supplier.
Additionally, we will inspect more to eliminate the defective incoming materials, from capacity inspection, simulated transport vibration, high-temperature aging test of battery cells, to voltage voltage drop binning and screening. Defective products selling to our clients can be reduced through multiple inspection methods.
Additionally, we will inspect more to eliminate the defective incoming materials, from capacity inspection, simulated transport vibration, high-temperature aging test of battery cells, to voltage voltage drop binning and screening. Defective products selling to our clients can be reduced through multiple inspection methods.
Full Inspection of Electric Bike Battery 48V
We do the full inspection for the appearance, internal resistance, voltage of the finished batteries. Defective products will be picked out again to prevent unqualified products from flowing into our clients.

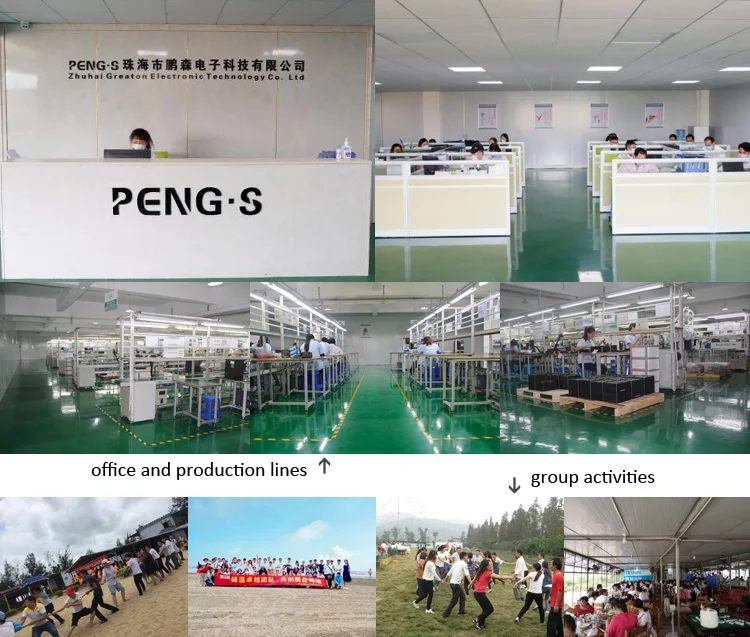

Company Profile
Zhuhai Greaton Electronic Technology Co., Ltd. is a large-scale professional manufacturer of lithium ion batteries, integrating the development, production, sales, and the assembly of lithium battery terminals.

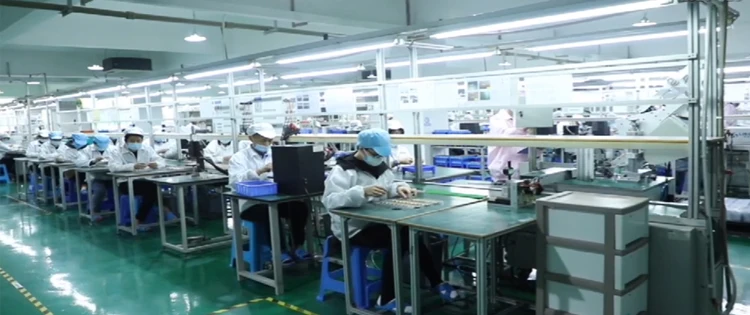

Greaton Electronic was founded in Shenzhen in 2009, and moved to Zhuhai city in 2014. Now our factory is located in Aimei Science and Technology Park with factory size more than 4,000 square meters. There are 6 automated PACK production lines and 2 protective plate production lines, and a large number of advanced automation equipment and professional automatic testing equipment.
Greaton Electronic was founded in Shenzhen in 2009, and moved to Zhuhai city in 2014. Now our factory is located in Aimei Science and Technology Park with factory size more than 4,000 square meters. There are 6 automated PACK production lines and 2 protective plate production lines, and a large number of advanced automation equipment and professional automatic testing equipment.
Product Packaging & Shipping
Inside PE bag or bubble bag for each battery, outside standard export carton. Customized packing is acceptable based on your requirements.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are the battery factory direct, locate in Zhuhai and Shenzhen.
Q: Do you accept OEM/ODM orders?
A: Yes, we are the professional battery manufacturer and have our own experienced R&D team. Please feel free to contact us for your requirements or any ideas.
Q: What if I can't find the battery model that fit our products?
A: We may not update some new models online in time, you could contact us anytime to check, and we can provide customized design.
Q: Can I get a sample order?
A: Yes, we can provide the sample for you to test quality and appearance. Production will only start after you confirm the sample.
Q: Do you also offer the charger for the battery?
A: Yes, just remember to let us know when sending inquiry, and please note that the charger is charged additionally.
Q: What about your after-sale service?
A: Greaton Electronics aims to provide our clients a safer battery pack. We will offer you 12 months guarantee, and positive solutions for any problems.
A: We are the battery factory direct, locate in Zhuhai and Shenzhen.
Q: Do you accept OEM/ODM orders?
A: Yes, we are the professional battery manufacturer and have our own experienced R&D team. Please feel free to contact us for your requirements or any ideas.
Q: What if I can't find the battery model that fit our products?
A: We may not update some new models online in time, you could contact us anytime to check, and we can provide customized design.
Q: Can I get a sample order?
A: Yes, we can provide the sample for you to test quality and appearance. Production will only start after you confirm the sample.
Q: Do you also offer the charger for the battery?
A: Yes, just remember to let us know when sending inquiry, and please note that the charger is charged additionally.
Q: What about your after-sale service?
A: Greaton Electronics aims to provide our clients a safer battery pack. We will offer you 12 months guarantee, and positive solutions for any problems.
