Advanced Single Axis Solar Tracker Track HDG Steel & Anodized Aluminum Rotating Gear Driver DC Motor 2 M & 66m 64 X PV Panel
- Category: >>>
- Supplier: Dalian CDS New Energy Technology Co. Ltd.
Share on (62539044102):
Product Overview
Description

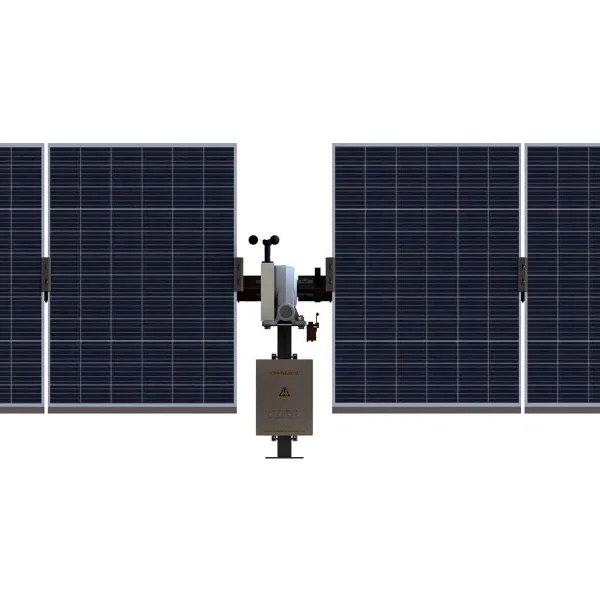

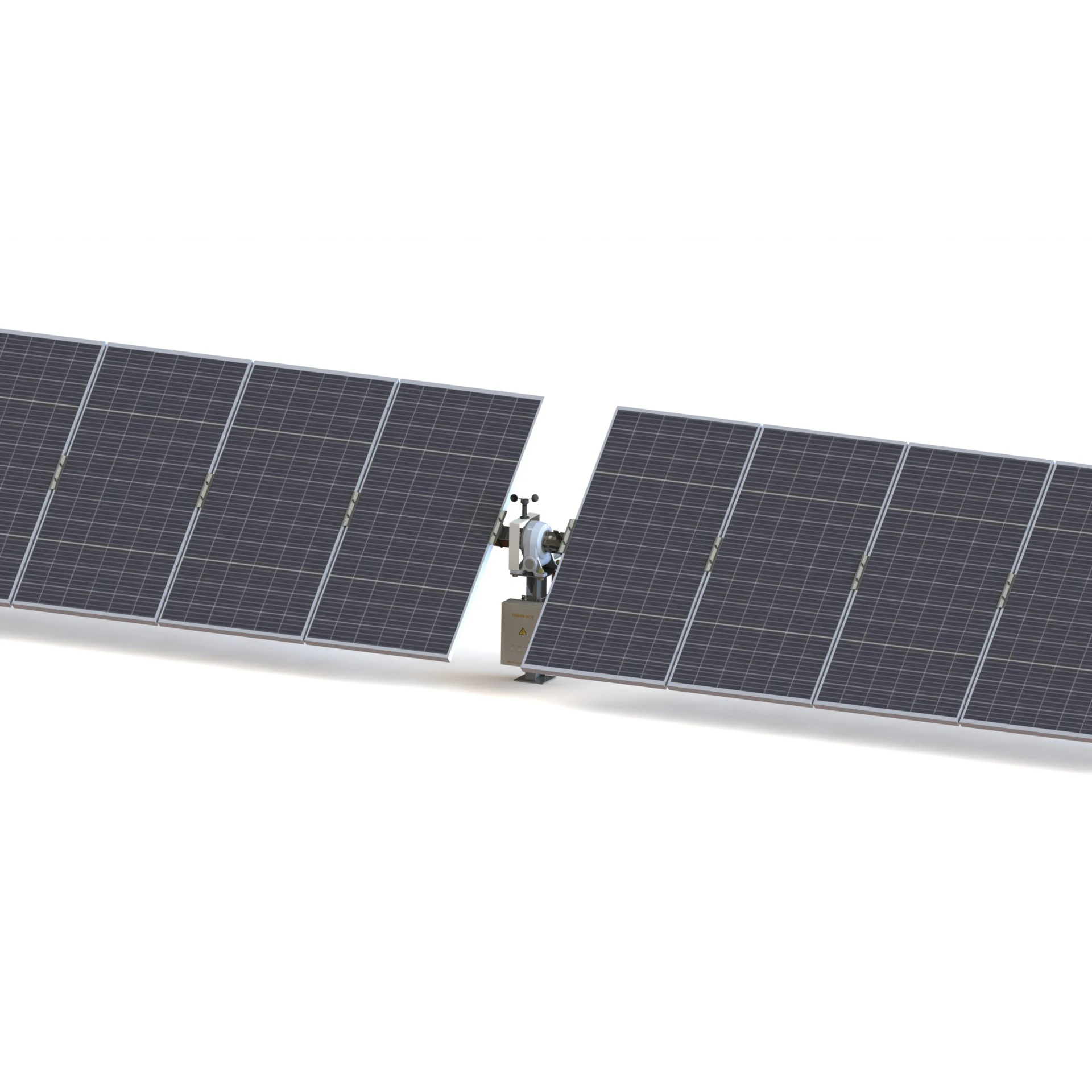

CDS single axis solar panel mounting structure solar tracking system
Trade Assurance
Product Descriptions
CDS SOLAR SELF-CLEANING HZ-S-C64-SP-N TRACKER | |
Tracker Type | HZ-S-C64-SP-N |
Tilt Angle | 0° |
Driving Capacity | 64 x PV Panel |
Driving Type | Rotating Gear Driver + DC Motor |
East-West & North-South Dimension | 2 m & 66 m |
Array Height | 0.8m ~ 2.4 m, Adjustable |
Ground Cover Ratio (GCR) | 33% ~ 50% |
Tracking Range | ±45° , ±60° |
Module Configuration | Standard: Single Module In Portrait |
Materials | HDG Steel & Anodized Aluminum |
Wind Load | Up to 140 mph ( 3 Second Gust ) in stow position |
Wind Protection | Safety Wind-Stow Mode |
Solar Tracking Method | Algorithm With GPS Input |

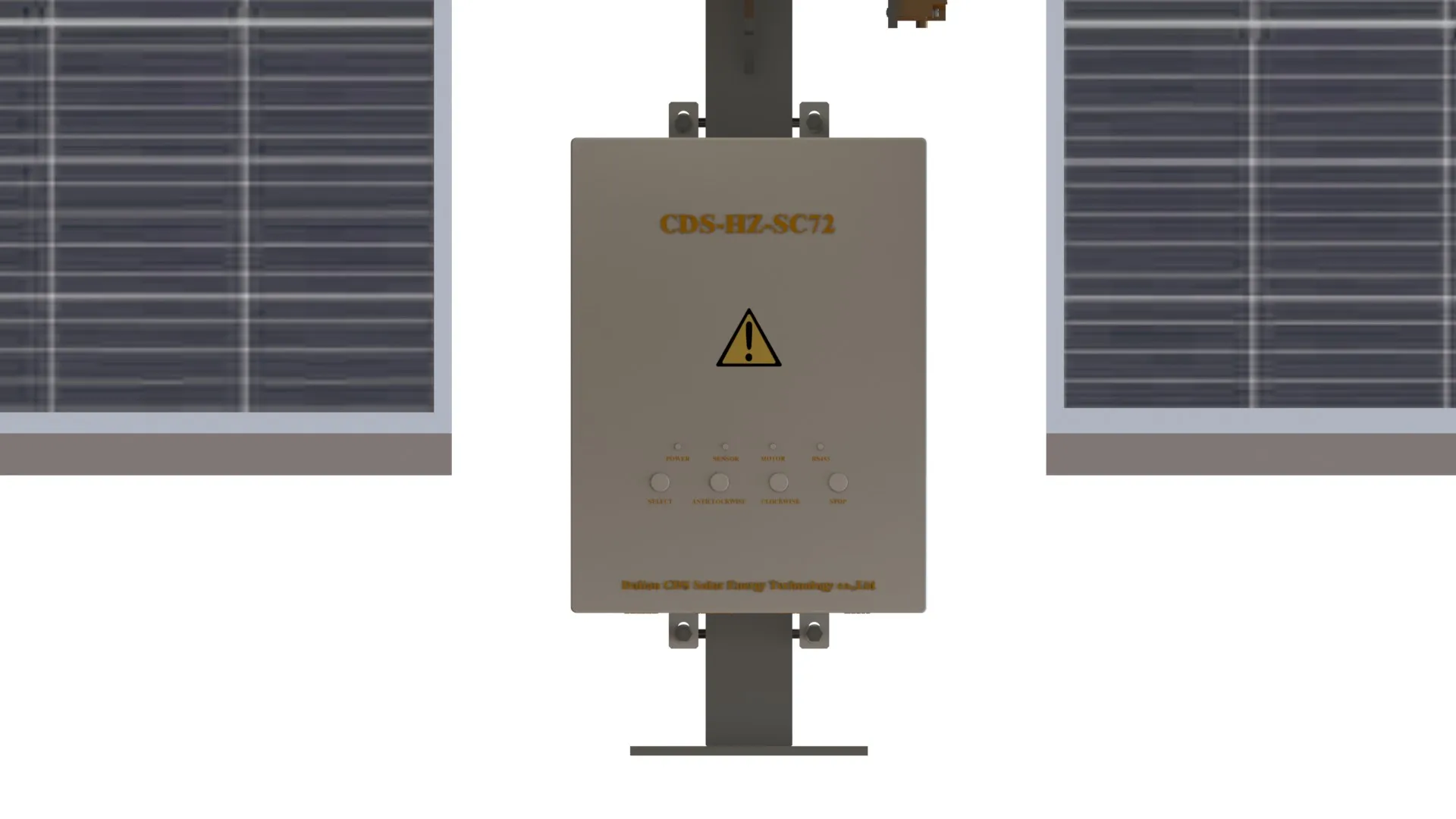

Control Electronics | MCU |
Data Feed | RS485 / Modbus RTU |
Night-Time Stow Mode | Yes |
Dust-Proof Mode | Standard |
Back-Tracking Mode | Yes |
Tracking Accuracy | ±0.2º |
Installation Guide Manual & Drawings | Yes |
Connection Type | Fully Bolted Connections, No Welding Necessary |
Power Consumption | 0.08 kWh/D |
Tracker Size | L66 x W2 x H1 m (typical) |
Warranty
| 10 years on structural components, 5 years on drive and control systems. |
Patent No. | ZL 2014 2 035 7004.0 |
Product specifications are subjected to change at any time with CDS Solar reserving all rights and privileges | |
Email: cmo@cds-solar. com Whatsapp : +86 18340803630 Facebook : Cds solar
Email: cmo@cds-solar. com Whatsapp : +86 18340803630 Facebook : Cds solar
HZ-SCTM tracker has a high precision angle sensor. The tracking precision is up to 0.2 degrees, it can increase by 5% energy output per year compared to conventional trackers with 1 degree tracking precision.
HZ-SCTMtracker has self-cleaning and dust-proof functions. It can keep the surface of PV modules clean for a long time and reduce cleaning times PV modules. When the sun goes down, the tracker will go to dust-proof position which means the PV module will face down. The PV module is not affected by dust at least half the time of the year. The PV power plant will reduce by a half the time for cleaning PV modules.
