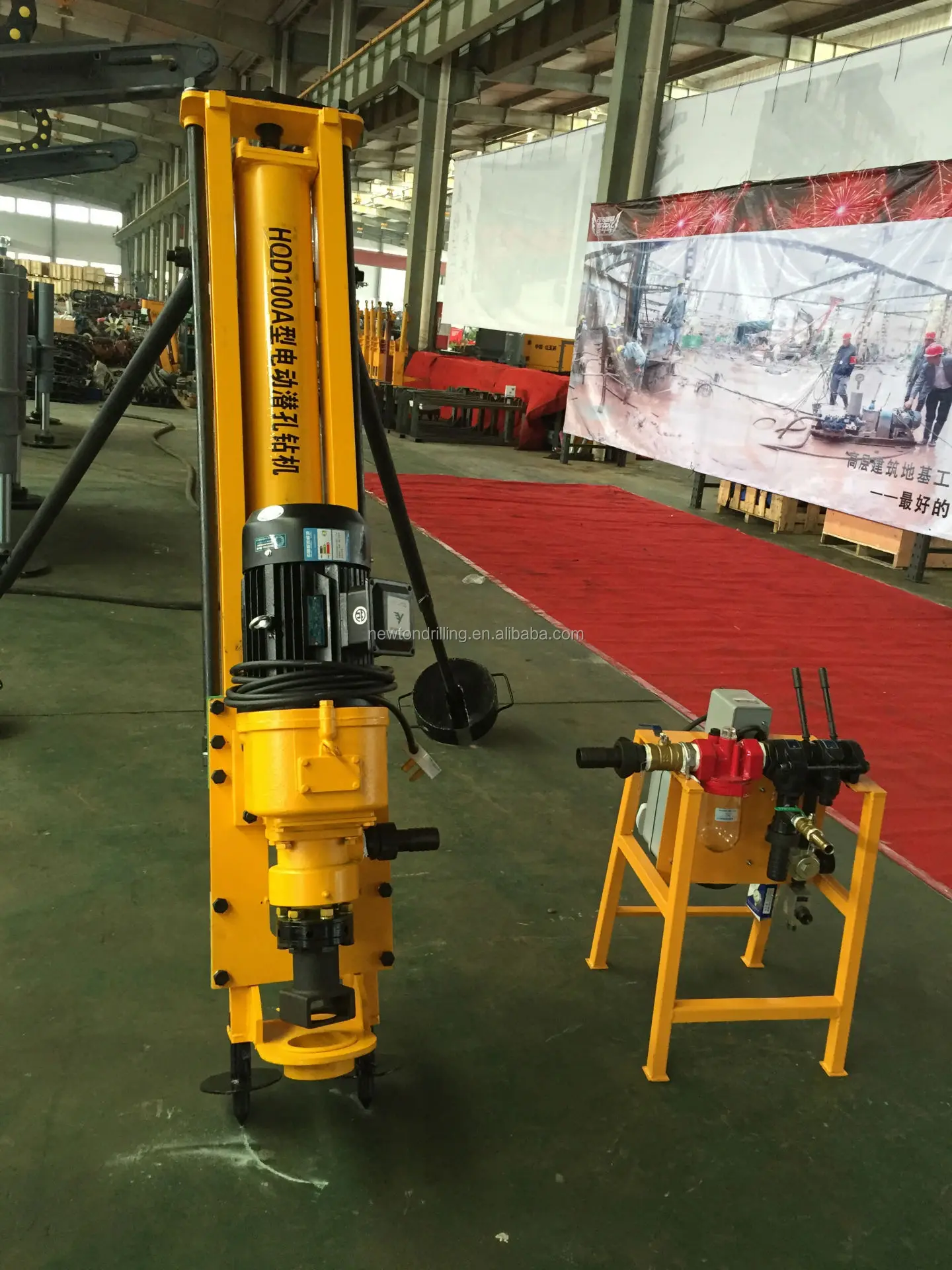

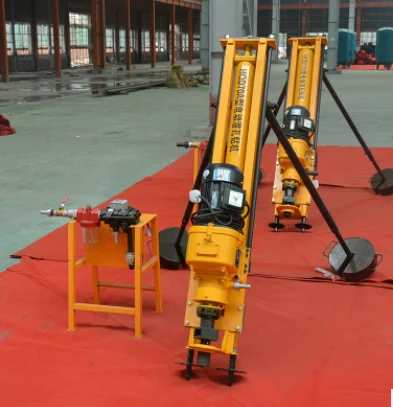

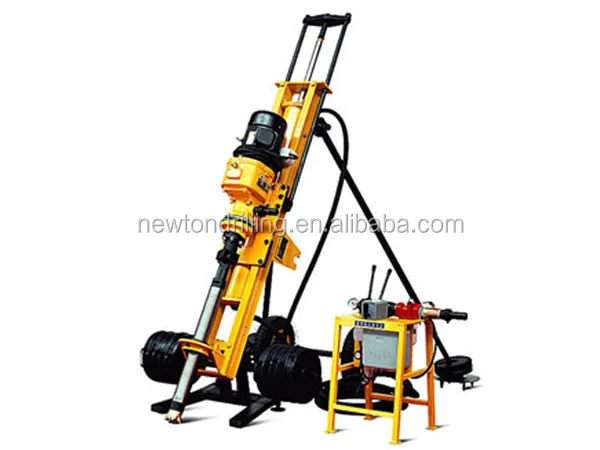

HQD100 small electric borehole land rock geotechnical drill rigs 20m
- Category: >>>
- Supplier: Shanghai Newton Machinery Co. Ltd.
Share on (62539087549):
Product Overview
Description
HQD100 small electric borehole land rock geotechnical drill rigs 20m
Main features
1) High efficiency and energy saving
Hydraulic technology, reasonable configuration, low price and low fuel consumption. The bracket adopts a positioning toothed disc and has a novel structure.
2) Flexible movement and simple operation
The machine has good detachability and is suitable for the original landform operation.
3)Patented technology
The split hydraulic pumping station is a product that has obtained national patents. The power part is separated from the operating part. It only needs to move the console separately with the drilling machine to achieve multi-point operation, low labor intensity and long service life.
1) With a double guide rod structure, the height of the column is reduced from 2.75 meters to 2.14 meters. Due to the reduced height of the column, the center of gravity is low, the movement is convenient, and the work is stable.
2) A flat toothed disc is arranged at the intersection of the guide rail of the carriage and the support leg and the base of the drill stand, which enhances the rigidity of the column frame and is stable and reliable during operation.
3) The addition of counterweight block makes the drill more convenient to move and more stable and reliable to work.
4) Set leg pad, even if the drilling machine on the loose soil is not easy to shift, to ensure the smooth drilling operation.
Technical Paramters
Model | HQD100A |
Rock rigidity | f=6~20 |
Dia. of hole | 68~130mm |
Optium drilling depth | 20m |
Rod | Φ60×1000mm |
Max. lifting power | 4500N |
Working pressure | 0.5~0.7Mpa |
Air consumption | 3.5~12m3/min |
Speed of rotator | 0~90r/min |
Motor power | 4KW |
Weight | 175Kg |
Hammer | Standard CIR90 |
Recommend air compressors
| JAC30(5m3/min,8bar)diesel screw air compressor,pls click here. |
JA30(5m3/min 8bar) Electrical portable air compressor,pls click here. | |
HG330-8 (10m3/min 8bar) Diesel portable compressor,pls click here. |
Note: the machine will including 1pc drilling bit and 20m drilling pipes.
Related other DTH Hard Rock Drilling Rigs Recommend:
GIA series Open Pit Drilling Rigs,pls click to view.
Hongwuhuan HC series Blast Hole Crawler Drilling Machine,pls click to view.
Hydraulic Drilling Rigs,pls click to view;
Other Electricl Small DTH Drilling Rigs,pls click to view.
Diesel Portable Screw Air Compressor,pls click to view.
Electrical Mining Screw Air Compressors,pls click to view.
Pls contact me for more informations.
Phone whatsapp:+86 18721862438.

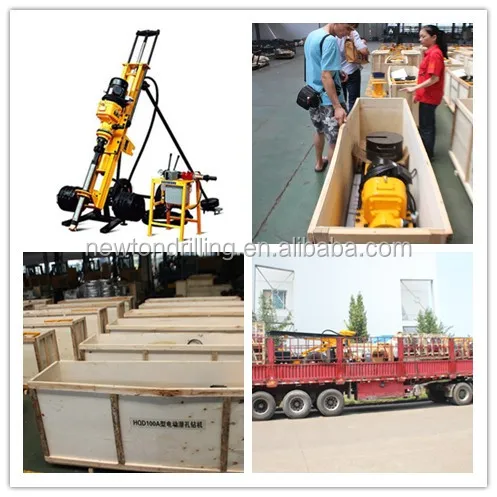

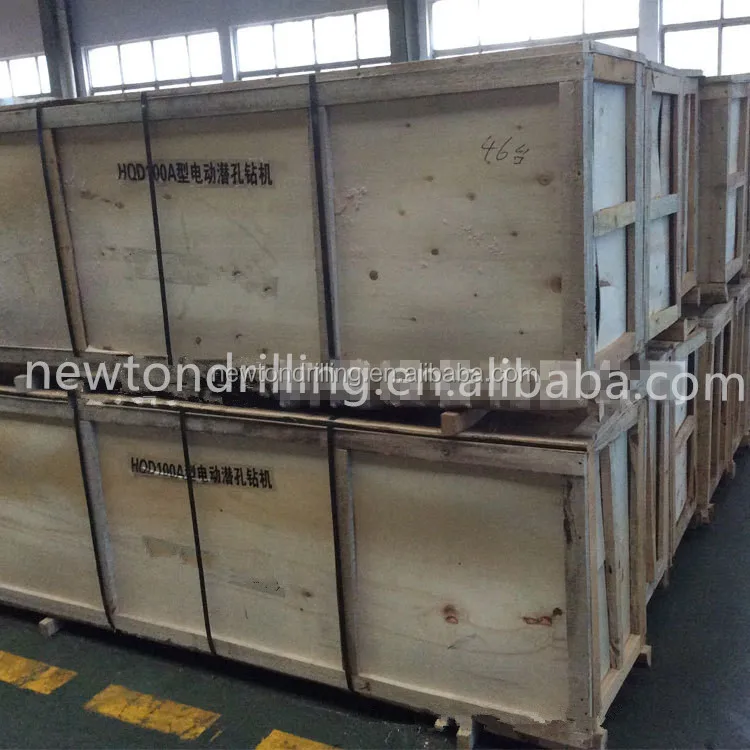

Packing Details for HQD100A Electric DTH Drilling rig

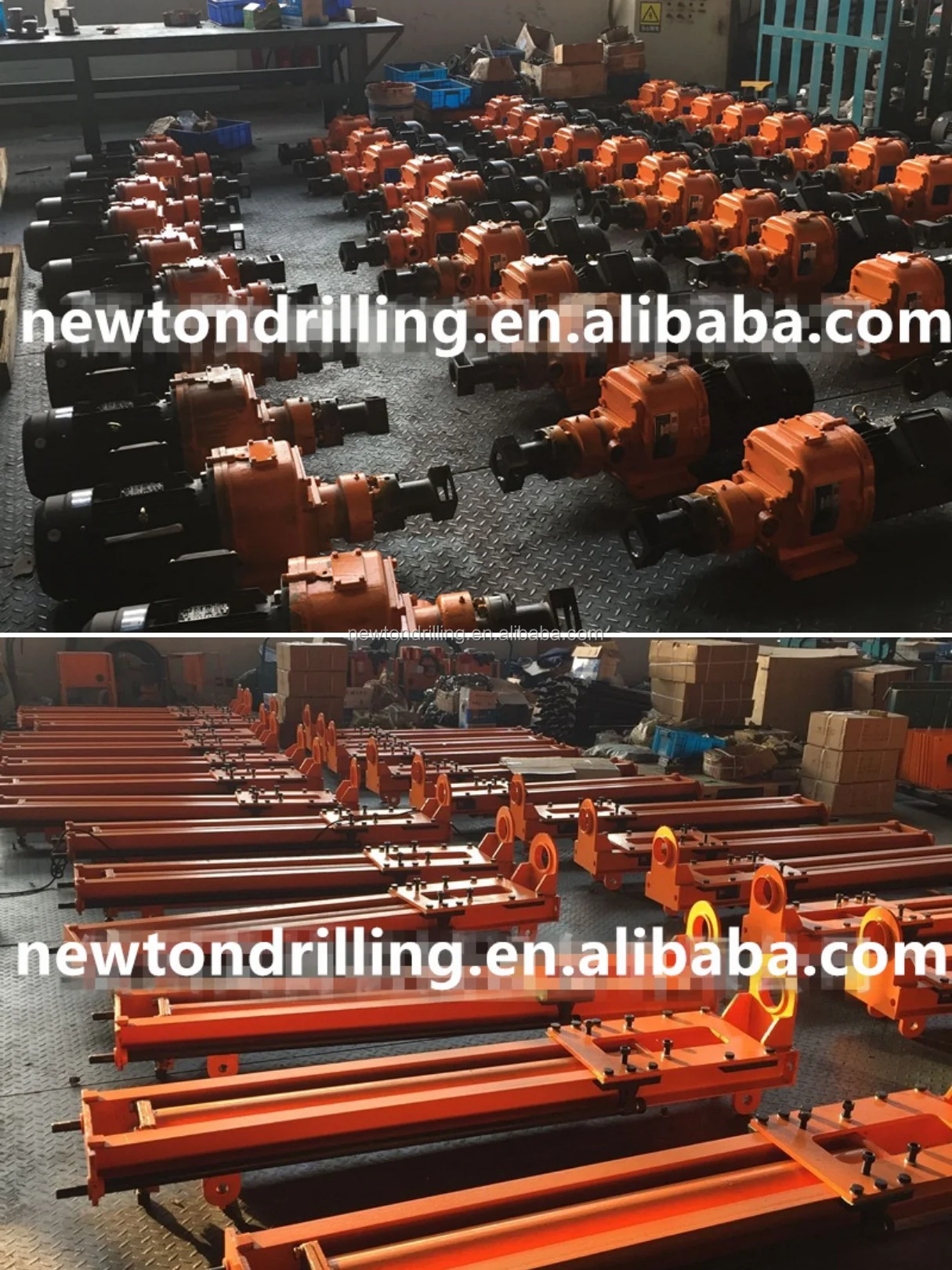

More Producing photos for HQD100A in Factory
Company Information
Our factory was founded in 1997,covers an area of 173,160 square meters,inside there are 70,000 square meters standard workshops. We has advanced production lines,assembly lines,quality control center and electrostatic spray coating lines.Manufactures in making air compressors and drilling machines. We currently manufactures a wide range of machines,such as all kinds of piston air compressors,screw air compressors,pneumatic rock drills,pneumatic and hydraulic down hole drills,breakers,drilling wagons etc.
In May 25th 2016 Our factory signed a strategic cooperation agreement with Atlas (China) Investment Co., Ltd. Under the agreement, and we will jointly develop, produce and sell mining & construction equipments.
Machine working site
Our Services
Pre-Sales Service After-Sale Service
•Professional sale service your inquiry & consulting; •Training support of machine operation;
•Customized your machines solutions; •Spare parts supply support;
•Factory & machine inspected; •Problems & Technical supply;
•Training support; •Engineers available to service machine overseas.
Packaging & Shipping
FAQ
1. How long is your air compressor & drilling rig warranty?
∗ 1 years for the whole machine after leave the factory
2. Do you provide After- sales service parts?
∗Of course, we have.
3.How long could your machine be used?
∗More than 10 years if have regular maintenance.
4. How is your machine quality?
∗All the machines must pass the strict test before leave factory.
And our factory has above 20 years manufacturing experience,can gurantee the quality.
5.Which payment term you accpet?
∗Now we will accpet TT,LC,Western Union,Trade Assurance online,Paypal,Cash,etc.
6.How about the delivery time?
∗Within about 1 week.
7.Can visit your factory?
∗Yes,welcome to our factory. We will treat you in China,and pick you up at airport.
We are near to Pudong Airport.
8.Are you a manufacturer?
∗We are trade offcie in Shanghaim,our factory is in Zhejiang.
