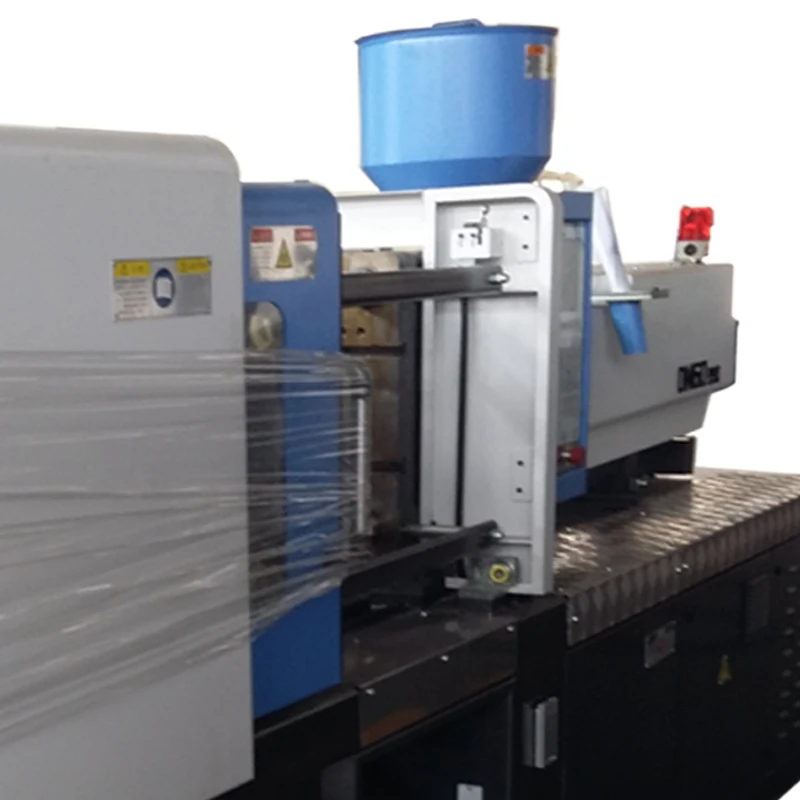

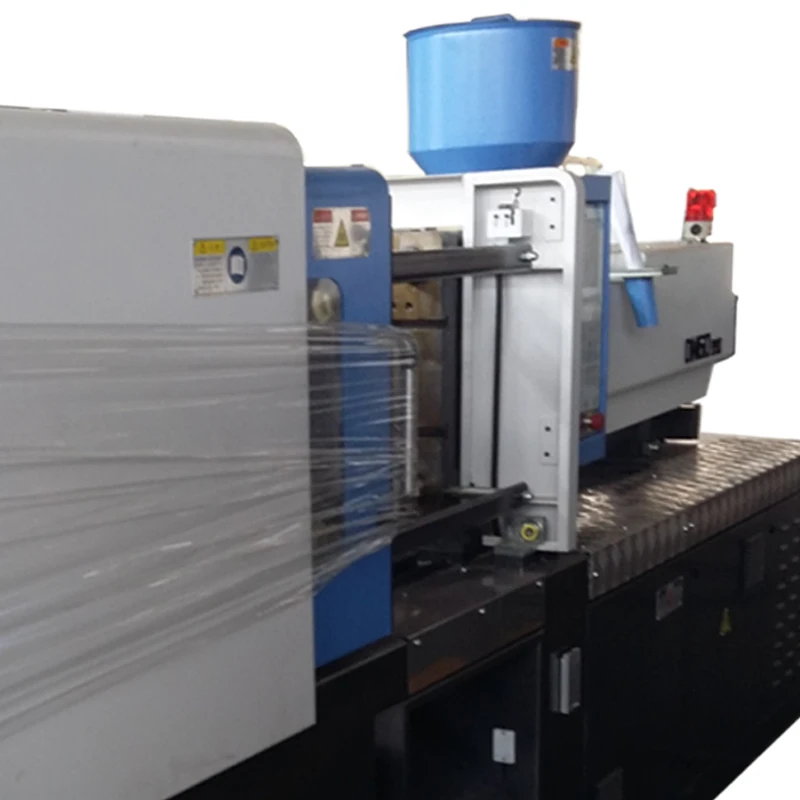

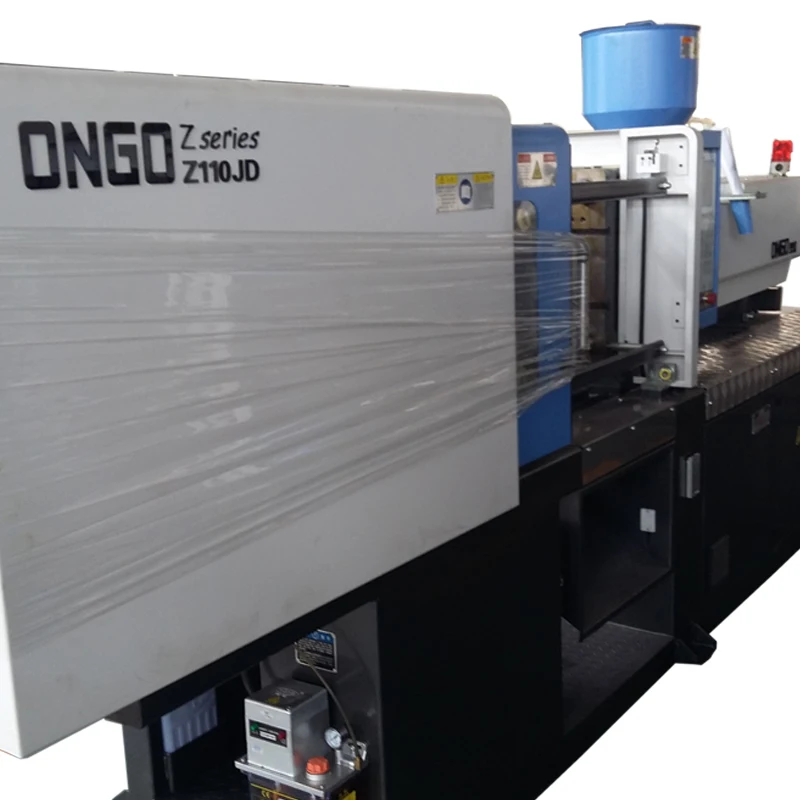

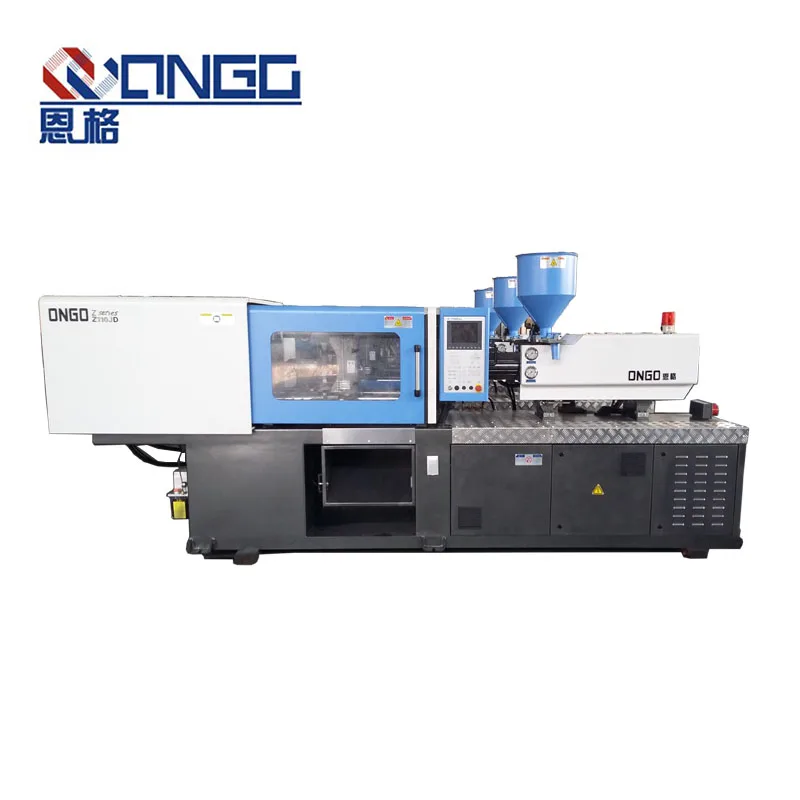

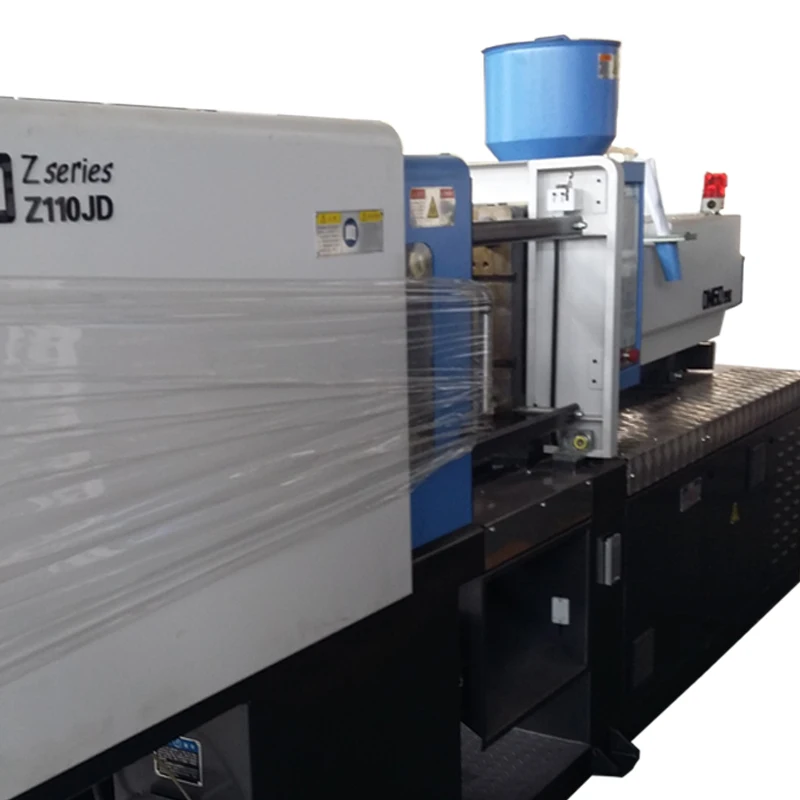

Ongo Z110 high speed plastic cotaniner injection molding machine
Ongo Z110 high speed plastic cotaniner injection molding machine
Ongo Z110 high speed plastic cotaniner injection molding machine
Ongo Z110 high speed plastic cotaniner injection molding machine
Ongo Z110 high speed plastic cotaniner injection molding machine
Ongo Z110 high speed plastic cotaniner injection molding machine
Ongo Z110 high speed plastic cotaniner injection molding machine

Ongo Z110 high speed plastic cotaniner injection molding machine

Share on (62539188709):


Price:RUB 1,041,879.32

Quantity:


Product Overview

Description

Ongo Z110 high speed plastic cotaniner injection molding machine

Injection molding machine.jpg
 ltem   Z70 Z110 Z140
INJECTION UNIT   A B C A B C D A B C
screw diameter mm 26 30 32 32 35 38 42 38 42 45
shot volume(theoretical) cm3 69 92 104 137 163 192 235 226 277 318
injection weight(ps) g 62.8 83 95 125 148 175 213 206 252 289
injection rate g/s 55 73 83 74 89 105 128.1 94 115 132
injection pressure Mpa 227 170 150 260 219 186 152 208 171 148
screw speed rpm 185 210 185
clamping unit
clamping force kN 700 1100 1400
open stroke mm 280 350 380
space between tie bars(WxH) mm 320x320 370x370 420x420
max mould height mm 320 380 450
min mould height mm 100 150 160
ejector stroke mm 80 100 120
ejector force kN 28 38 50
OTHERS
max pump pressure Mpa 16 16 16
pump motor power kW 7.5 13 13
heating power kW 6.3 7.5 9.3
machine dimension(LxWxH) m 3.65x1.16x1.73 4.32x1.27x1.9 4.48x1.33x1.9
oiltank cubage l 150 230 270
machine weight t 2.5 3.4 4
 12345678


FAQ



Q1: Are you trading company or manufacturer?
A: We are factory which has over 15 years' manufacturing experience and 80% engineer work have more than 10 years.
Q2: How long is your delivery time?
A: 5 - 20 days after order confirmed. Based on the item and quantity.
Q3: What's the MOQ?
A: 1 set.
Q4: What is your terms of payment?
A: If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show you the photos of the products and package.
Q5: Where's your general loading port?
A: Ningbo port and Shanghai Port
Q6: Can you do OEM?
A: Yes, we can do OEM.
Q7: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How to deal with the faulty?
A: First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in one warranty year.
Secondly, our technician will periodically follow up customer to help to do maintenance and ensure equipment operation 7/24 be guaranteed.
Q9: How can get the shipping cost?
A: You tell us your destination port or delivery address, we check with Freight Forwarder for your reference.
