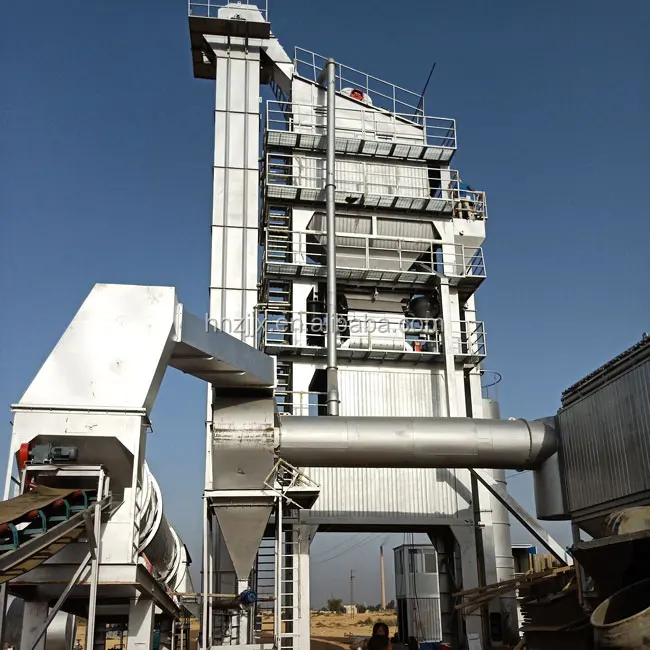

ZOOMLINE asphalt plant capacity from 40 to 320tph hot asphalt batching plant
Product Description
ZAP-S series Stationary Batch Asphalt Mixing Plant are available from 40TPH to 320TPH, and is most popular for its high output and high performance.
Main advantages of hot asphalt batching plant:
• Cost effective solutions for your project
• Multi-fuel burner for choose
• Environmental protection, energy saving, safe and easy to operate
• Low maintenance operation & Low energy consumption & Low emission
• Optional environmental design - sheeting and clad to customers requirements
• Rational layout, simple foundation, easy to be installed and maintenance

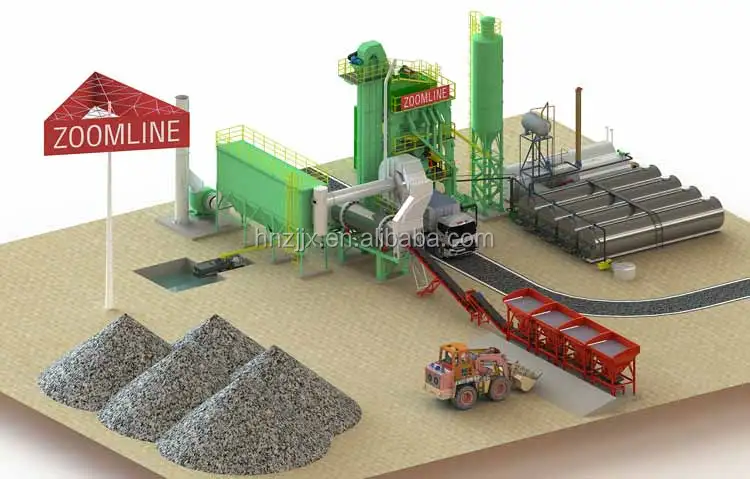

Main components of 40-320TPH asphalt mixing plant:
Asphalt mixing plant mainly including cold feed systems, drying system, burning system, hot material enhance, vibrating screen, hot material storage bins, weighing mixing system, bitumen supply system, powder supply system, dust removal system, finished product storage bin, control system and other parts.
The main accessories of bitumen mixer machine:
Technical parameters of ZAP-S series asphalt mixing plant:
| Items | ZAP-S40 | ZAP-S60 | ZAP-S80 | ZAP-S100 | ZAP-S120 | ZAP-S160 | ZAP-S200 | ZAP-S240 | ZAP-S320 |
| Plant Capacity | 40t/h | 60t/h | 80t/h | 100t/h | 120t/h | 160t/h | 200t/h | 240t/h | 320t/h |
| Cold Aggregate Feeding System | |||||||||
| Hopper capacity | 4 x 4.5m3 | 4 x 4.5m3 | 4 x 6.5m3 | 4 x 6.5m3 | 4 x 8m3 | 5 x 8m3 | 5 x 15m3 | 5 x 15m3 | 6 x 15m3 |
| Belt capacity | 60t/h | 80t/h | 100t/h | 120t/h | 140t/h | 180t/h | 220t/h | 280t/h | 360t/h |
| Drying System | |||||||||
Drying drum size (mm) | 1200x5200 | 1200x5500 | 1500x6600 | 1500x6600 | 1800x8000 | 1900x9000 | 2200x9000 | 2600x9500 | 2800x10200 |
| Drying capacity | 40-60t/h | 60-70t/h | 80-100t/h | 100-120t/h | 120-140t/h | 160-180t/h | 200-220t/h | 240-260t/h | 320-360t/h |
| Burner (oil) | 70-300kg/h | 100-400kg/h | 60-600kg/h | 100-1000kg/h | 100-1000kg/h | 140-1400kg/h | 180-1800kg/h | 180-1800kg/h | 250-2500kg/h |
| Fuel consumption (oil) | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t |
| Mixing Tower | |||||||||
| Screen | 4 layer | 4 layer | 4 layer | 4 layer | 4 layer | 4/5 layer | 5 layer | 5 layer | 6 layer |
| Aggregate weighing | 3x500kg | 3x1000kg | 3x1000kg | 3x1500kg | 3x1500kg | 3x2000kg | 3x3000kg | 3x3000kg | 3x5000kg |
| Bitumen weighing | 3x100kg | 3x100kg | 3x100kg | 3x200kg | 3x200kg | 3x200kg | 3x500kg | 3x500kg | 3x500kg |
| Filler weighing | 3x100kg | 3x100kg | 3x100kg | 3x200kg | 3x200kg | 3x200kg | 3x500kg | 3x500kg | 3x500kg |
| Mixer capacity | 500kg | 800kg | 1000kg | 1300kg | 1500kg | 2000kg | 2500kg | 3000kg | 4000kg |
| Mixing cycle | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s |
| Dust Collecting System | |||||||||
| Bag house filtering | 200m2 | 300m2 | 430m2 | 480m2 | 550m2 | 650m2 | 700m2 | 1050m2 | 1350m2 |
| Exhaust Fan power | 18.5/22kw | 30/37kw | 45kw | 55kw | 2x45kw | 2x55kw | 2x75kw | 2 x 90kw | 2 x 110kw |
| Asphalt Temperature | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ |
| Finished Asphalt Silo (Optional) | 30 ton | 30 ton | 30 ton | 60 ton | 100 ton | 100 ton | 100/200 ton | ||
| Total Power | -150kw | -180kw | -270kw | -300kw | -390kw | -500kw | -570kw | -640kw | -800kw |

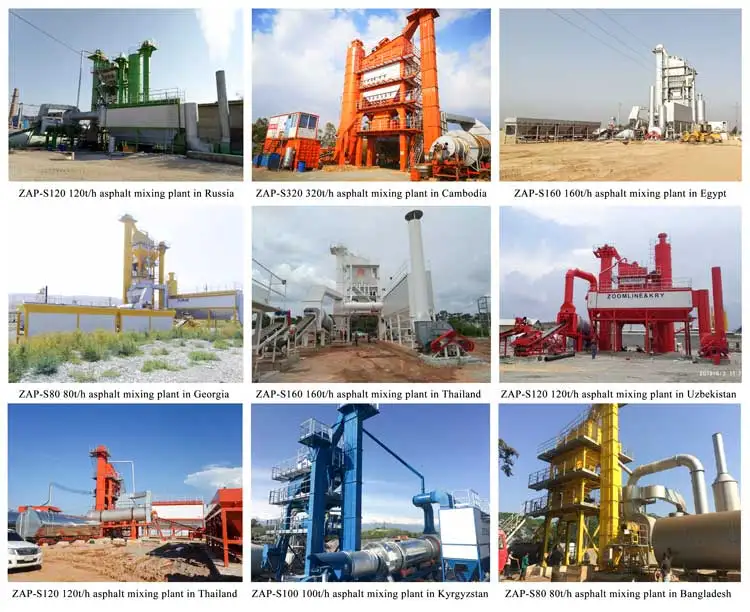

Projects
Since ZOOMLINE start-up, we have become one of the most reliable partners of construction projects at home thorough ongoing technical investment. Our asphalt mixing plant have been used in highways, high-grade highways, urban roads and airport construction and got high reputation for their excellent performance. Nowadays, our asphalt plant products have been sold to Russia, Cambodia, Bangladesh, Uzbekistan, Kyrgyzstan, Egypt, Pakistan, Georgia, Indonesia, Belgium and Thailand etc.
Related Products
Our Factory
Henan ZOOMLINE Machinery CO., Ltd. is based in Nanyang Longsheng Industrial Park of Henan. To be a professional asphalt mixing plant supplier, we have one R & D manufacturing center which cover an area about 50,000 square meters. The leading products include stationary asphalt mixing plant, mobile asphalt mixing plant, continuous drum asphalt mixing plant,recycling asphalt plant, which are widely used in highway, city road, bridges and air port.
ZOOMLINE Certificate
After almost 20 years of development, we have won many honors. This proves the role of our company in the industry and our attitude towards products and customers. This years, our asphalt mixing plants have got CE,EAC,EMC and ISO9001 certificate.
With Customers
Since ZOOMLINE start-up, we have become one of the most reliable partners of construction projects at home thorough ongoing technical investment.Welcome to our factory to visit the asphalt mixing plants.
Packaging & Shipping
1.The whole asphalt mixing plant is designed according to standard high cabinet container, suitable for the construction requirement in both home and abroad.
2.All the components of this asphalt plant can be put into the container, can greatly reduce transport cost.
Our Services
Our professional after-sales services team could provide timely and reliable service for any of our customers who need support.
1. Professional technical team, to provide users with equipment selection, layout program design, construction programs and other consultation services.
2. Technical guidance during equipment operation, PLC with remote monitoring, large capacity recipe storage,special needs customization.
3. Equipment installation, commissioning, training technical support. Provide a full range of technical training on operation, maintenance for users and equipment manager, to provide multiple technical advice.
4. The equipment upgrades, relocation technical support in the future. To provide seamless equipment technology upgrades,perfect and efficient removal plan.
