printing machinery offset
- Category: >>>
- Supplier: Shanghai Sunway International Trade Co. Ltd.
Share on (62539409040):
Product Overview
Description
Product Description
FEATURES:

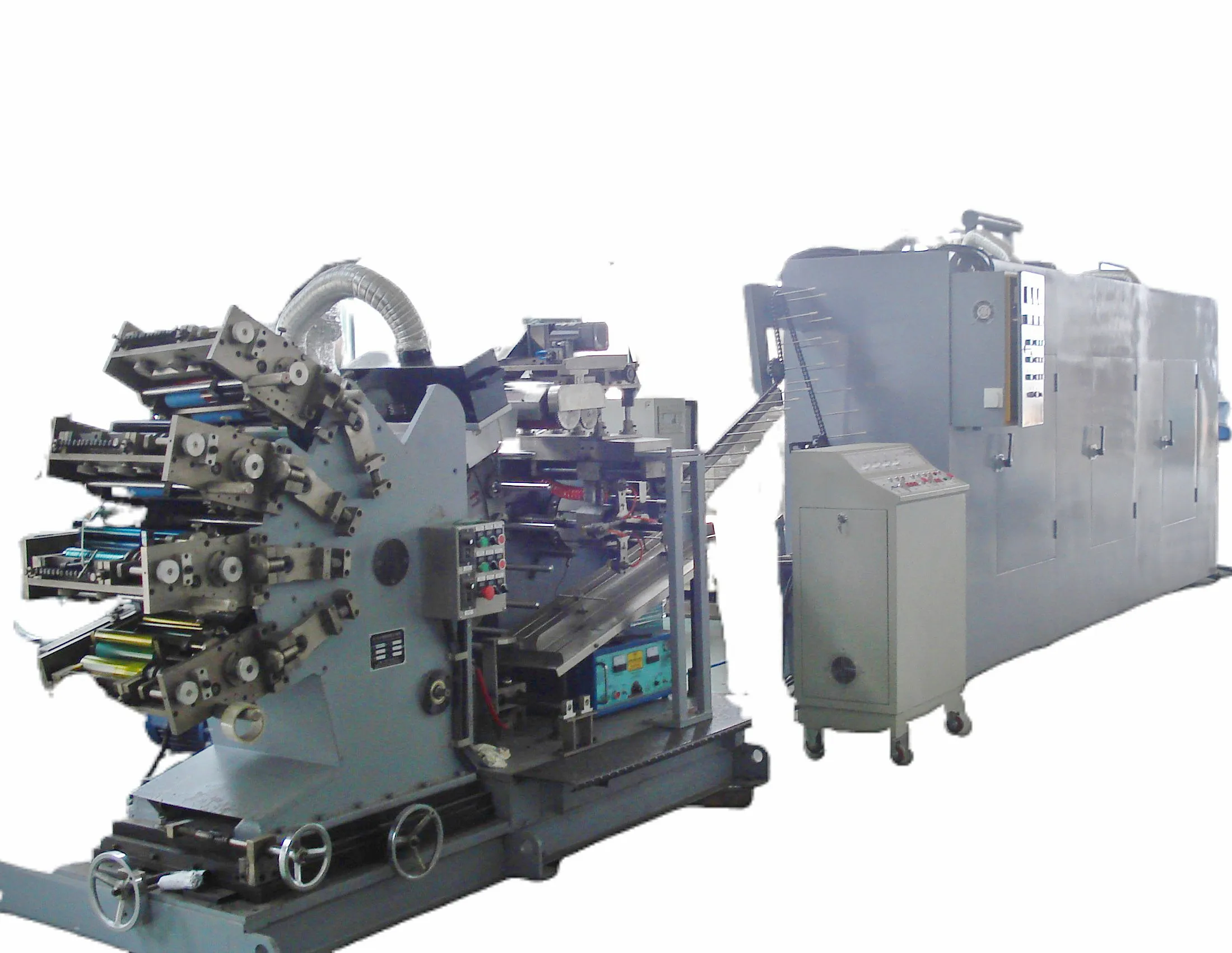

6 Color Rotating Printer is based on advanced technical design of European countries,combined with practical experiences from tube factories.Being the best Choice of PE tube printing,it has stable quality and easy to operate and maintenance.
Printing blanket unit,mandrel disk unit and oven can obtain the most reasonable in line speed by using individual motor and control constant speed by computer.There are three functions of this machine:printing,coating and drying separately or in line.
it is most suitable for precise & clear printing.It also provide larger printing area & half tone jobs facility.
For method of coating and drying,there are Regular Oven and UV Drying or both together for optional.
MAIN SPECIFICATIONS:
1.Ink Unit Motor:5.5kw with Encoder,Inverter
2.Mandrel Unit Motor:2.2kw
3.Oven Unit Motor:2.2kw
4.Ink Adjust Motor:150 w × 6 pcs
5.Printing Ink:UV Ink
6.Printing Plate:Copper,Zinc,Resin
7.Corona Capacity:1 kw
8.U.V.Dryer Capacity:4 kw,160 w/cm2
9.Printing Dia: 19~50 mm
10.Printing Length:200 mm(Max)
11.Printing Speed:60~80 pcs/min
12.Air Consumption:0.3-0.5mpa
13.Power Consumption:53 kW
14.Pin No.in Oven:948 pcs(7 Meter Oven)
15.Machine Size:11500×1570×2150 mm
For UV lacquer,special UV oven is required,with which to obtain rapid drying out and more glossy surface.We also offer UV & heater oven in common which can save space and easy to operate and save energy for our customer to choose accordingly.
Precise index ensures accuracy of every movement.It is easy to dismount/rectify printing mandrel.
Tube feeding system works with detector.Coating will not be proceed without tube on mandrel.Machine will stop automatically if tubes are not taken from mandrel to the oven.
Corona system with precipitator ensures cleaning of tubes before printing.
Reasonable ink-transmission system shows good effect to large area/screen point printing.
Foldable ink unit is easy to clean,change color and stick printing plate.
6 Color Rotating Printer is based on advanced technical design of European countries,combined with practical experiences from tube factories.Being the best Choice of PE tube printing,it has stable quality and easy to operate and maintenance.
Printing blanket unit,mandrel disk unit and oven can obtain the most reasonable in line speed by using individual motor and control constant speed by computer.There are three functions of this machine:printing,coating and drying separately or in line.
it is most suitable for precise & clear printing.It also provide larger printing area & half tone jobs facility.
For method of coating and drying,there are Regular Oven and UV Drying or both together for optional.
MAIN SPECIFICATIONS:
1.Ink Unit Motor:5.5kw with Encoder,Inverter
2.Mandrel Unit Motor:2.2kw
3.Oven Unit Motor:2.2kw
4.Ink Adjust Motor:150 w × 6 pcs
5.Printing Ink:UV Ink
6.Printing Plate:Copper,Zinc,Resin
7.Corona Capacity:1 kw
8.U.V.Dryer Capacity:4 kw,160 w/cm2
9.Printing Dia: 19~50 mm
10.Printing Length:200 mm(Max)
11.Printing Speed:60~80 pcs/min
12.Air Consumption:0.3-0.5mpa
13.Power Consumption:53 kW
14.Pin No.in Oven:948 pcs(7 Meter Oven)
15.Machine Size:11500×1570×2150 mm
For UV lacquer,special UV oven is required,with which to obtain rapid drying out and more glossy surface.We also offer UV & heater oven in common which can save space and easy to operate and save energy for our customer to choose accordingly.
Precise index ensures accuracy of every movement.It is easy to dismount/rectify printing mandrel.
Tube feeding system works with detector.Coating will not be proceed without tube on mandrel.Machine will stop automatically if tubes are not taken from mandrel to the oven.
Corona system with precipitator ensures cleaning of tubes before printing.
Reasonable ink-transmission system shows good effect to large area/screen point printing.
Foldable ink unit is easy to clean,change color and stick printing plate.
Packing&Shipping
After Sales Service
1. After-sale-service of Filling and Sealing Machine
2. Engineer will go to customer factory to install and test of Filling and Sealing Machine
3. Help customer change the semi-automatic line to be automatic line
4. Design the machines connection according with the area of factory Help to train the worker to let them can produce qualified tube
5. Immediately guide customers to solve problems they meet of Filling and Sealing Machine.
6. Immediately ship spare parts customers need after know which parts broken.
2. Engineer will go to customer factory to install and test of Filling and Sealing Machine
3. Help customer change the semi-automatic line to be automatic line
4. Design the machines connection according with the area of factory Help to train the worker to let them can produce qualified tube
5. Immediately guide customers to solve problems they meet of Filling and Sealing Machine.
6. Immediately ship spare parts customers need after know which parts broken.
Company Introduction
With more than 10 years of development history, Sunway Enterprise is a trans-regional and trans-industry enterprise integrating research, development, manufacturing and trade. It owns Shanghai Sunway International Trade Co., Ltd., Jiangsu Tongzhou Sunway Machinery Manufacturing Co., Ltd., Guangzhou Sunway Industrial Co., Ltd., and Hewang Packaging & Printing Co., Ltd. in Nigeria Ogun Guangdong Free Trade Zone.With Jiangsu Tongzhou Sunway Machinery Manufacturing Co., Ltd. as the manufacturing base of machinery products, Sunway Enterprise is devoted to researching, developing and manufacturing various types of machinery products,which mainly include daily chemical machinery, pharmaceutical machinery, packaging machinery, food machinery and various stainless steel products.
Main products:
Automatic aluminum-plastic composite packaging tube and automatic plastic packaging tube production lines, packaging tube printers, packaging tube drilling, sealing and capping machines, various types of packaging tube filling and sealing
machines,color ribbon filling and sealing machines and other ointment production equipment; vacuum ointment makers, vacuum homogenizing emulsifiers, mixers, reaction kettles and other production equipment for ointments, washing products and condiments.
Product research and development:
During the long-time manufacturing practice, we have successfully developed and manufactured many series of packaging machines and auxiliary machinery with several tens of varieties. Now we have formed professional packaging system engineering technologies that enable us to carry out design and manufacturing of packaging machinery according to customers’ enterprise status, practical production situations and special requirements, as well as provide installation commissioning, technical training, etc. for customers.
Technical cooperation:
We have always been bearing the responsibility of “integrating world’s advanced technologies and creating the brilliance of national industry”, and devoting ourselves to digestion, absorption and mastery of internationally advanced processing techniques and cutting-edge technologies of packaging machinery. We have cooperated with many foreign companies and acquired profound understanding of the internationally advanced packaging technologies.
Main products:
Automatic aluminum-plastic composite packaging tube and automatic plastic packaging tube production lines, packaging tube printers, packaging tube drilling, sealing and capping machines, various types of packaging tube filling and sealing
machines,color ribbon filling and sealing machines and other ointment production equipment; vacuum ointment makers, vacuum homogenizing emulsifiers, mixers, reaction kettles and other production equipment for ointments, washing products and condiments.
Product research and development:
During the long-time manufacturing practice, we have successfully developed and manufactured many series of packaging machines and auxiliary machinery with several tens of varieties. Now we have formed professional packaging system engineering technologies that enable us to carry out design and manufacturing of packaging machinery according to customers’ enterprise status, practical production situations and special requirements, as well as provide installation commissioning, technical training, etc. for customers.
Technical cooperation:
We have always been bearing the responsibility of “integrating world’s advanced technologies and creating the brilliance of national industry”, and devoting ourselves to digestion, absorption and mastery of internationally advanced processing techniques and cutting-edge technologies of packaging machinery. We have cooperated with many foreign companies and acquired profound understanding of the internationally advanced packaging technologies.
FAQ
Q:This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A:We are alibaba legitimate certification company (VIP), and we support payment terms: Alibaba trade assurance to ensure your safety.
Q:There are too many models, i don't know which one to choose.
A: Welcome to contact us through TradeManager, we will recommend according to your requirements. If during
closing time or weekend, Please send mail to us,we will response within 24 hours.
Q: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before sign in, please cfm product undamage, otherwise, pls
contact with us within 2 days, we've bought insurance for you, we or shipping company will be responsible!
Welcome to contact me for more details!
A:We are alibaba legitimate certification company (VIP), and we support payment terms: Alibaba trade assurance to ensure your safety.
Q:There are too many models, i don't know which one to choose.
A: Welcome to contact us through TradeManager, we will recommend according to your requirements. If during
closing time or weekend, Please send mail to us,we will response within 24 hours.
Q: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before sign in, please cfm product undamage, otherwise, pls
contact with us within 2 days, we've bought insurance for you, we or shipping company will be responsible!
Welcome to contact me for more details!
