Natural NTL 156 S Pressure clamp connectors portable industrial semiconductor heater
- Category: >>>
- Supplier: Wenzhou Natural Automation Equipment Co. Ltd.
Share on (62539466985):
Product Overview
Description
Products Description

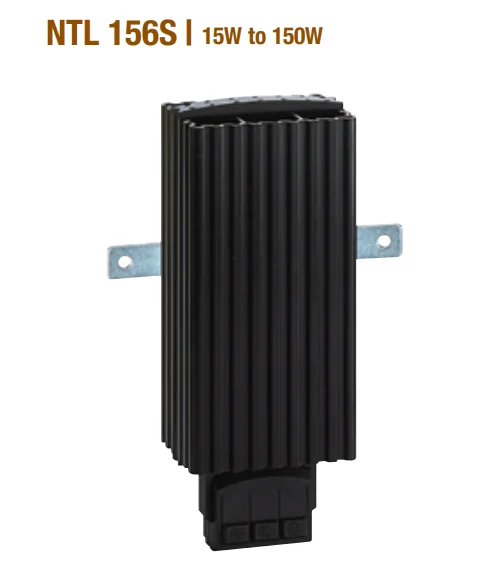

NTL 156S | ||
Operating voltage | 120-240V AC/DC¹ (min. 110V, max. 265V) | |
Heating element | PTC resistor - temperature limiting | |
Heater body | extruded aluminium profile, anodised | |
Connection | 3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm² | |
Connection casing | plastic according to UL94 V-0, black | |
Mounting | screw fixing | |
Fitting position | vertical airflow (air outlet up, connection on bottom) | |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) | |
Operating/Storage humidity | max. 90% RH (non-condensing) | |
Protection type/Protection class | IP20 / II (double insulated) | |
Accessoires | screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces) | |
* Pressure clamp connectors
* Dynamic heating up
* Wide voltage range
* Energy saving
* Screw fixing
* Quick installation
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature
may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes
the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify
installation.
* Dynamic heating up
* Wide voltage range
* Energy saving
* Screw fixing
* Quick installation
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature
may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes
the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify
installation.
