High Lux Density Round LES Flip Chip COB 150W 230W 8000 8500K For Fresnel Follow Spot Light
- Category: >>>
- Supplier: Shenzhen Getian Opto- Electronics Co. Ltd.
Share on (62539594146):
Product Overview
Description
High Lux Density Round LES Flip Chip COB 150W 230W 8000-8500K For Fresnel Follow Spot Light
Product Description
1. GT Flip Chip COBs-FCST Series Feature:

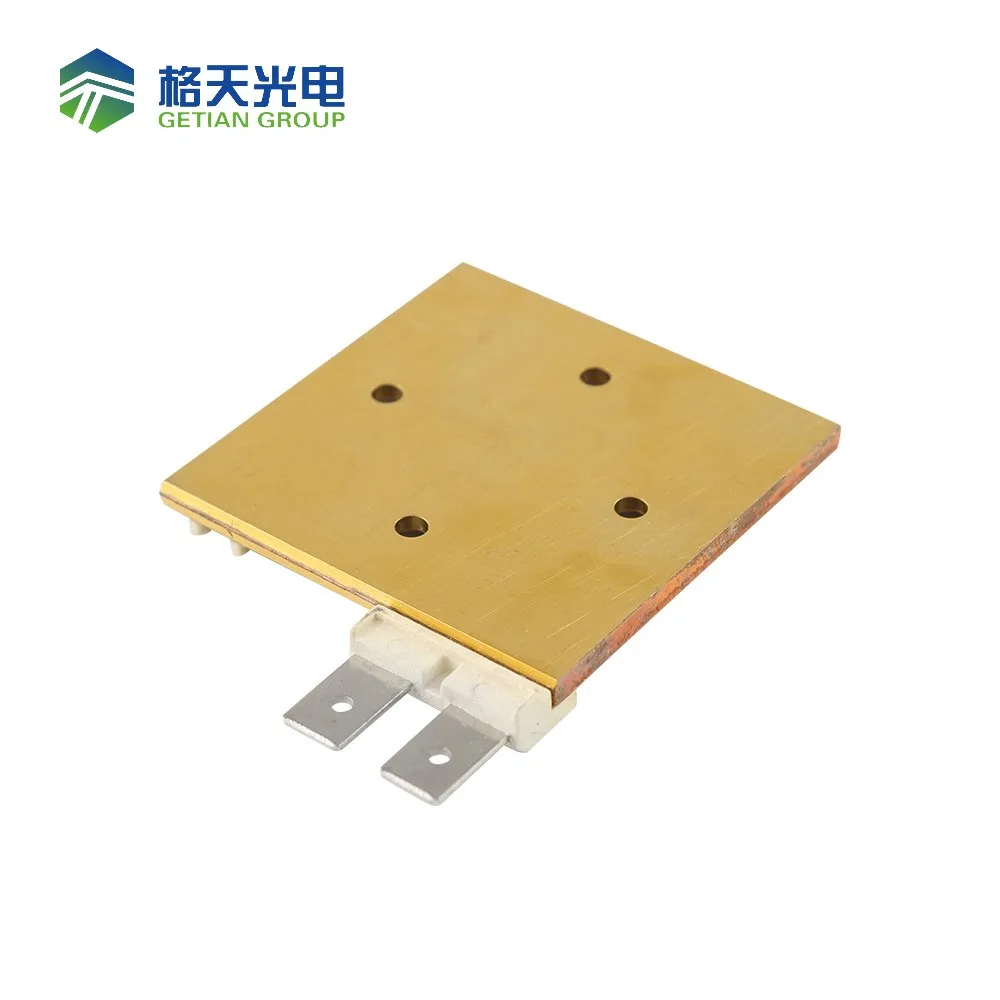

1. ALN Ceramic Base + Red Copper Base with Eutectic Welding technique

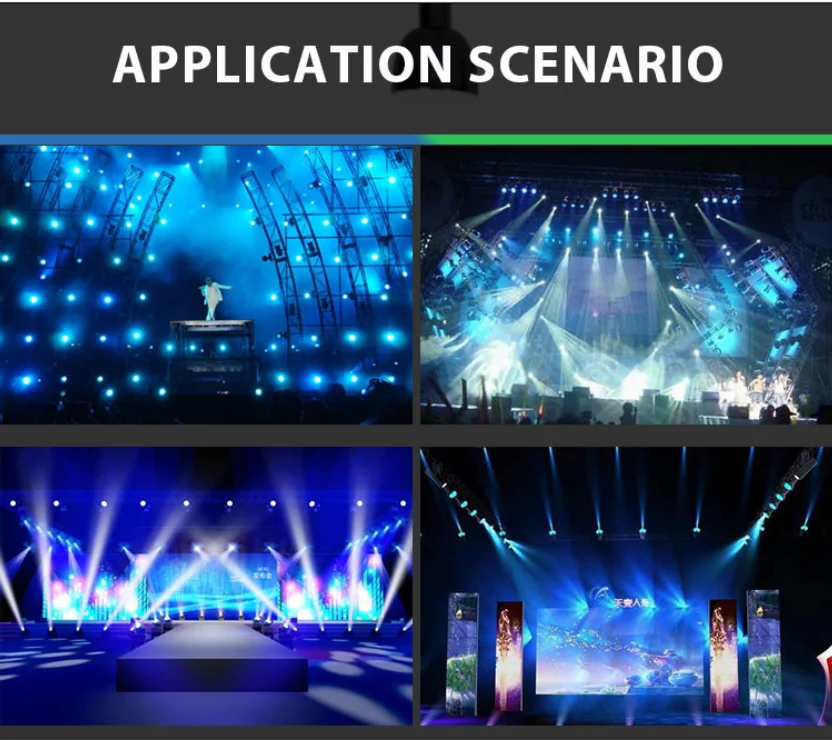

2. Round & Small LES, suitable for focused lighting applications such as stage light and projectors.
3. Flip Chips applied & Phosphor just on chip surface
4. Equiped with thermistor and temperature sensor
5. High power & lux density with ultimate reliability
Notes: Recommended CCT 8000-9000K.

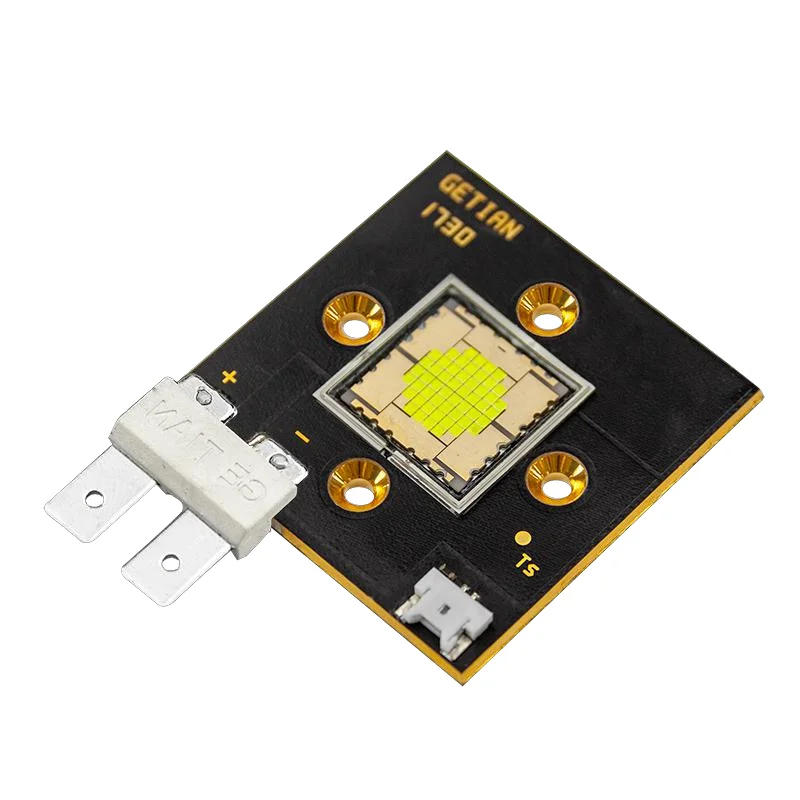

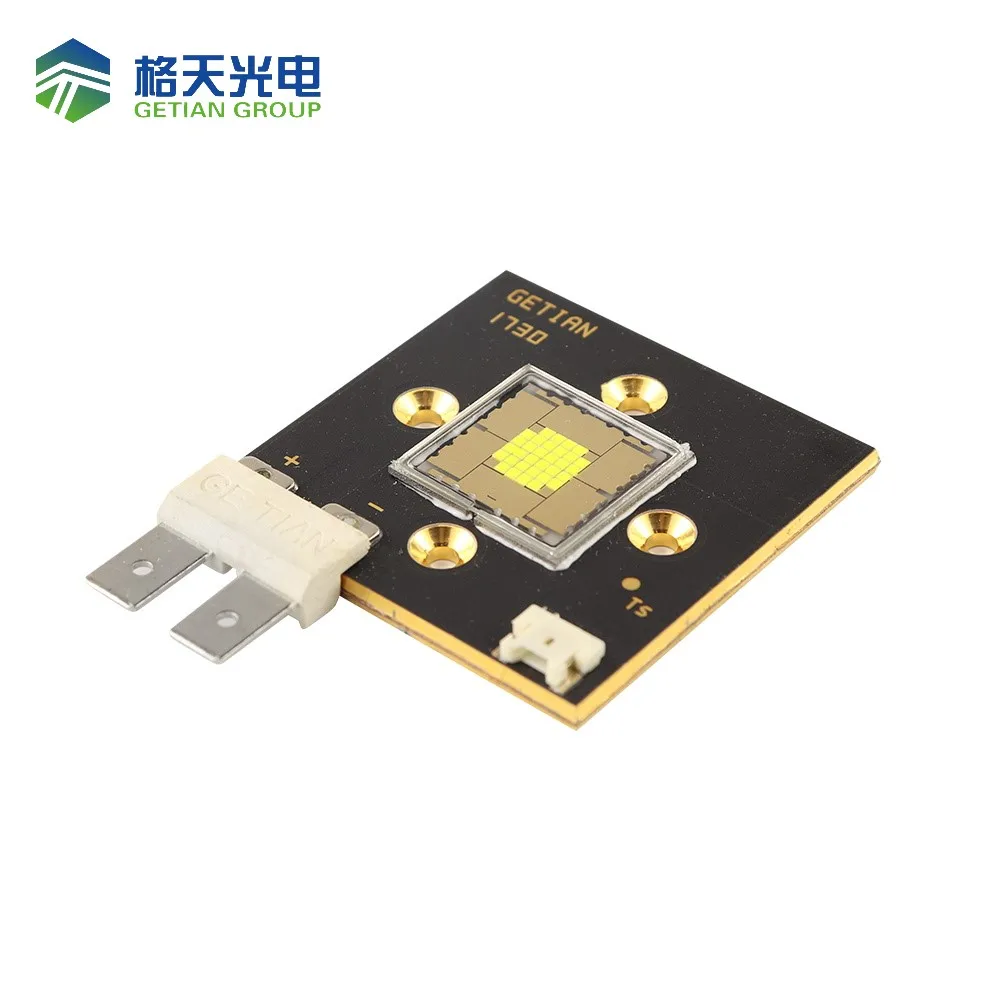

GT-FCST Round Flip Chip stage Lighting COBs 150W 230W
| Package | Power (W) | Voltage (V) | Current (A) | CCT (K) | CRI (Ra) | φ (lm)
| LES (mm) |
| GT-FCST150X3-1.0 | 150W | 24-30 | 6 | 8000-9000 | 70 | 10000-12000 | 7.44*7.44 |
GT-FCST230X3-1.0 | 230W | 38-45 | 5.9 | 8000-9000 | 70 | 18000-20000 | 9.96*9.96 |

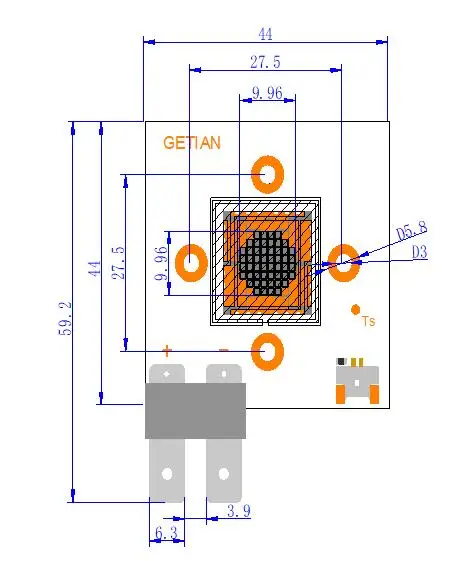

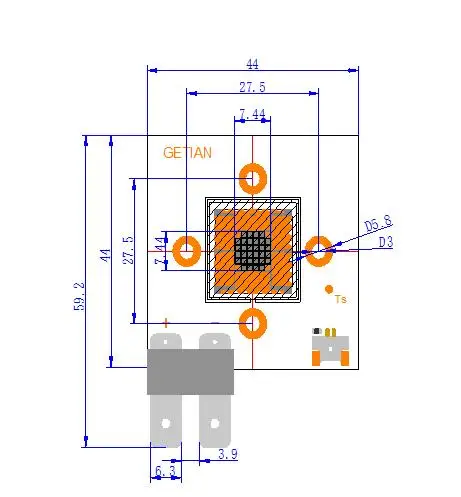

Dimension: (mm)
Tolerance: ±0.5mm
GT-FCST150X3-1.0 GT-FCST230X3-1.0
Related available product Spec:

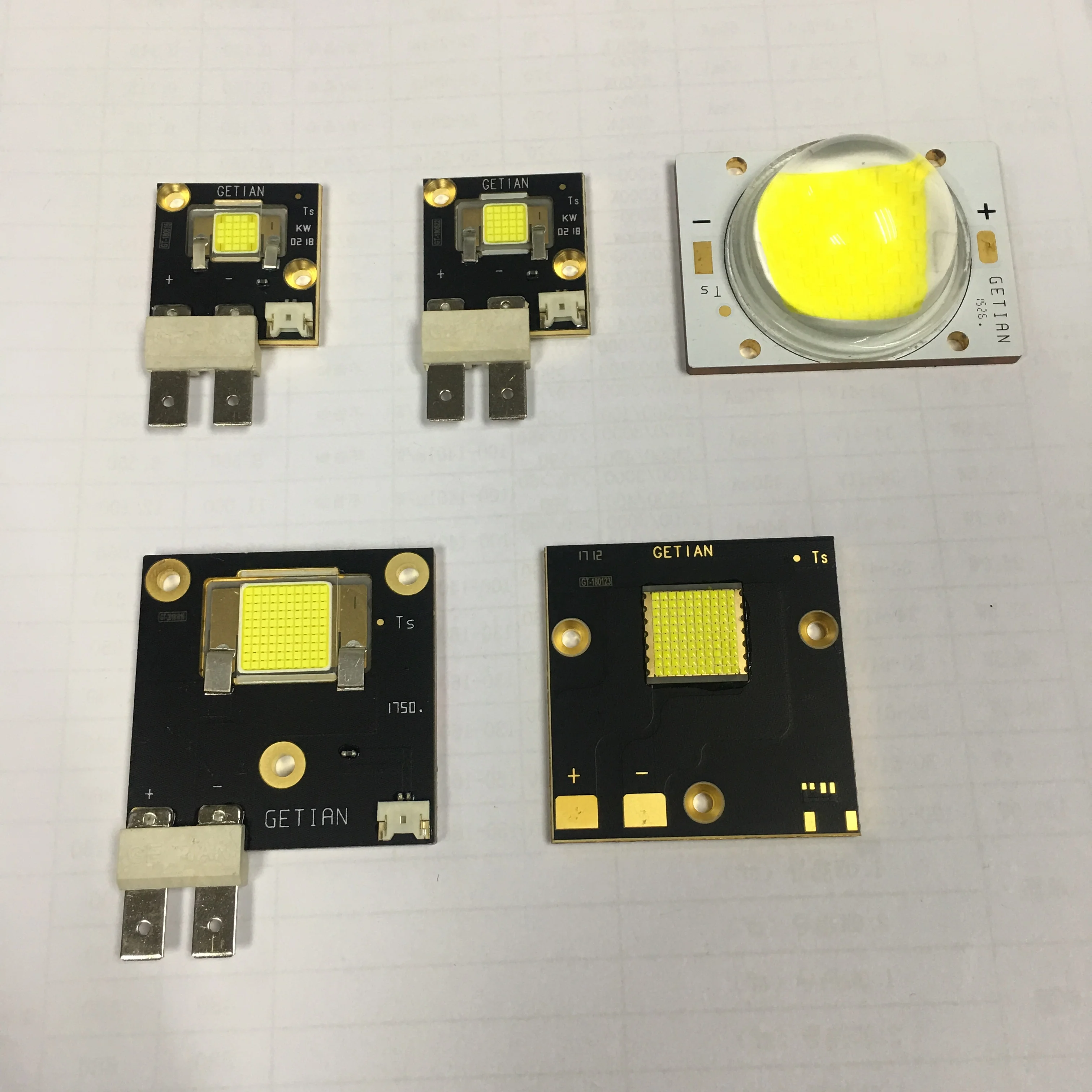

GT-FC*** Flip Chip stage Lighting COBs 60W 90W 150W 300W 500W
Product Type | LES (mm) | CCT(K) | CRI | Lumen (lm) | VF@VI | Power |

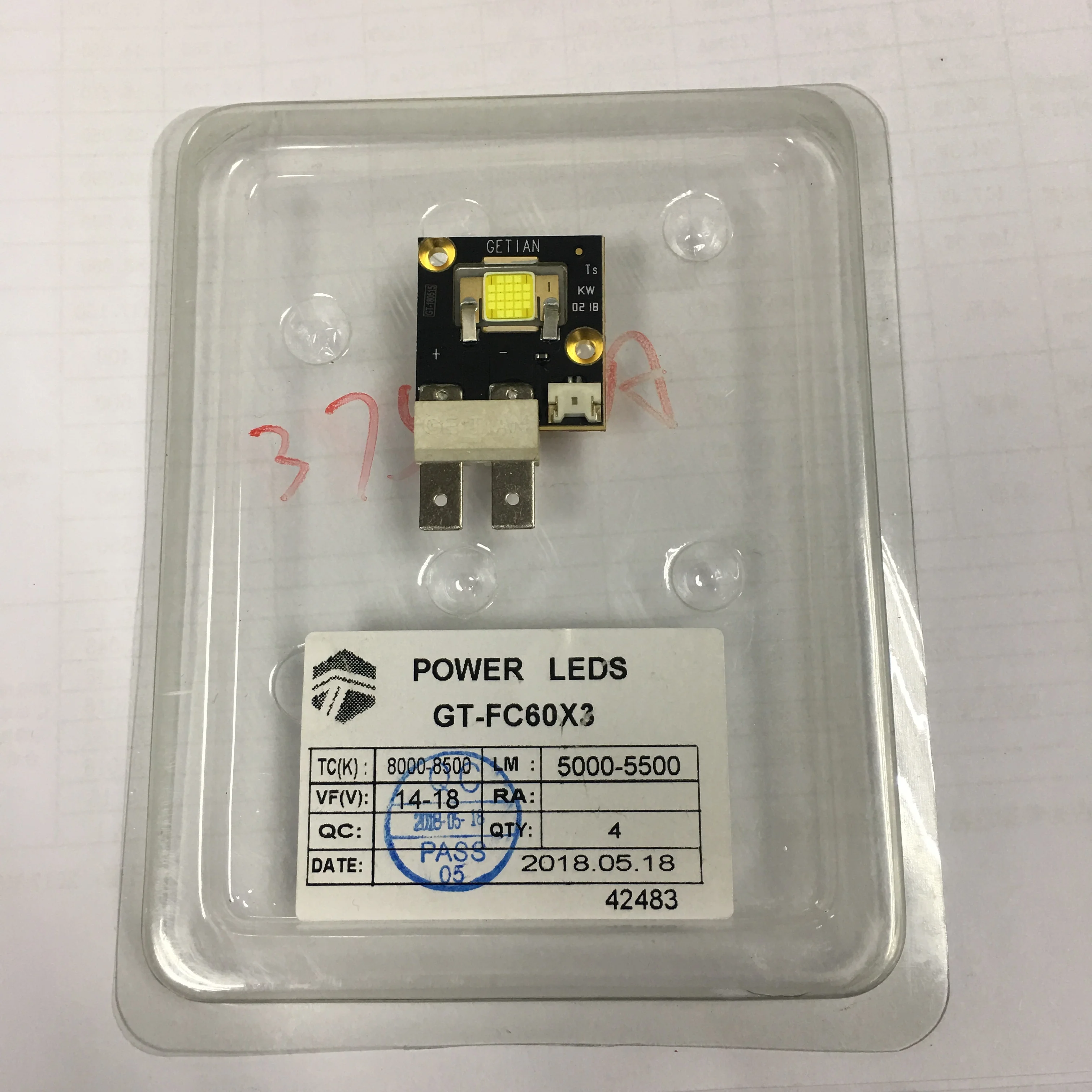

GT-FC60X3-1.1 | 6.66*6.66 | 8000-8500K | 70 | 4500-5000 | 15-19V @ 3.75A | 60W |
GT-FC90X3-1.1 | 6.66*6.66 | 8000-8500K | 70 | 6300-7200 | 15-19V @ 5.5A | 90W |

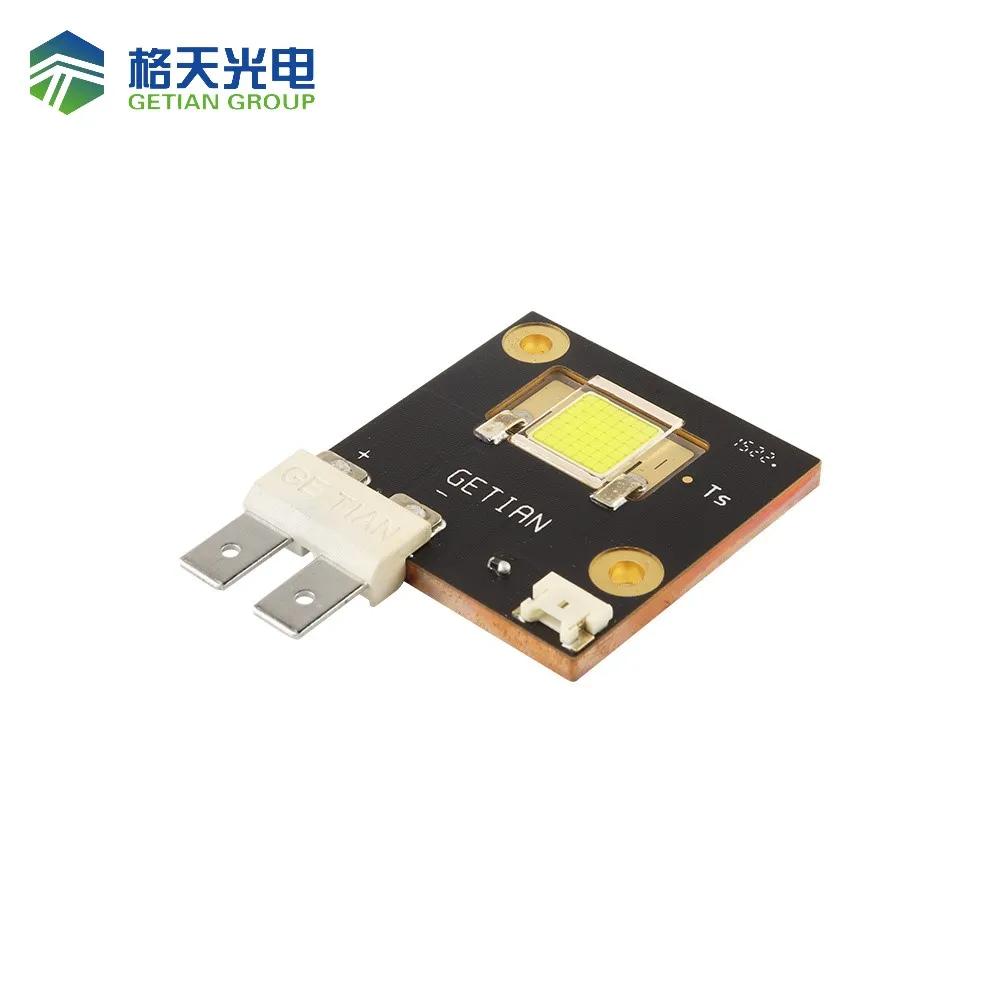

GT-FC150X3-1.1 | 9.64*9.64 | 8000-8500K | 70 | 10000-12000 | 21-25V @ 6.7A | 150W |
GT-FC300X3-1.1 | 13.48*13.48 | 8000-8500K | 70 | 20000-22000 | 30-36V @ 10A | 300W |
GT-FC500X3-3.0 | 12.84*12.84 | 8000-8500K | 70 | 30000-35000 | 30-36V @ 15A | 500W |
