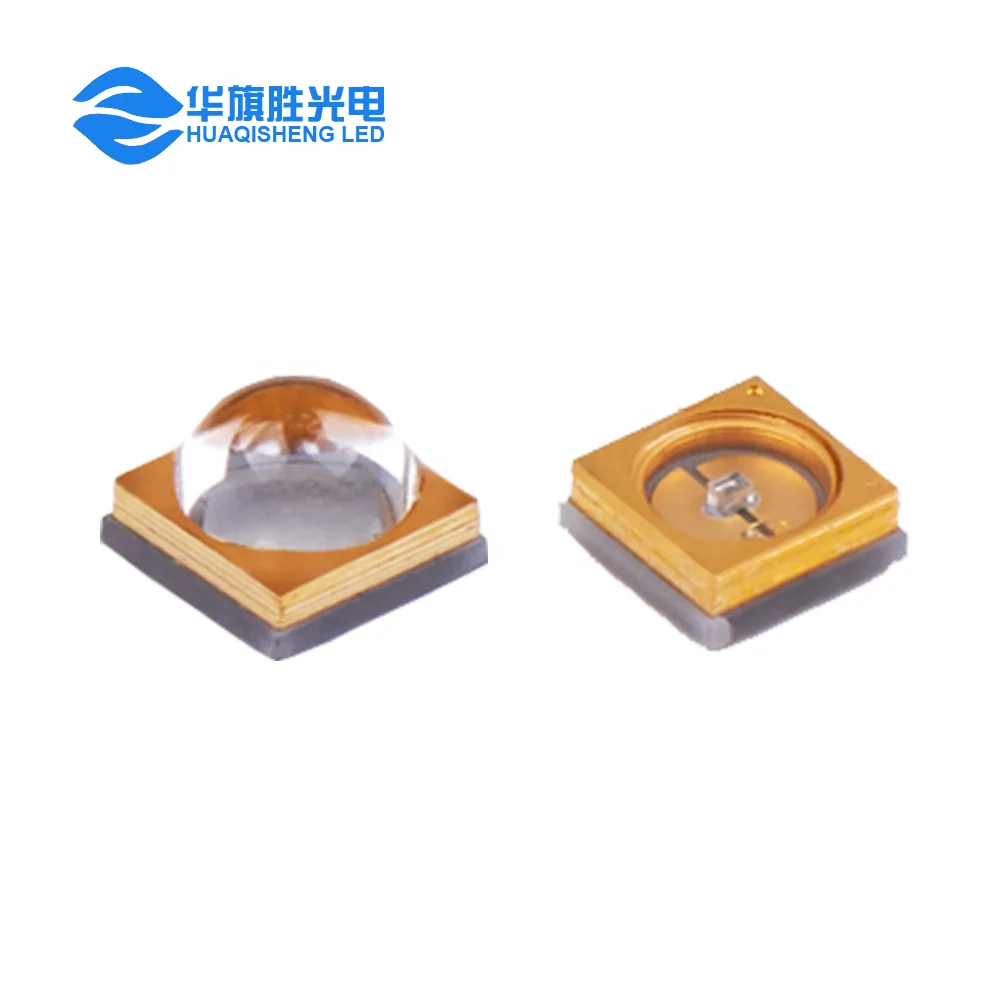

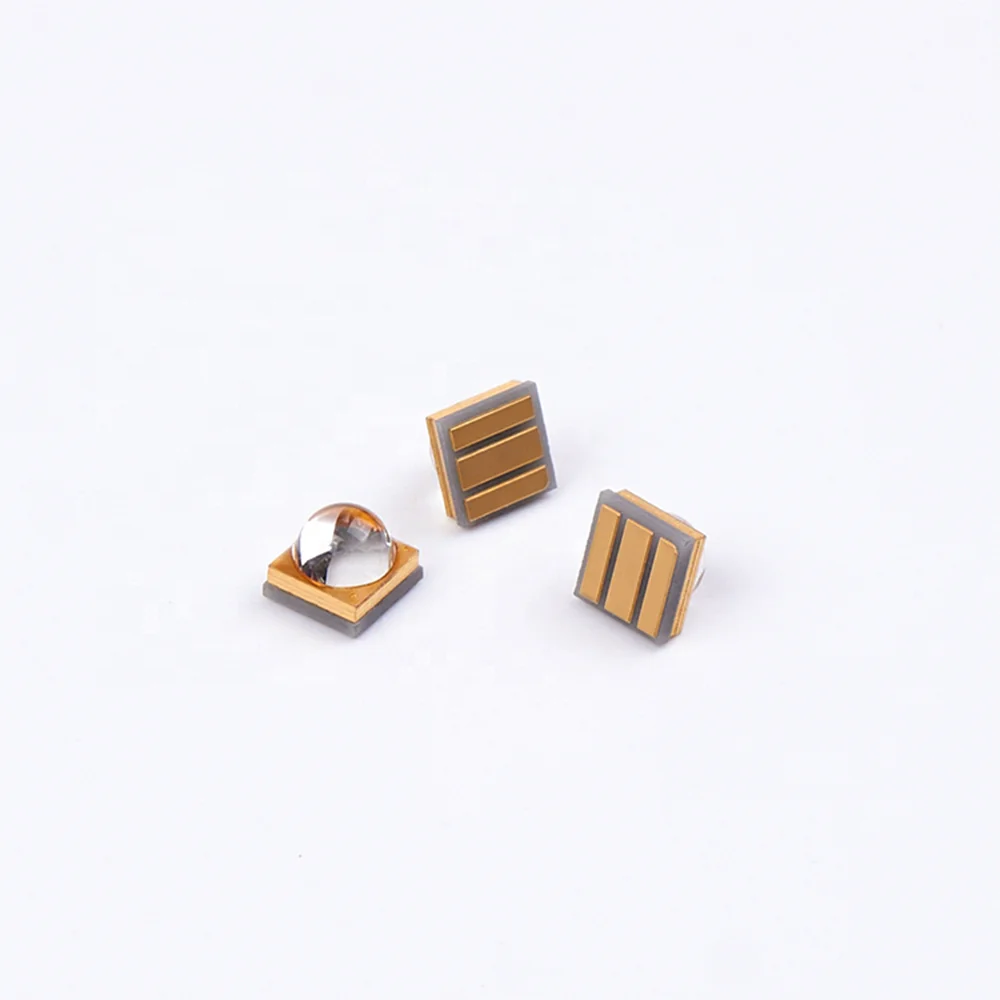

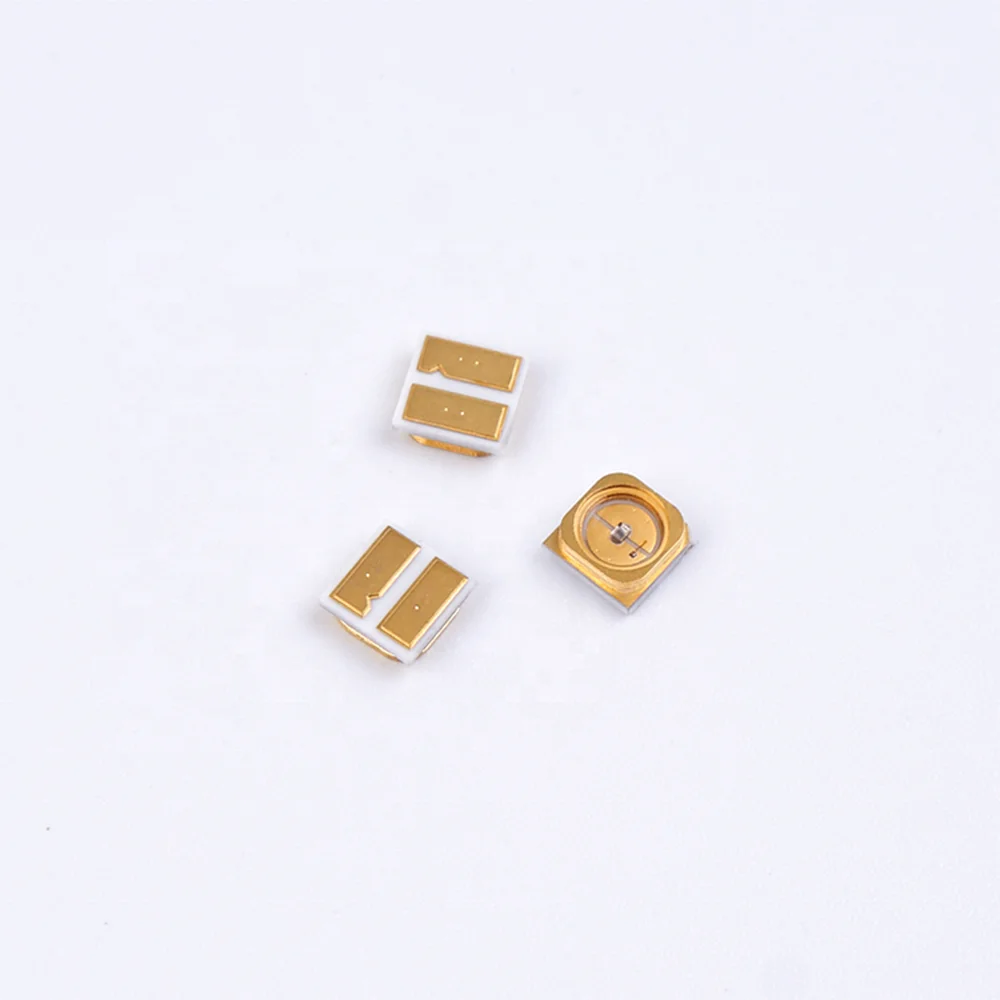

No Ozone Generate 3535 3737 4040 6868 UV C LEDs 270 280nm UVC LED

Product Overview

Description

Product Name	UV-C LEDs 270-280nm UVC LED	Product Model	HQS-3535UVC005G
Power Dissipation	0.3W	Light Color	UVC Lights
Forward Voltage	5.0-8.0V	Viewing Angle	120°
Forward Current	50mA	Operating Temperature	-40~+60 ℃
Radiant Flux	5-8mW	Storage Temperature	-40~+85 ℃
Wavelength	270-280nm	Soldering Temperature	260℃





UVC LED SERIES SPECIFICATION
Product Name	Wavelength	Voltage	Current	Radiant Flux	Viewing Angle
3535 UVC LED	270-280nm	5.0-8.0V	40mA	2-4mW	60° / 120°
3535 UVC LED	270-280nm	6.0-8.0V	50mA	5-8mW	60° / 120°
3535 UVC LED	270-280nm	5.0-8.0V	100mA	8-12mW	60° / 120°
6868 UVC LED	270-280nm	18-24V	200mA	80-120mW	120°
6868 UVC LED	310nm	18-24V	200mA	80-120mW	120°

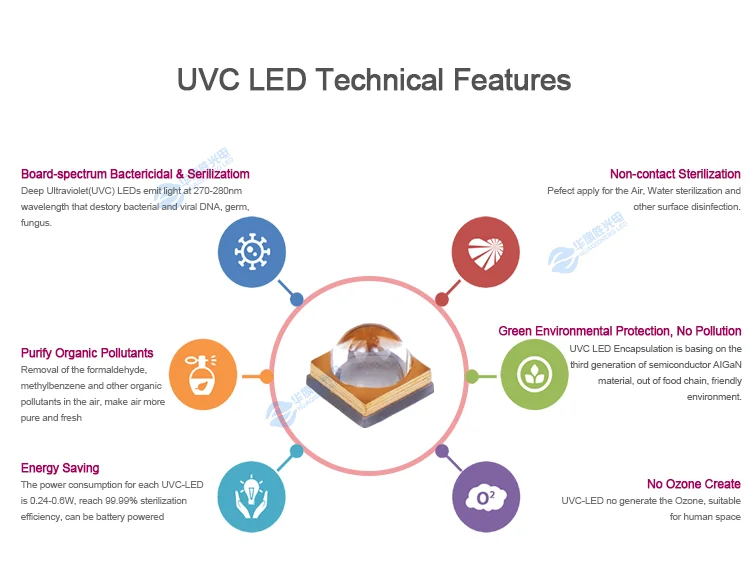

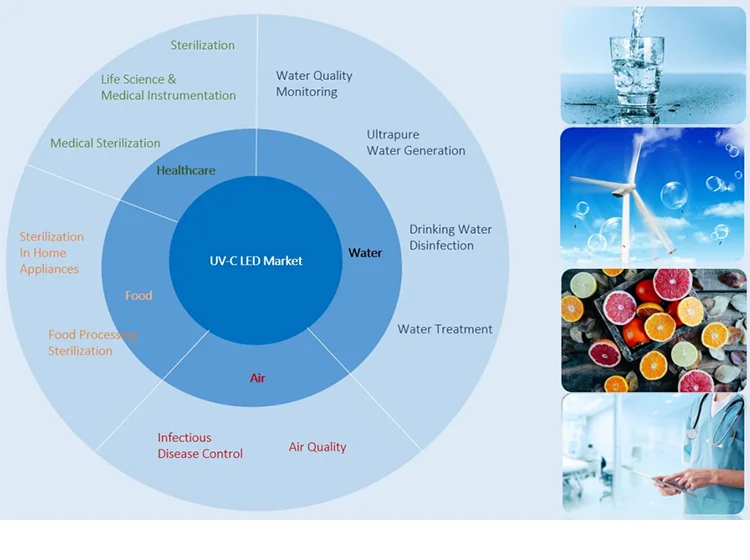

UVC LED Technical Features

Board-spectrum bactericidal and sterilization

Deep Ultraviolet(UVC) LEDs emit light at 270-280nm wavelength that destory bacterial and viral DNA,

germ, fungus.

Non-contact sterilization

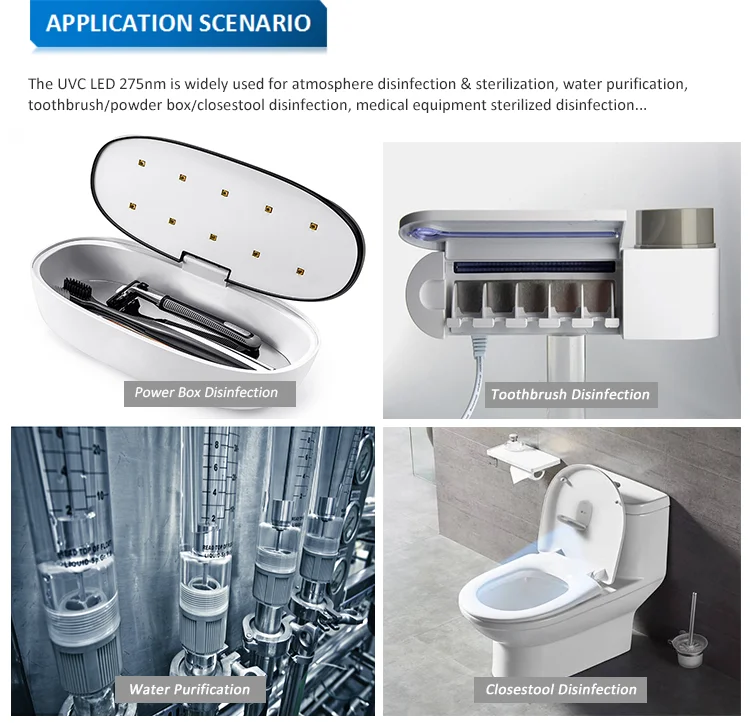

Pefect apply for the Air, Water sterilization and other surface disinfection.

Purify organic pollutants

Removal of the formaldehyde, methylbenzene and other organic pollutants in the air,
make air more pure and fresh.

Green environmental protection without pollution

UVC LED Encapsulation is basing on the third semiconductor AIGaN material,

out of food chain, friendly environment.

Energy Saving

The power consumption for each UVC-LED is 0.24-0.6W, reach 99.99% sterilization efficiency,

can be battery powered.

No Ozone create

UVC-LED no generate the Ozone, suitable for human space.

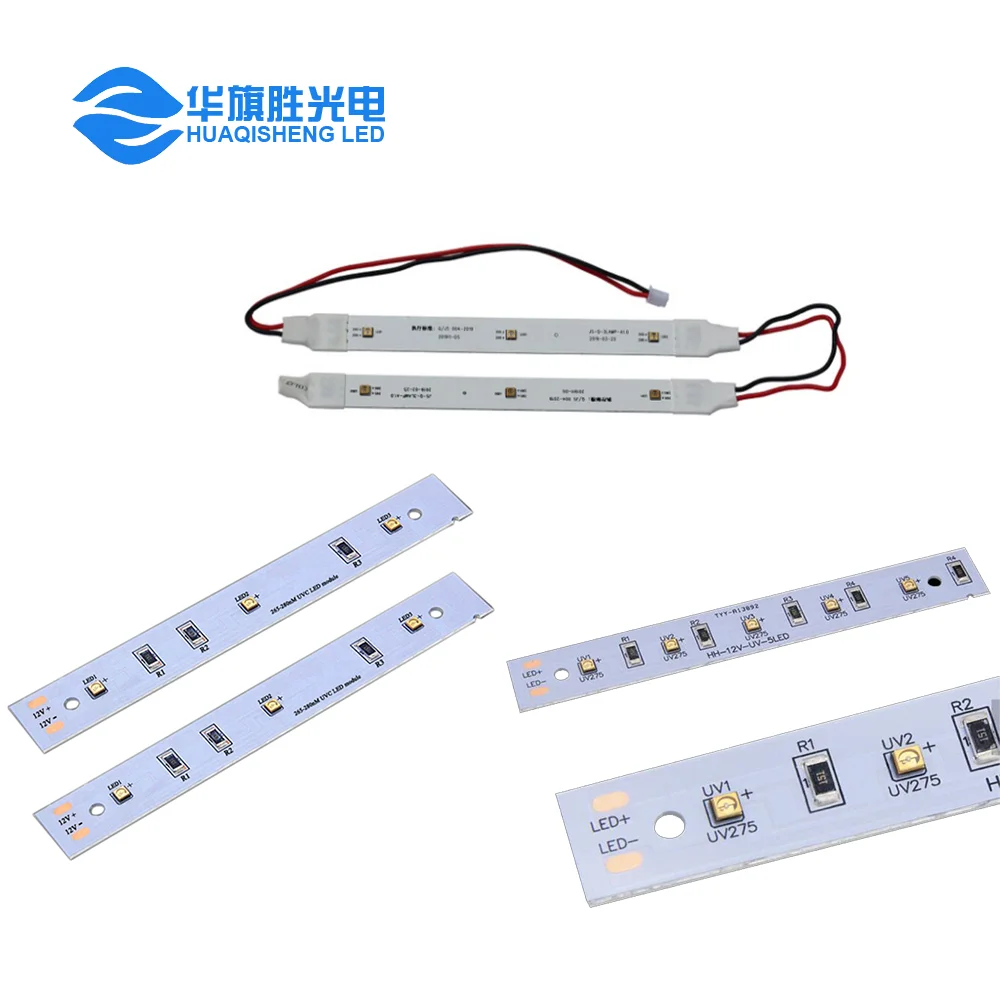

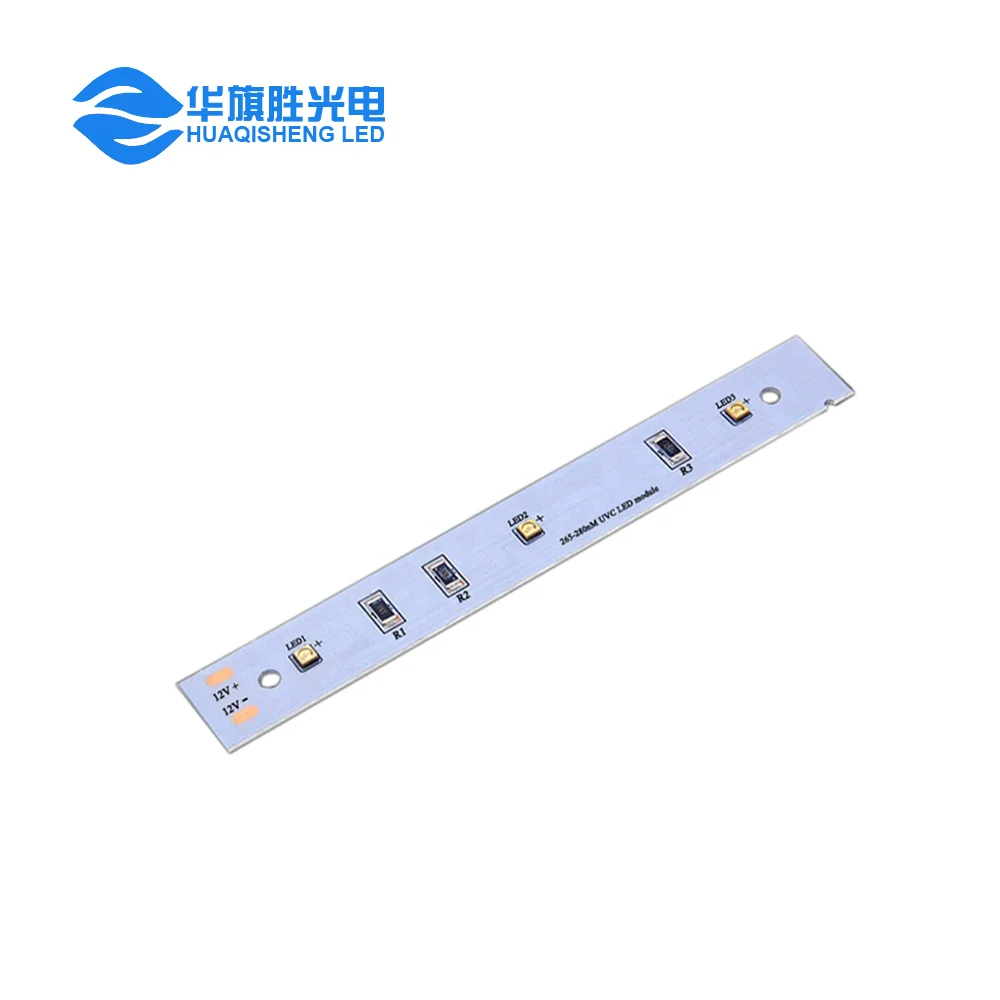

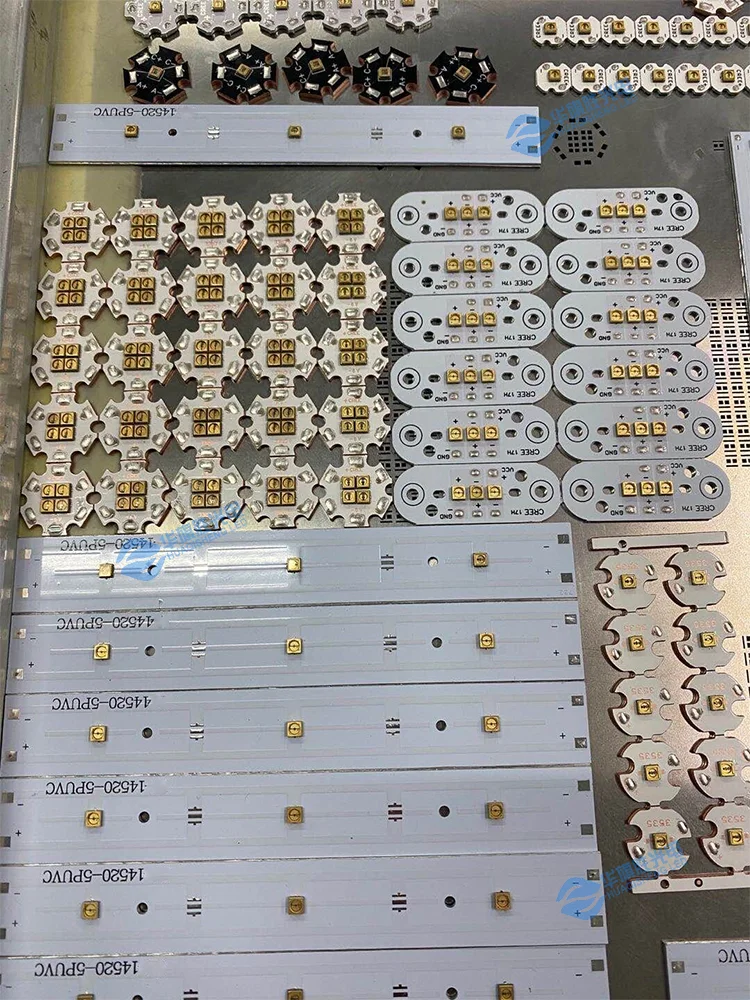

5V 12V UVC LED Module Available
