DEGUANG brand Fully Automatic PE Film Rotogravure Press Rotogravure Printing machine

Product Overview

Description

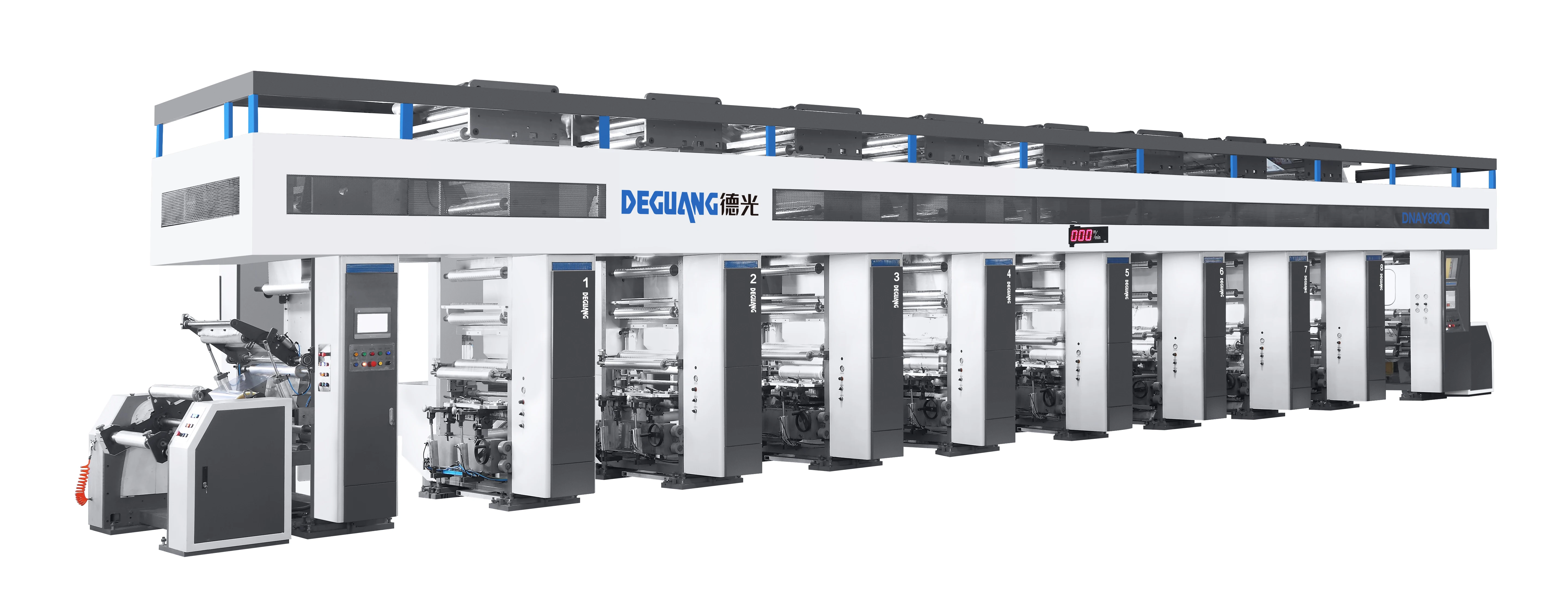

Model	DNAY800C Model	DNAY1100C Model
Web width	800mm	1100mm
Printing speed	max160m/min	max160m/min
Print cyl. dia.	100-400mm	100-400mm
Rolling material dia.	600~800mm	600~800mm
Print cyl. cross adjustable	30mm	30mm
Registering accuracy	±0.1mm	±0.1mm
Total power	130kw	145kw
Weight	21000kg	23000kg
Overall dimensions(L×W×H)(mm)	14000×3000×3100	14000×3300×3100



 The video link of this running mahcine:

https://www.youtube.com/watch?v=ZCPMjVlPg1A





1. Usage: This High Speed  Printing Machine  is suitable for BOPP, PET, CPP, PVC and combined film and paper with the same properties. Its printing speed is 150-180m/min, mechanical speed is 200m/min.

2. This printing press has 7 servo motor controlling system.

3. PLC control.

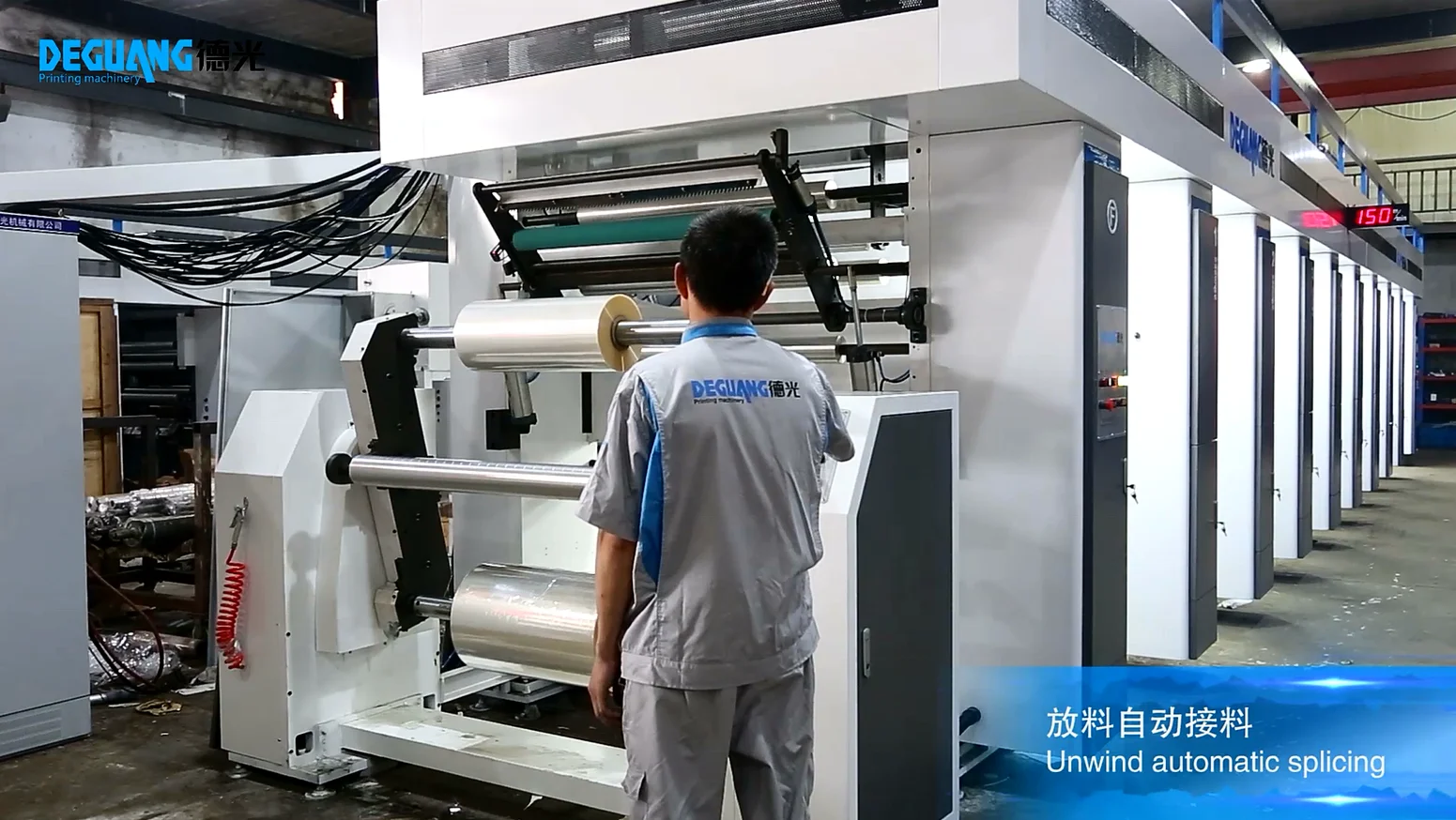

4. Automatic splicing and cutting.

5. Floating roller to adjust tension

6. Outside unwinding and rewinding dual station turret, inching rotation.

7. Two unwinding shaft is controlled by two servo motor.

8. Unwinding traction adopts servo motor.

9. Unwinding and rewinding air shaft

10. Pneumatic pressing roller.

11. Shaftess printing cylinder.

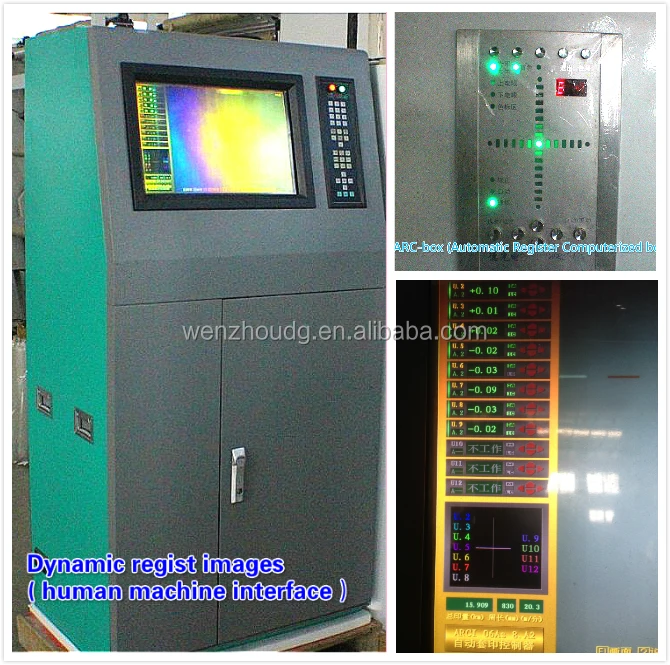

12. Automatic registration with video inspection.

13. Pneumatic doctor blade.(heavy doctor)

14. Pneumatic ink pump.

15. This print machinery can use electric heating or gas heating or oil heating.

17.Independent drying and suction exhausting system,air circulated,max recycled rate 50%,outside oven increase the amount of blowing air to ensure the drying.

18. Assisted oven on the top of last printing unit can prevent the last color adhesive to the printing cylinder when the color cover the whole cylinder, making the film completely dry.

19. Pre-heating system

20. Water cooling and air cooling, two option.

21. Waste air eliminating tunnel.

22. Two rewinding shaft is controlled by two servo motor.

23. Rewinding traction adopts servo motor.

24. Main motor: servo motor

25. Cast iron wallboard,thickness is 75mm

























ZheJiang Deguang Machinery Co.,Ltd:33Years'history, Consistent and Stable Quality,Your best Choice!!!









Our new factary







1, Q: How about the after service?
A: We have a strong team, special for after service. We can arrange engineers to do service for you.

2, Q: Are you factory or trading company?
A: We are a factory in this field more than 30 years (Formally named Zhejiang Deguang Machinery Co.,Ltd.).

3, Q: Where is your factory located? How can I visit there?
A:Our factory is located in Wenzhou City, Zhejiang Province, China, near to the Wenzhou airport. You can fly to Wenzhou airport directly.

4, Q:How does your factory do regarding quality control?
A:Quality is priority. All the parts of machine are made by our CNC equipment to ensure the precision

5, Q: why choose Deguang Machinery?
A: We are one of leader in this field (in China). Our quality products and service have enabled us to expand our market    from china to more than 60 countries.
