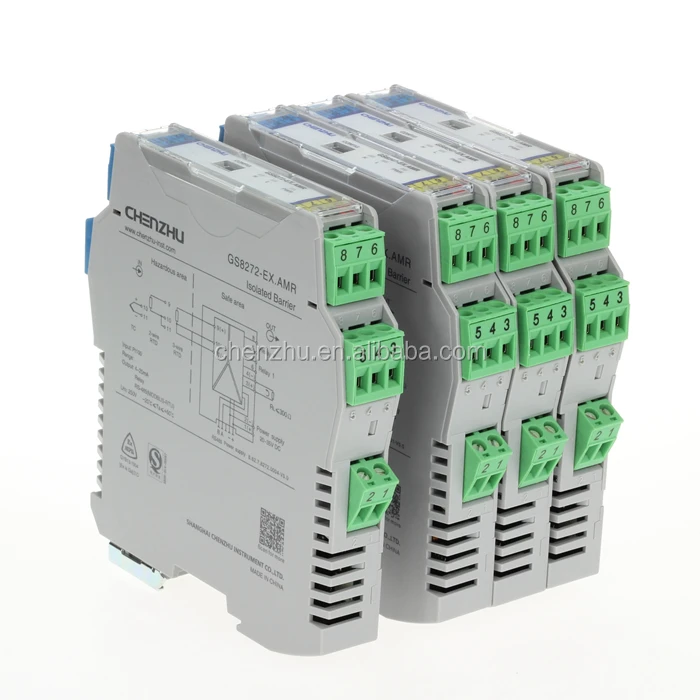

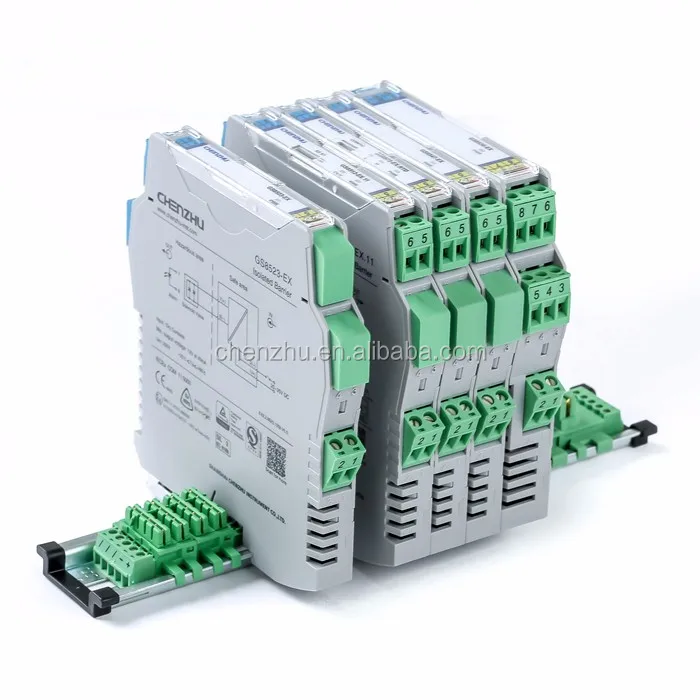

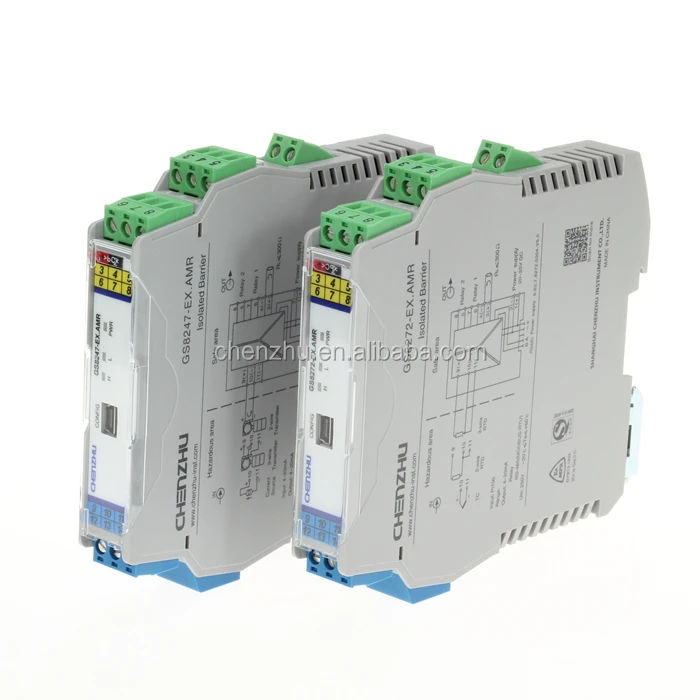

CHENZHU GS8512 EX.12 Relay output Isolated Barrier intrinsically safe isolator 1 input 2outputs digital input 24VDC SIL3
- Category: >>>
- Supplier: Shanghai Chenzhu Instrument Co. Ltd.
Share on (62539864804):
Product Overview
Description
Product Description
Product Application

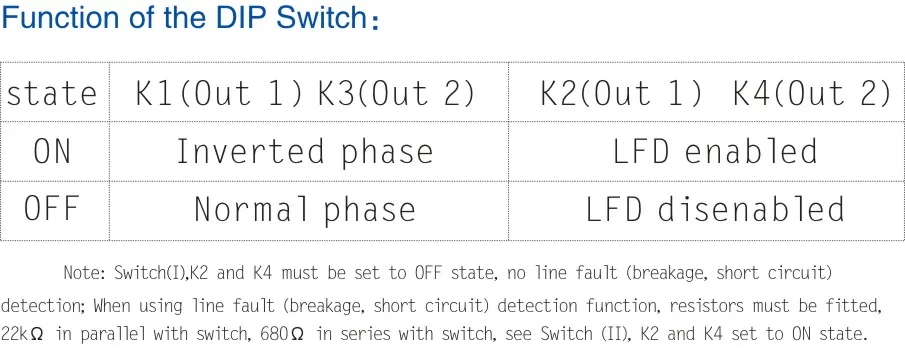

This product needs an independent power supply, each channel can be independently set to the input and output in phase or reverse control, and has function of input line fault detection alarm indication. Dry contact or DIN19234 standard NAMUR proximity switch input field devices (including the intrinsically safe type pressure switch, temperature switches, liquid level switch)
Technichal Data | ||||||
Basic Parameter | Number of channels | 1input/2outputs | ||||
Dielectric strength | Between non-intrinsically safe part and intrinsically safe part≥2500VAC,Between power supply part and non-intrinsically safe part≥500VAC | |||||
Response time | ms | ≤10ms | ||||
Security Data | Input signal | Switch or NAMUR Proximity Detector | ||||
Output signal | Relay | |||||
Supply voltage(Ue) | DC | 20~35V DC | ||||
Other | Power protection | Reverse protection of power supply | ||||
Power supply mode | Independent power supply | |||||

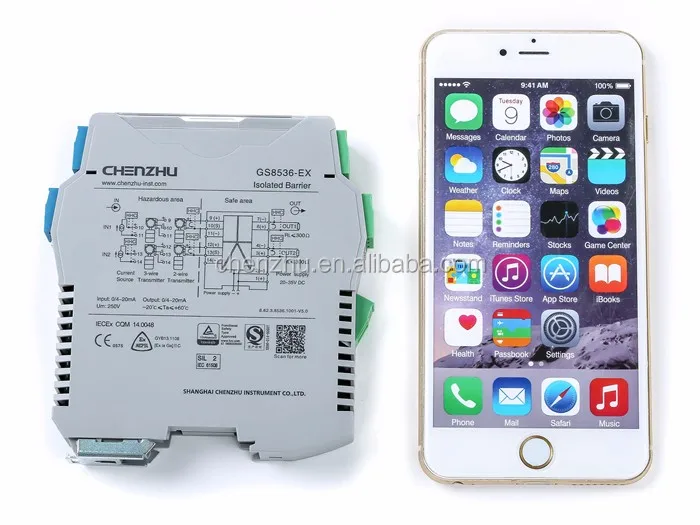

Dimensions | D*H*W | 118.9*106*12.5 mm | ||||
Main Features:
1) G3 Coating
2) 3-way isolation with max.dielectric strength≥4000V AC
3) Ultra-thin structure with low power dissipation design 0.05%F.S.
4) Housing protection level (IEC 60529): IP20
5) Easy install DIN35mm
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* 5 years warranty.
* Professional training.
* Fast respone.
Packing & Delivery
Unit Packaging | ||
Size | 140(L) * 115 (W) * 12.5 (D) mm | |
Net Weight | 0.4 KG | |
Packaging Details | The normal package is carton box(Size: L*W*H). Unit package for one piece, then outer packing. If you have special request for packing, please inform us in advance.. | |
Outer Packaging | ||
Size | 170 (L) * 145 (W) * 130 (D) mm | |
Carton Weight | 0.05 Kg | |
Packaging Details | The normal package is carton box(Size: L*W*H). Unit package for one piece, then outer packing. If you have special request for packing, please inform us in advance.. | |
Our Factory
Max capability of production reached to 1,000,000 pcs/year
Our factory created a versatlie smart production approach through system integation and establishment of information network in order to offer customer reliable, high efficiency, and high quality products.
Our Laboratory
