HD365 auto sweater hat scarf knitting machine
- Category: >>>
- Supplier: Hefei HD Machinery Co. Ltd
Share on (62539864931):
Product Overview
Description
Product Description

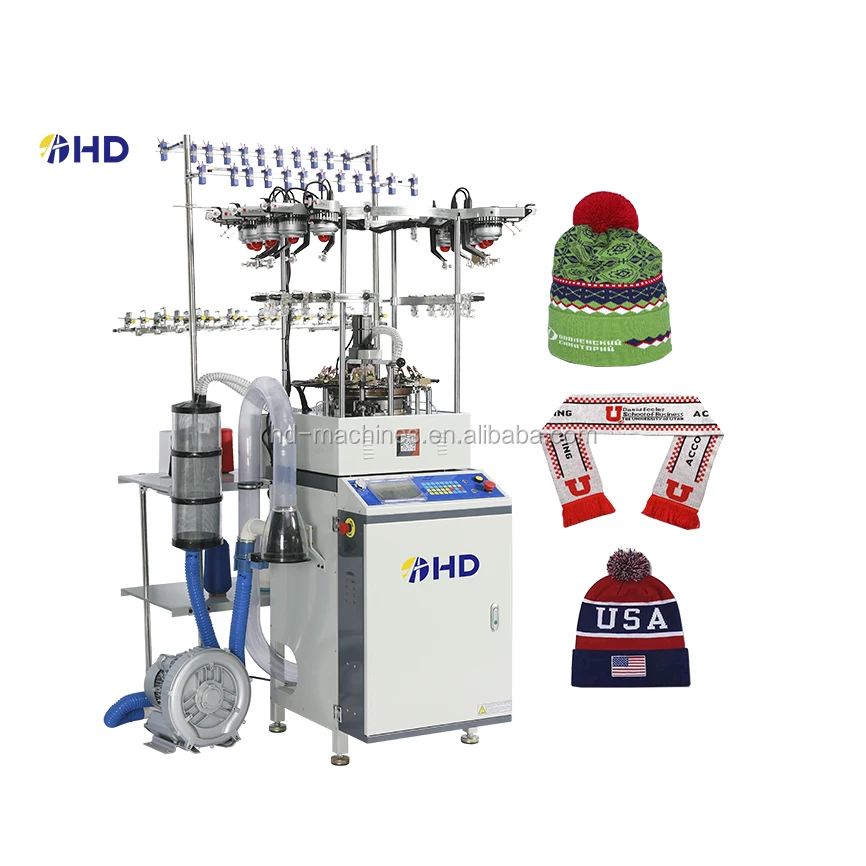

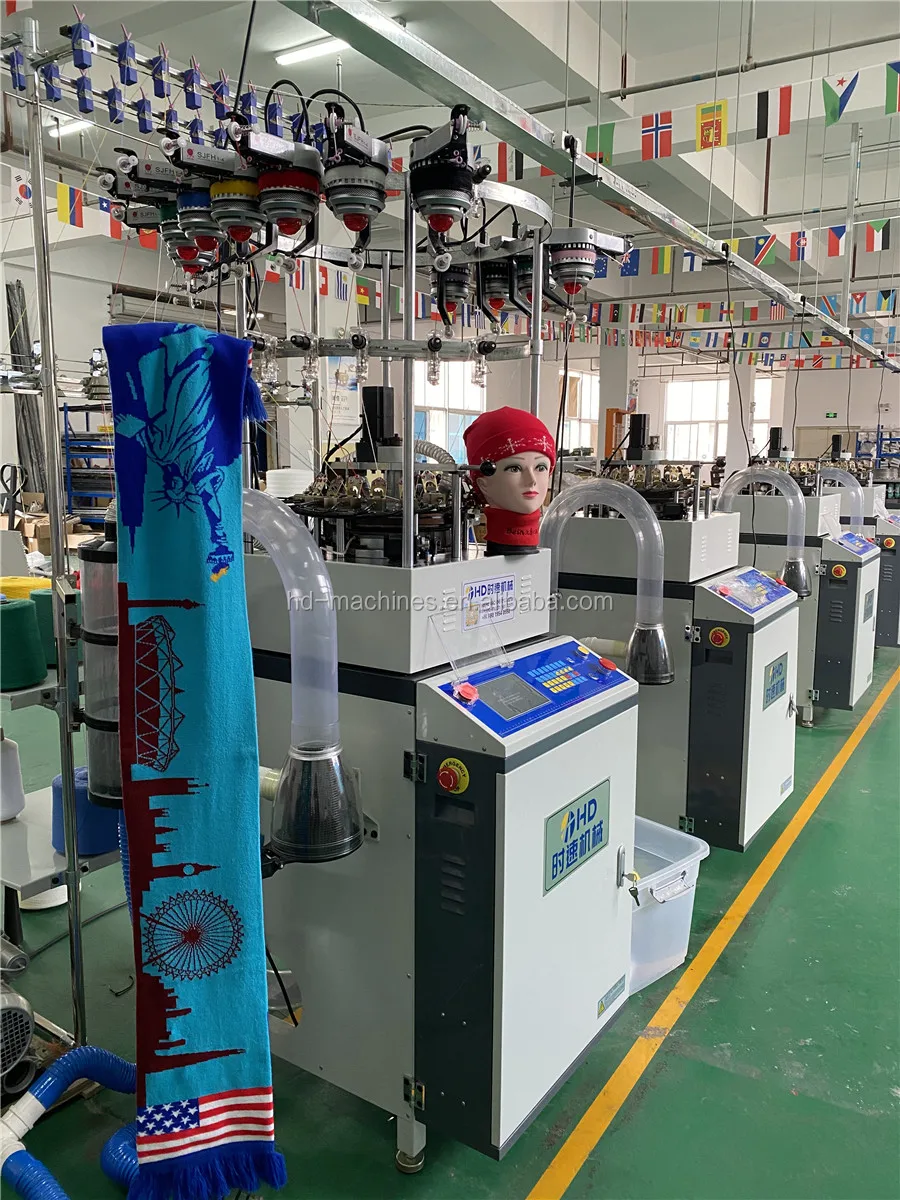

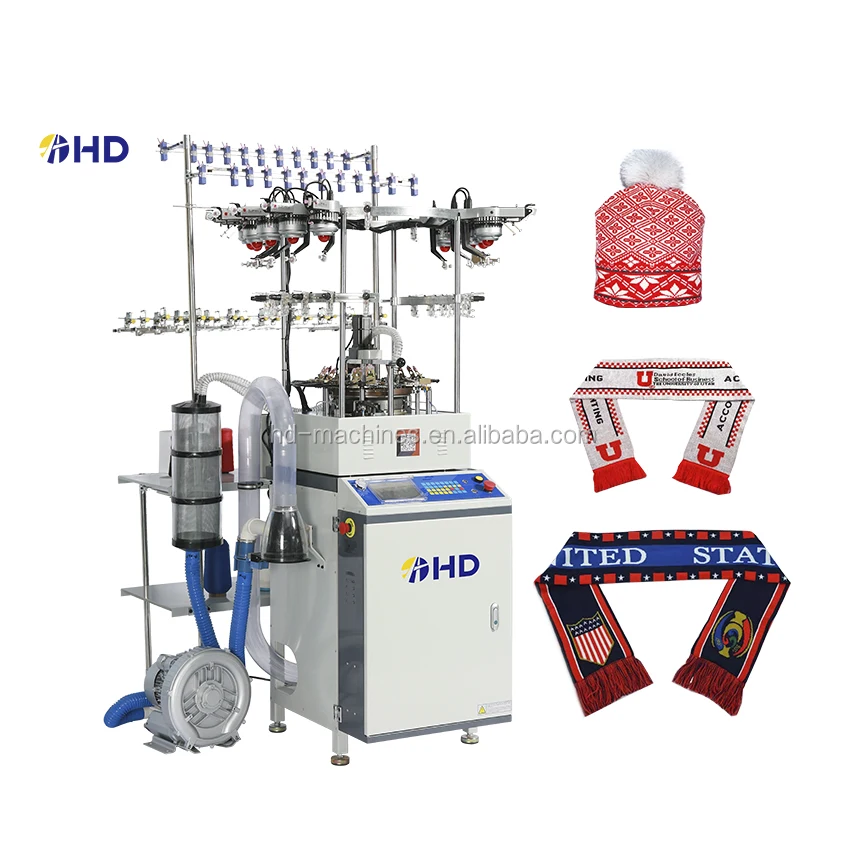

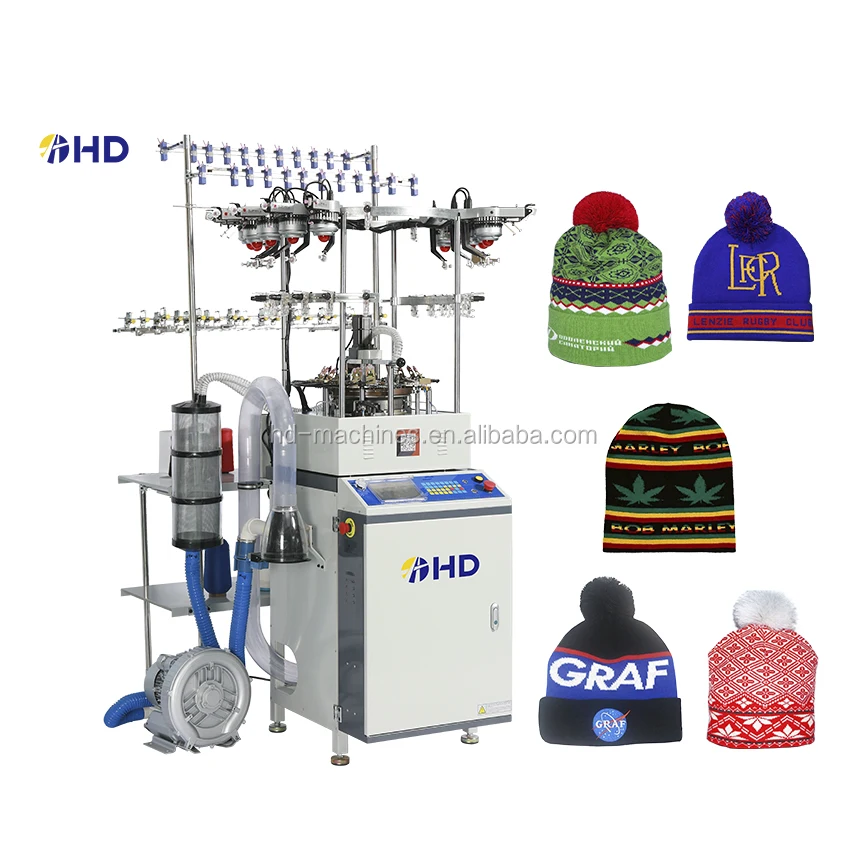

HD365 high speed fully jacquard hat & scarf knitting machine ,this model is equipped withnewest control system , high speed and stable 16# actuators (needle selectors ) .easy tooperation .design pattern make by computer . we offer professional software of design . inthe same knitware can many times exchange single feeding and double feeding .Not onlyimprove the production efficiency, but also to complete the complex patterns of weavingwork.

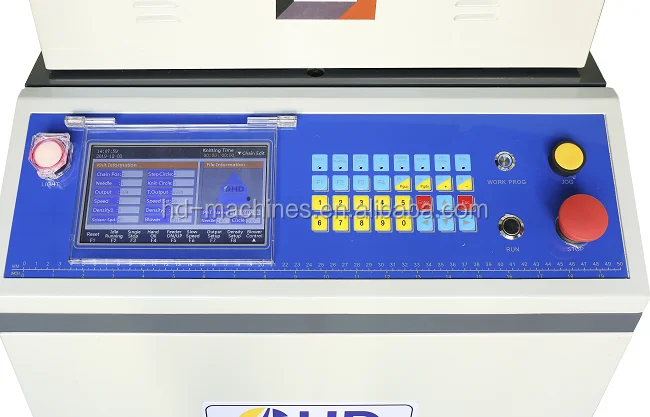

The machine uses 7-inch touch screen, LCD industrial color display, when work can displaythe number of knitting, the number of completed, knitting time, speed, density and otheroperating parameters. With USB interface to facilitate the data and operating parameters ofthe input and output.
This machine is suitable for: wool, acrylic, cotton yarn, blended raw materials , knitting avariety of single jacquard hats, scarves ,headband and ribbing of 1x1, 2x1, 2x2 ....3D, HDproducts
Main Specification |
1.Cylinder Size :7’’8’’ 9"10’’ |
2. Needles : 144N-392NAccording to customer request |
3. R.P.M : 120Rpm/Min. |
4. Machine is equipped with 11 sets of 16# high-speed and stable selection actuators (needle selection ) |
5. Color : 7 Feeds +4 Feeds ,Single feed 7-color knitting in the same row ,double feeding 4-color knitting in the same row .(single feed with double feed can exchange )Whole knit ware color can up to 20 or more . |
6. Auto lubrication |
7. Main servo-motor : 1KW |
8. Power Source :110V/ 220V/380V ,50/60Hz |
Dimension |
Dimension: 752*663*1418 mm |
Packing size: length*width*height : 850*950*1670 mm |
Net weight: 325KGS Gross weight : 400KGS |
Floor Space: 1500*1200*2500mm |
Related Products

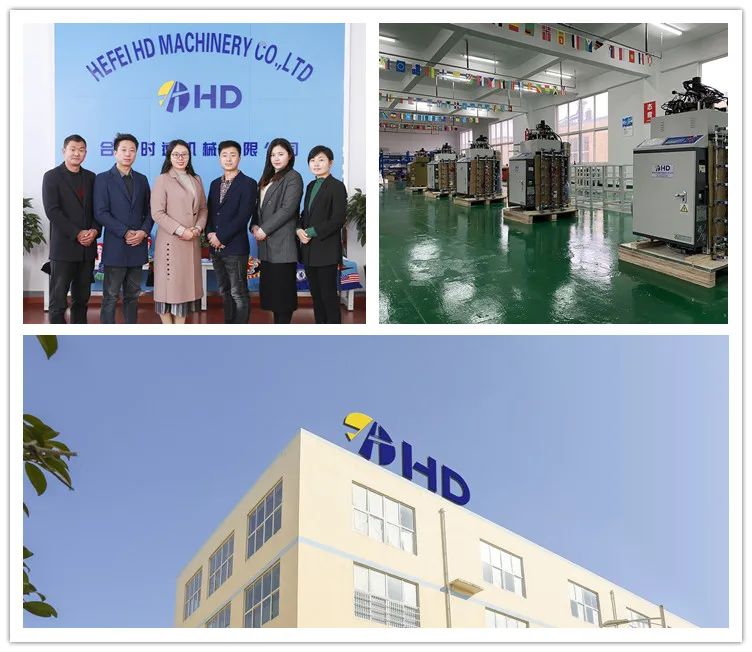

Company Information
1. HD is a professional Manufacture circular knitting machine more than 10 years. High speed and High Definition
2. HD Machine with CE and ETL certificate
3. HD machine have 3 Years Warranty
4. 24 hours on line for English speaking engineer service
5. OEM is available
6. We effort for you .

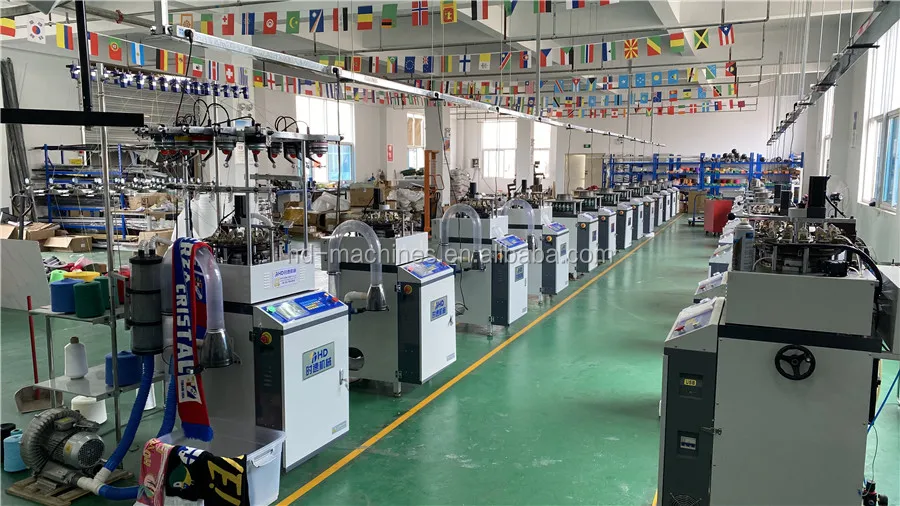

Hefei HD Machinery Co., Ltd. located in HEFEI city and near Shanghai .
We have excellet product quality and good brand reputation and we have successfully exported to overseas market and also have covering the whole of China market .
Excellent quality control team ,advanced detection ,measurement equipment resources provide a guarantee for the company technology innovation and product development .
We providing excellent after-sale service ,we strictly follow this concept to our teams .
Within 10 years of hardships , our company has won the favor of the market with our own HD brand basic on high quality and perfect service . our products are highly trusted and praised by the customers . our vision is to make unremitting efforts to build a world class quality national brand .while our partners are constantly making innovation and value ,we hope that we can accumulate more resources for the further development .
Our company culture always is "Quality Responsibility Attitude Details "
We hard work for you and would like to work with you
Brand Design Concept
LOGO design uses the brand name "HD" as the design prototype and main
body, simple and direct Reflect the company's brand name, simple and easy to
remember. combine the name meaning "high speed" with a deep line knot combined
font design, combined with brand business characteristics, the use of warp and weft
weaving details combined design
The final figure, the outer contour, uses earth elements that represent the world.
The LOGO adopts blue and bright yellow as the design matching colors. Bright yellow
symbolizes sunshine,blue symbolizes technology and the ocean.
Certifications
Our Advantages
High Quality---- Quality Raw Material, Advanced Facilities, Fine Procedures.
High Productivity
Fast Delivery
Leading Level R & D Department
Experienced Marketing Manager
Professional Design Department
Accept OEM & ODM
Excellent After-sales Service
Exhibition
Packaging & Shipping
PACKAGE:
Standard export carton packing.
