Electroplating chlorine wastewater treatment equipment forced circulation vacuum evaporator

The vacuum evaporator of low temperature heat pump develops different equipment models according to different customer requirements and different using environments.

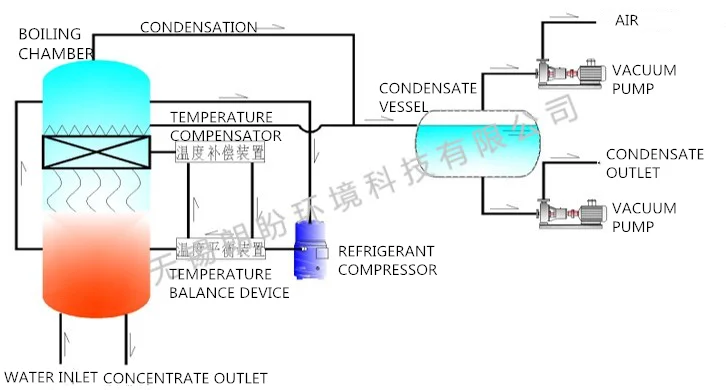

V-HP-TF series evaporator uses compressor to act on refrigerant. The refrigerant exchanges heat with the material through the heat exchanger, the system comes with coolant supplied by the cooling tower. The system is suitable for areas with low annual temperature and short summer time.

The main feature is that the land occupation is larger than other series products, but the energy consumption is lower, and the structure and control of the equipment are relatively simple.

Model	Evaporative Power (L/h)	Installed Power (kW)	Consumption (W/L)	Dimension (LxBxH m)
V-HP-TF-061	45	14.5	100-130	2.0x0.9x2.8
V-HP-TF-120	110	32	80-100	2.3x1.2x3.0
V-HP-TF-240	216	50	80-100	2.5x1.6x3.2
V-HP-TF-380	336	77.3	80-100	2.8x1.8x3.4
V-HP-TF-485	440	105.7	80-100	3.0x2.0x3.6
V-HP-TF-1000	870	205	80-100	4.5x3.2x3.8

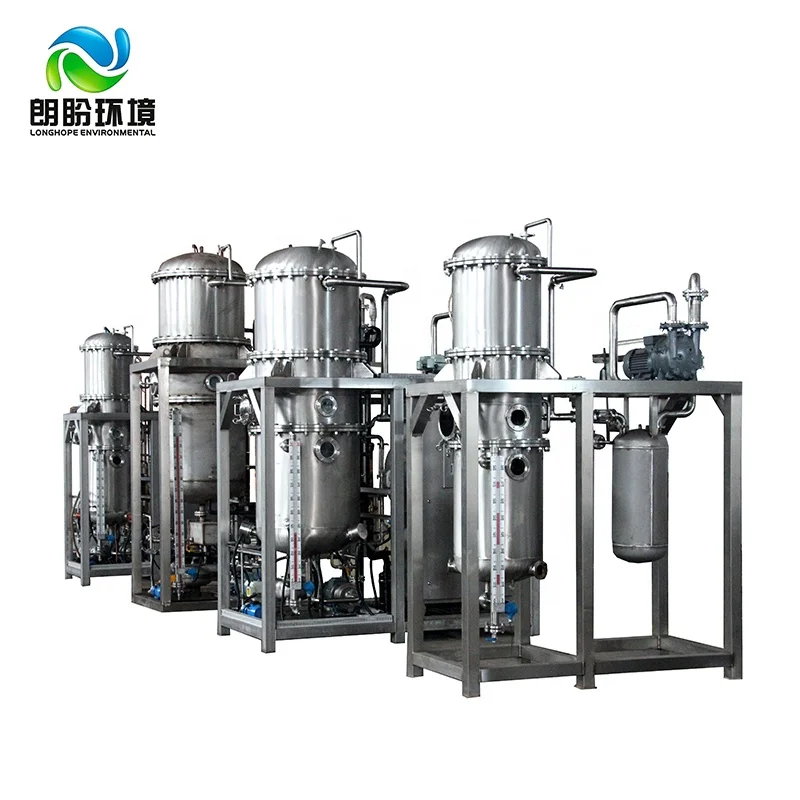

Products Show

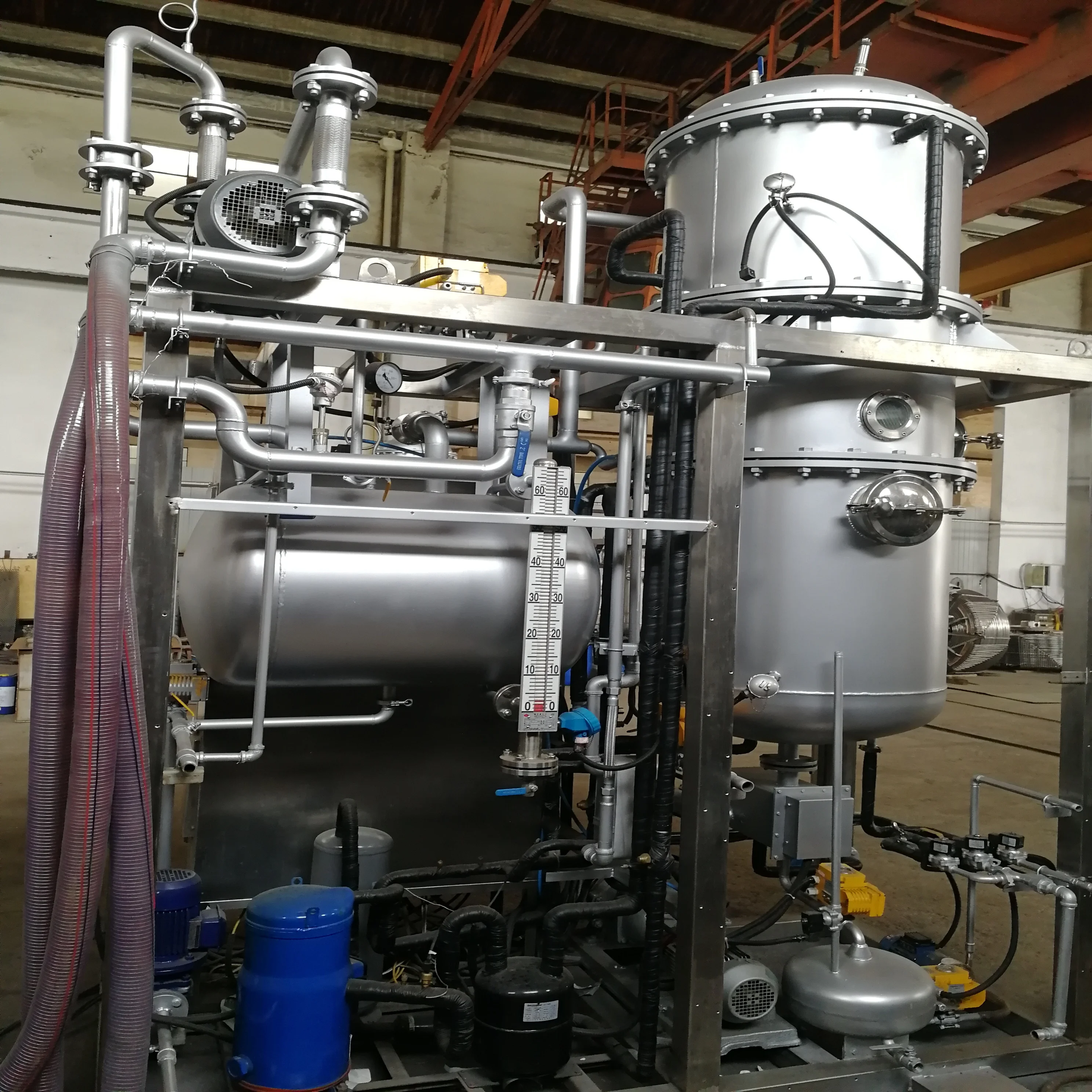

Detailed Image

Our Company

Packing & Delivery

Our Certifications

Customer Photo

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 45 days if the goods are in stock. or it is 60 days if the goods are not in stock, it is according to quantity.
