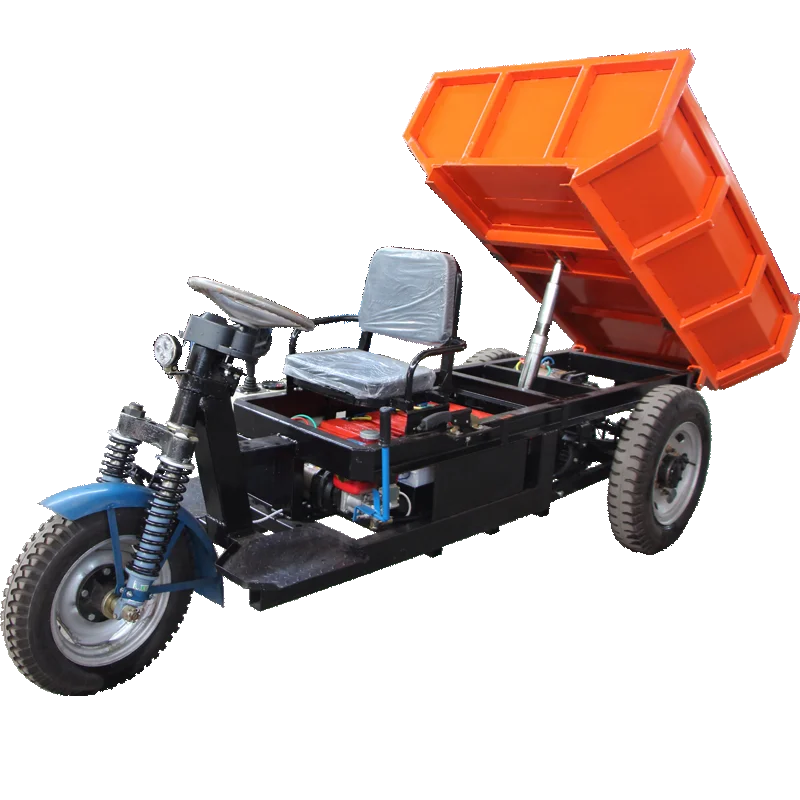

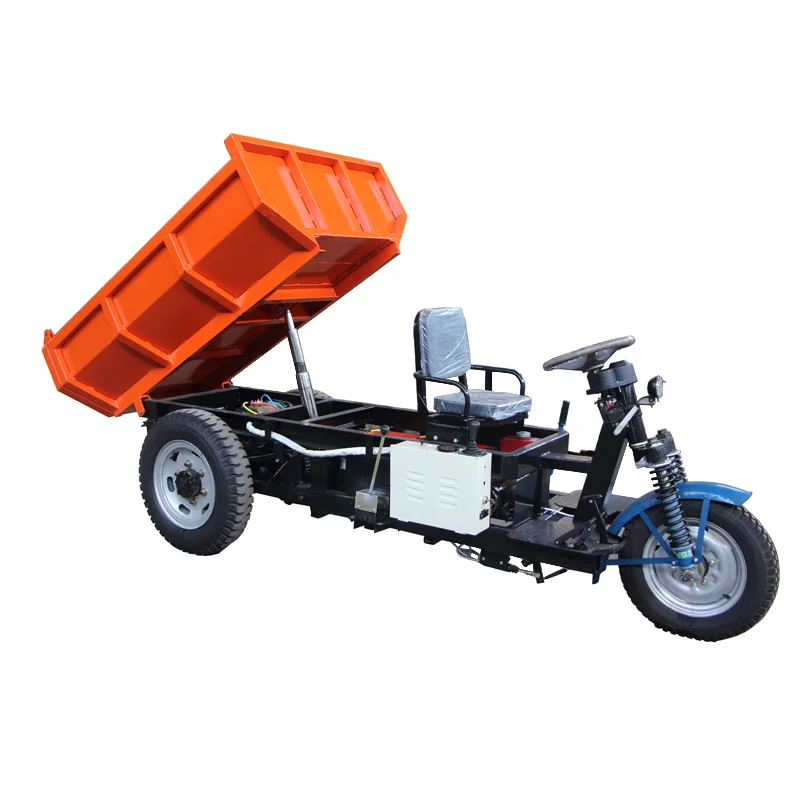

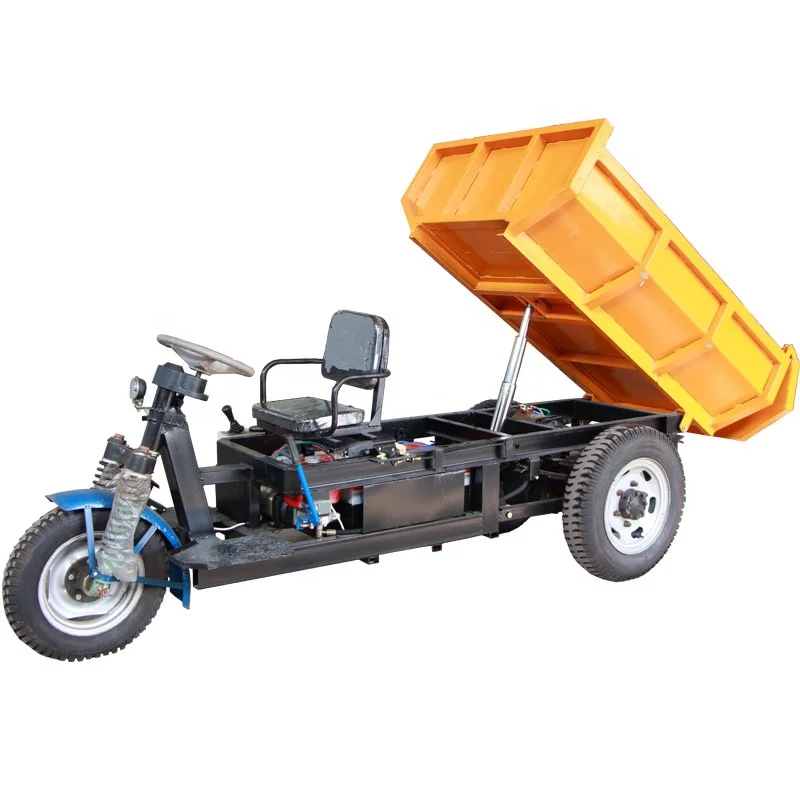

Factory wholesale superior quality good reputation excellent price strong faction triciclo electrico
- Category: Electric Tricycles >>>
- Supplier: Gongyi Xiaoyi Jinwang Machinery Factory
Share on (62540429219):
Product Overview
Description
Product Description

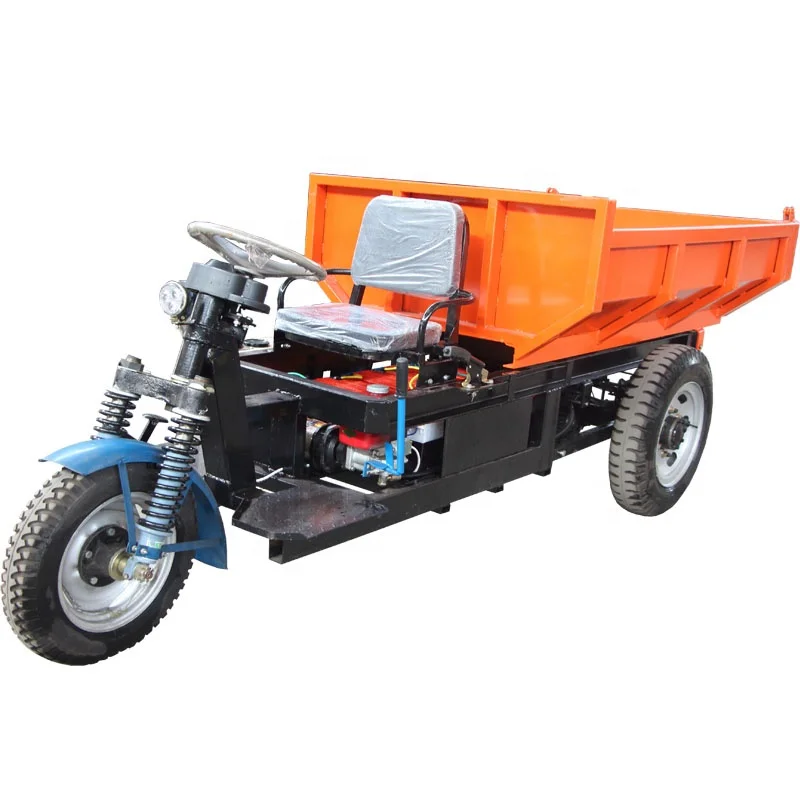

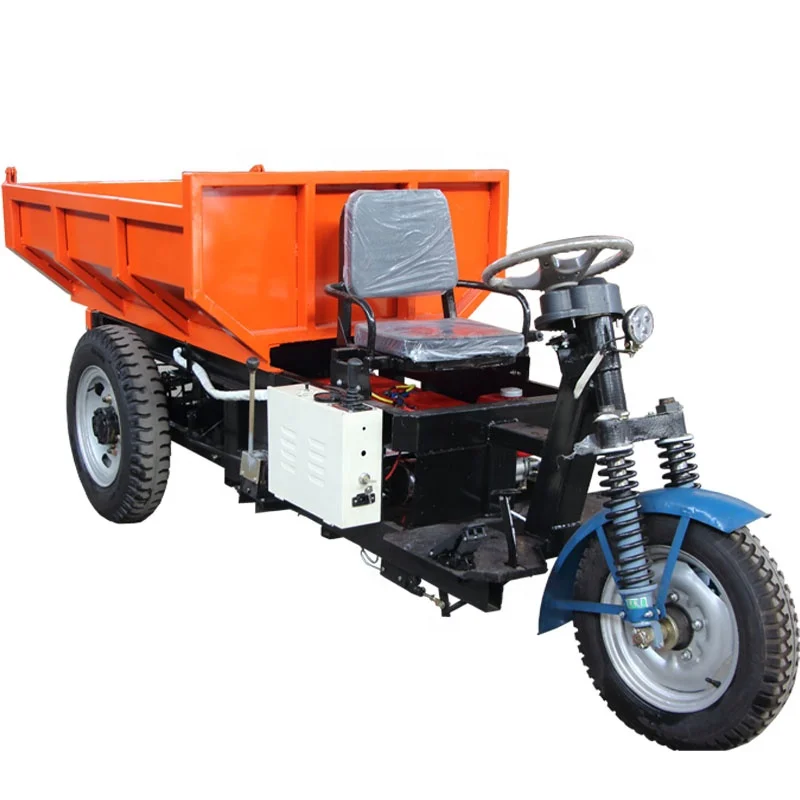

Factory wholesale superior quality good reputation excellent price strong faction triciclo electrico

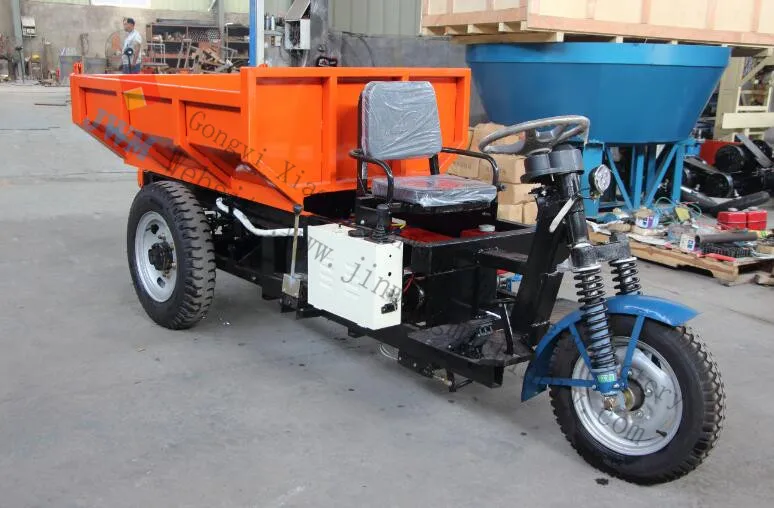

The underground mining truck is our main product, which have 1 ton, 1.5 ton, 2 ton and 3 ton loading capacity. And this underground mining truck has the characteristics of strong power, strong loading capacity, long working hours, and small requirement forroad condition, at the same time this vehicle is driven by electricity, so there is no pollution, very environmental protection.Which are deeply loved by customers from home and aboard. Upon this, the tricycle can be widely used in brick factory, mine factory, sanitation cleaning work and other places with transportation demand. It should be noted that our vehicle can't be used for long distance transportation.
Main technical parameters:
Model | ZY155 | ZY165 | ZY180 | ZY190 | |||
Loading capactity | 1000kg | 1500kg | 2000kg | 3000kg | |||
Voltage | 48V | 60V | 72V | 72V | |||
Overall sizes | 2600*1000*1200mm | 3000*1100*1200mm | 3300*1200*1400mm | 3600*1200*1400mm | |||
Cargo box sizes | 1500*1000*400mm | 1600*1000*500mm | 1800*1200*500mm | 2000*1200*500mm | |||
Weight | 520kg | 850kg | 1000kg | 1400kg | |||
Battery model | 185A | ||||||
Rear tire type | 450-14 | 500-14 | 600-16 | 700-16 | |||
Front tire type | 400-12 | 450-14 | 450-14 | 450-14 | |||
Work platform height | 600mm | 700mm | 720mm | 730mm | |||
Operating speed | 15-25km/h | ||||||
Charging time | First is 12h, normal 6h to 8h. | ||||||
Working time | 10-12h | ||||||
Lifting Motor Power | 1000W | ||||||
Driving Motor Power | 1000W | 1500W | 3000W | 7000W | |||
Detailed Images

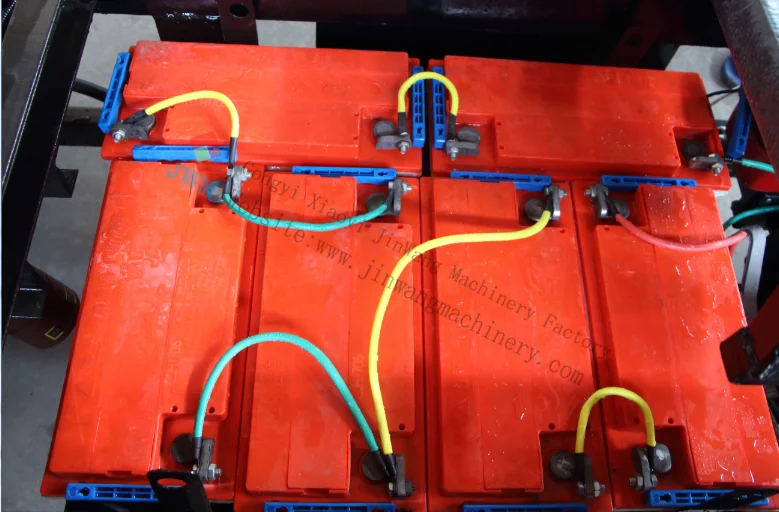

Battery
The underground mining truck is equipped with 72V battery (6 12v battery).
A full charge can continue to work for 10-12 hours, and the capacity of the battery will not be reduced for two years under normal use.
The first charge will take 12 hours, and then, it will take 6-8 hours each time. Compared to vehicles that use gasoline or diesel, the cost of transportation is reduced by 1/4 to 1/5.
A full charge can continue to work for 10-12 hours, and the capacity of the battery will not be reduced for two years under normal use.
The first charge will take 12 hours, and then, it will take 6-8 hours each time. Compared to vehicles that use gasoline or diesel, the cost of transportation is reduced by 1/4 to 1/5.
Lifting Motor:
The power of lifting motor is 1000W.
It is applied to lift and lower of cargo box. Our factory use the standard high quality DC motor, has the good speed regulation function, under the heavy load condition can realize the uniform, smooth stepless speed regulation, and the speed regulation range is wider.
It is applied to lift and lower of cargo box. Our factory use the standard high quality DC motor, has the good speed regulation function, under the heavy load condition can realize the uniform, smooth stepless speed regulation, and the speed regulation range is wider.
Driving Motor:
The power of driving motor is 3000W.It is used to control the movement of the tricycle, to change speed by driving the gearbox connected to it, while protecting the motor from being burnt out. This type of motor has long range, high speed and smooth operation. It is a good choice for you.
The hydraulic system
The hydraulic system is mainly composed of hydraulic cylinder, oil pump, oil tank and control rod.
Hydraulic cylinder
Hydraulic cylinder is made ofthe high quality material and can rise to 3 knots with a maximum tilt angle of 45 degrees.
Oil pump and oil tank
The tank is filled with hydraulic oil.The tank and pump are used to support the lifting of the hydraulic cylinder.
Control rod
The control rod is used for lifting and lowering the cargo box.

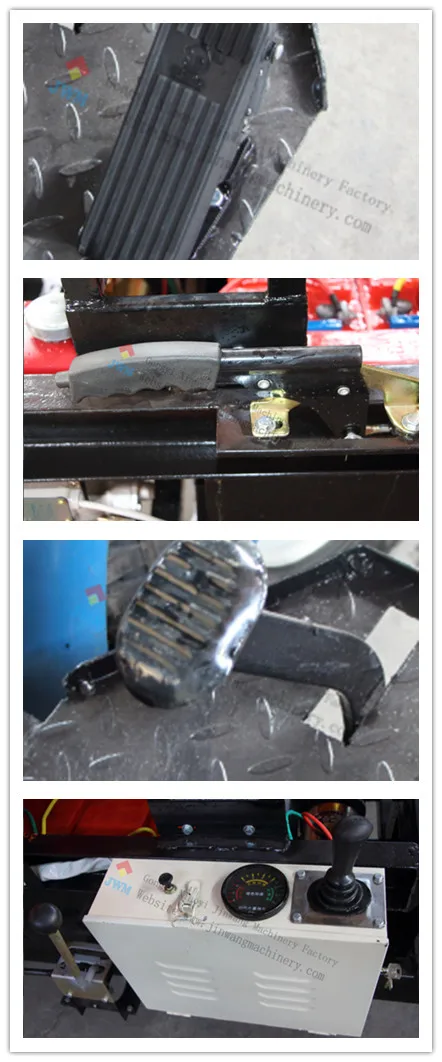

Integrated Control System
Accelerator pedal
Step down and increase vehicle speed.
Hand brake
Bring the vehicle to a stop.
Break
Step down and stop the vehicle.
Electricity meter
You can see the power usage in real time.

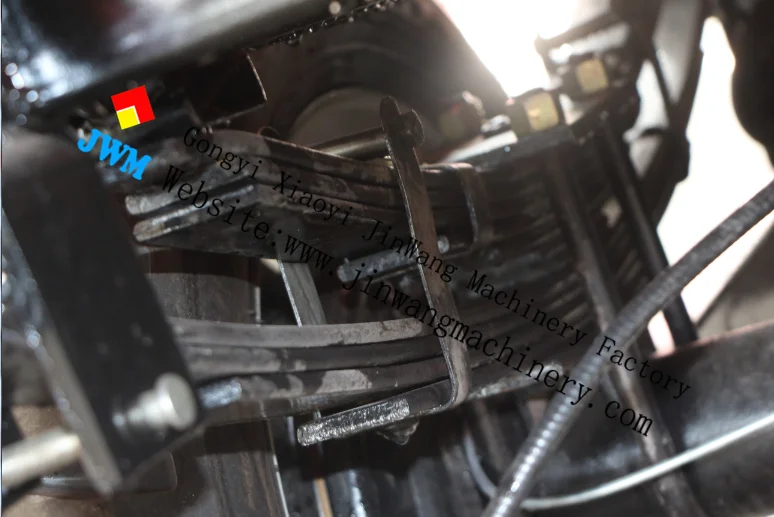

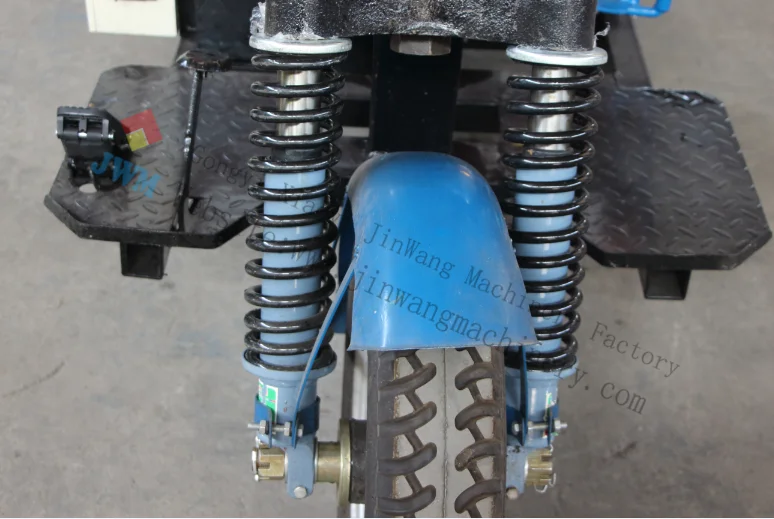

Suspension system
To alleviate the vibration of electric vehicles, avoid vehicle vibration damage.

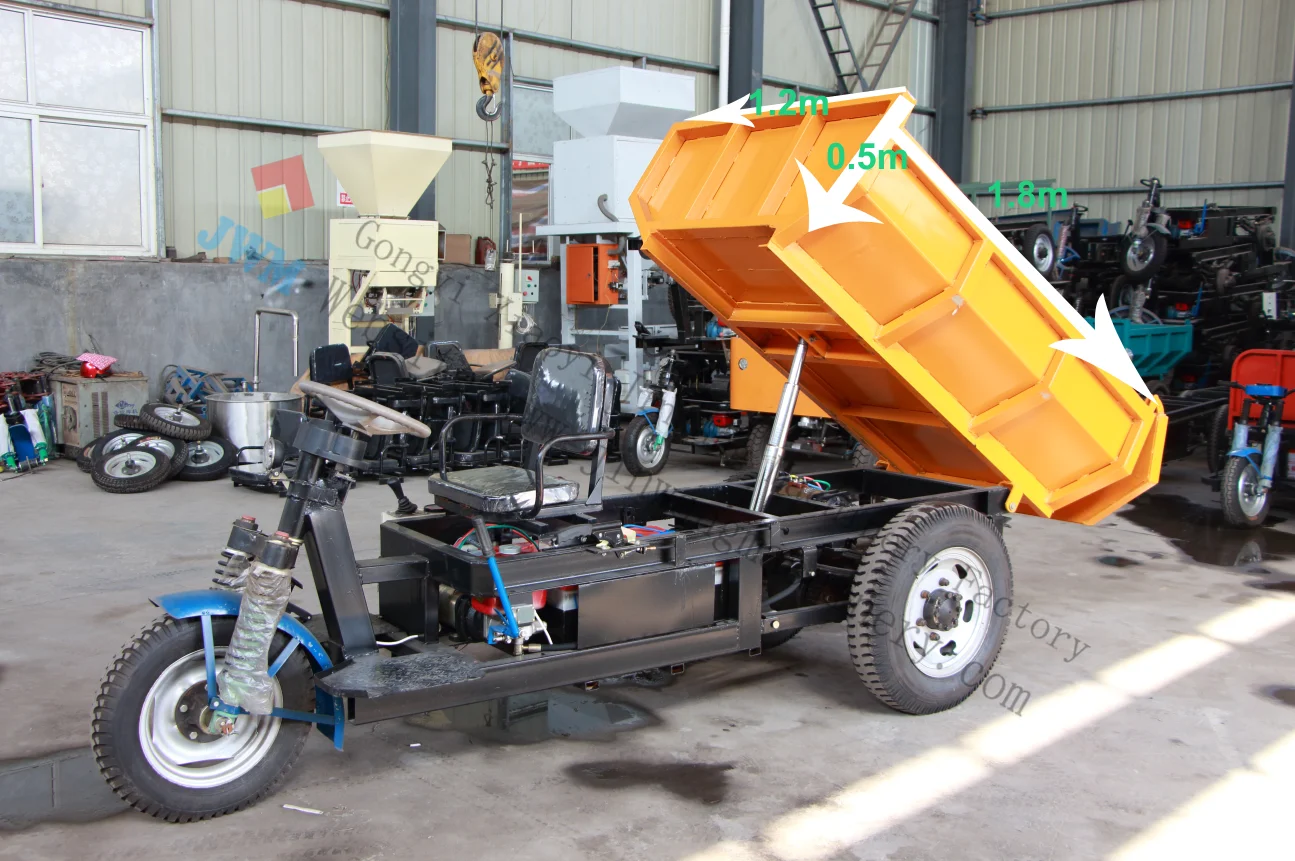

Cargo box sizes
Length:1800mm
Width:1200mm
Height:500mm
Cargo box's raw materials are very good, very strong and have a large capacity, which can carry a lot of articles.
Width:1200mm
Height:500mm
Cargo box's raw materials are very good, very strong and have a large capacity, which can carry a lot of articles.

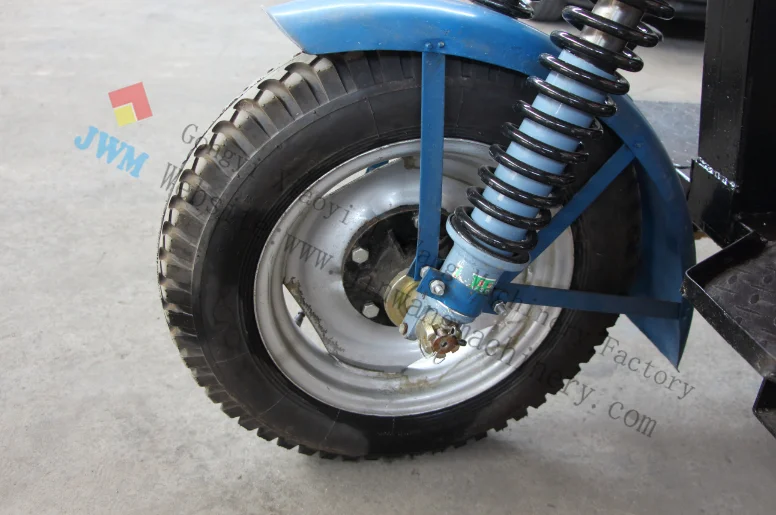

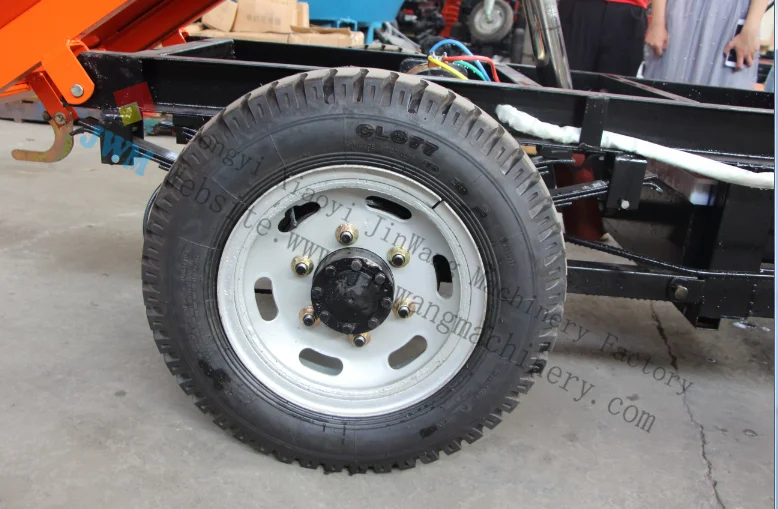

Tire
Front/rear tire: 450-14/600-16
Our factory adopts high quality brand pneumatic tires.
It can support the vehicle perfectly,It also can alleviate the impact of the outside world, bear a variety of deformation, load and high and low temperature to ensure the safety and stability of the tricycle.
Our factory adopts high quality brand pneumatic tires.
It can support the vehicle perfectly,It also can alleviate the impact of the outside world, bear a variety of deformation, load and high and low temperature to ensure the safety and stability of the tricycle.

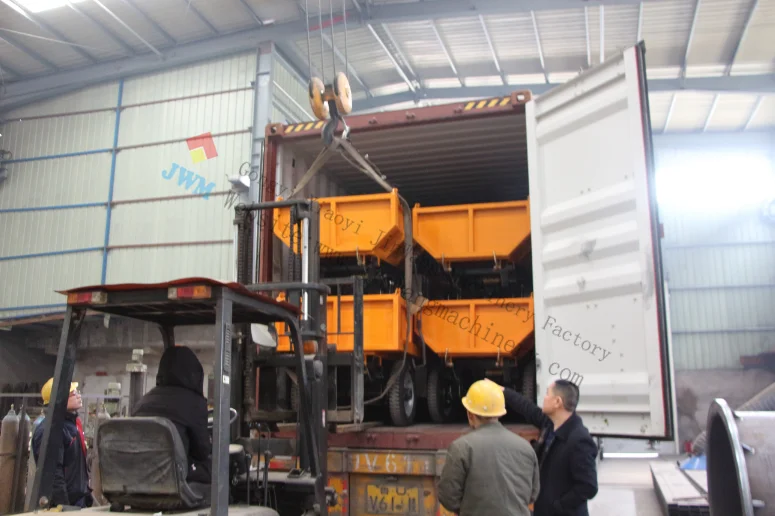

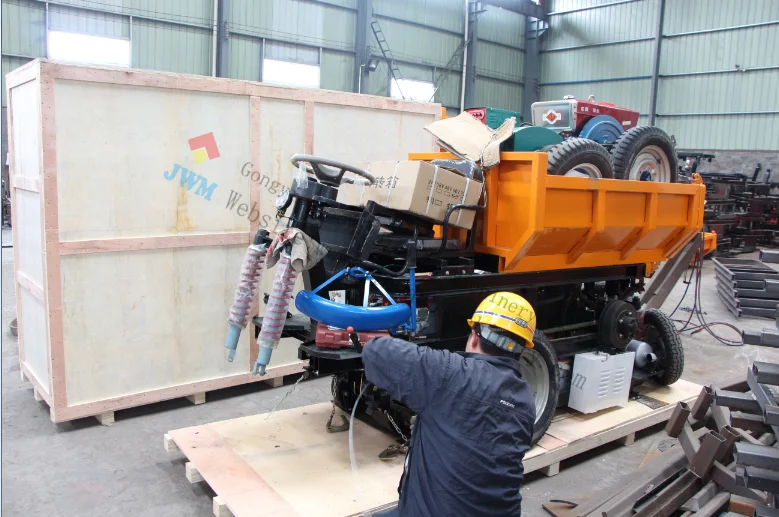

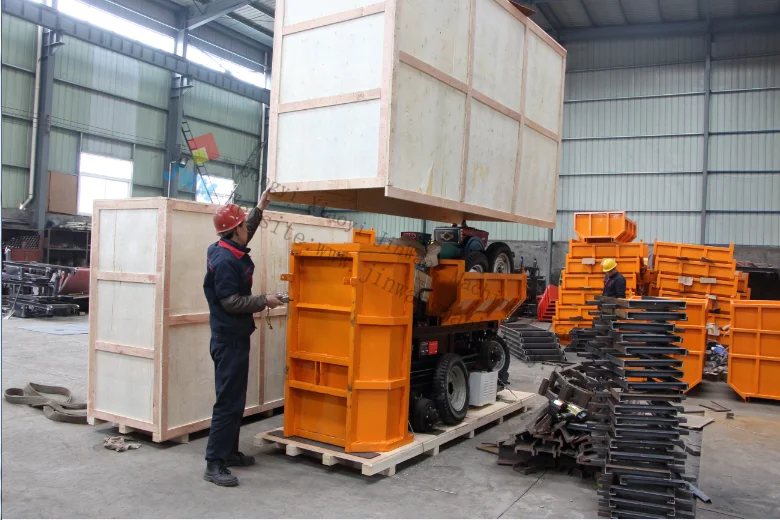

Packing&Shipping
LCL:less than container load
If you order between 1 and 4 units, we will use LCL, pack the products with wooden box and ship to you.
FCL: full container load
If you order a large quantity of products, we will use FCL method and ship the products to you.
Our service
1)Pre-sale
We will listen to your needs carefully and recommend the most suitable products for you. When you do not understand something, we will carefully, patiently, carefully for your answer.
2)In the sales process
We will timely send you the details of stock preparation and real-time status of products, and actively communicate with you so that you can timely understand the status of your goods. At the same time, we will ensure delivery on time.
3)After-sales
When your goods arrive, we will communicate with you in a timely manner to give you online technical guidance to help you understand how to use our products. If necessary, we can send technicians to the area for guidance.
Company Introduction
Gongyi Xiaoyi JinWang Machinery is a mechanical factory with many years of development history, we were established in 2006 at Gongyi city, Henan province, China. After many years of development, we have a variety of types of products,such as Electric mine dump track, Screw oil press, Mucking loader, Crusher, Block making machine, Diesel tricycle and other products . At the same time, our products are exported to foreign countries, in many countries have a long-term cooperation with our customers.
