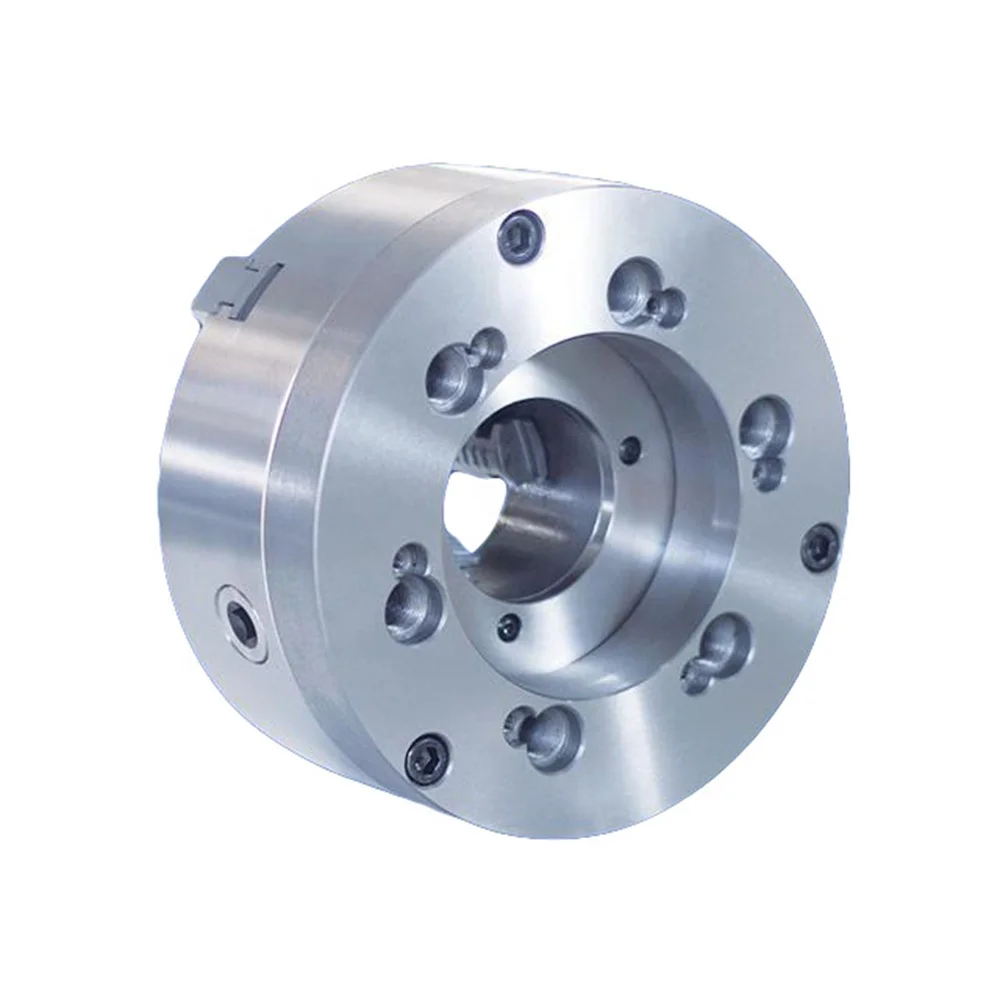

K11 series form D short taper 3 jaw self centering lathe chuck
K11 series form D short taper 3 jaw self-centering lathe chuck
K11 series form D short taper 3 jaw self-centering lathe chuck

K11 series form D short taper 3 jaw self centering lathe chuck

Share on (62540433968):


Price:$191.00

Quantity:


Product Overview

Description



K11 SERIES SHORT-TAPER THREE-JAW SELF-CENTERING CHUCKS
*Mounted directly with the machine spindle nose and with nice rigidty and high accuracy.
*The chuck mounting types are classified as from A1, A2, C and D. The connecting dimensions conform to GB/T5900.1-GB/T5900.3(ISO702) standards.
*The structure types of jaws are classified as one-piece jaws, two-piece jaws from A, from C and from D.
*The body material are classified as wear-resisting alloy cast iron.
Short-Taper Chucks Characteristic Parameters:


Size
Max. Input Torque
Max. Speed
Gray Cast Iron
Nodular Cast Iron
Steel
125
100
3000
3800
4900
160
160
2500
3000
3800
200
250
2000
2500
3000
250
320
1600
2000
2400
315/325
400
1200
1500
1900
380/400
500
1000
1200
1500
500
630
800
1000
1200
630
800
600
800
1000


Size
Series No.
I
II
III
Mtg. Form
A1
A2
C, D
A1
C, D
A1
A2
C, D
Short Taper No.
125
-
-
3
-
4
-
-
-
160
-
-
4
-
5
-
-
3
200
5
-
5
6
6
-
4
4
250
6
-
6
8
8
5
5
5
315
8
-
8
-
16
6
6
6
400
11
-
11
-
15
8
8
8
500
15
-
15
-
-
11
11
11
630
15
15
15
-
20
-
11
11


Product Description


K11 SERIES SHORT-TAPER THREE-JAW SELF-CENTERING CHUCKS

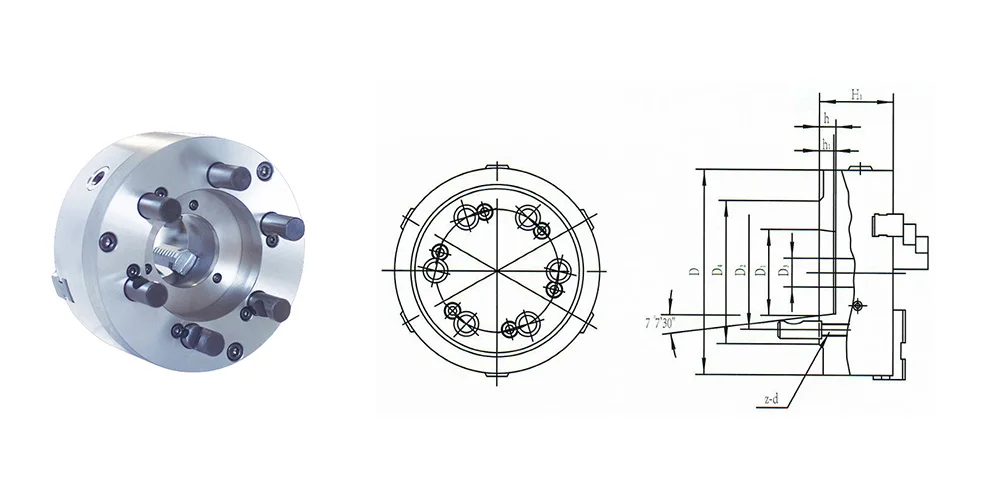

*Form D mounting with studs and lock nuts.


Specification


Model
D
D1
D2
D3
D4
H1
h
h1
125D3
125
53.975
70.6
25
92
63
13
10
125D4
125
63.513
82.6
25
117
63
13
10
160D3
160
53.975
70.6
40
92
76
13
10
160D4
160
63.513
82.6
40
117
70
13
10
160D5
160
82.563
104.8
40
146
73
15
12
200/D4
200C/D4
200
63.513
82.6
50
117
86
13
10
200/D5
200C/D5
200
82.563
104.8
50
146
86
15
12
200/D6
200C/D6
200
106.375
133.4
50
181
86
16
13
250/D5
250C/D5
252
82.563
104.8
70
146
95
15
12
250/D6
250C/D6
252
106.375
133.4
70
181
98
16
13
250/D8
250C/D8
252
139.719
171.4
80
225
98
18
14
325/D6
325C/D6
325
106.375
133.4
100
181
103.5
16
13
325/D8
325C/D8
325
139.719
171.4
105
225
103.5
18
14
325/D11
325C/D11
325
196.869
235
105
290
106
20
16
380/D8
380C/D8
380
139.719
171.4
130
225
118
18
14
380/D11
380C/D11
380
196.869
235
135
290
118
20
16
500D/D11
500
196.869
235
190
290
135
20
16
500D/D15
500
285.775
330.2
210
400
135
21
17
630/D11
630
196.869
235
190
290
150
20
16
630/D15
630
285.775
330.2
210
400
150
21
17


z-d
Net Weight
3-M10x1
-
3-M10x1
-
3-M10x1
10
3-M10x1
10
6-M12x1
10
3-M10x1
17
6-M12x1
17
6-M16x15
17
6-M12x1
31
6-M16x15
32
6-M12x1
32
6-M16x15
51
6-M20x15
51
6-M22x15
53
6-M20x1.5
81
6-M22x15
81
6-M22x15
159
6-M24x15
159
6-M22x15
159
6-M24x15
159
