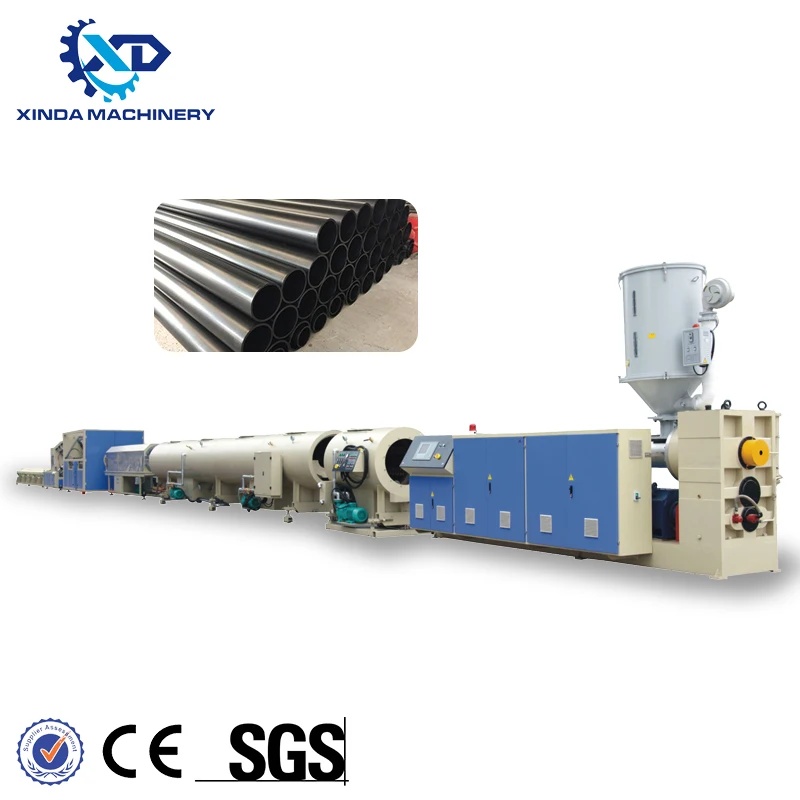

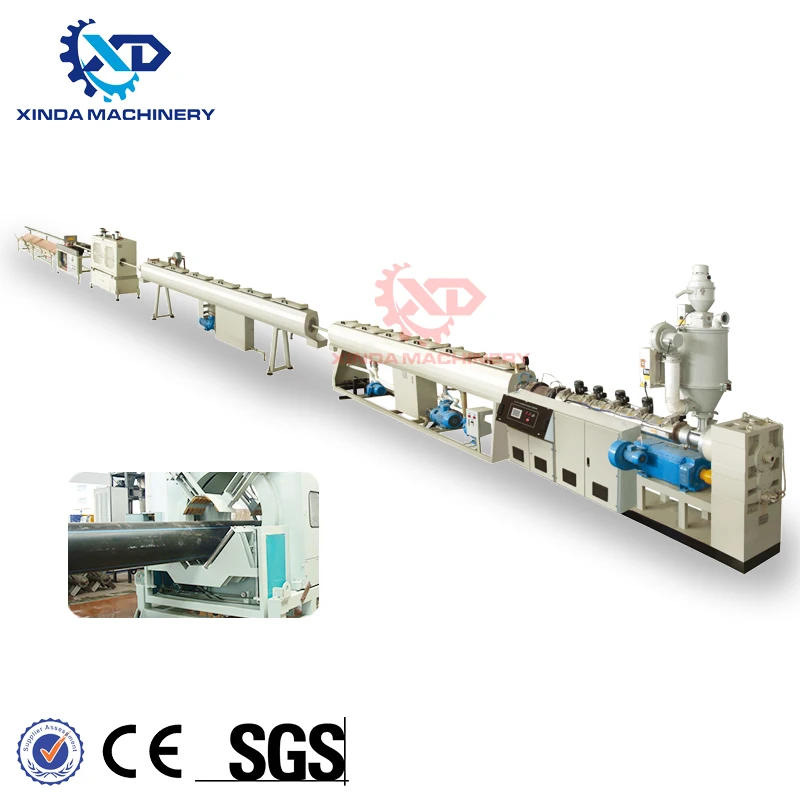

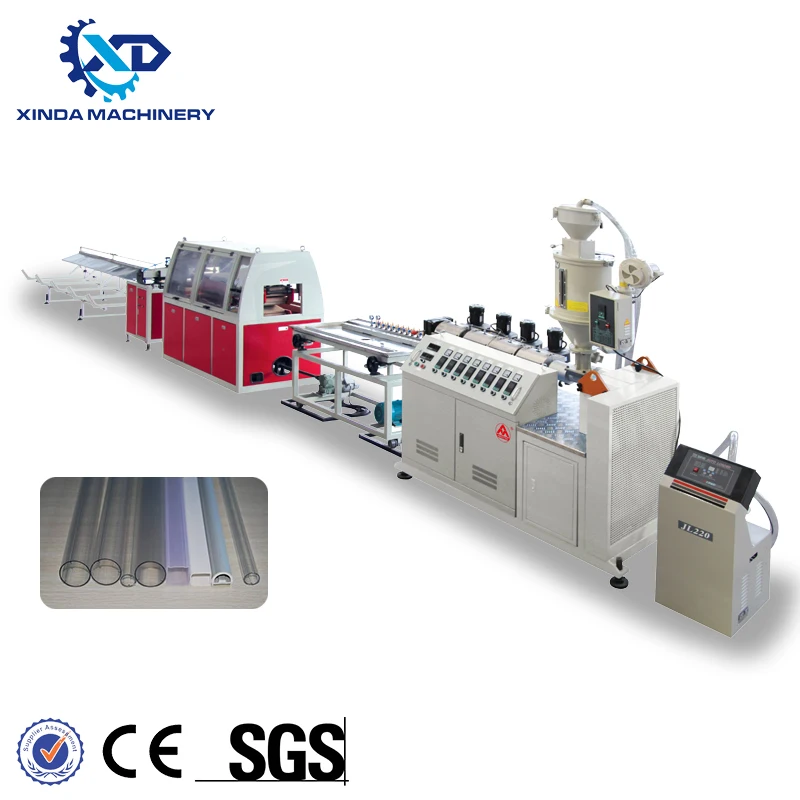

Automatic pvc pe plastic medical pipe making machine verified by CE SGS
- Category: >>>
- Supplier: Zhangjiagang Xinda Plastic Machinery Co. Ltd.
Share on (62540537028):
Product Overview
Description
PRODUCT CATALOG
21 Years Experience China Top Manufacturer in Plastic Machinery.
PRODUCT DESCRIPTION
21 Years Experience China Top Manufacturer in Plastic Machinery.

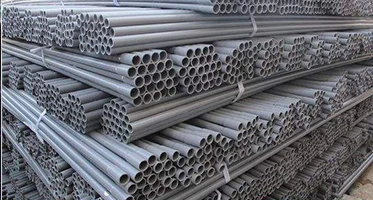

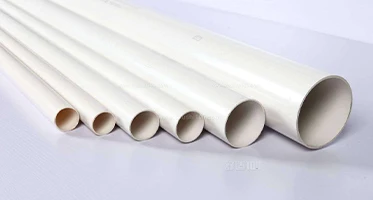

FINAL PRODUCTS

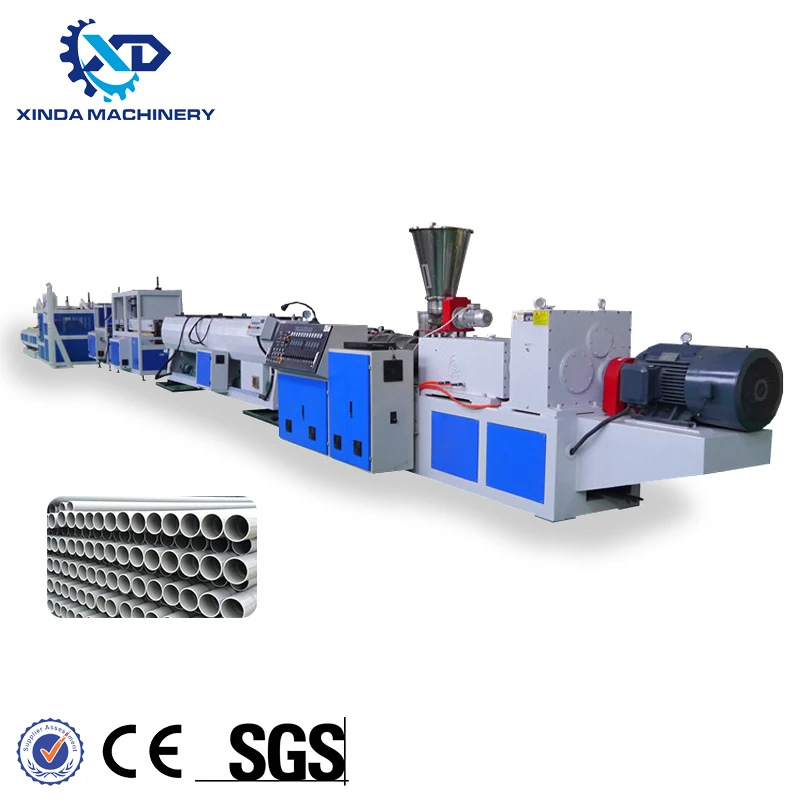

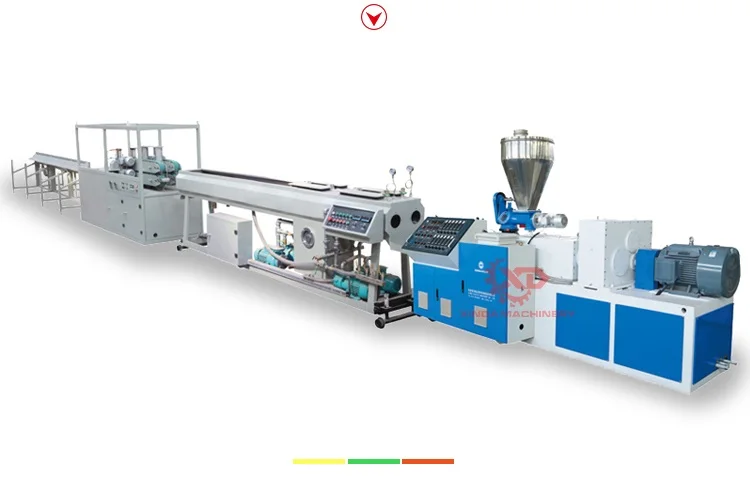

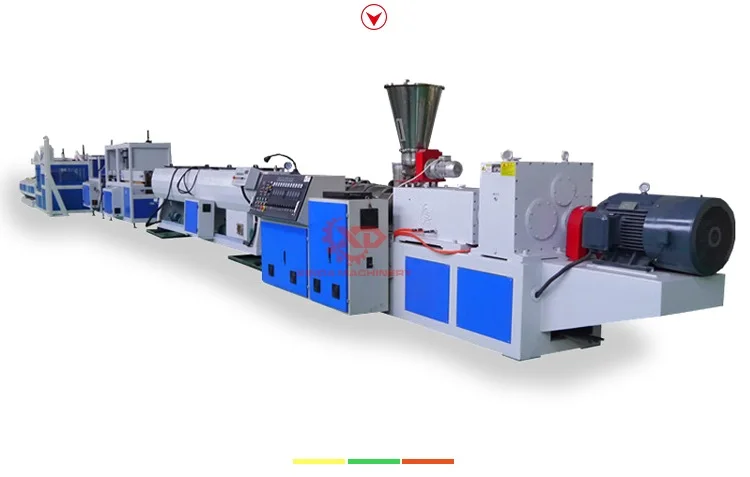

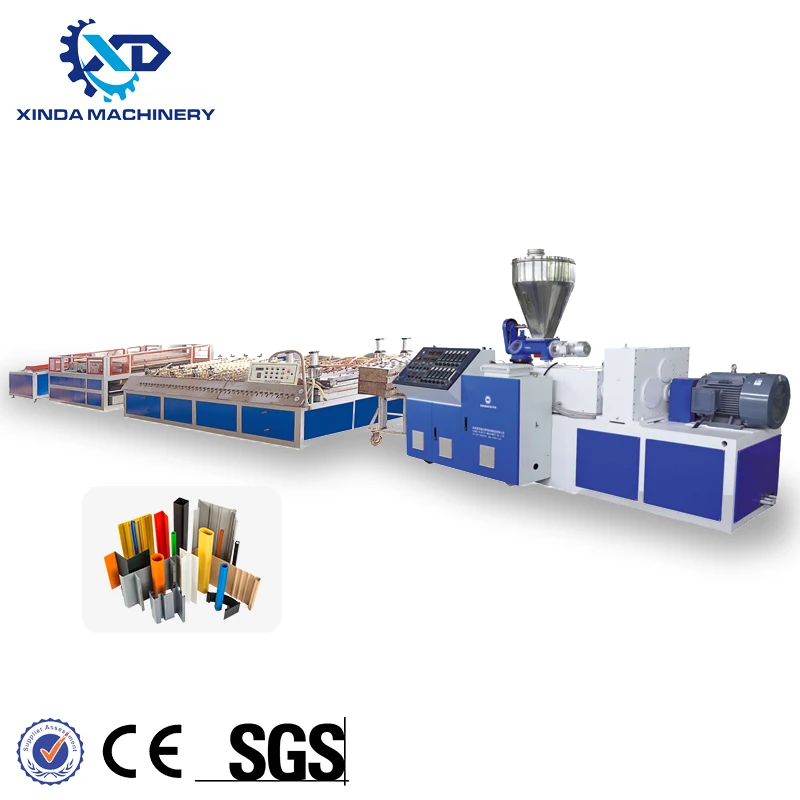

PVC Pipe Production Machine.

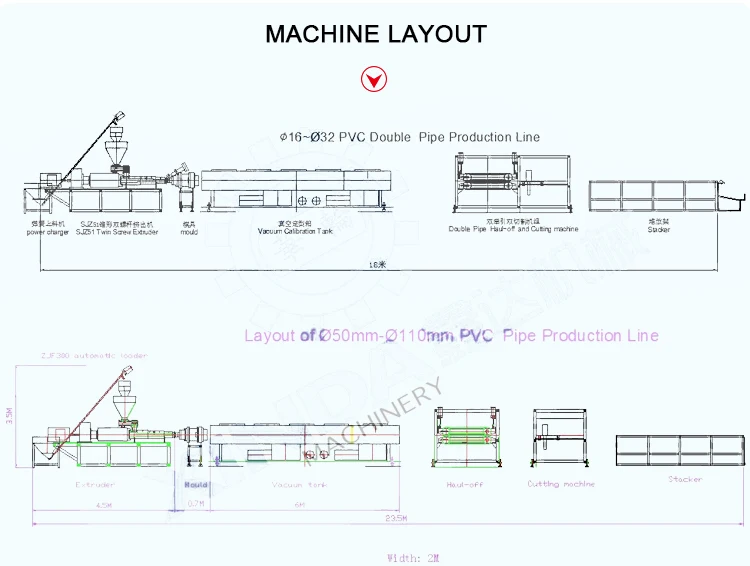

Production process raw material auxiliary preparation → mixing → feeding and feeding → forced feeding → conical twin screw extruder → extrusion die → sizing sleeve → spray vacuum setting box → immersion cooling water tank → ink printing machine → crawler → Cutter lift cutting machine → Pipe stacking rack → Finished product inspection and packaging
The rigid PVC plastic pipe production line mainly has various pipe diameters in agricultural water supply and drainage, construction water supply and drainage, cable laying and other aspects, and the thickness of the plastic PVC pipe. Machine, turning frame and so on. Screw extruder and traction machine adopt imported AC frequency conversion speed regulation setting, vacuum pump and traction motor both use high-quality products.
The rigid PVC plastic pipe production line mainly has various pipe diameters in agricultural water supply and drainage, construction water supply and drainage, cable laying and other aspects, and the thickness of the plastic PVC pipe. Machine, turning frame and so on. Screw extruder and traction machine adopt imported AC frequency conversion speed regulation setting, vacuum pump and traction motor both use high-quality products.
1 - Automatic Loader.
Automatic feeding machine is specially designed and manufactured for the plastics and powder production and processing industry. The contact part of the machine is mainly made of stainless steel. It can be used with various specifications of extruder, high-speed mixer, and plastic mixer. It is widely used in various types Feeding (feeding) of powdery, granular, recycled and broken materials.

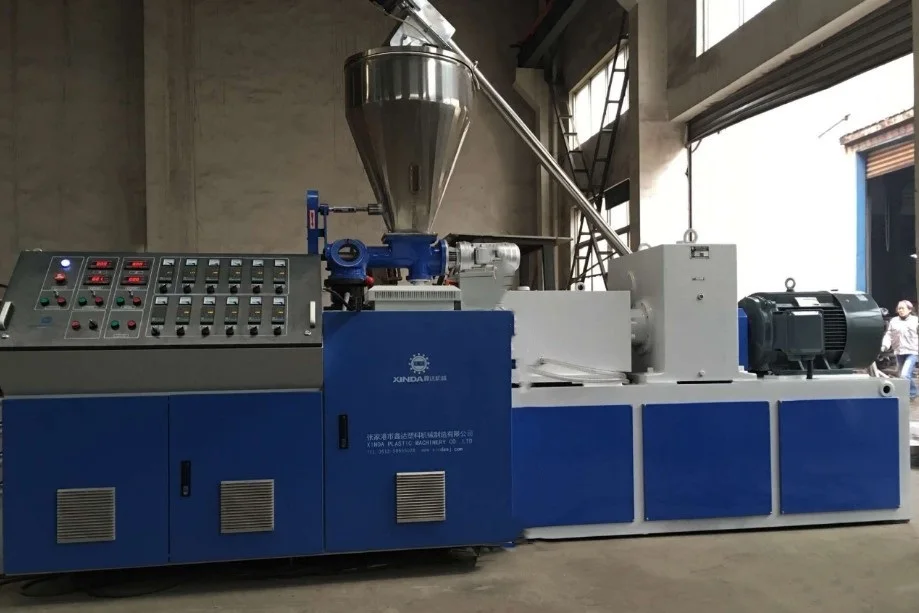

2 - SJSZ80/156 Conical Twin Screw Extruder.
The twin-screw extruder was developed on the basis of a single-screw extruder. It has been widely used in extruded products due to its good feed performance, mixing and plasticizing performance, exhaust performance, and extrusion stability Molding process.
1-Wear condition 2-Reduce production costs
3-Improve labor efficiency 4-High torque, high speed
5-high output, high quality 6-Wide range of applications
3-Improve labor efficiency 4-High torque, high speed
5-high output, high quality 6-Wide range of applications

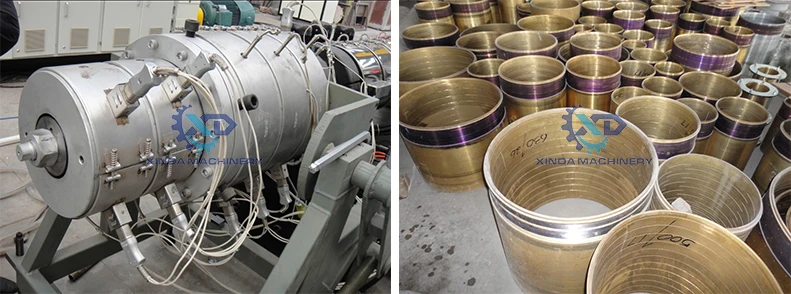

3. Head and Tooling(Ø75mm to Ø250mm).
1 - Diameter range: Ø75mm to Ø250mm
2 - Material of the mould body: Steel 45#(superior mold steel)
3 - Material of the inner parts in mould : 40Cr(superior mould steel)
4 - Material of calibrator: Stannum Bronze
5 - Pipe pressure: As customer's requirements
2 - Material of the mould body: Steel 45#(superior mold steel)
3 - Material of the inner parts in mould : 40Cr(superior mould steel)
4 - Material of calibrator: Stannum Bronze
5 - Pipe pressure: As customer's requirements

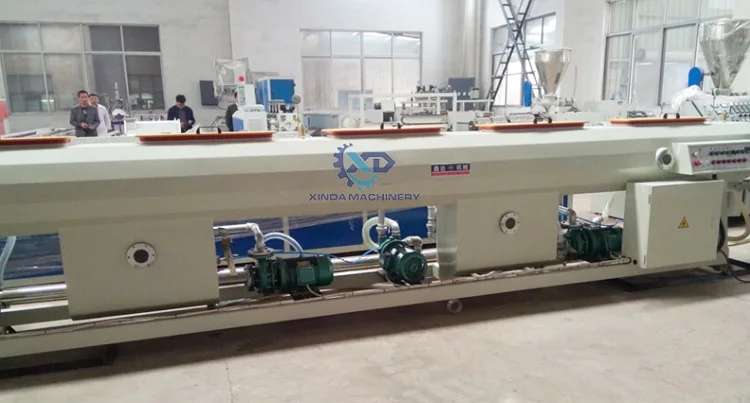

4. Vacuum Tank.
Function: calibrate the outer diameter and cooling the pipe
1 - Length: 6000mm
2 - Material of tank: stainless steel
3 - Cooling Type: Water Spray-pouring cooling
4 - Water Pump power: 4KWX2
5 - Vacuum Pump of Yuhuan brand: 3KWX2
Three direction adjustment:
6 - Forward and Backward: 1.5Kw motor, Range: ±1000mm
7 - Up and down, left and right manually adjusted
\tRange: up and down: ±150mm
LEFT and RIGHT moving: ±50mm
1 - Length: 6000mm
2 - Material of tank: stainless steel
3 - Cooling Type: Water Spray-pouring cooling
4 - Water Pump power: 4KWX2
5 - Vacuum Pump of Yuhuan brand: 3KWX2
Three direction adjustment:
6 - Forward and Backward: 1.5Kw motor, Range: ±1000mm
7 - Up and down, left and right manually adjusted
\tRange: up and down: ±150mm
LEFT and RIGHT moving: ±50mm

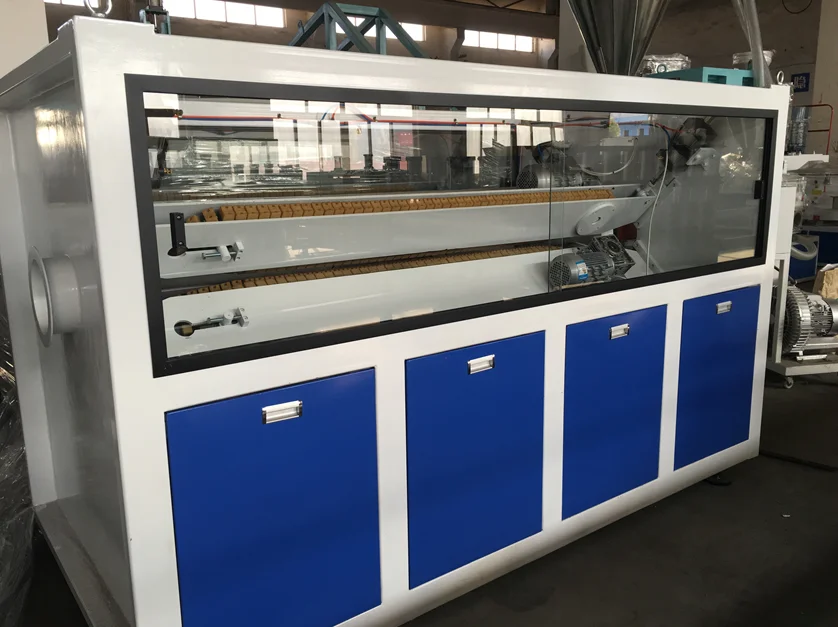

5. Three-pedrail Tractor.
﹡3-pedrials haul, steady and powerful hauling
﹡Pneumatic clamping, variable frequency speed adjusting
﹡adopt famous brand cylinder with durable quanlity
﹡It including extra set of chain wheel to balance the tractor speed between the smallest pipe and biggest pipe .
Function:
Draw PVC pipe forward stably, the speed is synchronized with extruder speed.
﹡Pneumatic clamping, variable frequency speed adjusting
﹡adopt famous brand cylinder with durable quanlity
﹡It including extra set of chain wheel to balance the tractor speed between the smallest pipe and biggest pipe .
Function:
Draw PVC pipe forward stably, the speed is synchronized with extruder speed.

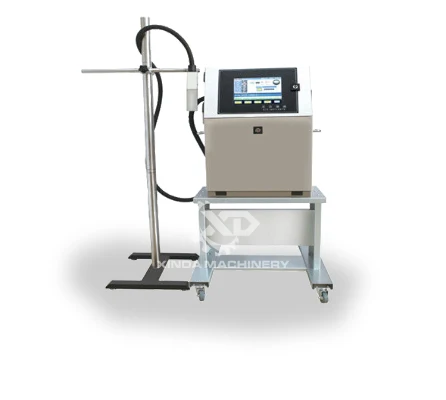

6.Automatic Pipe Printer.
Application：spray the words on the surface of PVC pipe
1\tPrinting Mode:Marks spraying
2\tWord Style:Imitating Computer Sprinkle Word Style
3\tPower supply:160—220V / 50—60HZ
4\tWorking Environment:Any
5\tWorking temperature:5-45℃
6\tWorking humidity:30-90 %( non-condensing)
7\tInk & Makeup:Unique hydraulic system design, lowest makeup consumption;
2\tWord Style:Imitating Computer Sprinkle Word Style
3\tPower supply:160—220V / 50—60HZ
4\tWorking Environment:Any
5\tWorking temperature:5-45℃
6\tWorking humidity:30-90 %( non-condensing)
7\tInk & Makeup:Unique hydraulic system design, lowest makeup consumption;

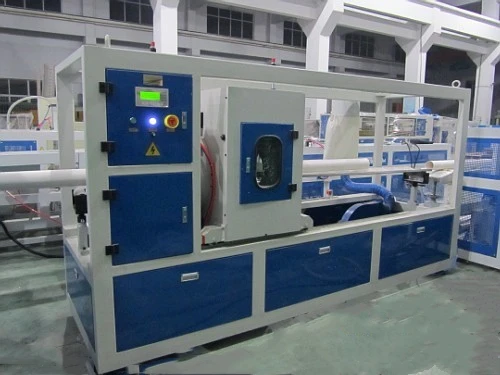

7. Planetary Cutter.
﹡PLC control、planetary cutting、hydraulic cutting feeding
﹡Pneumatic clamping and releasing, Pneumatic cutting return
﹡Clamping tools adopt superior quality aluminum alloy
﹡Saw blade adopts carbide blade
Function:
Meter counting automatic cutting PVC pipe in fixed length
﹡Pneumatic clamping and releasing, Pneumatic cutting return
﹡Clamping tools adopt superior quality aluminum alloy
﹡Saw blade adopts carbide blade
Function:
Meter counting automatic cutting PVC pipe in fixed length
8.SGK75-250mm Automatic belling machine.
1 - Briefly of the machine
2 - Hydyaulic system
3 - Heating Oven
4 - Pneumatic system
5 - Electric control system
6 - Mold forming system
2 - Hydyaulic system
3 - Heating Oven
4 - Pneumatic system
5 - Electric control system
6 - Mold forming system

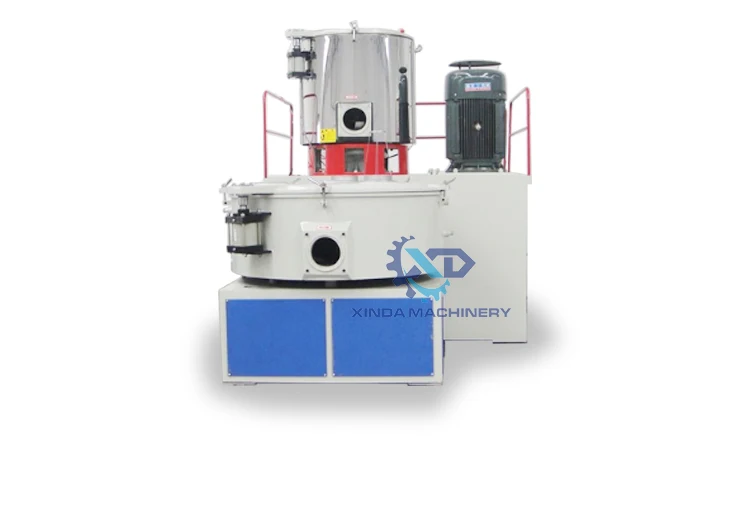

9. SRL-Z 500/1000 Mixer.
1\tTotal volume of hot mixer: 500L
2\tEffective volume of hot mixer: 380L
3\tMaterial weight/batch: 200kg/batch
4\tOutput: 880kg/h
5\tMotor power: 75KW(Siemens)
6\tInverter: ABB
7\tHeating way: Electric heating and friction heating
2\tEffective volume of hot mixer: 380L
3\tMaterial weight/batch: 200kg/batch
4\tOutput: 880kg/h
5\tMotor power: 75KW(Siemens)
6\tInverter: ABB
7\tHeating way: Electric heating and friction heating

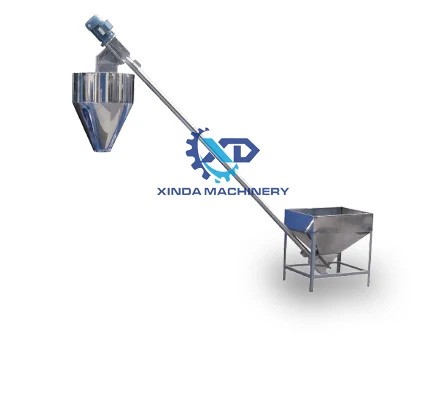

10. ZD3000 Screw Loader.
1 Transport tube diameter: 133mm
2 Charging motor power: 2.2KW
3 Push material motor power: 1.1KW
4 Charge capacity: 3000Kg/h
5 Storage volume: 200kg
6 Material of storage hopper and tube: Stainless steel

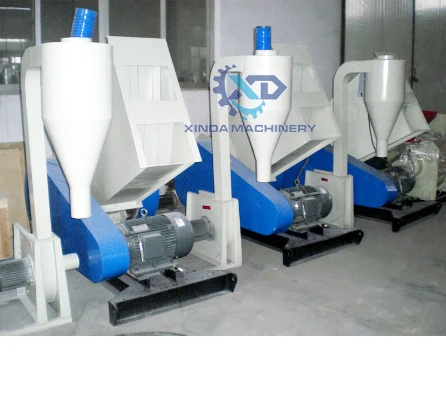

11.Plastic Crusher.
Diameter of Rotating blades: 500mm
Rotating blade quantity: 6
Rotating speed: 380r/min
Fixed blade quantity: 2
Aperture of screen: 10mm
Max Crushing capacity: 500kg/h
Power: 22kw
Feeding mouth: 550×380mm
Weight: 580kg
Size: 2000×1190×1790mm
Rotating blade quantity: 6
Rotating speed: 380r/min
Fixed blade quantity: 2
Aperture of screen: 10mm
Max Crushing capacity: 500kg/h
Power: 22kw
Feeding mouth: 550×380mm
Weight: 580kg
Size: 2000×1190×1790mm

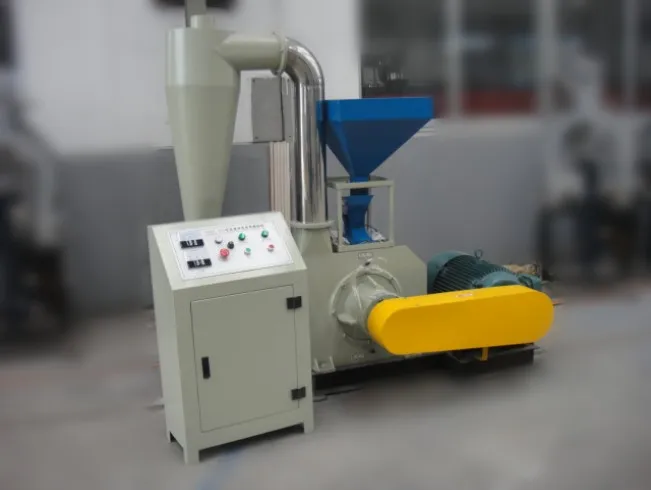

12.Mill.
Rotor size：400mm
Milling Chamber Size：4000cm2
Motor power：30KW
Main shaft speed：2200r/min
Output：30-100Kg/h
Cooling method：Water cooling
Final powder：80mesh(could be customized)
Weight：1000kg
Sizes：500×1500×1600
Milling Chamber Size：4000cm2
Motor power：30KW
Main shaft speed：2200r/min
Output：30-100Kg/h
Cooling method：Water cooling
Final powder：80mesh(could be customized)
Weight：1000kg
Sizes：500×1500×1600
PRODUCT PARAMETERS
21 Years Experience China Top Manufacturer in Plastic Machinery.
PVC Pipe Production Machine | ||||||||||
Model | Tube Diameter Range | Main Machine Model | Maximum Extrusion | Maximum Production Speed | Power | |||||
XD-63PVC | Φ16-Φ63 mm | XD-65 | 180KG/H | 12m/min | 93 | |||||
XD-160PVC | Φ50-Φ160 mm | XD-65 | 250KG/H | 10m/min | 90 | |||||
XD-250PVC-A | Φ75-Φ250 mm | XD-65 | 250KG/H | 8m/min | 110 | |||||
XD-250PVC-B | Φ75-Φ250 mm | XD-80 | 450KG/H | 8m/min | 135 | |||||
XD-400PVC | Φ160-Φ400 mm | XD-80 | 450KG/H | 3m/min | 170 | |||||
XD-630PVC | Φ315-Φ630 mm | XD-92 | 700KG/H | 1m/min | 210 | |||||
Would like to know more about Xinda Machinery, contact us for more machine details! | ||||||||||
PACKAGING & SHIPPING
Packaging.
Machine: Wood pallet covered by plastic film
Shipping.
35 working days since receiving advance payment.
WHY CHOOSE XINDA MACHINERY
21 Years Experience China Top Manufacturer in Plastic Machinery.
XINDA MACHINERY.
Zhangjiagang Xinda Plastic Machinery Co., Ltd. is appointed to produce plastic machinery
and related products. We have been dedicated to this industry for over 15 years with strong
technology, rich experience and good after-sales service.
1 / Professional installation team who can speak fluent English can help customers
make benefits in a shortest time.
2 / We can produce different products and work out reasonable flow chart as
per customers' requirements to save space.
CERTIFICATES & PATENTS.
International certification, National Certificate of equipment verification, and more than 30 invention patents are done in Xinda Machinery .
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate,
Logo trademark registration, etc.
FAQ
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
1 - If we can fullfill your request and you interested in our products, you may pay a visit to site
2 - The meaning of visiting supplier, because seeing is believing, Xinda Machine with own manufacture and developed & research team, we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
1 - Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy
HOW TO ENSURE THE QUALITY!
1 - In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years
2 - Each component before assembly needs strictly control by inspecting personnel.
3 - Each assembly is in charged by a master who has working experience for more than 5 years
4 - After all the eguipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE!
1 - After ninish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
2 - After the commissioning, we will package the equipment by standard export package for shipment.
3 - According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
4 - Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
1 - If we can fullfill your request and you interested in our products, you may pay a visit to site
2 - The meaning of visiting supplier, because seeing is believing, Xinda Machine with own manufacture and developed & research team, we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
1 - Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy
2 - By letter of credit, you can lock the delivery time easily.
3 - After the factory visit, You can ensure the facticity of our bank account.
HOW TO ENSURE THE QUALITY!
1 - In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years
2 - Each component before assembly needs strictly control by inspecting personnel.
3 - Each assembly is in charged by a master who has working experience for more than 5 years
4 - After all the eguipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE!
1 - After ninish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
2 - After the commissioning, we will package the equipment by standard export package for shipment.
3 - According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
4 - Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
