Product Overview

Description

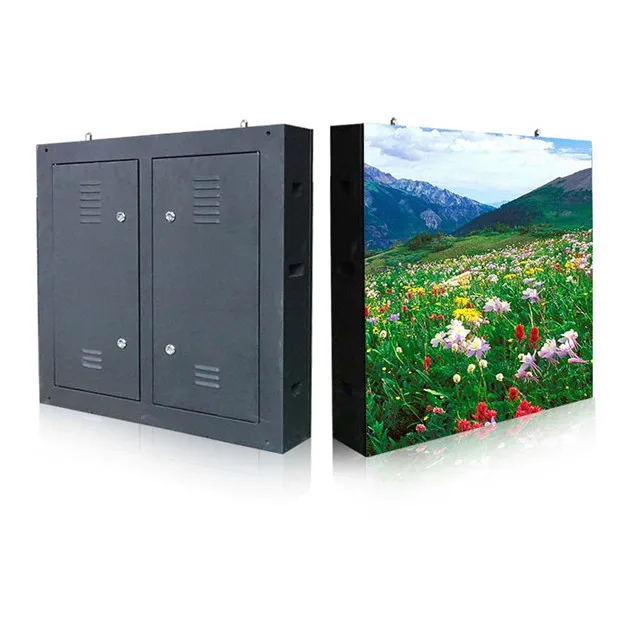

LEEMAN P6 outdoor led video wall billboard 960x960



Outdoor Indoor SMD Full Color Video LED Display P1.25mm / P1.56mm / P1.667mm / P1.875mm / P1.976mm / P2mm / P2.5mm / P2.604mm / P2.976mm / P3mm / P3.33mm / P3.91mm / P4mm / P4.81mm / P5mm / P6mm / P7.625mm / P10mm / P16mm

You could contact us to get a free sample now!

LED Display Screen

LED Display Module

LED Controller card

HDMI video processor

LED Stage light

DLP Projector

LCD Projector

LED light box



Technology Specification Datasheet

S/N	Item	Technical Parameters
LED Parameters
1	Item Name	LED Type	Brightness	Wave Length	H/V  Visual Angle
2	Red LED	SMD3535	600-800mcd	620-625nm	160º/120º
3	Green LED	SMD3535	1800-2000mcd	520-525nm	160º/120º
4	Blue LED	SMD3535	400-600mcd	470-475nm	160º/120º

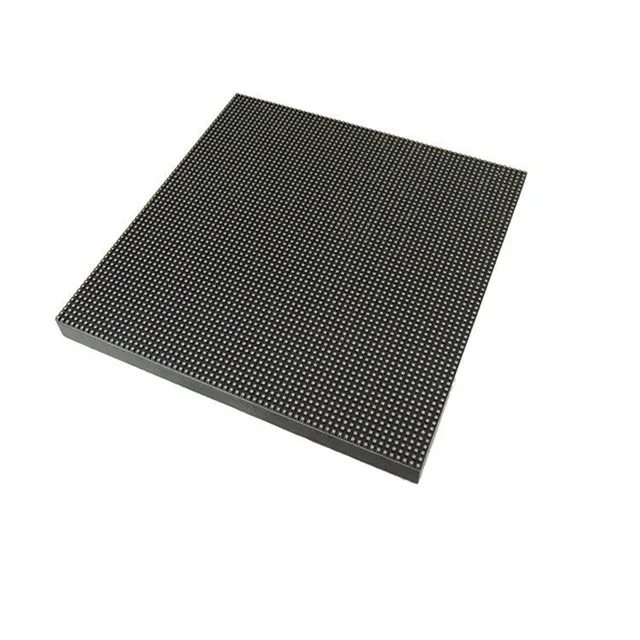

Module Specification
1	Pixel Pitch	6mm
2	Pixel Configuration	1R1G1B(3in1)
3	Module Resolution	32 x 32 pixels
4	Module Pixles	1024 pixels

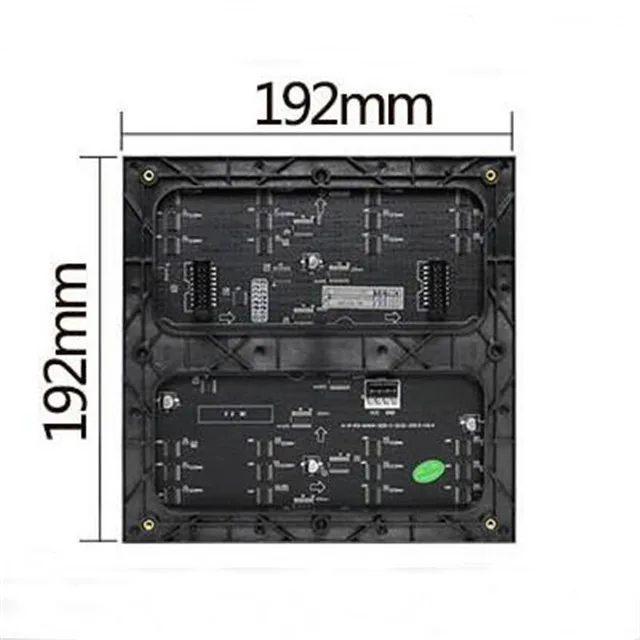

5	Module Size	192mm X 192mm

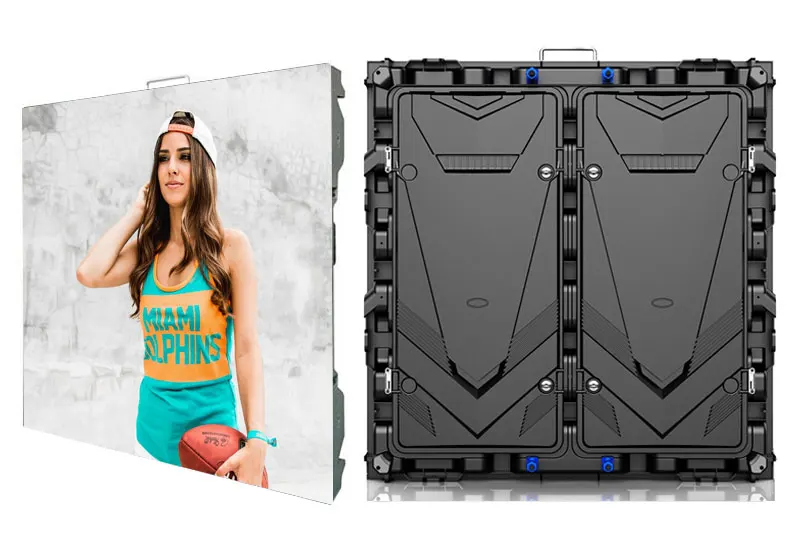

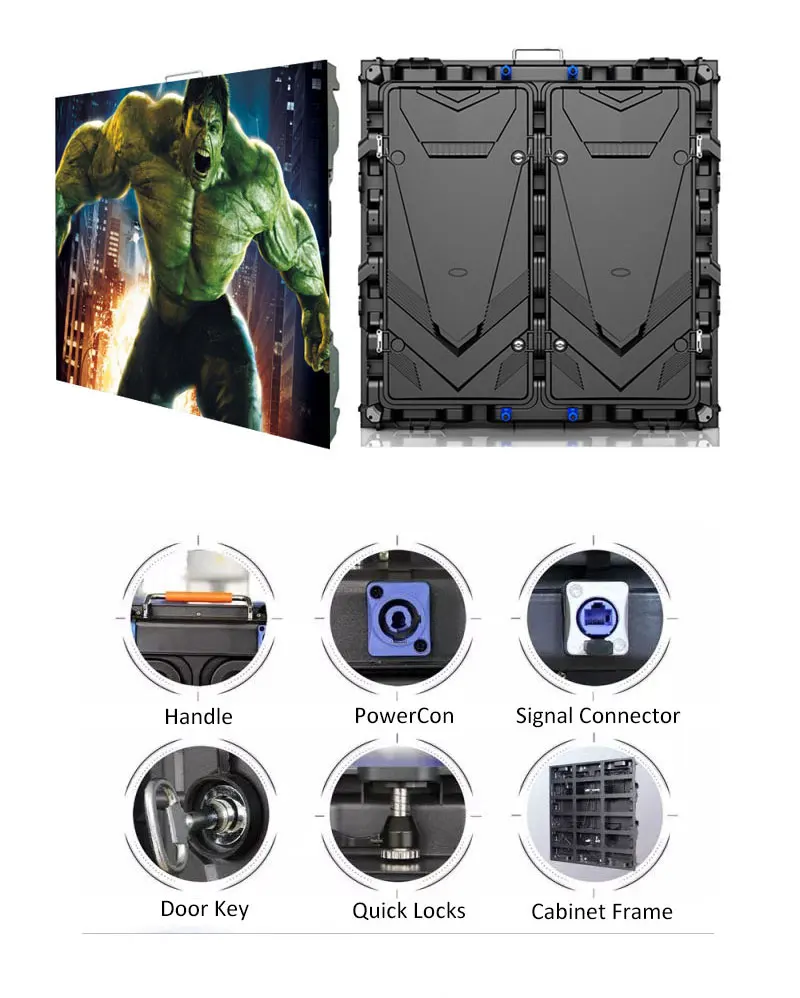

Cabinet Specification
1	Cabinet Size(W X H X D)	960mm x 960mm x 142mm
2	Cabinet Resolution(dot)	160 x 160 pixels
3	Module Quanity (pcs)	25pcs
4	Cabinet Pixels	25600 pixels
5	Pixel Density	27777 pixels/m2
6	Cabinet Materials	Iron or Aluminum
Whole Screen Specification
1	Screen Brightness	≥8000cd/m2
2	Driving Method	1/8 scan
3	Best Viewing Distance	6m - 40m
4	Max. Power Consumption	600W/m2
5	Average Power Consumption	300W/m2
6	Gray Level	16bits input, 4096 levels(212)
7	Display Color	256M
8	Frame Frequency	≥60Hz
9	Refresh Frequency	≥3840Hz
10	Uninterrupted Working Hours	≥72 hours
11	Screen Life-span	≥100,000 hours
12	MTBF	≥5,000 hours
13	Discrete Blind Spot Rate	<1/10000
14	Continuous Blind Spot Rate	None
15	Blind Spot Rate	<1/10000
16	Protective Scale	IP68/IP65
17	Screen Plainness	<±1mm
18	Power Supply Mode	AC220±10%  50Hz/AC110±10%  60Hz
19	Environment Temperature & Humidity	Temperature:-20 Celsius~+60 Celsius
		Humidity:10%~90% RH
20	Control Mode	Synchronous display with control PC by DVI
21	Control System	DVI video card + full color control card + fiber system( optional)
22	Display Content	Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
23	Interface	Standard Ethernet
24	Transmission Distance	Multi mode fiber <500m, single mode fiber <30km,internet cable <100m

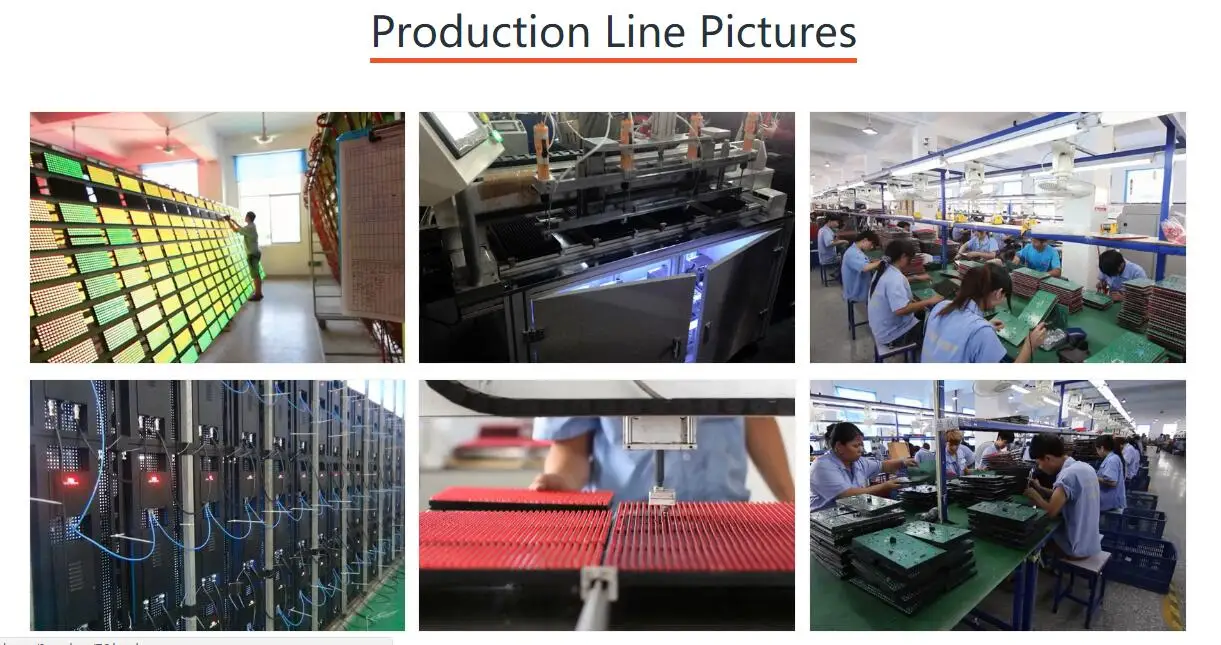

 Production line

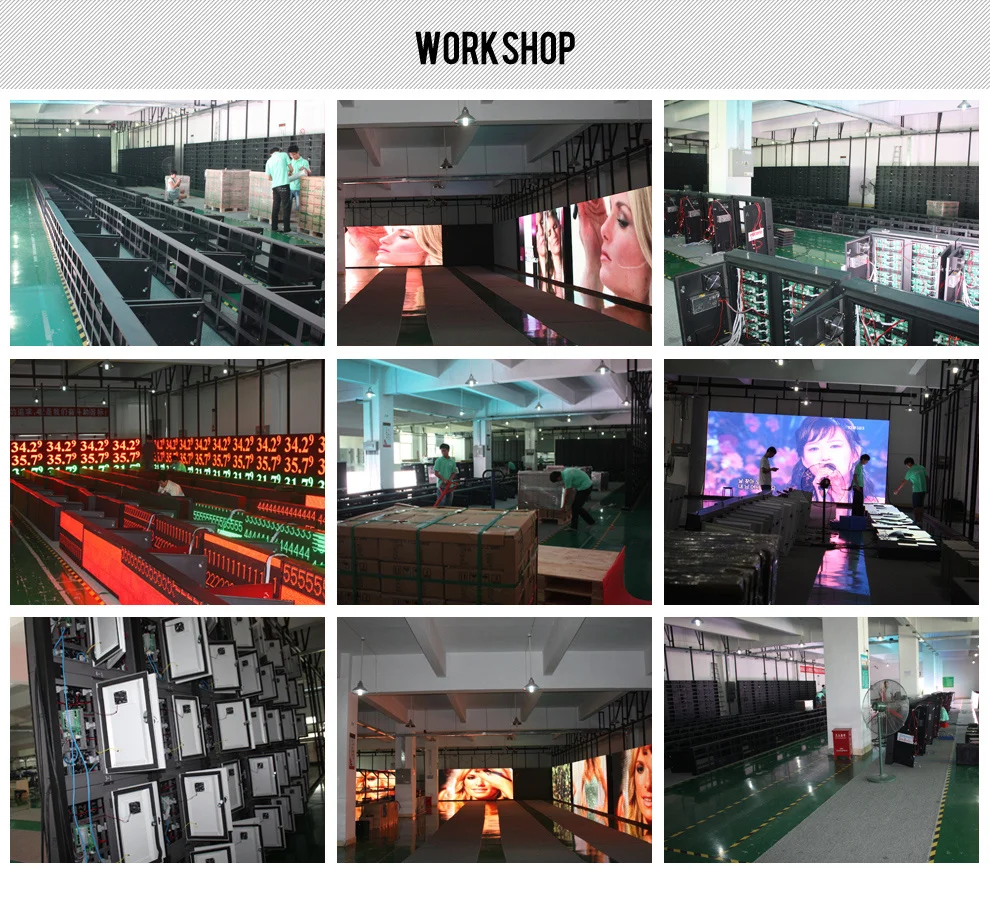

LEEMAN Factory workshop

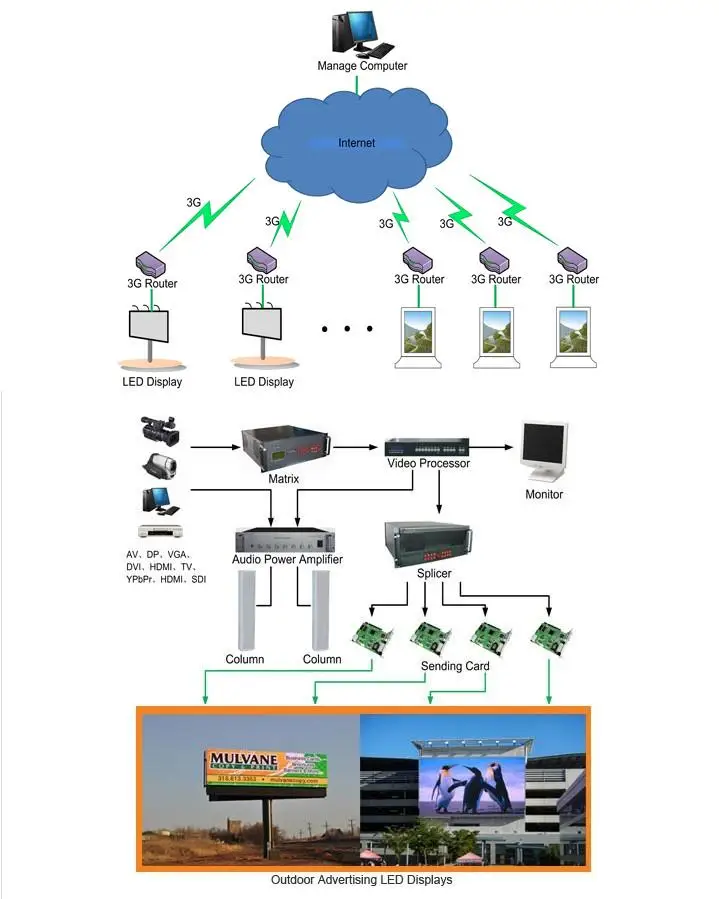

How to connect led display with control system

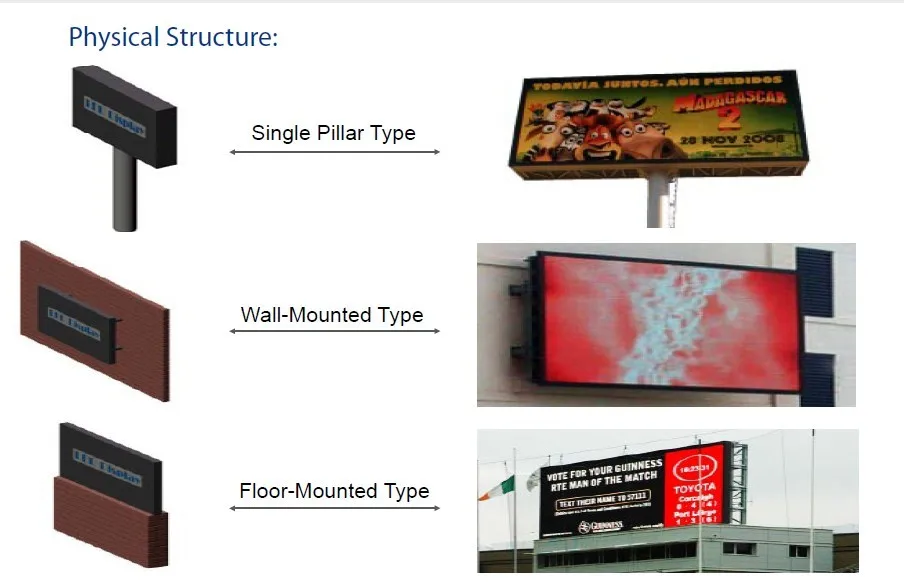

How to install led display

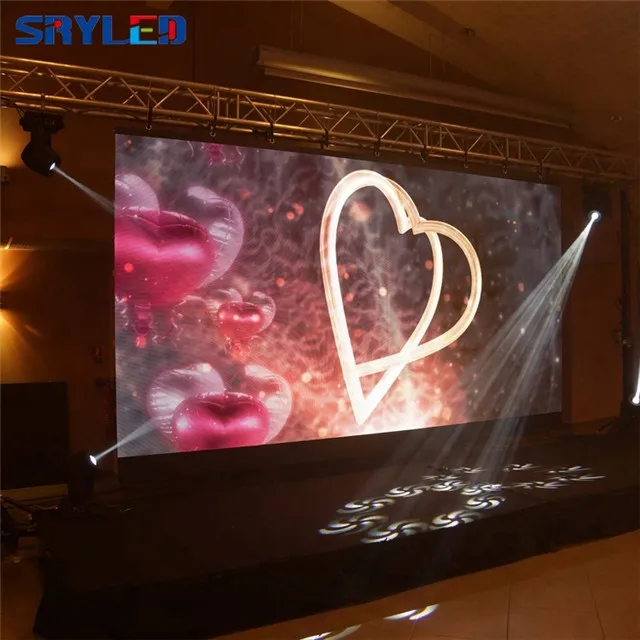

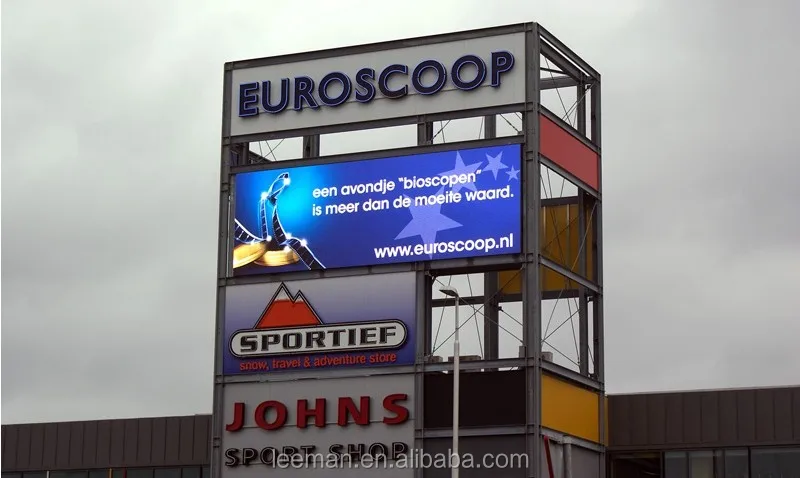

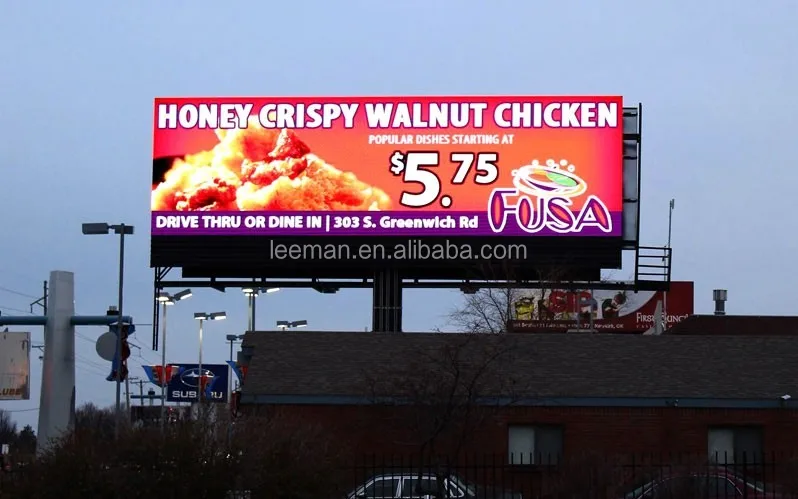

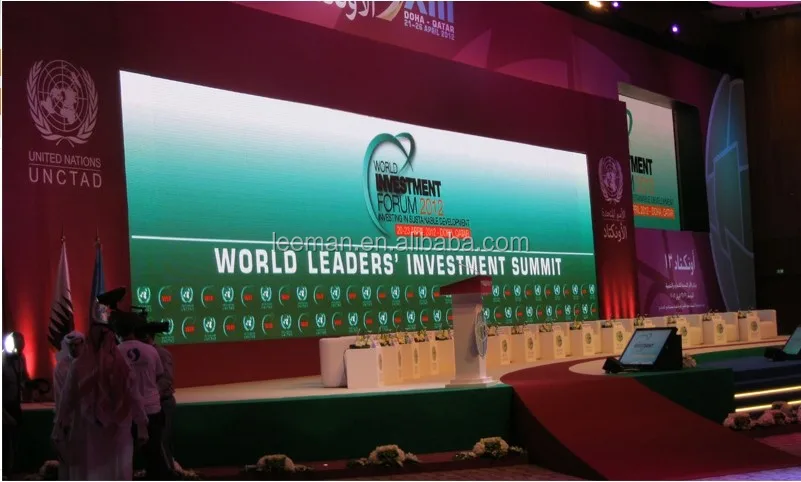

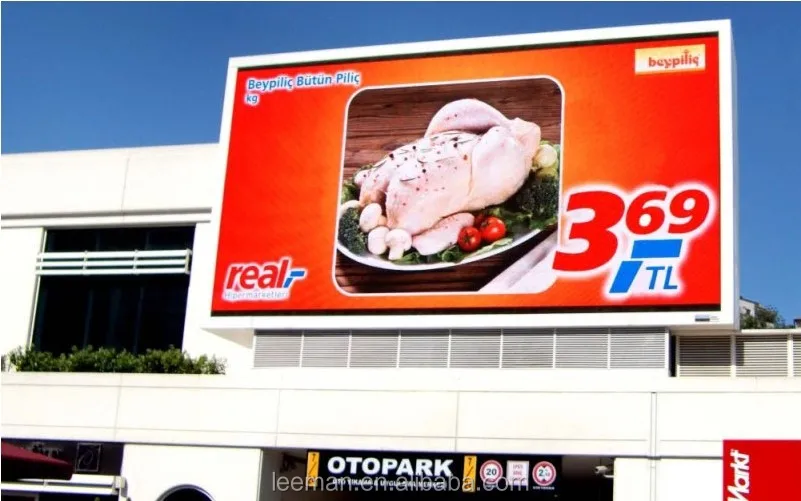

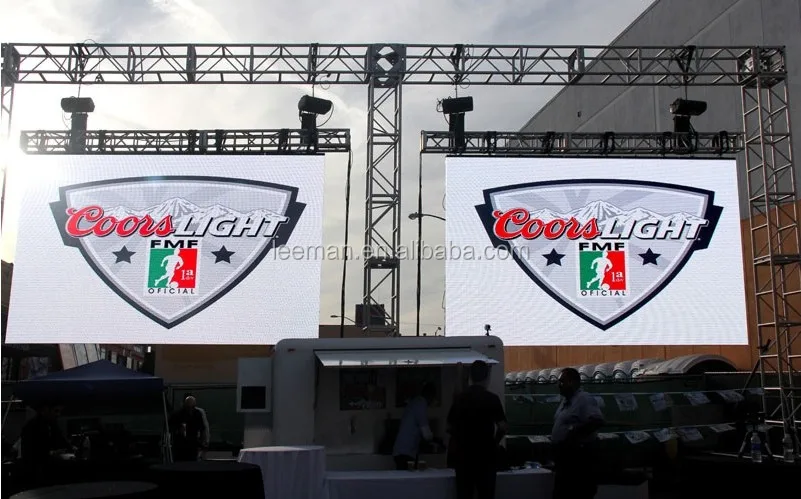

Successful project cases for study
