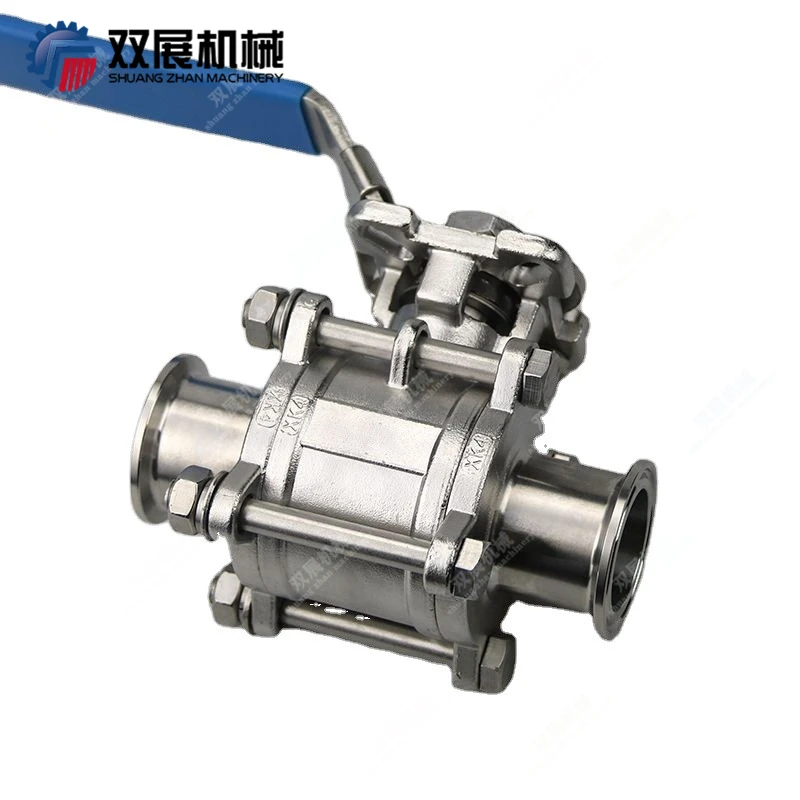

sanitary TC encapsulated ball valve high plate stainless steel SS304 SS316L tri clamp ends manually 1000 WOG
- Category: >>>
- Supplier: Wenzhou Shuangzhan Machinery Co. Ltd.
Share on (62540693050):
Product Overview
Description
3-Piece 2 Way Tri-Clamp End Sanitary Ball Valve with ISO actuated plate
The price is SS304 style, contact me please if you need 316 price.
Size: 1/2"-4" 1000WOG
Thread: AISI304, AISI SS316,SS316L
Size: 1/2"-4" 1000WOG
Thread: AISI304, AISI SS316,SS316L
Product Description
FEATURES:
1. Investment casting body and cap
2. Max.working pressure: 1/4"-2" 1000 psi / 1000 psi, 2-1/2"-4" 600 psi
3. Full cavity filled seats.
4. Blow-out proof stem.
1. Investment casting body and cap
2. Max.working pressure: 1/4"-2" 1000 psi / 1000 psi, 2-1/2"-4" 600 psi
3. Full cavity filled seats.
4. Blow-out proof stem.

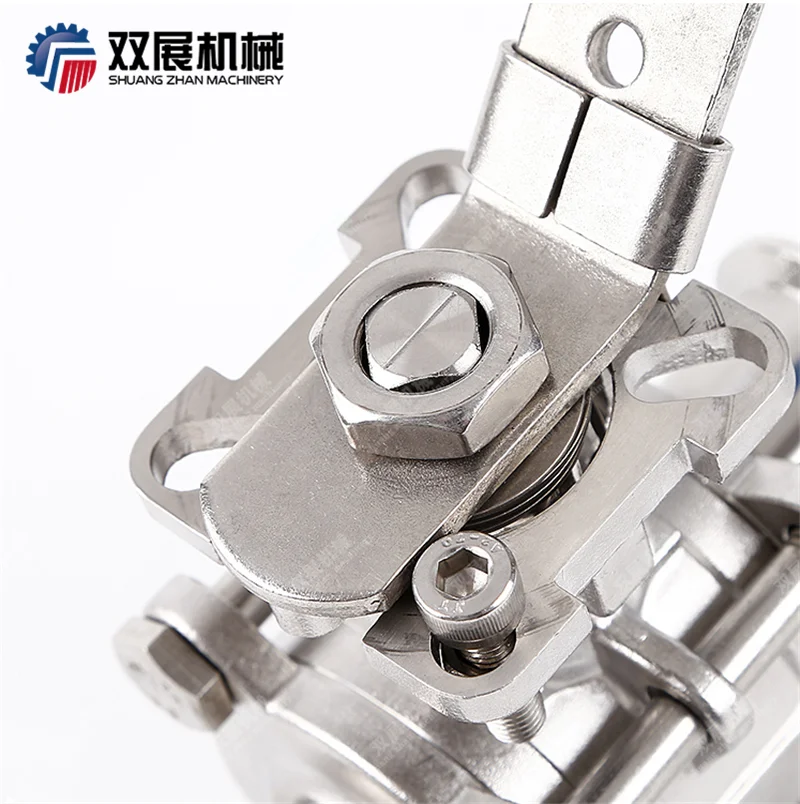

5. ISO 5211 mounting pad.
6. Lever handle
7. 100% leakage tested at 100psi air
8. Temperature:-4 to 356°F (-20 to 180°C)
6. Lever handle
7. 100% leakage tested at 100psi air
8. Temperature:-4 to 356°F (-20 to 180°C)
Features:
1. SS316L or SS304 construction.
2. Great quality PTFE seat.

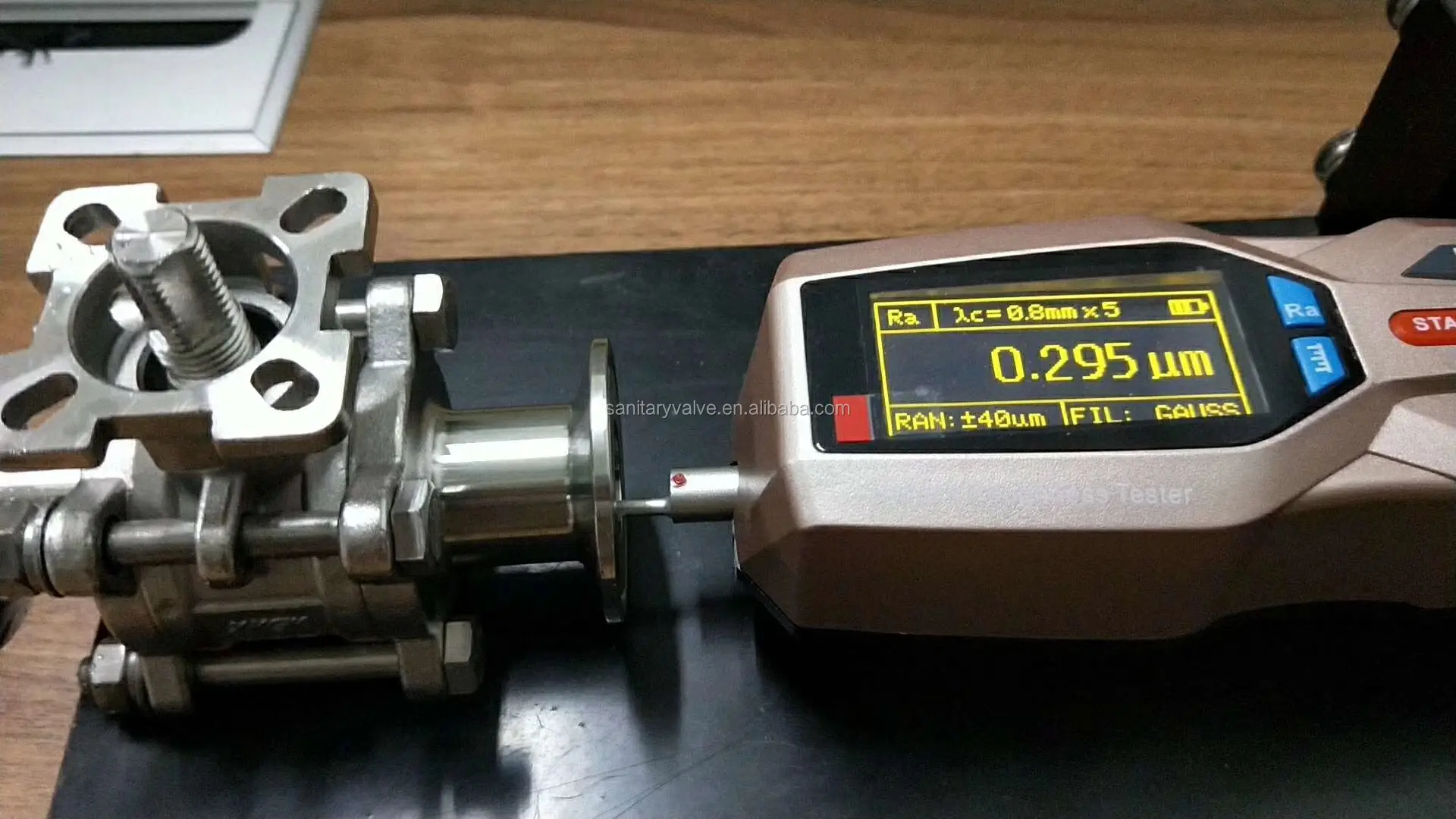

3. 0.295um inside finish, the real food grade.
4. ISO high plate type, manually or actuated durable.
Packing&Shipping
bubble bag-carton-plywood case
Company Introduction
Shuangzhan Machinery (new tek) is a growing factory which focus on developing high quality, intelligent, sanitary valves, equipments used in beverage and dairy field, sanitary pumps, sanitary pipe fittings, and a variety of fluid engineering applications. The products are widely used in wine, food, beverage, pharmaceutical, biopharmaceutical, water treatment, fine chemicals and other industrial fields.
