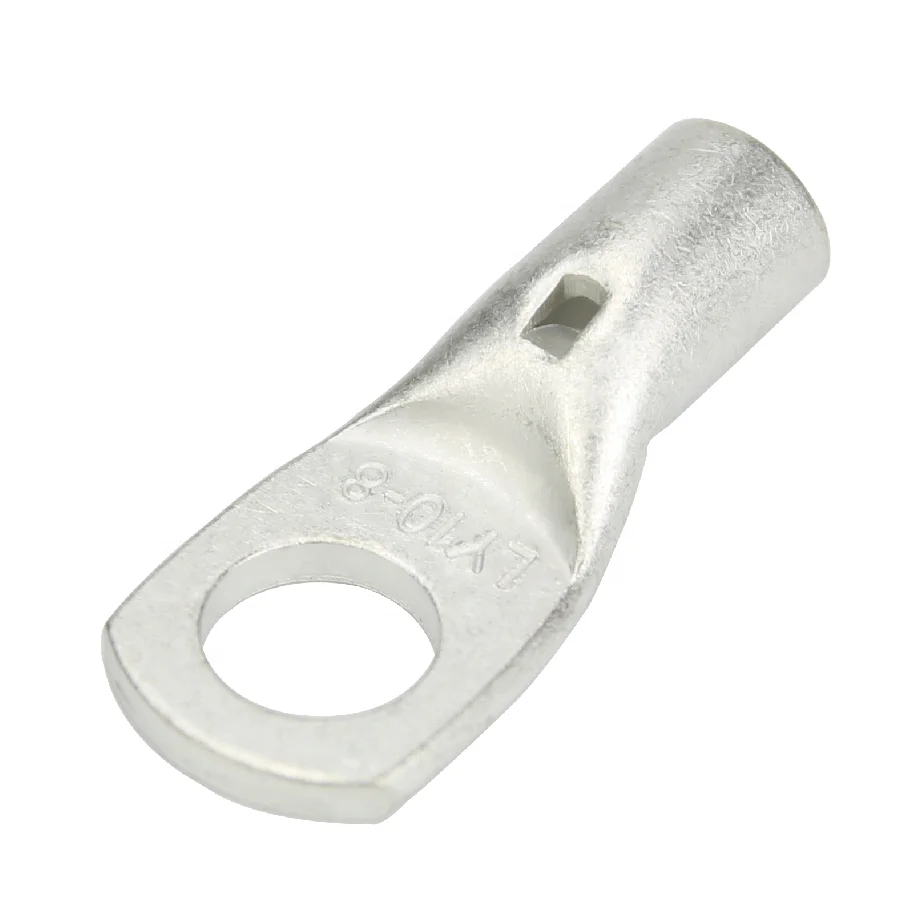

KRF series one hole compression ring cable lug with inspection hole / standard barrel / 600V to 35KV
- Category: Terminals >>>
- Supplier: Zhejiang,Wubai,Power,Fitting,Co.,Ltd.,[Zhejiang,China]Zhejiang
Share on:
Product Overview
Description
Product Description
1. Wire size : AWG 12 - 750 or 6 mm² - 400 mm²
2. Stud size : inch #8 - 3/4'' or 4.0mm - 20mm
3. Standard : DIN EN 61373 class 1B vibration-tested
4. Certification : ISO9001,SGS,CE,ROHS
| Product Name | KRF series Cable lug |
| Material | C11000,C1100,CU-ETP,E-CU58 for high conductivity |
| Surface | Tin-plated to protect against corrosion for Salt spray experiment 48H |
| Hardness | HV: 120 - 70 |
| Maching acuuracy class | High |
| Pullout test | Conform to UL486 standard |
| Contact resistance | Conform to UL486 standard |
| Flammability rating of material | Conform to UL486 standard |
| Specific test date | Please mail us |

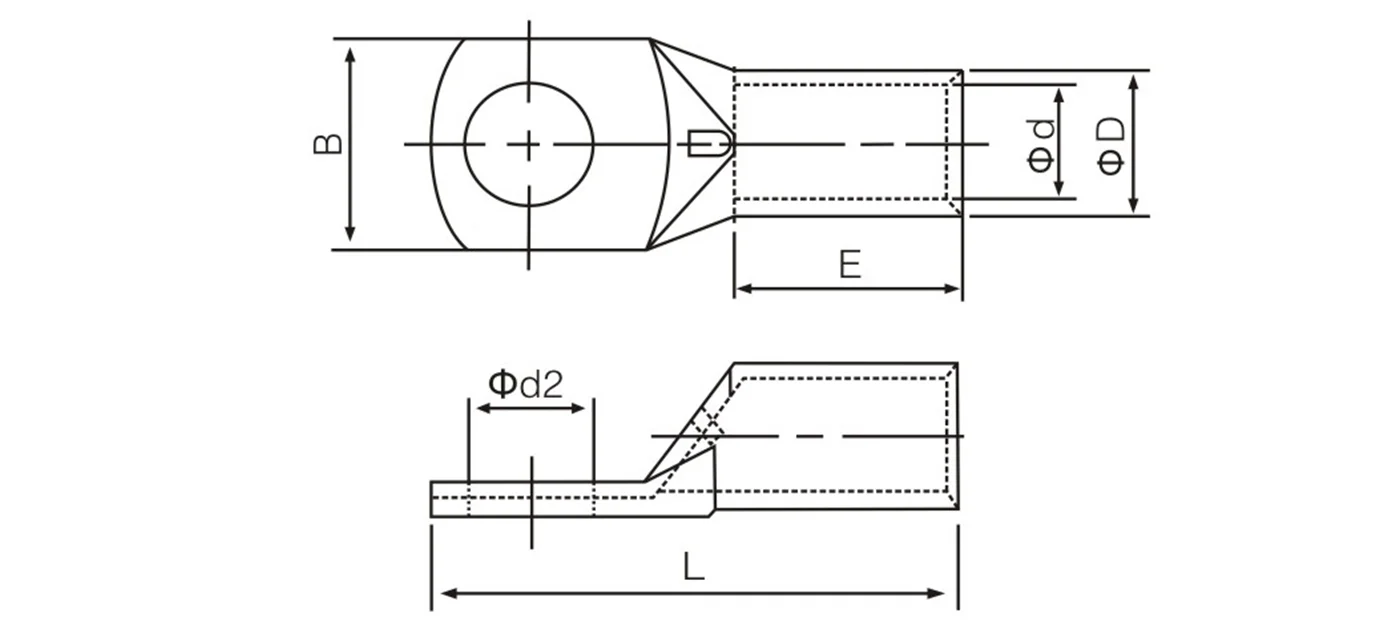

Product Pramater As Following :
| PART NO | ITEM NO. | Dimension(mm) | |||||
| Φd2 | B | L | ΦD | Φd | E | ||
| WB0006-0001 | LYF10-5 | 5.3 | 11.5 | 28 | 8 | 5 | 9 |
| WB0006-0002 | LYF10-6 | 6.5 | 11.5 | 28 | |||
| WB0006-0003 | LYF10-8 | 8.4 | 13.5 | 32 | |||
| WB0006-0004 | LYF10-10 | 10.5 | 16 | 34 | |||
| WB0006-0005 | LYF16-6 | 6.5 | 13 | 33 | 9 | 6 | 10 |
| WB0006-0006 | LYF16-8 | 8.4 | 13 | 33 | |||
| WB0006-0007 | LYF16-10 | 10.5 | 16 | 38 | |||

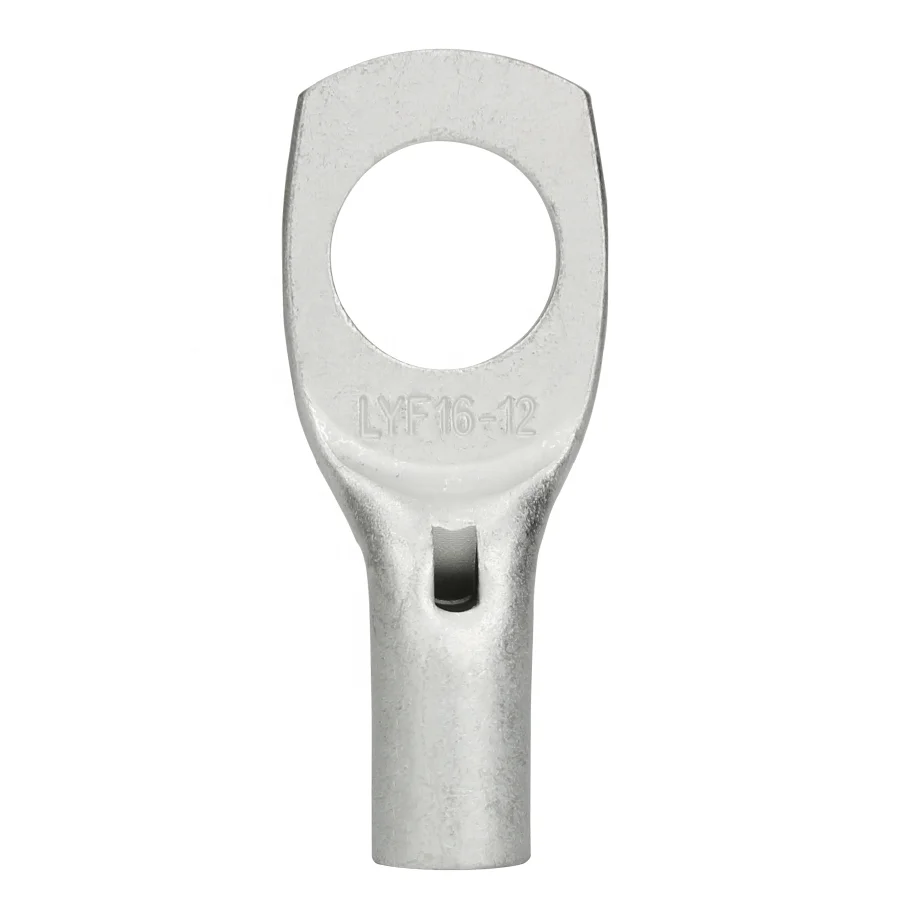

| WB0006-0008 | LYF16-12 | 13 | 22 | 47 | |||
| WB0006-0009 | LYF25-6 | 6.5 | 16 | 37 | 11 | 8 | 11 |
| WB0006-0010 | LYF25-8 | 8.4 | 16 | 38 | |||
| WB0006-0011 | LYF25-10 | 10.5 | 17 | 42 | |||

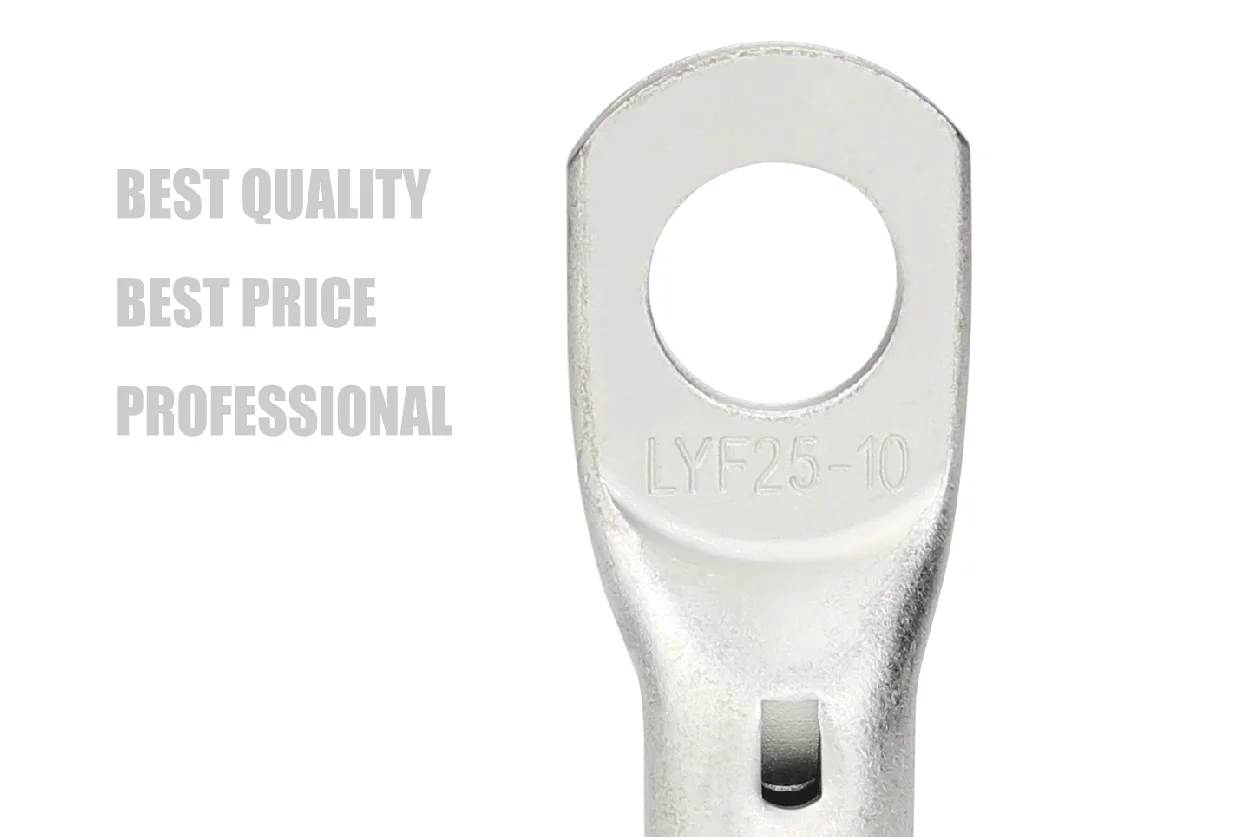

| WB0006-0012 | LYF25-12 | 13 | 22 | 47 | |||
| WB0006-0013 | LYF35-6 | 6.5 | 18 | 44 | 13 | 9 | 14 |
| WB0006-0014 | LYF35-8 | 8.4 | 18 | 44 | |||
| WB0006-0015 | LYF35-10 | 10.5 | 18 | 44 | |||
| WB0006-0016 | LYF35-12 | 13 | 22 | 52 | |||
| WB0006-0017 | LYF50-6 | 6.5 | 21 | 50 | 14.5 | 11 | 17 |
| WB0006-0018 | LYF50-8 | 8.4 | 21 | 50 | |||
| WB0006-0019 | LYF50-10 | 10.5 | 21 | 50 | |||
| WB0006-0020 | LYF50-12 | 13 | 21 | 53 | |||
| WB0006-0021 | LYF70-6 | 6.5 | 25 | 55 | 17 | 13 | 20 |
| WB0006-0022 | LYF70-8 | 8.4 | 25 | 55 | |||
| WB0006-0023 | LYF70-10 | 10.5 | 25 | 55 | |||
| WB0006-0024 | LYF70-12 | 13 | 25 | 58 | |||
| WB0006-0025 | LYF70-16 | 17 | 28 | 64 | |||
| WB0006-0026 | LYF95-8 | 8.4 | 29 | 69 | 20 | 15 | 23 |
| WB0006-0027 | LYF95-10 | 10.5 | 29 | 69 | |||
| WB0006-0028 | LYF95-12 | 13 | 29 | 69 | |||
| WB0006-0029 | LYF95-16 | 17 | 29 | 69 | |||
| WB0006-0030 | LYF120-10 | 10.5 | 32 | 73 | 22 | 17 | 25 |
| WB0006-0031 | LYF120-12 | 13 | 32 | 73 | |||
| WB0006-0032 | LYF120-16 | 17 | 32 | 73 | |||
| WB0006-0033 | LYF150-10 | 10.5 | 36 | 80 | 25 | 19 | 30 |
| WB0006-0034 | LYF150-12 | 13 | 36 | 80 | |||
| WB0006-0035 | LYF150-16 | 17 | 36 | 80 | |||
| WB0006-0036 | LYF150-20 | 21 | 36 | 87 | |||
| WB0006-0037 | LYF185-10 | 10.5 | 39 | 86 | 27 | 21 | 35 |
| WB0006-0038 | LYF185-12 | 13 | 39 | 86 | |||
| WB0006-0039 | LYF185-16 | 17 | 39 | 86 | |||
| WB0006-0040 | LYF185-20 | 21 | 39 | 93 | |||
| WB0006-0041 | LYF240-10 | 10.5 | 44 | 95 | 30 | 24 | 35 |
| WB0006-0042 | LYF240-12 | 13 | 44 | 95 | |||
| WB0006-0043 | LYF240-16 | 17 | 44 | 95 | |||
| WB0006-0044 | LYF240-20 | 21 | 44 | 95 | |||
| WB0006-0045 | LYF300-10 | 10.5 | 47 | 114 | 32 | 26 | 42 |
| WB0006-0046 | LYF300-12 | 13 | 47 | 114 | |||
| WB0006-0047 | LYF300-16 | 17 | 47 | 114 | |||
| WB0006-0048 | LYF300-20 | 21 | 47 | 114 | |||
| WB0006-0049 | LYF300-24 | 26 | 47 | 114 | |||
| WB0006-0050 | LYF400-12 | 13 | 54 | 126 | 36 | 30 | 48 |
| WB0006-0051 | LYF400-16 | 17 | 54 | 126 | |||
| WB0006-0052 | LYF400-20 | 21 | 54 | 126 | |||
| WB0006-0053 | LYF400-24 | 26 | 54 | 126 | |||
| WB0006-0054 | LYF500-20 | 21 | 61 | 134 | 42 | 33 | 47 |
| WB0006-0055 | LYF500-24 | 26 | 61 | 134 | |||
| WB0006-0056 | LYF630-BL | 75 | 180 | 53 | 39 | 68 | |
| WB0006-0057 | LYF630-20 | 21 | 75 | 180 | |||
| WB0006-0058 | LYF630-24 | 26 | 75 | 180 | |||
Product Effects
When you see this picture, do you want to know why ?
There are two main reasons:
1. the quality problem of a product itself.
2. the quality problem of product crimping .
We have a strong datebase on the quality and crimping of cable lug .
If you are interested in these date , please mail us and discuss them together .we look forward to your consultation .
