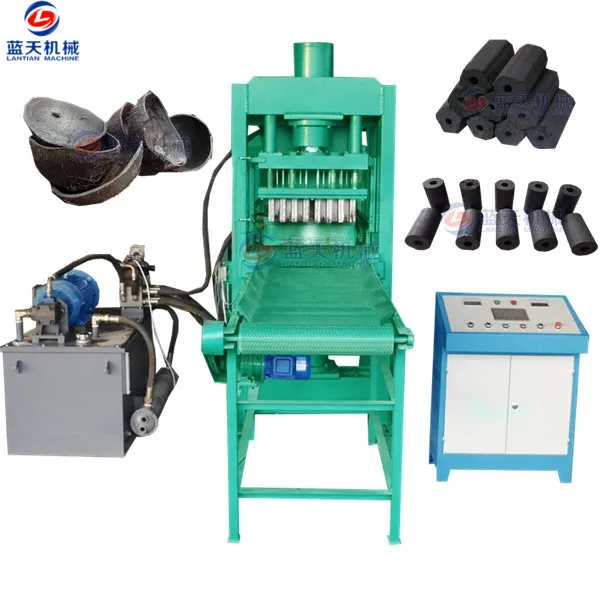

Sawdust bbq charcoal coal briquette making machine
Charcoal coal briquette making machine is our latest patented product, because it has large pressure, and the pressure can be adjusted according to different raw materials, so it has best molding effect, even some raw materialss are not easy to mold. it also can press into good shapes.The whole machine includes main engine, electric control cabinet, hydraulic
cylinder and outlet conveyor belt.
The whole machine is composed of customized molds, PLC system, hydraulic pump station, mesh belt conveyor, and feed inlet. The height of the mold can be adjusted through the sensor switch, so that it can be pressed into carbon blocks of different heights.Since the mold can be customized, you can tell us the shape of the mold you want. We will customize it for you. In general, you can choose a square shape, a disc shape, a cylinder, a hexagonal prism, etc. The finished product can burn for 1-4 hours.
Struction for Sawdust bbq charcoal coal briquette making machine

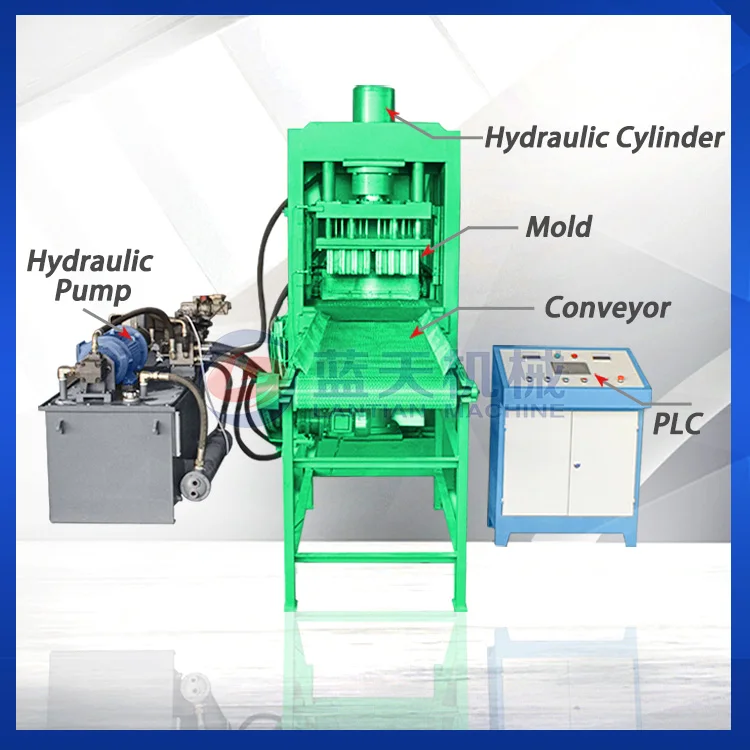

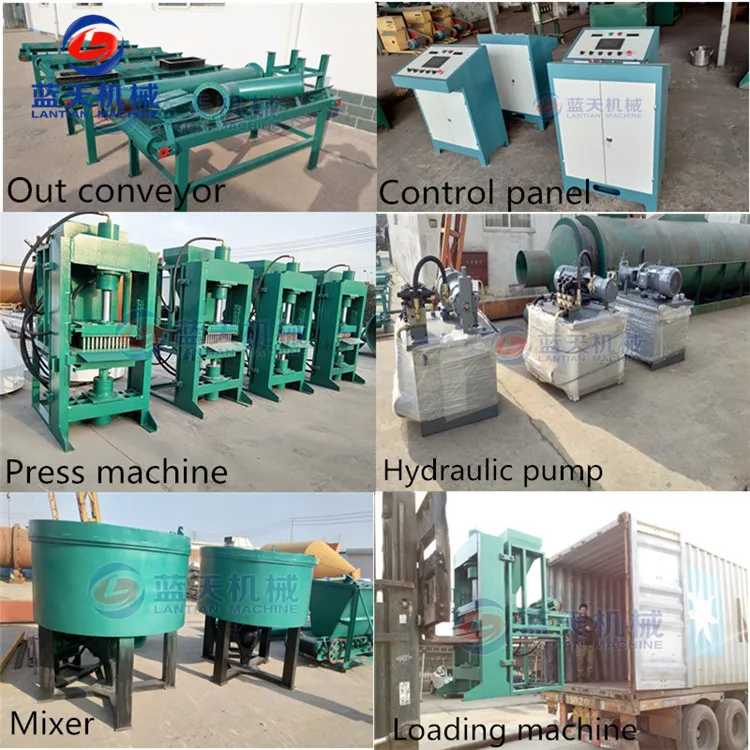

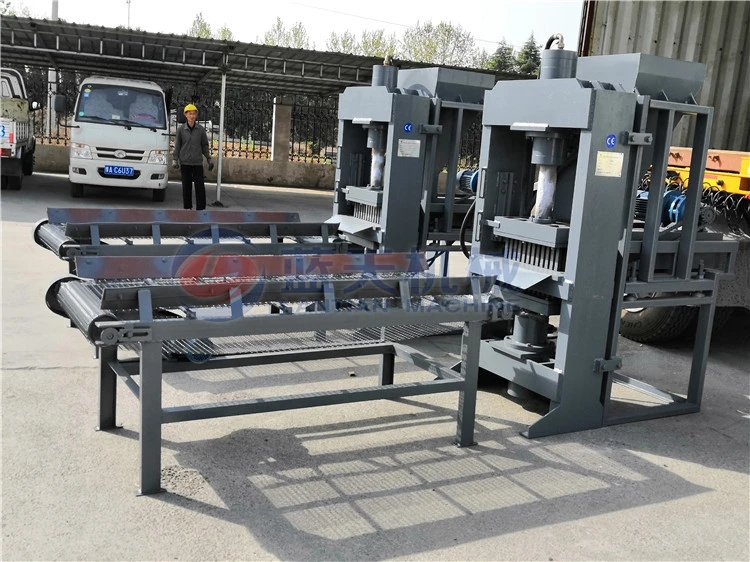

The briquette machine is composed of hydraulic station, PLC system, mold, out conveyor

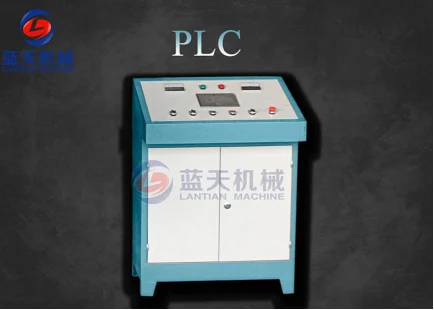

PLC System
This machine control by PLC system,
The PLC system can make the machine work fully automatically or semi-automatically, and the hydraulic pressure and pressure time can be adjusted.

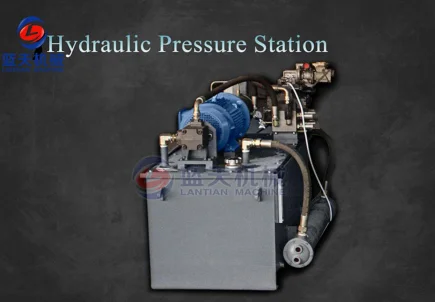

Hydraulic pressure station
The motor on the hydraulic pump station is placed horizontally, and the pump core is also outside. When the machine is working, the temperature of the hydraulic oil in the oil cylinder will increase with the motor. In order to prevent the heat generated during work into the oil tank and cause safety problems, and we also have a cooling system outside the oil tank.

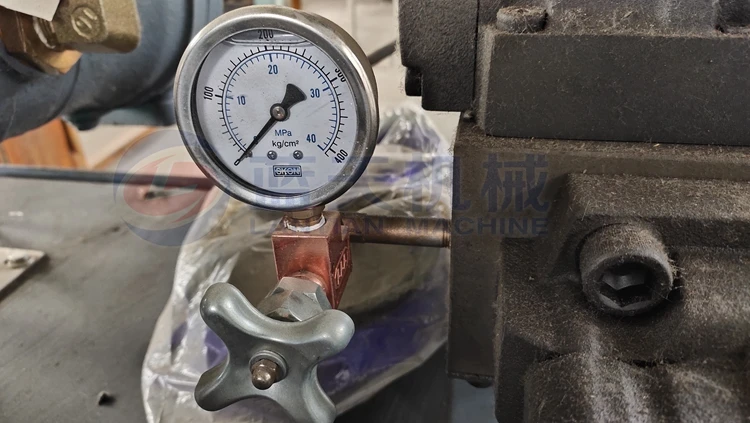

Pressure gauge
Hydraulic station has one pressure gauge, when you test machine ,adjust it at 5,after test sucessful, adjustable it to 15 to keep machine working normally.

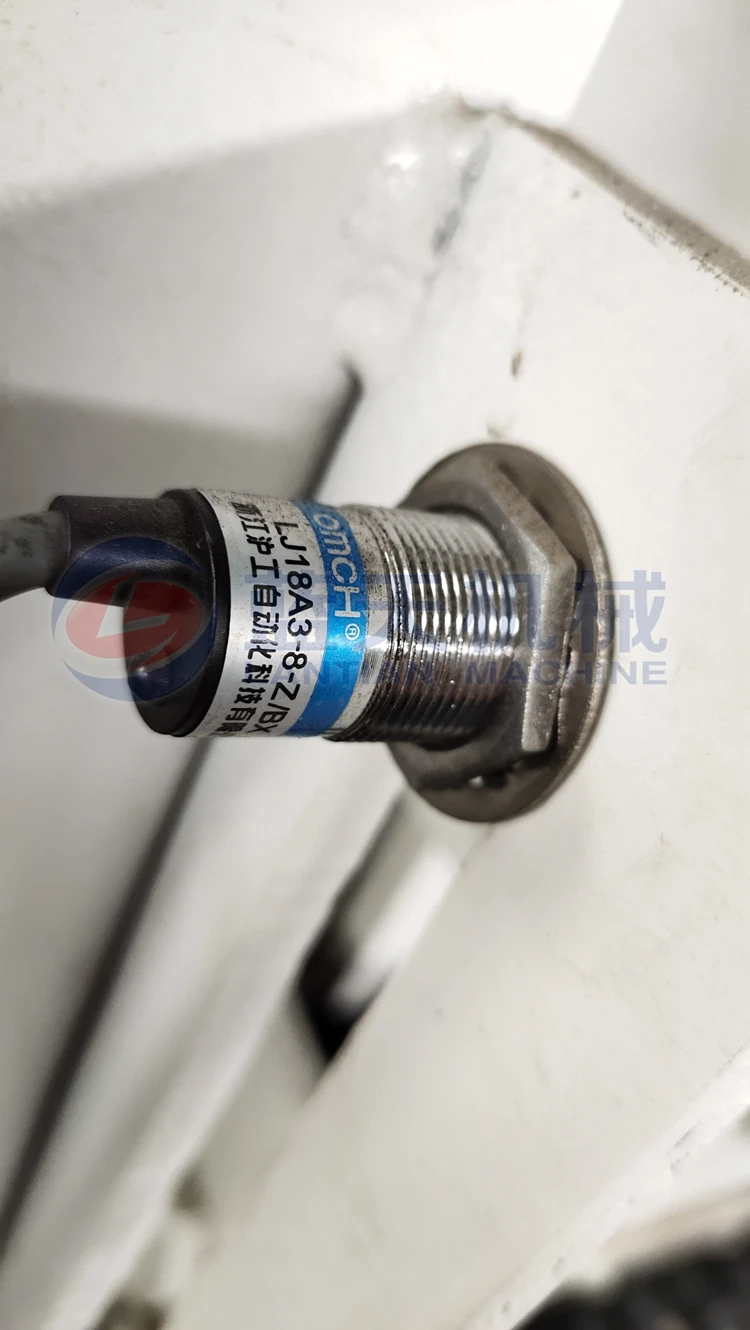

Sensor
Hydraulic charcoal briquettes press machine has 6 pcs to control this machine working normall.
Some sensore can adjustable the final charcoal briquettes height,meaning one set mold can press different height products, but maxium height is 12cm
One set sensore can use more than 3 years,and its easy buy in local market

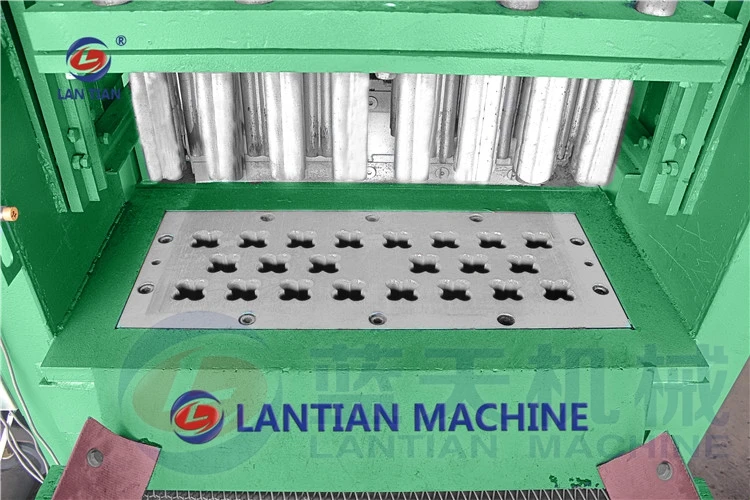

Mold
We supply different shape and size charcoal briquettes mold.one set press machine suitable different products by changing molds.
Advice charcoal briquettes shape and size
Cylinder shape:
Diameter:45mm, height:60mm, hole:5mm

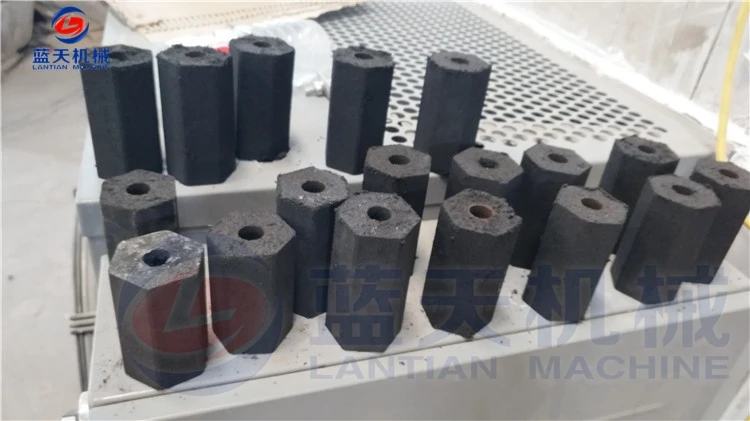

Hexagonal shape:
Diameter:50mm, height:60mm, hole:5mm
Hexagonal shape

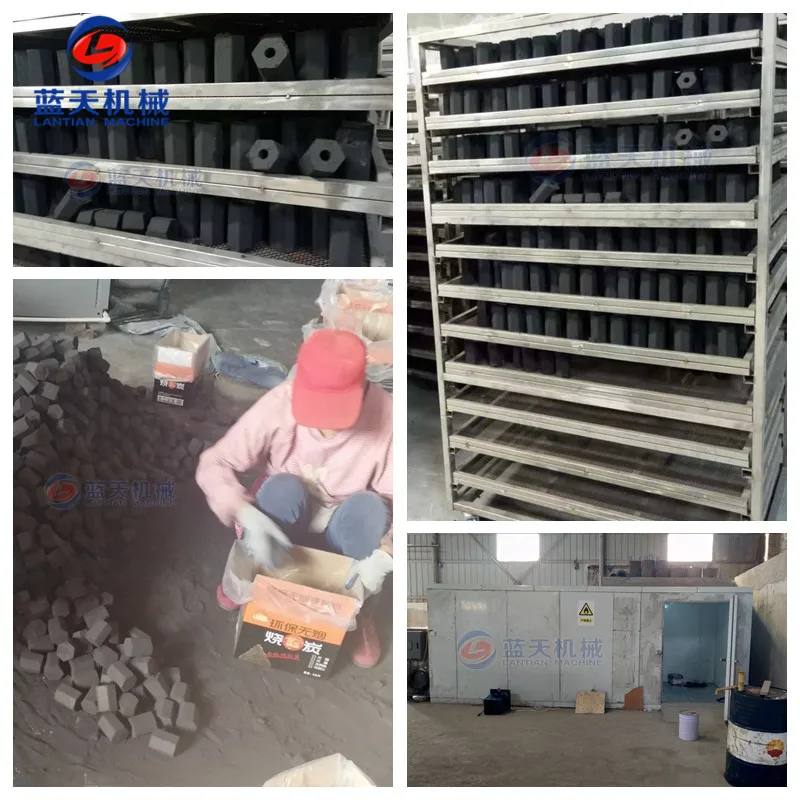

Character of charcoal briquettes
-High density
-Long burning time
-Good appearance

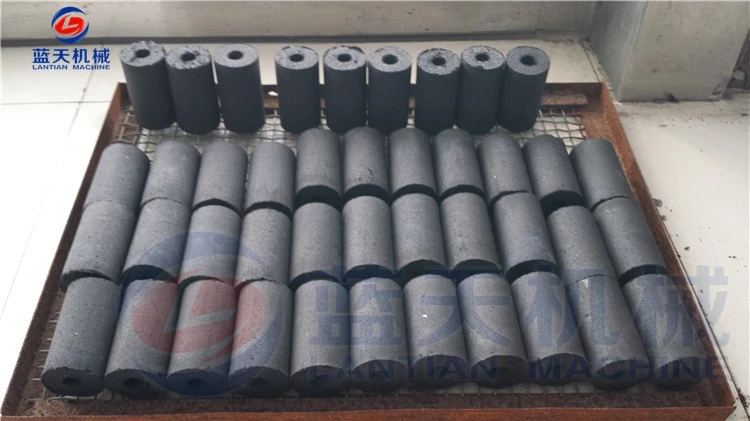

Cylinder shape
Advice size
Diameter:45mm
Hole:5mm
Height:50mm
We accept customs different mold size
Detailed Images

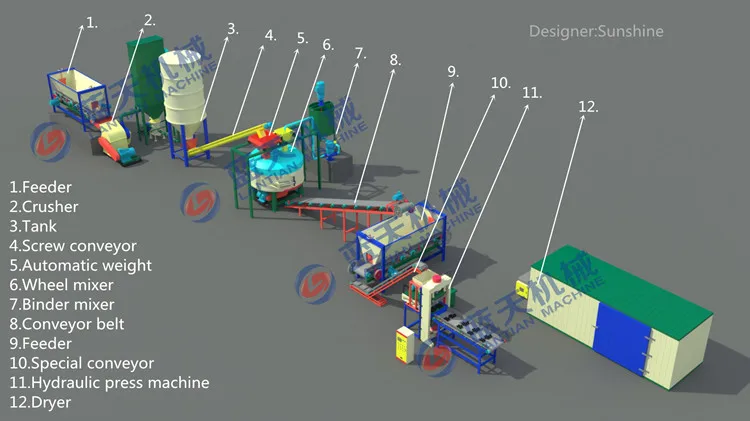

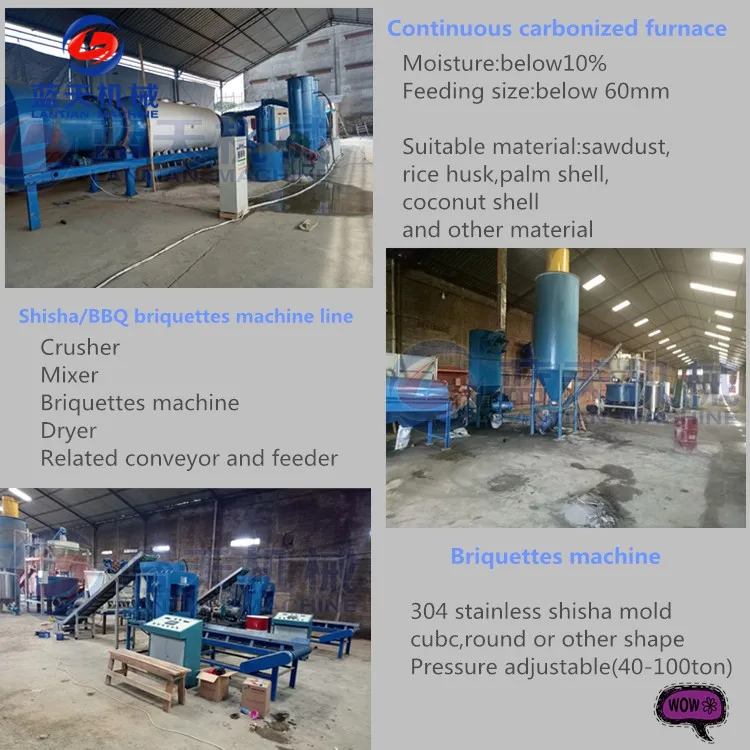

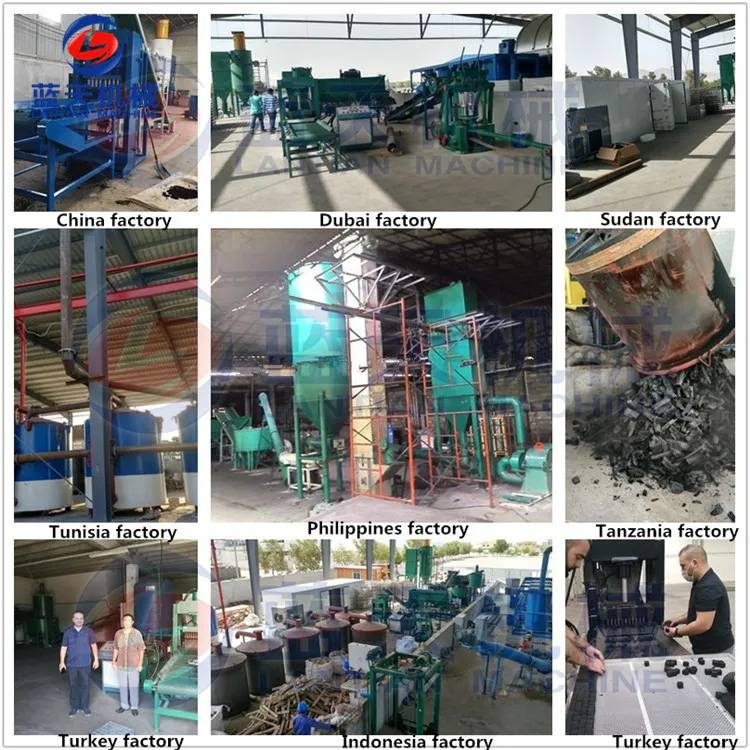

Full product line for Sawdust bbq charcoal coal briquette making machine
1)Carbonization furnace:carbonized wood log, bamboo,coocnut shell or other material to charcoal
2)Crusher:crush coconut charcoal to powder
2)Crusher:crush coconut charcoal to powder
3)Mixer:mix charcoal powder with binder
4)Binder mixer:mix binder from starch
5)Hydraulic briquettes machine ：Produce briquettes
6)Dryer: drying final briquettes
Size Information
Size Chart of This Design
Model | Capacity | Weight | Motor | Oversize |
LT36 | 150-200kg/h | 2100kg | 15+2.2+0.75kw | 2500*1200*2350mm |
LT-22 | 600-800kg/h | 2600kg | 15+2.2+0.75kw | 3500*1300*2750mm |
Related Products
Packing&Shipping

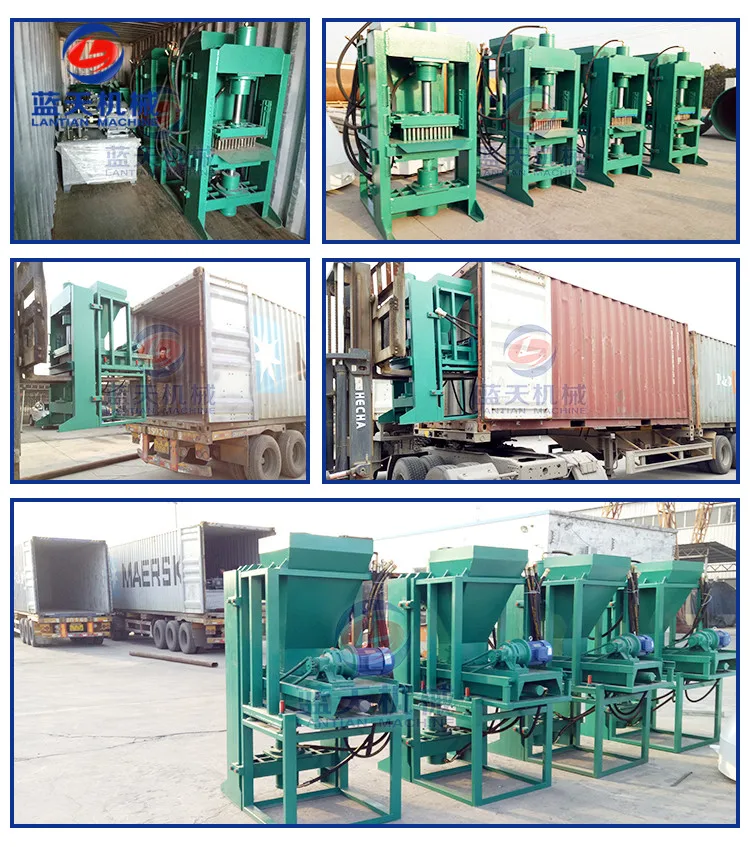

Packing & shipping for Sawdust bbq charcoal coal briquette making machine
One set machine will packed by plywood case finished shipping.
Full product line will shipping directly inside the container
One product line suitable 2 sets briquettes machine working together
After Sales Service
After sales service
when machine arrived customer's factory
we will send one technician visit your's factory ,install all the machine before he leave.
we supply free training in local factory.

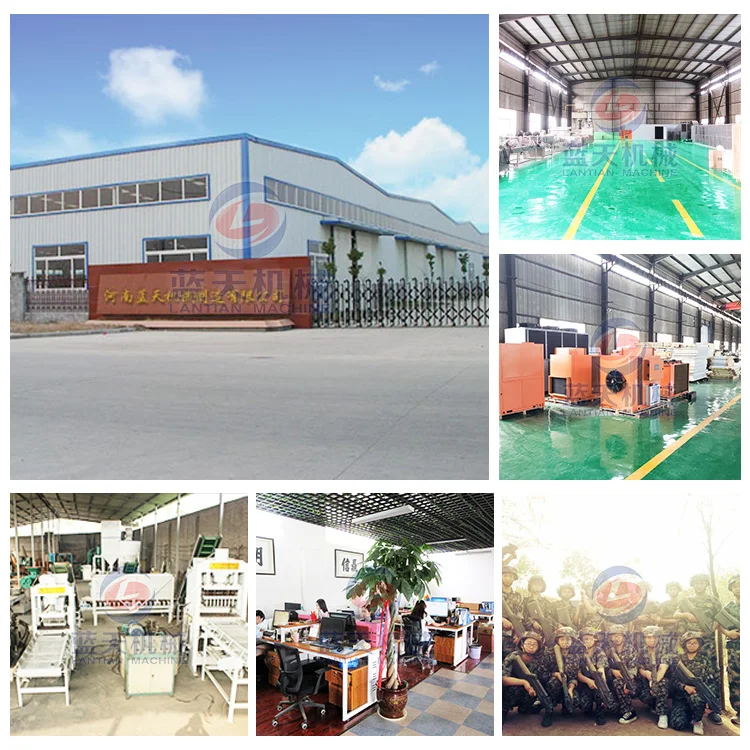

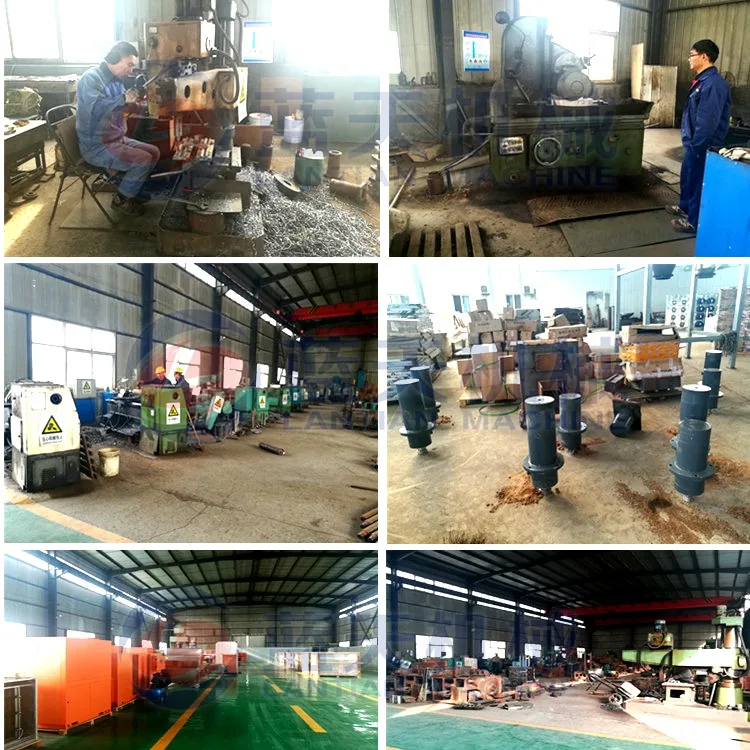

Company Introduction
Henan Lantian Machinery Manufacture Co., Ltd. was built at 1980s, more than 20years manufacturer experience.Our factory mainly produce Coal Charcoal briquette machine,Shisha Hookah briquette machine,Hydraulic press machine,Ball press machine,Biomass extrude machine,Charcoal extrude machine,Carbonized stove,Carbonized stove and other related machine.such as Crusher,Mixer, Conveyor,Feeder.We help customers choose and design the best quality product line for different type machine.our machine Sold at home and abroad,supply those certifications:CE.ISO9001,CO,Form E,COC,CIQ,to help customer from different country custom clearance.
Our Services & Strength
Professtional sales team + Professtional Technician team
FAQ
Before you get quotation from me, i need ask those question to help me supply the best offer for you
Question

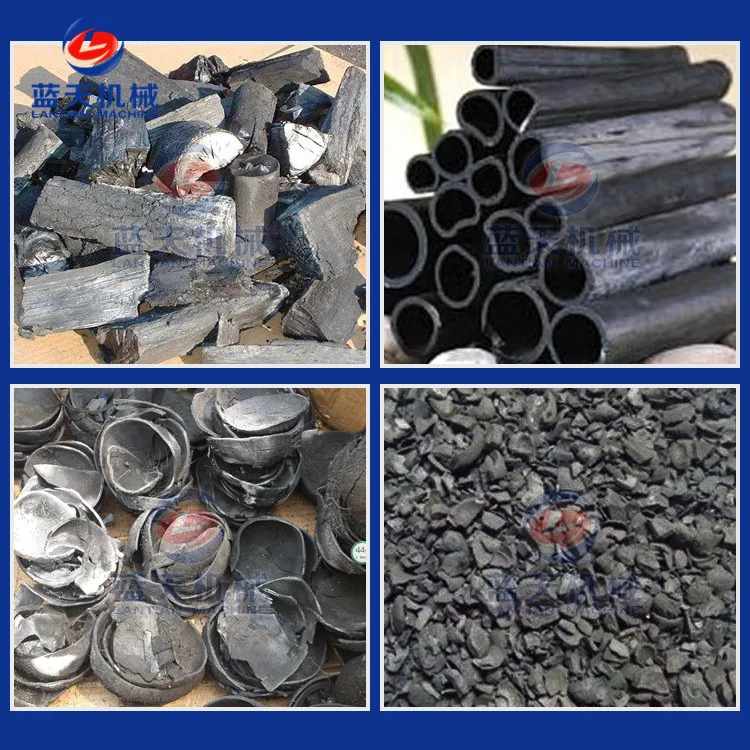

1-Whats your raw material?
Wood or charcoal ?
2-What shape and size for final briquettes?
Shisha mold:cubic shape ,25*25*25mm
or BBQ mold,hexagonal shape,45mm diameter, 50mm height with 5mm hole?
3-What capacity you need?
600-800kg/h? or other
4-Whether you need full product line ?
from carbonization furnace- charcoal crusher-mixer- briquettes machine -dryer
