Factory Supplier UV drying belt Heat Resistant ptfe coated fiberglass cloth fabric for heat press

Product Overview

Description

Factory Supplier UV drying belt Heat Resistant Ptfe sheet roll Glass Fiber Fabric

Product name	Factory Supplier UV drying belt Heat Resistant Ptfe sheet roll Glass Fiber Fabric
Type	PTFE Coated Fiberglass Fabric
Material	PTFE Coated Fiberglass Fabric
Color	Black,brown,white,silver or customized
Thickness	0.08 mm - 0.95 mm or customized
Good Features	High temperature resistance, Corrosion Resistance
Certificates	,PONY,REACH
Application	Wall/Roof covering Cloth, Conveyer belt, insulation,lamination,heat transfer,baking,demoulding
Price	Get the lastest discount here



Product Description

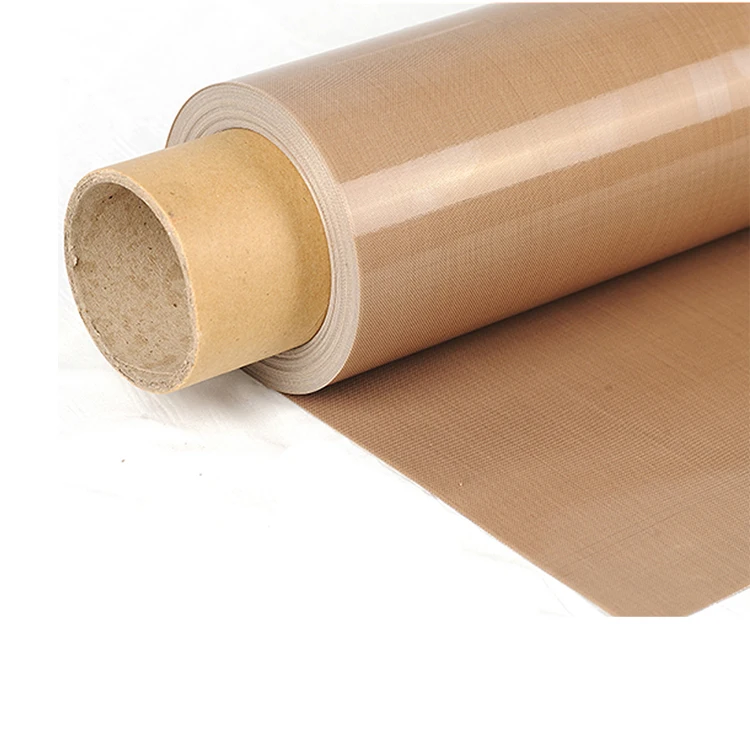

ptfe fiberglass fabric
fiberglass fabric use best imported Fiberglass yarn as the weaving material to plain knit or specially knit into superior fiberglass basic cloth, coat it with fine PTFE resin then make it into various PTFE  fabricin different thickness and widths.



PTFE Fabric Characteristic :
Generally, PTFE coated fiberglass fabric exhibits the following high-performance characteristics:
1.Non-stick surface
2.Excellent temperature resistance: from -100°F - +500°F (-73°C - +260°C)
3.Chemically inert
4.High tensile strength



PTFE Fabric Application:
Designed for a wide range of applications,Ruida PTFE fabric is available in several grades to match specific performance requirements.



Model:

Model	Thickness	Max Width	Length  Range	Colour  Available
	mm
9008	0.08	1.2m	Customized	White, beige, brown, black
9013A	0.11	1.2m	Customized	White, brown, black
9013B	0.12	1.2m	Customized	White, brown, black
9013C	0.13	1.2m	Customized	White, brown, black
7015	0.15	1.2m	Customized	BROWN
9018	0.18	1.2m	Customized	BROWN
7025	0.25	1.2m	Customized	BROWN
7035	0.35	Customized	Customized	Brown, black
9040	0.4	Customized	Customized	Brown, black
9055	0.55	Customized	Customized	BROWN
9065	0.62	Customized	Customized	BROWN
9090	0.9	Customized	Customized	BROWN

Premium-A+ Grad ptfe Fabric
Featuring an extra heavy coating of PTFE, Premium- A Grade Fabric delivers a super-smooth surface,
perfect for advanced applications, including:
1.Release sheets for cooking and baking applications
2.Laminate separator sheets
3.Specialized heat-sealing
4.Demanding, non-stick applications

Standard-A Grade PTFE Fabric
With a smooth surface and superb non-stick properties, Ruida Standard-A Grade Fabric serves the widest
range of applications, including:
1.Release sheets on heat-sealing machines and laminate presses
2.Non-stick surfaces for paints, adhesives and food products
3.Gaskets, seals and bearings for chemicals, oils and gases
4.Thermal insulation for high-temperature and chemical-resistant applications
5.Covers for hot plates, platens, chutes, hoppers, troughs and rolls

Mechanical-B+ Grade PTFE  Fabric
Designed to deliver resistance to high temperatures and chemicals, Ruida Mechanical-B Grade Fabric utilizes
a medium coating of PTFE. Typical applications include chemical-resistant laboratory aprons and protective
curtains, such as:
1.Bottle washers and paint spraying curtains
2.Food packaging
3.Acid protection

Economy-B Grade  PTFE Fabrics
Providing a light coat of PTFE, Taconic Economy-Grade Fabrics are designed for large volume
applications which require cost-efficiency, yet still need high performance. Typical uses include:
1.Leaders for processing paper, plastics, metallic foils and cloth
2.Separator sheets for processing uncured rubber
3.The manufacture of abrasive wheels

Porous Bleeder & Filter PTFE Fabrics
These fabrics are available over a wide range of porosity. Principle applications include:
1.filtration
2.strainers
3.pollution abatement

Crease & Tear Resistant PTFE Fabric
Provides an unusually flexible material for use in applications where high tear-strength and good flex-life are demanded.



Anti-static Fabrics
black Anti-static PTFE fabrics is provided with a carbon loading giving semi-conductive and anti-static properties to the material. It  eliminates or reduces static problems in belt and slip sheet applications.



PTFE glass coated fabric for conveyor belts of drying machines
